2006 FORD FREESTAR Owners Manual

7. Remove the dipstick and inspect the fluid level. The fluid should be in
the designated areas for normal operating temperature.
Low fluid level
Do not drive the vehicle if the fluid
level is at the bottom of the dipstick
and the outside temperatures are
above 50°F (10°C).
Correct fluid level
The transmission fluid should be checked at normal operating
temperatures 150°F-170°F (66°C-77°C) on a level surface. The normal
operating temperature can be reached after approximately 20 miles
(30 km) of driving.
The transmission fluid should be in
this range if at normal operating
temperature (150°F-170°F
[66°C-77°C]).
High fluid level
Fluid levels above the safe range
may result in transaxle failure. An
overfill condition of transmission
fluid may cause shift and/or
engagement concerns and/or possible damage.
High fluid levels can be caused by an overheating condition.
Adjusting automatic transmission fluid levels
Before adding any fluid, make sure the correct type is used. The type of
fluid used is normally indicated on the dipstick and also in the
Lubricant specificationssection in this chapter.
Use of a non-approved automatic transmission fluid may cause
internal transaxle component damage.
If necessary, add fluid in 1/2 pint (250 mL) increments through the filler
tube until the level is correct.
If an overfill occurs, excess fluid
should be removed by a qualified
technician.
An overfill condition of
transmission fluid may cause shift and/or engagement concerns
and/or possible damage.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
297

Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
Note:Do not start your engine with the air cleaner removed and do not
remove it while the engine is running.
1. Disconnect the Mass Air Flow
Sensor electrical connector from the
air outlet tube.
Reposition the locking clip (on the
connector) and squeeze connector
to remove.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
298

2. Loosen the hose clamp located
closest to the air cleaner.
3. Remove the air cleaner assembly
from the vehicle.
4. Release the two clamps that
secure the cover to the air filter
housing and place the cover aside.
5. Remove the air filter element
from the air filter housing.
6. Wipe the air filter housing and cover clean to remove any dirt or
debris and to ensure good sealing.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
299

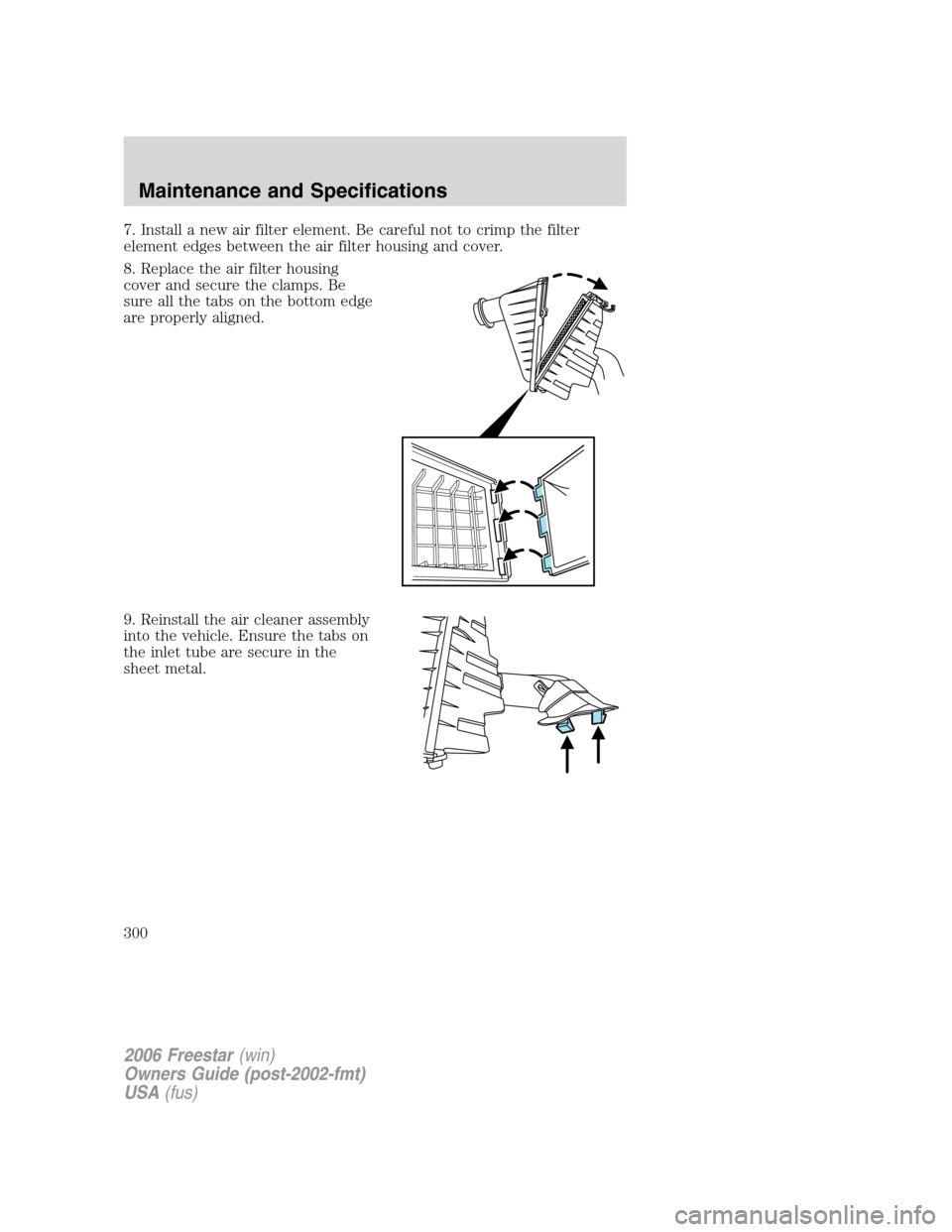

7. Install a new air filter element. Be careful not to crimp the filter
element edges between the air filter housing and cover.
8. Replace the air filter housing
cover and secure the clamps. Be
sure all the tabs on the bottom edge
are properly aligned.
9. Reinstall the air cleaner assembly
into the vehicle. Ensure the tabs on
the inlet tube are secure in the
sheet metal.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
300

10. Ensure the pads on the bottom
of the air cleaner assembly are
properly seated.
11. Reconnect the outlet tube to the
air cleaner assembly and tighten the
clamp.
12. Reconnect the Mass Air Flow
Sensor electrical connector to the
outlet tube. Make sure the locking
tab on the connector is in “locked”
position.
Note:If hose clamp is not secured properly or Mass Air Flow Sensor
electrical connector is not properly installed the Check Engine light will
illuminate when vehicle is operated.
Note:Do not use oil-impregnated air filter elements. Failure to use the
correct air filter element may result in severe engine damage. The
customer warranty may be voided for any damage to the engine if the
correct air filter element is not used.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
301

MOTORCRAFT PART NUMBERS
Component 3.9L OHV V6 engine 4.2L OHV V6 engine
Air filter element FA-1679 FA-1679
Battery BXT-59 BXT-59
BXT-65-750 BXT-65-750
Fuel filter FG-986B FG-986B
Oil filter FL-400S FL-400S
PCV valve
1
Spark plugs2
1
The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationand is essential to the
life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
2For spark plug replacement, see your authorized dealer. Refer to the
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
302

REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
Fluid
1
All Fill to MAX line
on reservoir
Engine oil
(includes filter
change)
3
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)3.9L engine 5.0 quarts
(4.7L)
4.2L engine 5.0 quarts
(4.7L)
Engine coolant
2Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)Without rear
heater14.8 quarts
(14.0L)
With rear heater 15.9 quarts
(15.0L)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to line on
reservoir
Fuel tank N/A All 26.0 gallons
(98.4L)
Automatic
transaxle fluidMotorcraft
MERCONV
AT FAll 13.7 quarts
(13.0L)
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll Fill to line on
reservoir
1Use only brake fluids certified to meet Ford specifications. Refer to
Lubricant Specificationsin this chapter. DOT 3 fluid is recommended.
However, if DOT 3 is not available, DOT 4 fluid can be used.
2Add the coolant type originally equipped in your vehicle.
3Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C930-A and the API Certification mark.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
303

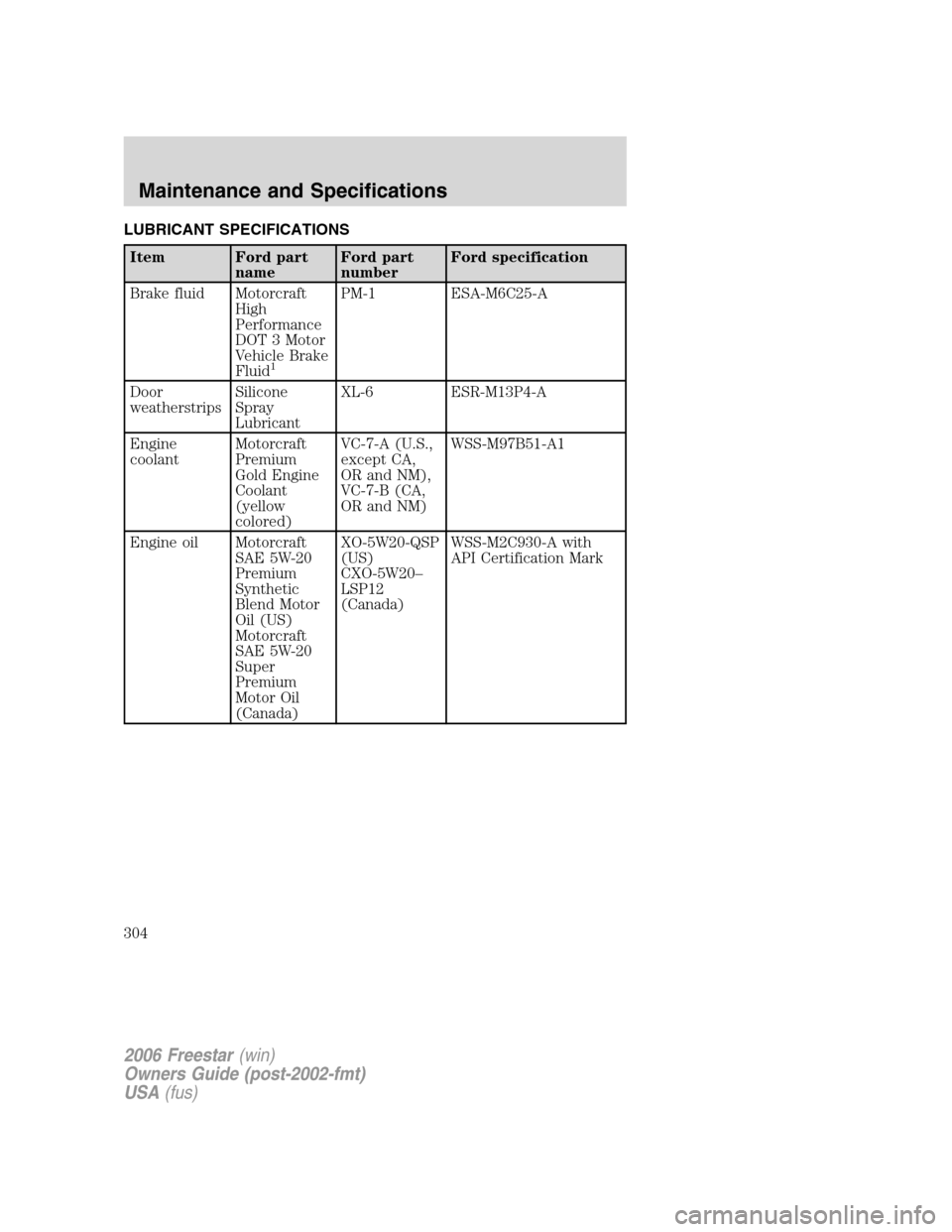

LUBRICANT SPECIFICATIONS
Item Ford part
nameFord part
numberFord specification
Brake fluid Motorcraft
High
Performance
DOT 3 Motor
Vehicle Brake
Fluid
1
PM-1 ESA-M6C25-A
Door
weatherstripsSilicone
Spray
LubricantXL-6 ESR-M13P4-A
Engine
coolantMotorcraft
Premium
Gold Engine
Coolant
(yellow
colored)VC-7-A (U.S.,
except CA,
OR and NM),
VC-7-B (CA,
OR and NM)WSS-M97B51-A1
Engine oil Motorcraft
SAE 5W-20
Premium
Synthetic
Blend Motor
Oil (US)
Motorcraft
SAE 5W-20
Super
Premium
Motor Oil
(Canada)XO-5W20-QSP
(US)
CXO-5W20–
LSP12
(Canada)WSS-M2C930-A with
API Certification Mark
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
304
