Introduction 4
Instrument Cluster 10
Warning and control lights 10
Gauges 15
Entertainment Systems 18
AM/FM stereo 18
AM/FM stereo with CD 20
AM/FM stereo cassette with CD 23
AM/FM stereo with in-dash six CD 26
Climate Controls 33
Manual heating and air conditioning 33
Rear window defroster 42
Lights 43
Headlamps 43
Turn signal control 47
Bulb replacement 49
Driver Controls 54
Windshield wiper/washer control 54
Steering wheel adjustment 55
Power windows 65
Mirrors 66
Speed control 68
Message center 76
Locks and Security 91
Keys 91
Locks 91
Anti-theft system 105
Table of Contents
1
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)

Low washer fluid:Illuminates when the windshield washer fluid is low.
•Without Message Center
•With Message Center
Door ajar:Illuminates when the ignition is in the ON position and any
door is open.
•Without Message Center
•With Message Center
Displays which door or the liftgate is
open.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators stay on or flash faster, check for a burned out bulb.
Bulb warning:Illuminates when one of the exterior front turn lamps or
rear brake/turn/tail lamps bulb has burned out.
•Without Message Center
•With Message Center
Displays which bulb is burned out.
Depress the RESET control to clear.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
14

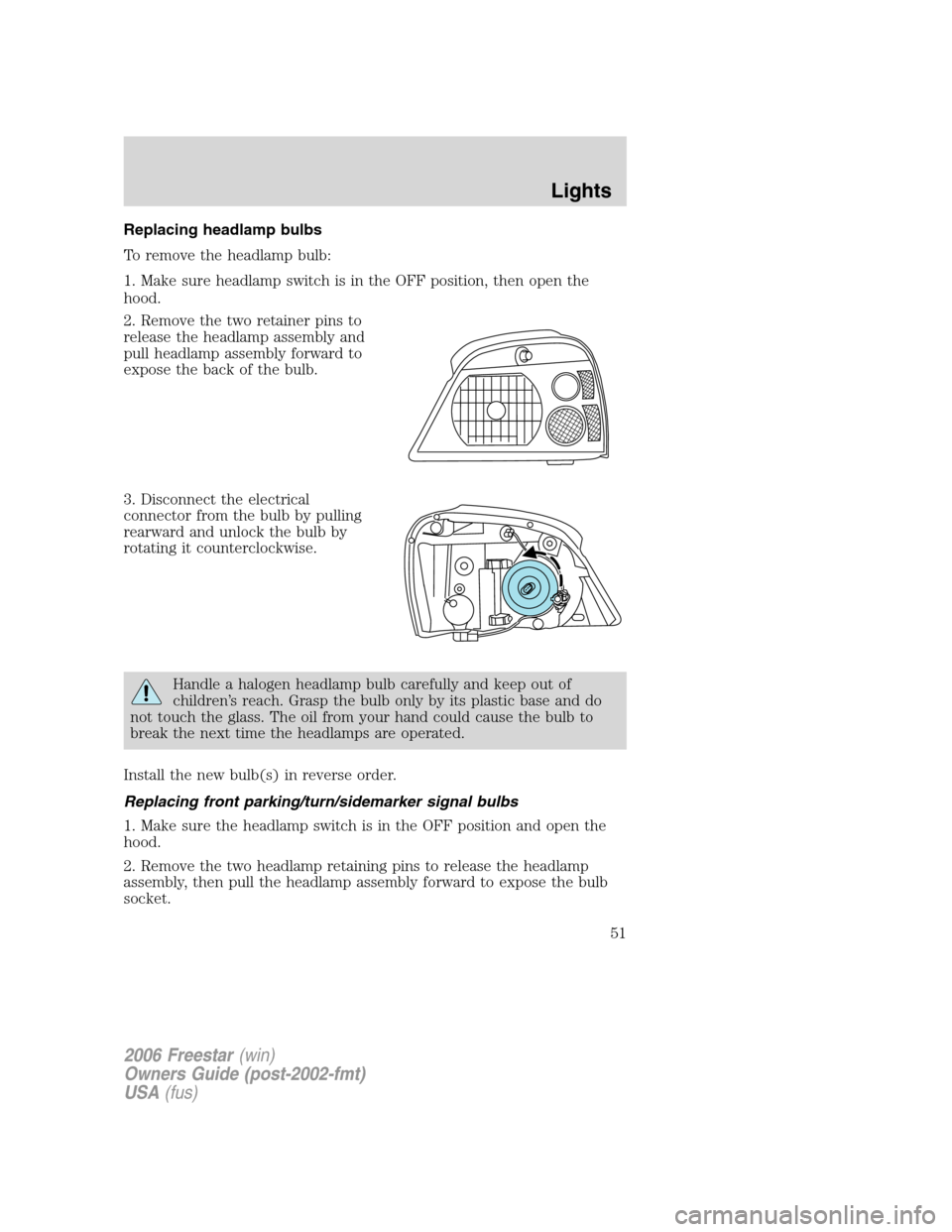

Replacing headlamp bulbs
To remove the headlamp bulb:
1. Make sure headlamp switch is in the OFF position, then open the
hood.
2. Remove the two retainer pins to
release the headlamp assembly and
pull headlamp assembly forward to
expose the back of the bulb.
3. Disconnect the electrical
connector from the bulb by pulling
rearward and unlock the bulb by
rotating it counterclockwise.
Handle a halogen headlamp bulb carefully and keep out of
children’s reach. Grasp the bulb only by its plastic base and do
not touch the glass. The oil from your hand could cause the bulb to
break the next time the headlamps are operated.
Install the new bulb(s) in reverse order.
Replacing front parking/turn/sidemarker signal bulbs
1. Make sure the headlamp switch is in the OFF position and open the
hood.
2. Remove the two headlamp retaining pins to release the headlamp
assembly, then pull the headlamp assembly forward to expose the bulb
socket.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
51

CHECK BRAKE SYSTEM.Displayed when the braking system is not
operating properly. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.
CHECK BRAKE LAMPS.Displayed when the brake lamps are
activated and at least one is burned out. Check the lamps as soon as
possible and have the burned out lamp replaced. The center high-mount
brakelamp is not monitored.
CHECK LEFT OR RIGHT HEADLAMPS.Displayed when the
headlamps are activated and at least one is burned out. Check the lamps
as soon as possible and have the burned out lamp replaced. Refer to
Replacing headlamp bulbsin theLightschapter.
CHECK LEFT OR RIGHT PARK LAMPS.Displayed when the park
lamps are activated and at least one is burned out. Check the lamps as
soon as possible and have the burned out lamp replaced.
CHECK LEFT OR RIGHT TURN LAMPS.Displayed when the turn
signals are activated and at least one is burned out. Check the lamps as
soon as safely possible and have the burned out lamp replaced.
LOW TIRE PRESSURE.Displayed when one or more tires on your
vehicle have low tire pressure. Refer toInspecting and Inflating Your
Tiresin theTires, Wheels and Loadingchapter.
TIRE PRESSURE MONITOR FAULT.Displayed when the Tire
Pressure Monitoring System is malfunctioning. If the warning stays on or
continues to come on, have the system inspected by your authorized
dealer.
TIRE PRESSURE SENSOR FAULT.Displayed when a tire pressure
sensor is malfunctioning, or your spare tire is in use. For more
information on how the system operates under these conditions, refer to
Understanding Your Tire Pressure Monitoring Systemin theTires,
Wheels and Loadingchapter. If the warning stays on or continues to
come on, have the system inspected by your authorized dealer
LOW FUEL LEVEL.Displayed when the fuel level in the fuel tank is at
or near empty.
WASHER FLUID LOW.Indicates the washer fluid reservoir is less than
one quarter full. Check the washer fluid level. Refer toWindshield
washer fluidin theMaintenance and Specificationschapter.
CHANGE OIL SOON.Displayed when the engine oil life remaining is 5
percent or less. When oil life left is between 5% and 0%, the CHANGE
OIL SOON message will be displayed. When oil life left reaches 0%, the
OIL CHANGE REQUIRED message will be displayed.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
81

Tongue Loadsection in the trailer towing chart earlier in this section for
range details on a specific trailer load.
Safety chains
Always connect the trailer’s safety chains to the hook retainers on the
hitch. To connect the trailer’s safety chains, cross the chains under the
trailer tongue and allow slack for turning corners.
If you use a rental trailer, follow the instructions that the rental agency
gives to you.
Do not attach safety chains to the bumper.
Trailer brakes
Be sure your trailer conforms to all applicable local and Federal
Regulations regarding trailer braking. If your trailer is equipped with
electronically controlled brakes you will need to have an electronic brake
controller with associated wiring installed to your vehicle by an
authorized dealer.
Do not connect a trailer’s hydraulic brake system directly to your
vehicle’s brake system. Your vehicle may not have enough
braking power and your chances of having a collision greatly increase.
The braking system of the tow vehicle is rated for operation at the
GVWR not GCWR.
Trailer lamps
Trailer lamps are required on most towed vehicles. Make sure all running
lights, brake lights, turn signals and hazard lights are working.
Do not splice into the vehicle lamp wiring for trailer lamps. Your
vehicle uses an advanced electronic module to control and
monitor your vehicle lamps. Splicing into the wiring or attaching
wiring to the vehicle bulb. may DISABLE the rear vehicle lamps
or cause them not to function properly. Your lamp outage feature
may also be disabled or provide incorrect information.
See your authorized dealer or trailer rental agency for proper
instructions and equipment for hooking up trailer lamps.
Driving while you tow
When towing a trailer:
•Keep your speed no faster than 70 mph (112 km/h) during the first
500 miles (800 km) of towing a trailer, and don’t make full throttle
starts.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Tires, Wheels and Loading
209

headlamps, flash to pass ..........45
instrument panel, dimming .....45
interior lamps .....................47–49
replacing bulbs .............49, 51–53
Lane change indicator
(see Turn signal) ........................47
Liftgate ............................84, 88, 96
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........216
Load limits .................................200
Locks
autolock ...................................103
childproof ..................................93
doors ..........................................91
Low tire warning .........................15
Lubricant specifications ...304, 306
Lug nuts ....................................246
Luggage rack ...............................88
Lumbar support, seats .............113
M
Message center ...........................76
english/metric button ...............78
system check button ................79
warning messages .....................79
Mirrors ...................................55, 66
automatic dimming rearview
mirror ........................................66
fold away ...................................68
heated ........................................67
programmable memory ..........100
side view mirrors (power) .......67
signal .........................................67
Motorcraft parts ........268, 285, 302
O
Octane rating ............................289Oil (see Engine oil) ..................274
Overdrive ...................................221
P
Parking brake ............................217
Parts (see Motorcraft parts) ....302
Passenger Occupant
Classification Sensor .................135
Pedals (see Power
adjustable foot pedals) ...............68
Power adjustable foot pedals .....68
Power distribution box
(see Fuses) ...............................232
Power door locks ................91, 103
Power liftgate ........................84, 96
Power mirrors .............................67
Power point .................................63
Power steering ..........................219
fluid, checking and adding ....295
fluid, refill capacity ................303
fluid, specifications .........304, 306
Power Windows ...........................65
R
Radio ..........................18, 20, 23, 26
Relays ........................................228
Remote entry system .................95
illuminated entry ................45, 99
locking/unlocking doors .....91, 95
Reverse sensing system ...........223
Roadside assistance ..................226
Roof rack .....................................88
S
Safety Belt Maintenance ..........147
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Index
315
