2006 FORD FREESTAR Owners Manual

CHECK BRAKE SYSTEM.Displayed when the braking system is not
operating properly. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.
CHECK BRAKE LAMPS.Displayed when the brake lamps are
activated and at least one is burned out. Check the lamps as soon as
possible and have the burned out lamp replaced. The center high-mount
brakelamp is not monitored.
CHECK LEFT OR RIGHT HEADLAMPS.Displayed when the
headlamps are activated and at least one is burned out. Check the lamps
as soon as possible and have the burned out lamp replaced. Refer to
Replacing headlamp bulbsin theLightschapter.
CHECK LEFT OR RIGHT PARK LAMPS.Displayed when the park
lamps are activated and at least one is burned out. Check the lamps as
soon as possible and have the burned out lamp replaced.
CHECK LEFT OR RIGHT TURN LAMPS.Displayed when the turn
signals are activated and at least one is burned out. Check the lamps as
soon as safely possible and have the burned out lamp replaced.
LOW TIRE PRESSURE.Displayed when one or more tires on your
vehicle have low tire pressure. Refer toInspecting and Inflating Your
Tiresin theTires, Wheels and Loadingchapter.
TIRE PRESSURE MONITOR FAULT.Displayed when the Tire
Pressure Monitoring System is malfunctioning. If the warning stays on or
continues to come on, have the system inspected by your authorized
dealer.
TIRE PRESSURE SENSOR FAULT.Displayed when a tire pressure
sensor is malfunctioning, or your spare tire is in use. For more
information on how the system operates under these conditions, refer to
Understanding Your Tire Pressure Monitoring Systemin theTires,
Wheels and Loadingchapter. If the warning stays on or continues to
come on, have the system inspected by your authorized dealer
LOW FUEL LEVEL.Displayed when the fuel level in the fuel tank is at
or near empty.
WASHER FLUID LOW.Indicates the washer fluid reservoir is less than
one quarter full. Check the washer fluid level. Refer toWindshield
washer fluidin theMaintenance and Specificationschapter.
CHANGE OIL SOON.Displayed when the engine oil life remaining is 5
percent or less. When oil life left is between 5% and 0%, the CHANGE
OIL SOON message will be displayed. When oil life left reaches 0%, the
OIL CHANGE REQUIRED message will be displayed.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
81

An oil change is required whenever indicated by the message center.
USE ONLY RECOMMENDED ENGINE OILS.
To reset the oil monitoring system to 100% after each oil change
[approximately 5,000 miles (8,000 km) or 180 days] perform the
following:
1. Press the SETUP control to
access the System Check function.
2. Press and release the RESET
control to display “OIL LIFE XX%
HOLD RESET NEW”.
3. Press and hold the RESET
control for 2 seconds to display “IF
NEW OIL HOLD RESET”.
4. Press and hold the RESET
control to display “OIL LIFE SET
TO 100%”. Your oil life is now reset.
To reset the oil monitoring system to your personalized oil life %:
1. Press the SETUP control to
access the System Check function.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
82

2. Press and release the RESET
control to display “OIL LIFE XX%
HOLD RESET NEW”.
3. Press and hold the RESET
control for 2 seconds to display “IF
NEW OIL HOLD RESET”.
4. Release the RESET control
momentarily, then press RESET and
SETUP controls at the same time to
activate a service mode which will
display “OIL LIFE XX% RESET TO
ALTER”.
5. Press RESET until you find your personalized OIL LIFE XX%.
6. With your personalized OIL LIFE XX% displayed, press SETUP to
continue the system check.
DATA ERR.These messages indicate improper operation of the vehicle
network communication between electronic modules.
•Fuel Computer
•Oil life
•Charging system
•Door sensor
•Liftgate sensor
•Exterior lamps
•Traction control
•Washer fluid
•Brake Fluid
Contact your authorized dealer as soon as possible if these messages
occur on a regular basis.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
83

LIFTGATE
Unlock the liftgate (but not release
it) with the power door lock system
and remote entry transmitter.
To open the liftgate, pull the liftgate
handle rearward.
•Do not open the liftgate in a
garage or other enclosed area
with a low ceiling. If the liftgate is
opened, the liftgate could be
damaged against a low ceiling.
•Do not leave the liftgate open while driving. Doing so could cause
serious damage to the liftgate and its components as well as allowing
carbon monoxide to enter the vehicle.
Make sure that the liftgate door is closed to prevent exhaust
fumes from being drawn into the vehicle. This will also prevent
passengers and cargo from falling out. If you must drive with the
liftgate door open, keep the vents open so outside air comes into the
vehicle.
POWER LIFTGATE (PLG) (IF EQUIPPED)
With this option, you can power open or close the liftgate with the
provided controls.
•overhead console button
•remote entry transmitter button
•outside release handle
•liftgate trim-mounted switch (closing)
Opening and Closing the PLG:
The PLG controls will operate without having the key in the ignition. The
transaxle must be in PARK to power operate the PLG, when the key is in
the ignition and turned to the ON position. When the liftgate is being
power closed, a chime will sound three times before the liftgate begins to
power close. A single chime indicates a problem with the close request.
WARNING: Make sure all persons are clear of the power liftgate
area before using the power liftgate controls to open or close the
liftgate.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
84

Keep the keys out of the reach of children. Do not allow children
to play on or near an open or moving power liftgate.
Exercise care, when power opening or closing the PLG in a garage or
other enclosed area with a low ceiling or close to a wall/garage door. The
PLG could be damaged from the contact.
Do not attempt to manually force the PLG to travel faster than the
power system will permit.
When power operating the PLG at temperatures below 32° F (0° C), the
PLG may stop about 5 inches (12.7 cm) from the full open position. The
PLG can be fully opened by pushing it upward to the maximum open
position.
The Power Door Lockout Control is
located in the overhead console.
With the control in the OFF
position, power operation is disabled
from the liftgate handle and from
the liftgate trim switch. The
overhead console switch and remote entry transmitter will operate the
liftgate regardless of the position of the lockout switch.
To power open or close the PLG
from the Overhead console:
1. Press and release the control to
power open the PLG.
2. Press and release the control
again to power the PLG closed.
To power open or close the PLG
with the Remote entry
transmitter:
1. Press this control twice within
three seconds to power open the
PLG. The interior lamps will
illuminate.
2. Press this control another two
times within three seconds to close
the PLG and turn off the interior
lights.
Refer toRemote Entry Systemin theLocks and Securitychapter.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
85

To power open the PLG with
outside release handle:
1. Ensure that the Power Door
Lockout Control in the overhead
console is ON.
2. Ensure that the PLG is unlocked,
using the remote entry transmitter
or power door unlock. Refer to
Remote Entry Systemin theLocks
and securitychapter.
3. Pull up on the liftgate handle to engage the power assist feature.
Release the handle as soon as the PLG begins to power open.
Note:Continued force applied after unlatching may activate the obstacle
detection feature and stop the power system. For the best performance
allow the power system to open the PLG after releasing the handle.
To power close the PLG from the
liftgate trim switch:
1. Ensure the Power Door Lockout
Control is in the ON position.
2. Press and release the control on
the bottom of the liftgate trim panel
to engage the power assist feature.
If a single chime is heard, check to
be sure that the Power Door
Lockout Switch is set to ON and
that the transaxle is in Park.
To operate the PLG manually:
1. Disable the liftgate power function by placing the Power Door Lockout
Control in the OFF position.
2. Open and close the liftgate as you would a standard liftgate.
Note:In case of operation in extreme cold -40° F (-40° C), or on
extreme inclines, manual operation of the liftgate is suggested.
Safety/Obstructions
If anything obstructs the PLG while it is power opening or closing, the
PLG will automatically reverse or stop depending on the position of the
liftgate, provided it meets sufficient resistance. If the PLG encounters an
obstacle while closing, the PLG will reverse to full open. Once the
obstacle is removed, the PLG can be again closed under power. If the
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
86

PLG encounters an obstacle while opening, the PLG will stop when it
encounters a solid obstacle. Close the liftgate manually and remove the
obstruction. Normal operation can then be resumed.
Resetting the PLG:
The power liftgate may not operate properly if any of the following
conditions occur:
•a low voltage or dead battery
•disconnected battery
•the liftgate has been left open or unlatched for more than six (6)
hours
If any of these conditions occur, the PLG must be reset. To reset the
PLG:
1. Manually close and fully latch the liftgate.
2. Power open the liftgate by using the remote entry transmitter or
overhead console button.
3. Once the liftgate is fully open, close the liftgate using the power
switch on the liftgate, remote entry transmitter or overhead console
button.
Liftgate ajar signal
If the liftgate is not fully latched, you will receive a “LIFTGATE AJAR”
message on the instrument panel. If you see this message, check the
liftgate to ensure it is fully latched.
Make sure the liftgate is closed to prevent exhaust fumes from
being drawn into the vehicle. If you must drive with the liftgate
open, keep the climate control vents open so that fresh outside air
circulates through the vehicle.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
87

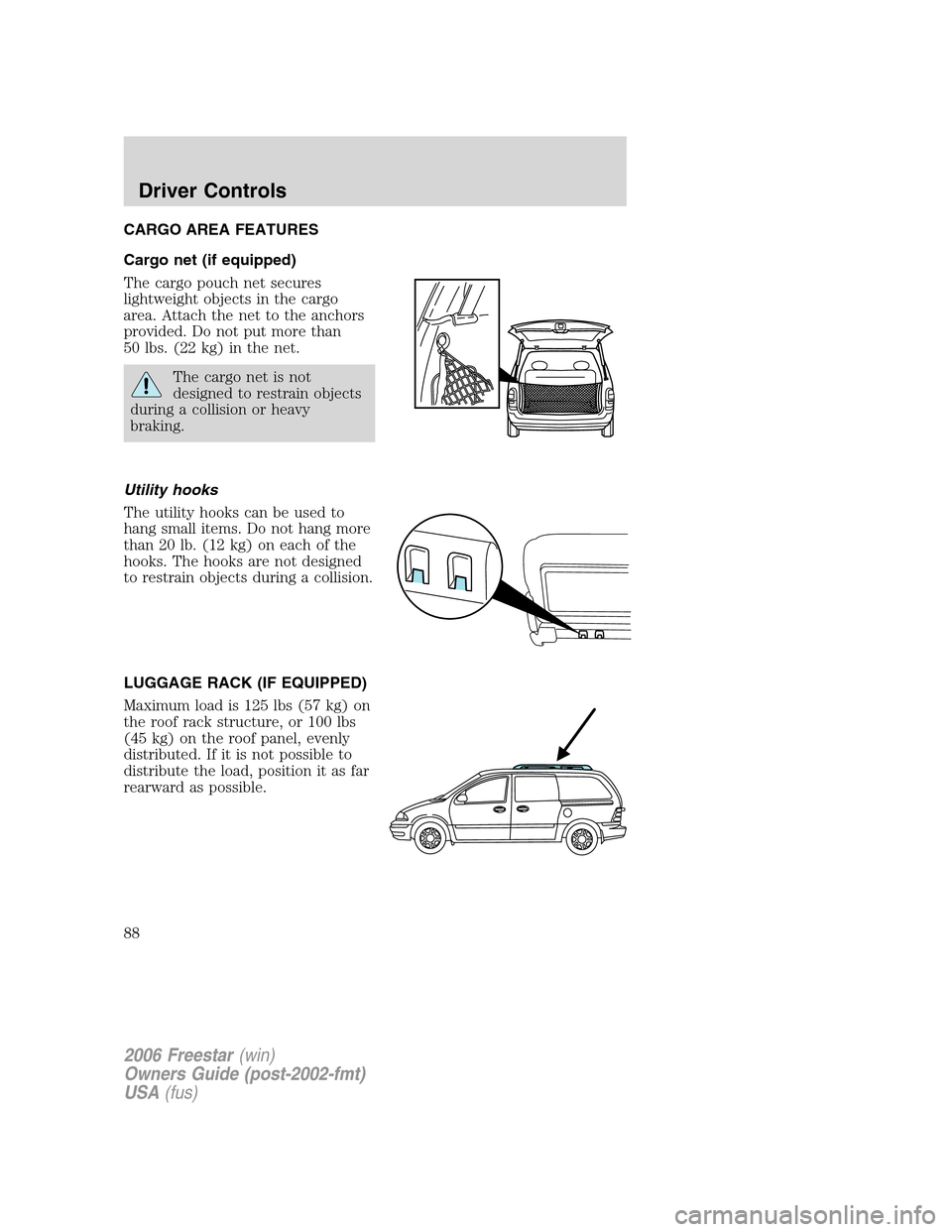

CARGO AREA FEATURES
Cargo net (if equipped)
The cargo pouch net secures
lightweight objects in the cargo
area. Attach the net to the anchors
provided. Do not put more than
50 lbs. (22 kg) in the net.
The cargo net is not
designed to restrain objects
during a collision or heavy
braking.
Utility hooks
The utility hooks can be used to
hang small items. Do not hang more
than 20 lb. (12 kg) on each of the
hooks. The hooks are not designed
to restrain objects during a collision.
LUGGAGE RACK (IF EQUIPPED)
Maximum load is 125 lbs (57 kg) on
the roof rack structure, or 100 lbs
(45 kg) on the roof panel, evenly
distributed. If it is not possible to
distribute the load, position it as far
rearward as possible.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
88
