2006 FORD ESCAPE Owners Manual

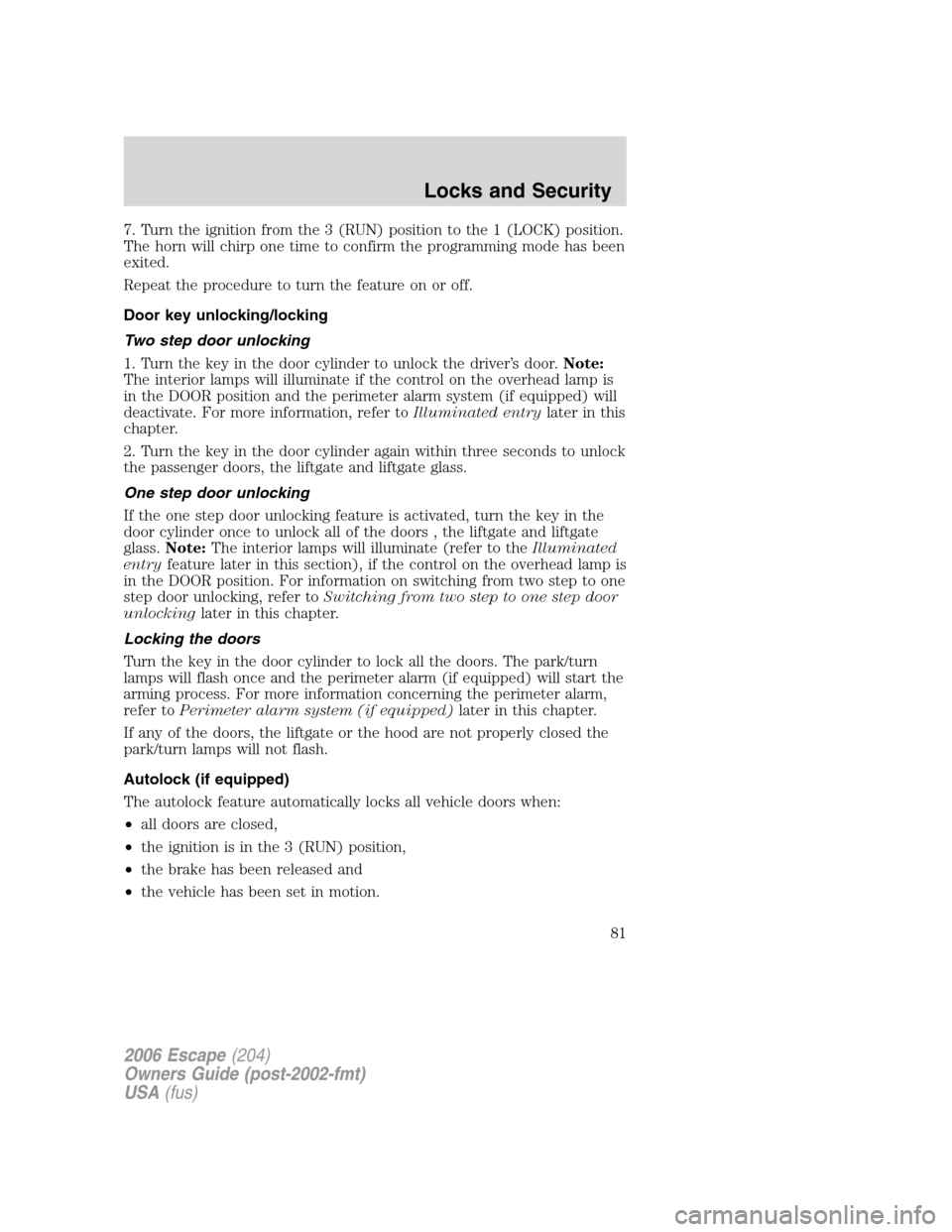

7. Turn the ignition from the 3 (RUN) position to the 1 (LOCK) position.
The horn will chirp one time to confirm the programming mode has been
exited.
Repeat the procedure to turn the feature on or off.
Door key unlocking/locking
Two step door unlocking
1. Turn the key in the door cylinder to unlock the driver’s door.Note:
The interior lamps will illuminate if the control on the overhead lamp is
in the DOOR position and the perimeter alarm system (if equipped) will
deactivate. For more information, refer toIlluminated entrylater in this
chapter.
2. Turn the key in the door cylinder again within three seconds to unlock
the passenger doors, the liftgate and liftgate glass.
One step door unlocking
If the one step door unlocking feature is activated, turn the key in the
door cylinder once to unlock all of the doors , the liftgate and liftgate
glass.Note:The interior lamps will illuminate (refer to theIlluminated
entryfeature later in this section), if the control on the overhead lamp is
in the DOOR position. For information on switching from two step to one
step door unlocking, refer toSwitching from two step to one step door
unlockinglater in this chapter.
Locking the doors
Turn the key in the door cylinder to lock all the doors. The park/turn
lamps will flash once and the perimeter alarm (if equipped) will start the
arming process. For more information concerning the perimeter alarm,
refer toPerimeter alarm system (if equipped)later in this chapter.
If any of the doors, the liftgate or the hood are not properly closed the
park/turn lamps will not flash.
Autolock (if equipped)
The autolock feature automatically locks all vehicle doors when:
•all doors are closed,
•the ignition is in the 3 (RUN) position,
•the brake has been released and
•the vehicle has been set in motion.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
81

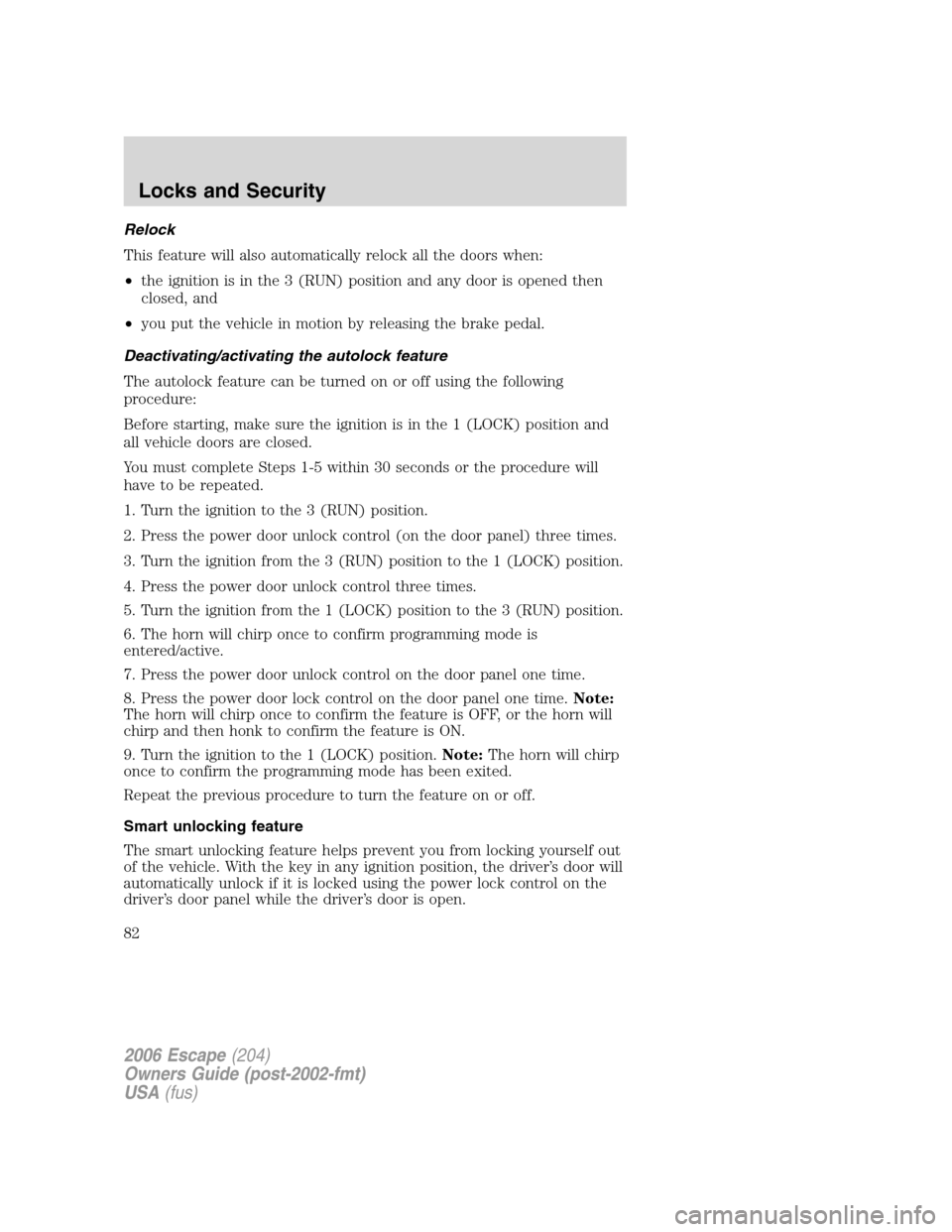

Relock
This feature will also automatically relock all the doors when:
•the ignition is in the 3 (RUN) position and any door is opened then
closed, and
•you put the vehicle in motion by releasing the brake pedal.
Deactivating/activating the autolock feature
The autolock feature can be turned on or off using the following
procedure:
Before starting, make sure the ignition is in the 1 (LOCK) position and
all vehicle doors are closed.
You must complete Steps 1-5 within 30 seconds or the procedure will
have to be repeated.
1. Turn the ignition to the 3 (RUN) position.
2. Press the power door unlock control (on the door panel) three times.
3. Turn the ignition from the 3 (RUN) position to the 1 (LOCK) position.
4. Press the power door unlock control three times.
5. Turn the ignition from the 1 (LOCK) position to the 3 (RUN) position.
6. The horn will chirp once to confirm programming mode is
entered/active.
7. Press the power door unlock control on the door panel one time.
8. Press the power door lock control on the door panel one time.Note:
The horn will chirp once to confirm the feature is OFF, or the horn will
chirp and then honk to confirm the feature is ON.
9. Turn the ignition to the 1 (LOCK) position.Note:The horn will chirp
once to confirm the programming mode has been exited.
Repeat the previous procedure to turn the feature on or off.
Smart unlocking feature
The smart unlocking feature helps prevent you from locking yourself out
of the vehicle. With the key in any ignition position, the driver’s door will
automatically unlock if it is locked using the power lock control on the
driver’s door panel while the driver’s door is open.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
82

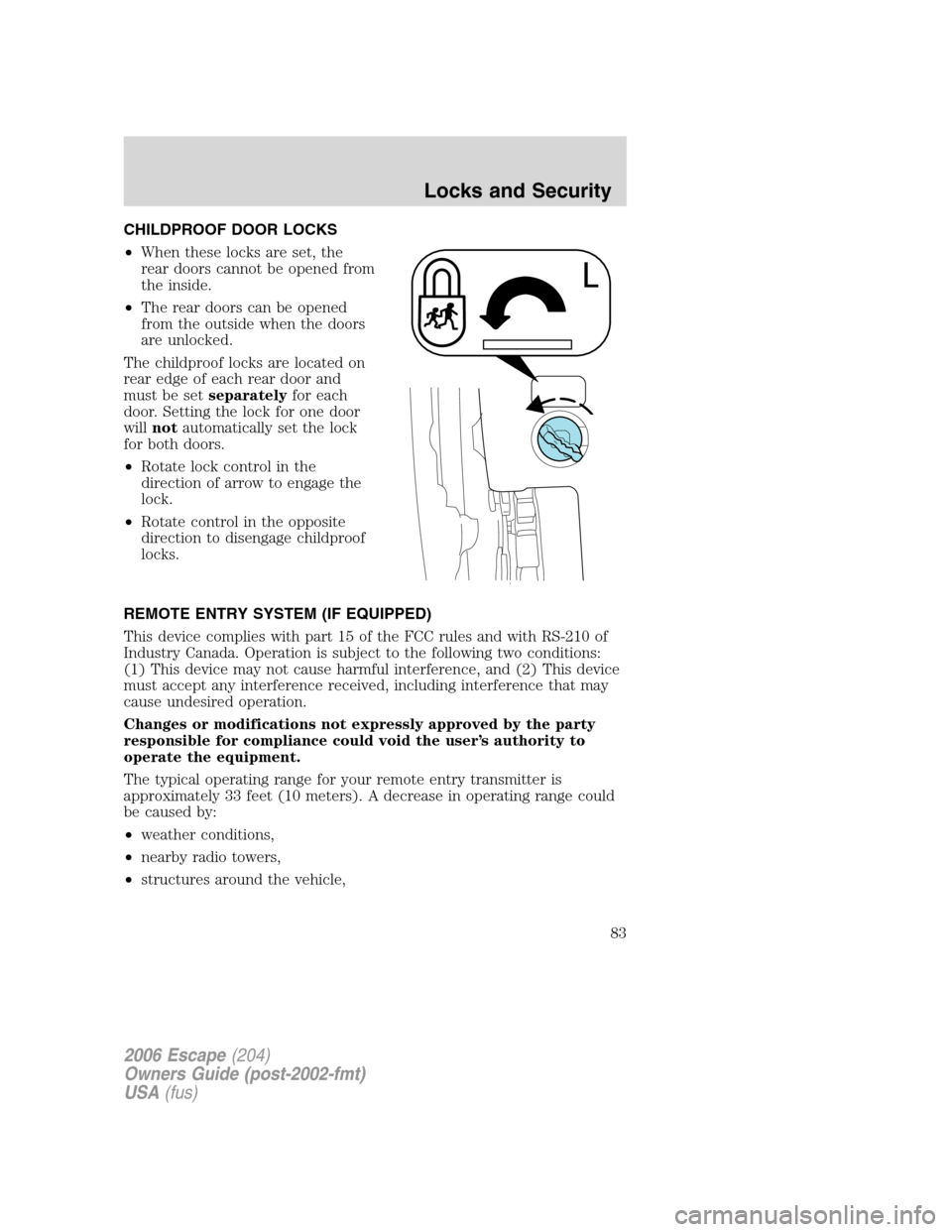

CHILDPROOF DOOR LOCKS
•When these locks are set, the
rear doors cannot be opened from
the inside.
•The rear doors can be opened
from the outside when the doors
are unlocked.
The childproof locks are located on
rear edge of each rear door and
must be setseparatelyfor each
door. Setting the lock for one door
willnotautomatically set the lock
for both doors.
•Rotate lock control in the
direction of arrow to engage the
lock.
•Rotate control in the opposite
direction to disengage childproof
locks.
REMOTE ENTRY SYSTEM (IF EQUIPPED)
This device complies with part 15 of the FCC rules and with RS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The typical operating range for your remote entry transmitter is
approximately 33 feet (10 meters). A decrease in operating range could
be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle,
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
83

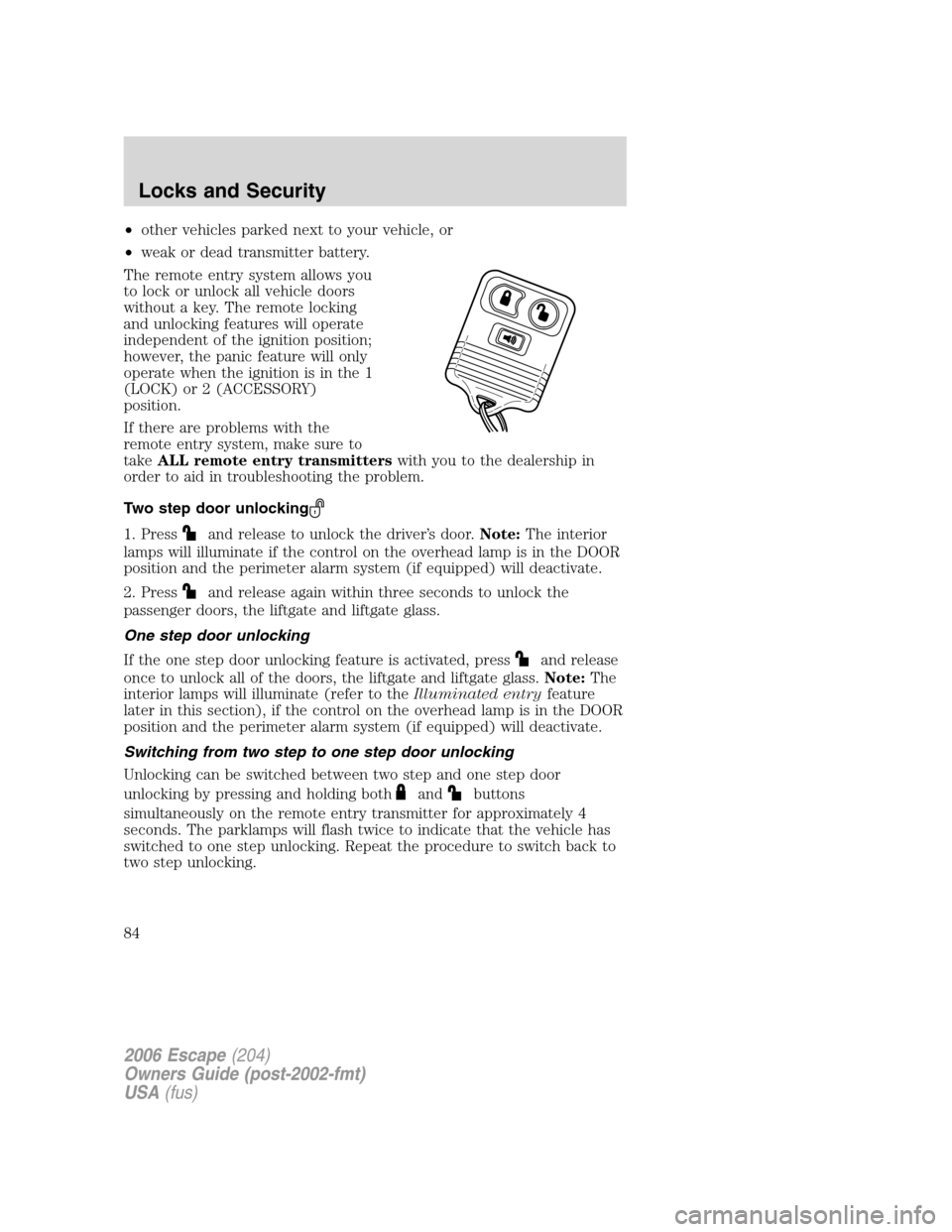

•other vehicles parked next to your vehicle, or
•weak or dead transmitter battery.
The remote entry system allows you
to lock or unlock all vehicle doors
without a key. The remote locking
and unlocking features will operate
independent of the ignition position;
however, the panic feature will only
operate when the ignition is in the 1
(LOCK) or 2 (ACCESSORY)
position.
If there are problems with the
remote entry system, make sure to
takeALL remote entry transmitterswith you to the dealership in
order to aid in troubleshooting the problem.
Two step door unlocking
1. Pressand release to unlock the driver’s door.Note:The interior
lamps will illuminate if the control on the overhead lamp is in the DOOR
position and the perimeter alarm system (if equipped) will deactivate.
2. Press
and release again within three seconds to unlock the
passenger doors, the liftgate and liftgate glass.
One step door unlocking
If the one step door unlocking feature is activated, press
and release
once to unlock all of the doors, the liftgate and liftgate glass.Note:The
interior lamps will illuminate (refer to theIlluminated entryfeature
later in this section), if the control on the overhead lamp is in the DOOR
position and the perimeter alarm system (if equipped) will deactivate.
Switching from two step to one step door unlocking
Unlocking can be switched between two step and one step door
unlocking by pressing and holding both
andbuttons
simultaneously on the remote entry transmitter for approximately 4
seconds. The parklamps will flash twice to indicate that the vehicle has
switched to one step unlocking. Repeat the procedure to switch back to
two step unlocking.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
84

Locking the doors
1. Pressand release to lock all the doors. Assuming all vehicle doors
and the liftgate are properly closed, the park/turn lamps will flash once
and the perimeter alarm (if equipped) will start the arming process. For
more information concerning the perimeter alarm, refer toPerimeter
alarm system (if equipped)later in this chapter.
2. Press
and release again within three seconds to confirm that all the
doors and liftgate are closed and locked.Note:The doors will lock again
and the horn will chirp once.
If any of the doors or the hood are not properly closed, the horn will
chirp twice and park/turn lamps will not flash when the
control is
pressed.
Sounding a panic alarm
Press
to activate the alarm. To deactivate the feature, press the
control again, turn the ignition to the 3 (RUN) or 4 (START) position, or
wait for the alarm to time out in approximately 3 minutes.
Note:The panic alarm will only operate when the ignition is in the 1
(LOCK) or 2 (ACCESSORY) position.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring. DO
NOT TAKE THE RUBBER COVER
AND CIRCUIT BOARD OFF THE
FRONT HOUSING OF THE
REMOTE ENTRY TRANSMITTER.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
85

2. Do not wipe off any grease on the
battery terminals on the back
surface of the circuit board.
3. Remove the old battery.Note:Please refer to local regulations when
disposing of transmitter batteries.
4. Insert the new battery. Refer to the diagram inside the remote entry
transmitter for the correct orientation of the battery. Press the battery
down to ensure that the battery is fully seated in the battery housing
cavity.
5. Snap the two halves back together.
Note:Replacement of the battery willnotcause the remote transmitter
to become deprogrammed from your vehicle. The remote transmitter
should operate normally after battery replacement.
Replacing lost remote entry transmitters
If you would like to have your remote entry transmitter reprogrammed
because you lost one, or would like to buy additional remote entry
transmitters, you can either reprogram them yourself, or takeall
remote entry transmittersto your authorized dealer for
reprogramming.
How to reprogram your remote entry transmitters
You must haveall remote entry transmitters(maximum of four)
available before beginning this procedure.Note:If all remote entry
transmitters are not present during the programming procedure, the
missing transmitters will not work with the vehicle following
programming.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
86

To reprogram the remote entry
transmitters:
1. Ensure the vehicle is electronically unlocked.
2. Put the key in the ignition.
3. Turn the key from the 1 (LOCK) position to 3 (RUN).
4. Cycle eight times rapidly (within 10 seconds) between the 1 (LOCK)
position and 3 (RUN).Note:The eighth turn must end in the 3 (RUN)
position.
5. The doors will lock, then unlock, to confirm that the programming
mode has been activated.
6. Within 20 seconds press any button on the remote entry transmitter.
Note:If more than 20 seconds have passed you will need to start the
procedure over again.
7. The doors will lock, then unlock, to confirm that this remote entry
transmitter has been programmed.
8. Repeat Step 6 to program each additional remote entry transmitter.
9. Turn the ignition to the 1 (LOCK) position after you have finished
programming all of the remote entry transmitters.
10. The doors will lock, then unlock, to confirm that the programming
mode has been exited.
Illuminated entry
The interior lamps illuminate when the remote entry system is used to
unlock the door(s).
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the 2 (ACCESSORY) position, or
•the remote transmitter lock control is pressed, or
•the doors are locked by key in the door cylinder, or
•after 25 seconds of illumination.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
87

Illuminated exit
•The interior lights will illuminate when the key is removed from the
ignition.
The lamps automatically turn off after 25 seconds. The dome and cargo
lamp controls mustnotbe set to the OFF position for the illuminated
exit system to operate.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLock
passive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded key programmed to your vehicleis used. The
use of the wrong type of coded key may lead to a “no-start” condition.
Your vehicle comes with two coded keys; additional coded keys may be
purchased from your dealer. The dealer can program your spare keys to
your vehicle or you can program the keys yourself. Refer to
Programming spare keysfor instructions on how to program the coded
key.
Note:The SecuriLock
passive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
engine. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded key and restart the engine.
Theft indicator
The theft indicator is located in the
instrument cluster.
•When the ignition is in the 1 (LOCK) position, the theft indicator will
flash once every 2 seconds to indicate the SecuriLock
system is
functioning as a theft deterrent.
•
When the ignition is in the 3 (RUN) position, the theft indicator will
glow for 3 seconds, then turn off to indicate normal system functionality.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
88
