2006 FORD ESCAPE Owners Manual

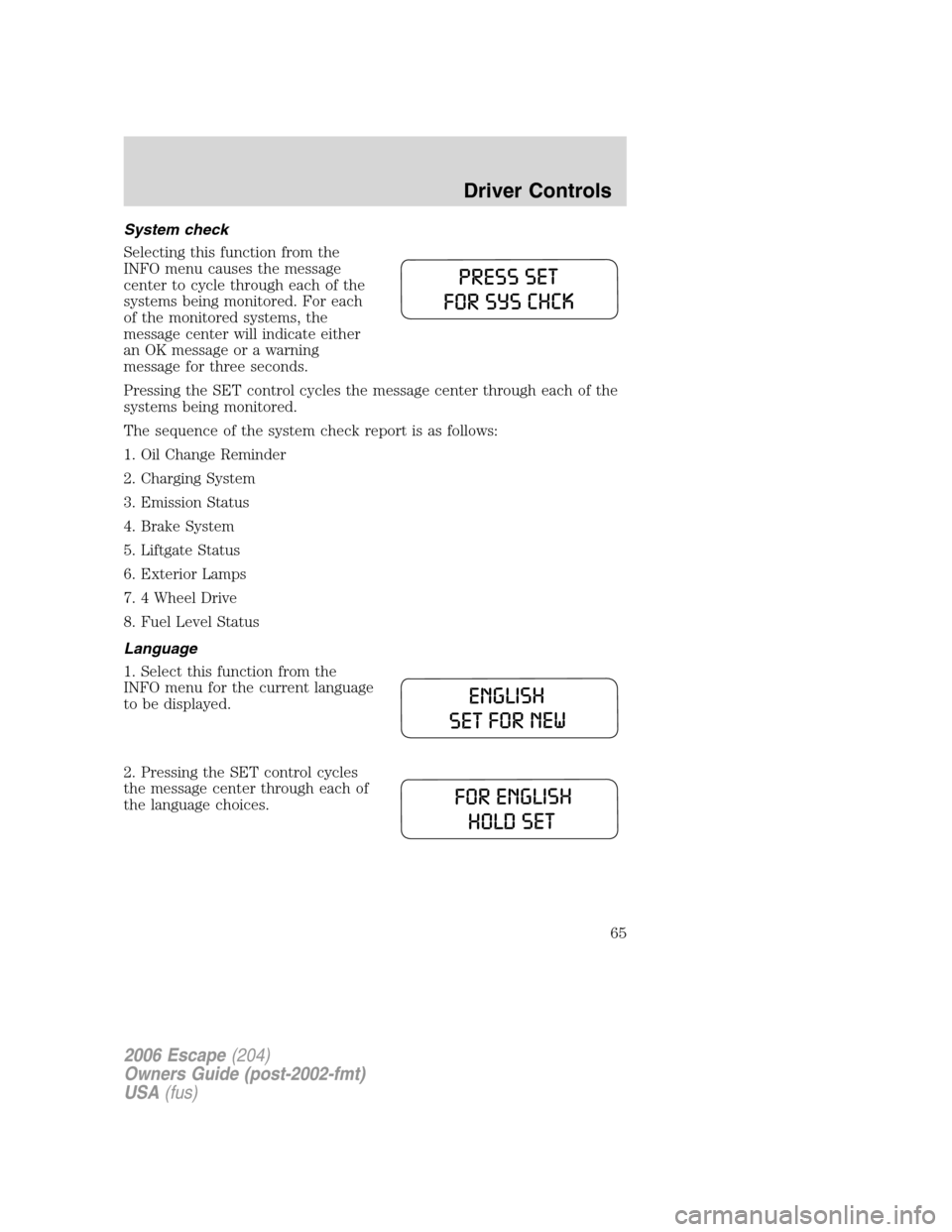

System check
Selecting this function from the
INFO menu causes the message
center to cycle through each of the
systems being monitored. For each
of the monitored systems, the
message center will indicate either
an OK message or a warning
message for three seconds.
Pressing the SET control cycles the message center through each of the
systems being monitored.
The sequence of the system check report is as follows:
1. Oil Change Reminder
2. Charging System
3. Emission Status
4. Brake System
5. Liftgate Status
6. Exterior Lamps
7. 4 Wheel Drive
8. Fuel Level Status
Language
1. Select this function from the
INFO menu for the current language
to be displayed.
2. Pressing the SET control cycles
the message center through each of
the language choices.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
65

3. Press and hold the SET control
for 2 seconds to set the language
choice.
Display Off
Select this function from the INFO control to turn your message center
display OFF.
System warnings
System warnings alert you to possible problems or malfunctions in your
vehicle’s operating systems.
In the event of a multiple warning situation, the message center will
cycle the display to show all warnings by displaying each one for four
seconds.
The message center will display the last selected feature if there are no
more warning messages. This allows you to use the full functionality of
the message center after you acknowledge the warning by pressing the
SET control and clearing the warning message.
Warning messages that have been reset are divided into two categories:
•They will reappear on the display ten minutes from the reset.
•They will not reappear until an ignition OFF-ON cycle has been
completed.
This acts as a reminder that these warning conditions still exist within
the vehicle.
High engine temperature Warning cannot be reset
Driver door ajar
Passenger door ajar
Rear left door ajar
Rear right door ajar
Park brake on Warning returns after
10 minutes
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
66

Liftgate ajar Warning returns after the
ignition key is turned from
OFF to ON. Service emission sys
Check fuel cap
Low brake fluid
Service brake system
Check left headlamp
Check right headlamp
Check left high beam
Check right high beam
Check left turn lamps
Check right turn lamps
Engine change oil soon
Engine oil change now
Low fuel
Service 4WD
Turn signal on
4WD locked temporarily (if equipped) Temporary alert
4WD disabled temporarily (if equipped)
4WD auto restored (if equipped)
HIGH ENGINE TEMPERATURE.Displayed when the engine is
overheating. Stop the vehicle as soon as safely possible, turn off the
engine and let it cool. Check the coolant and coolant level. Refer to
Engine coolantin theMaintenance and Specificationschapter. If the
warning stays on or continues to come on, contact your dealer as soon as
possible.
Never remove the coolant reservoir cap while the engine is
running or hot.
DRIVER DOOR AJAR.Displayed when the driver door is not
completely closed.
PASSENGER DOOR AJAR.Displayed when the passenger door is not
completely closed.
REAR LEFT DOOR AJAR.Displayed when the rear left door is not
completely closed.
REAR RIGHT DOOR AJAR.Displayed when the rear right door is not
completely closed.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
67

LIFTGATE AJAR.Displayed when the liftgate or liftgate glass is not
completely closed. Press SET to reset display.
PARK BRAKE ON.Displayed when the park brake is on. If the warning
stays on after the park brake is off, contact your dealer as soon as
possible.
SERVICE EMISSION SYS.Displayed when the engine has defaulted to
a ’limp-home’ operation. If the warning stays on or continues to come on,
contact your dealer as soon as possible.
SERVICE BRAKE SYSTEM.Displayed when the braking system is not
operating properly. If the warning stays on or continues to come on,
contact your dealer as soon as possible.
CHECK LEFT OR RIGHT HEADLAMPS.Displayed when the
headlamps are activated and at least one is burned out. Check the lamps
as soon as possible and have the burned out lamp replaced. Refer to
Replacing headlamp bulbsin theLightschapter.
CHECK LEFT OR RIGHT HIGH BEAMS.Displayed when the
headlamps are activated and at least one is burned out. Check the lamps
as soon as possible and have the burned out lamp replaced. Refer to
Replacing headlamp bulbsin theLightschapter.
CHECK LEFT OR RIGHT TURN LAMPS.Displayed when the turn
signals are activated and at least one is burned out. Check the lamps as
soon as safely possible and have the burned out lamp replaced.
LOW FUEL.Displayed as an early reminder of a low fuel condition.
SERVICE 4WD.Displayed when the 4X4 is not operating properly. If
the warning stays on or continues to come on, contact your dealer as
soon as possible.
TURN SIGNAL ON.Displayed when the turn signal is activated and the
vehicle is driven more that 0.8 km (1/2 mile).
4WD LOCKED TEMPORARILY (if equipped).Displayed when the
4X4 is temporarily locked. If the warning stays on or continues to come
on, contact your dealer as soon as possible.
4WD DISABLED TEMPORARILY (if equipped).Displayed when the
4X4 is temporarily disabled. If the warning stays on or continues to come
on, contact your dealer as soon as possible.
4WD AUTO RESTORED (if equipped).Displayed when the 4X4 is
restored to normal operations.
ENGINE OIL CHANGE SOON/ENGINE OIL CHANGE NOW.
Displayed when the engine oil life remaining is 5% or less. When oil life
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
68

left is between 5% and 0%, the ENGINE OIL CHANGE SOON message
will be displayed. When oil life left reaches 0%, the ENGINE OIL
CHANGE NOW message will be displayed.
An oil change is required whenever indicated by the message center.
USE ONLY RECOMMENDED ENGINE OILS.
To reset the oil monitoring system to 100% after each oil change
[approximately 5,000 miles (8,000 km) or 12 months] perform the
following:
1. Press the SET control to access
the system check function.
2. Press and release the SET control
to display “OIL CHNG XXX% HOLD
SET NEW”.
3. Press and hold the SET control
for 2 seconds to display “OIL
CHANGE SET TO 100%”.
INFO UNAVAIL.These messages indicate improper operation of the
vehicle network communication systems for the following vehicle
modules.
•Fuel computer
•Charging system
•Door sensor
•Brakes
•Exterior lamps
•Emissions system
•4WD info
Contact your Ford Dealer as soon as possible if these messages occur on
a regular basis.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
69

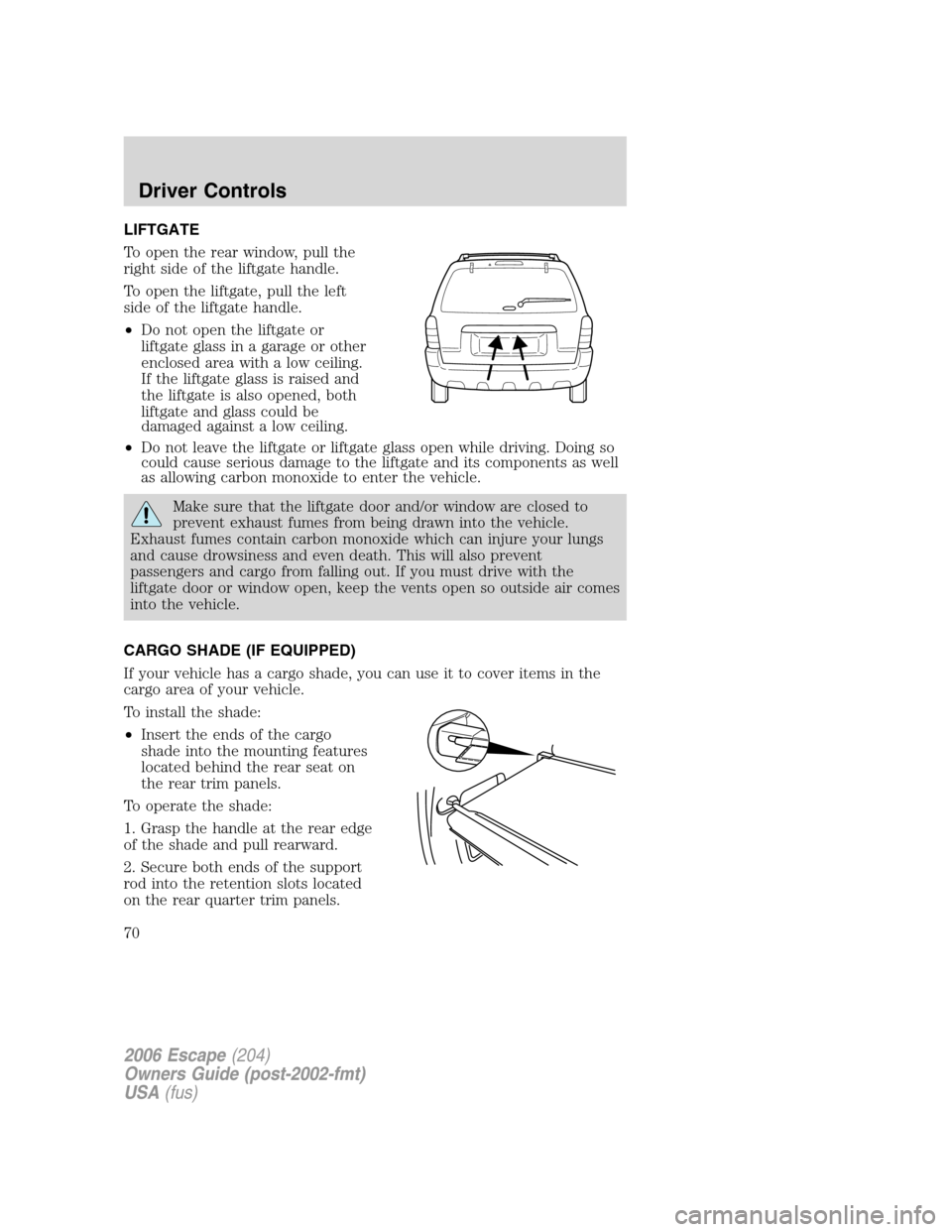

LIFTGATE
To open the rear window, pull the
right side of the liftgate handle.
To open the liftgate, pull the left
side of the liftgate handle.
•Do not open the liftgate or
liftgate glass in a garage or other
enclosed area with a low ceiling.
If the liftgate glass is raised and
the liftgate is also opened, both
liftgate and glass could be
damaged against a low ceiling.
•Do not leave the liftgate or liftgate glass open while driving. Doing so
could cause serious damage to the liftgate and its components as well
as allowing carbon monoxide to enter the vehicle.
Make sure that the liftgate door and/or window are closed to
prevent exhaust fumes from being drawn into the vehicle.
Exhaust fumes contain carbon monoxide which can injure your lungs
and cause drowsiness and even death. This will also prevent
passengers and cargo from falling out. If you must drive with the
liftgate door or window open, keep the vents open so outside air comes
into the vehicle.
CARGO SHADE (IF EQUIPPED)
If your vehicle has a cargo shade, you can use it to cover items in the
cargo area of your vehicle.
To install the shade:
•Insert the ends of the cargo
shade into the mounting features
located behind the rear seat on
the rear trim panels.
To operate the shade:
1. Grasp the handle at the rear edge
of the shade and pull rearward.
2. Secure both ends of the support
rod into the retention slots located
on the rear quarter trim panels.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
70

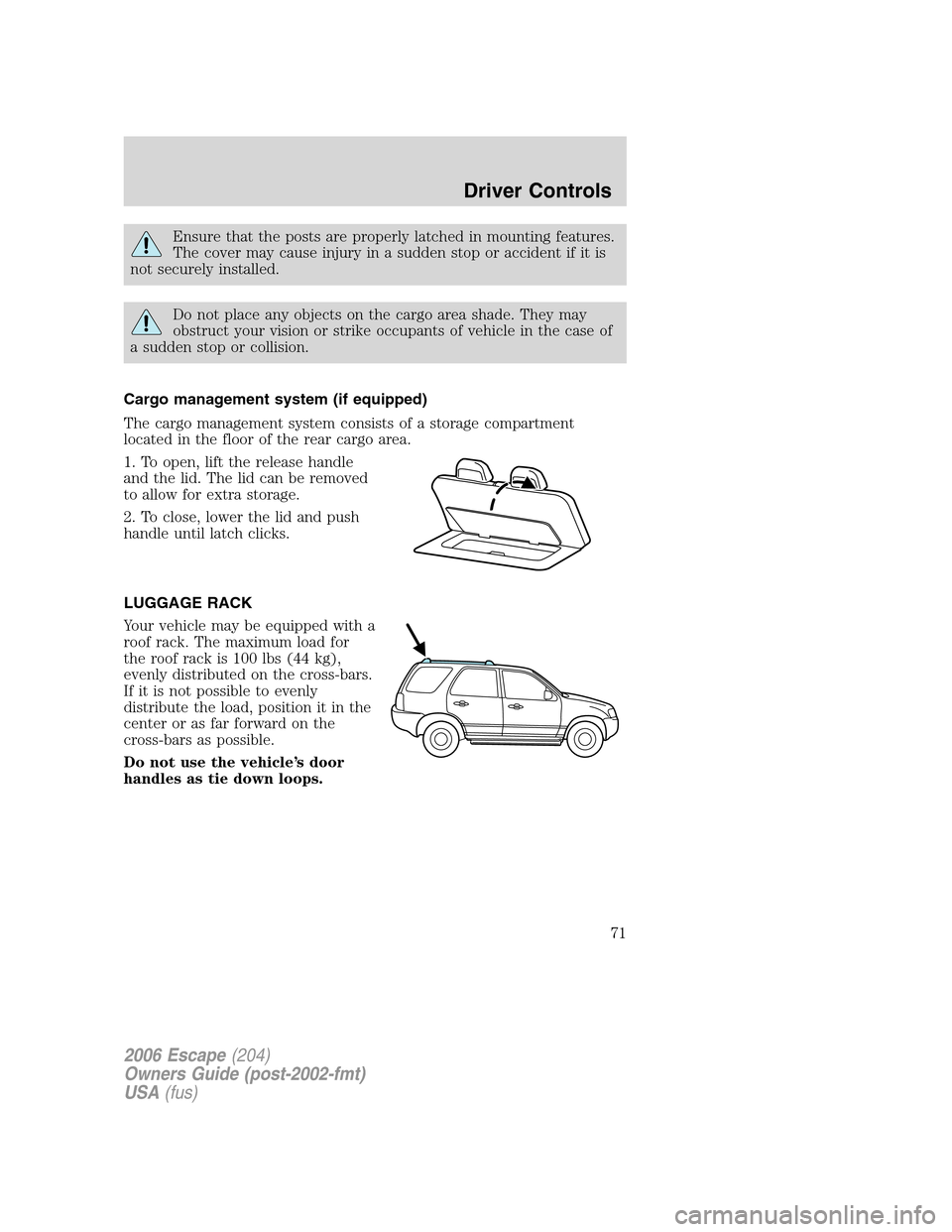

Ensure that the posts are properly latched in mounting features.
The cover may cause injury in a sudden stop or accident if it is
not securely installed.
Do not place any objects on the cargo area shade. They may
obstruct your vision or strike occupants of vehicle in the case of
a sudden stop or collision.
Cargo management system (if equipped)
The cargo management system consists of a storage compartment
located in the floor of the rear cargo area.
1. To open, lift the release handle
and the lid. The lid can be removed
to allow for extra storage.
2. To close, lower the lid and push
handle until latch clicks.
LUGGAGE RACK
Your vehicle may be equipped with a
roof rack. The maximum load for
the roof rack is 100 lbs (44 kg),
evenly distributed on the cross-bars.
If it is not possible to evenly
distribute the load, position it in the
center or as far forward on the
cross-bars as possible.
Do not use the vehicle’s door
handles as tie down loops.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
71

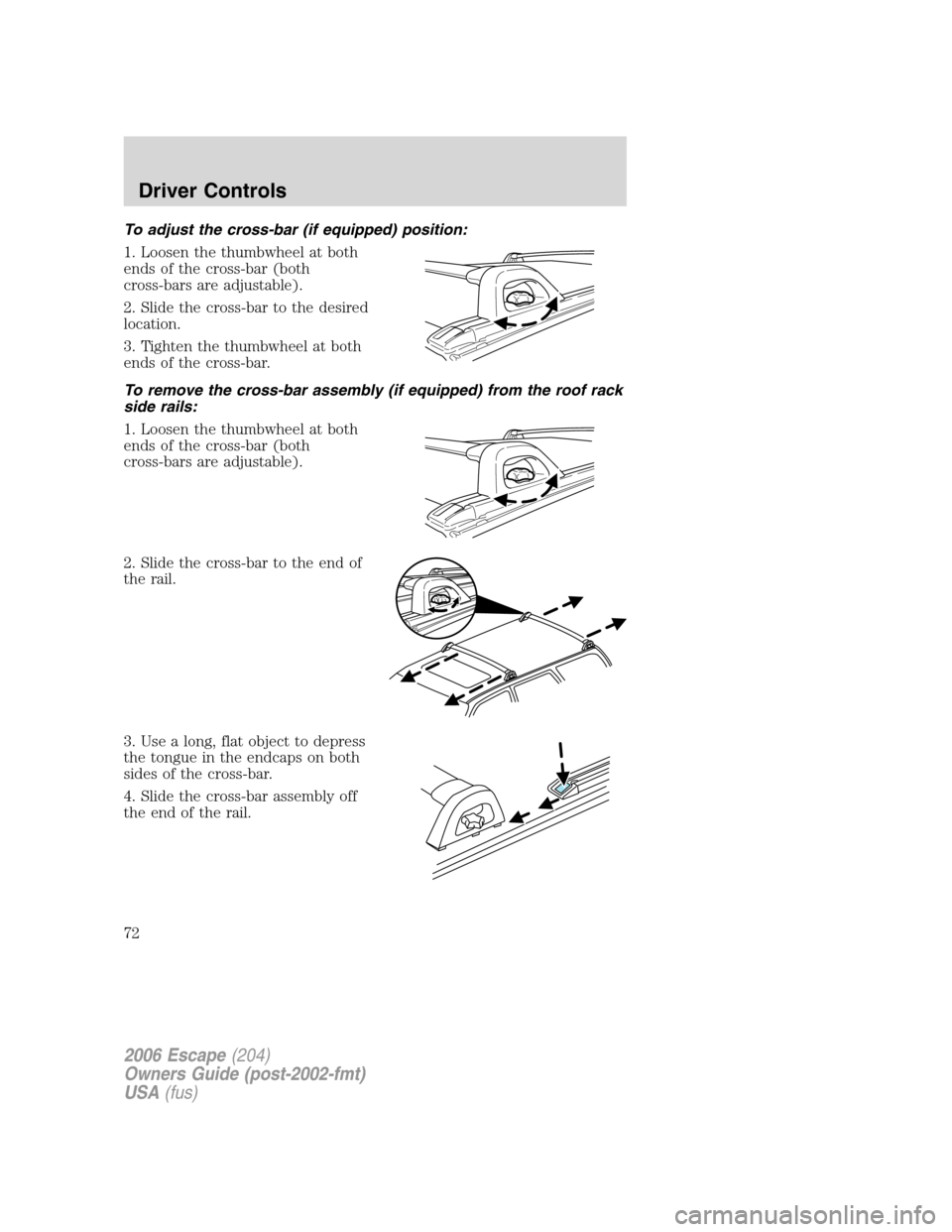

To adjust the cross-bar (if equipped) position:
1. Loosen the thumbwheel at both
ends of the cross-bar (both
cross-bars are adjustable).
2. Slide the cross-bar to the desired
location.
3. Tighten the thumbwheel at both
ends of the cross-bar.
To remove the cross-bar assembly (if equipped) from the roof rack
side rails:
1. Loosen the thumbwheel at both
ends of the cross-bar (both
cross-bars are adjustable).
2. Slide the cross-bar to the end of
the rail.
3. Use a long, flat object to depress
the tongue in the endcaps on both
sides of the cross-bar.
4. Slide the cross-bar assembly off
the end of the rail.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
72
