2006 CHEVROLET EXPRESS PASSANGER Owners Manual

For the center seating position, use either
anchor point (A) or (B). Never install
two top tethers using the same top tether
anchor.
2.3. Route and tighten the top tether according
to your child restraint instructions and the
following instructions:
If the position you are
using does not have a
head restraint and you
are using a single tether,
route the tether over
the seatback.
If the position you are
using does not have a
head restraint and you
are using a dual tether,
route the tether over
the seatback.If the position you are
using has an integrated
headrest and you are
using a dual tether, route
the tether around the
headrest.
If the position you are
using has an integrated
headrest and you are using
a single tether, route the
tether over the headrest.
3. Push and pull the child restraint in different
directions to be sure it is secure.
1-51

Securing a Child Restraint in a
Rear Outside Seat Position or the
Second Row Center Seat Position
If your child restraint is equipped with the LATCH
system, seeLower Anchors and Tethers for Children
(LATCH) on page 1-43.
For vehicles with a third, fourth or fifth row, there are
no top tether anchors in the rear outside seat positions of
the third, fourth or fifth row. Do not secure a child seat in
these positions if a national or local law requires that the
top tether be anchored, or if the instructions that come
with the child restraint say that the top tether must be
anchored.
If your child restraint does not have the LATCH system,
you will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-52

4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.5. To tighten the belt, pull the shoulder portion of the
belt to tighten the lap portion of the belt and feed
the shoulder belt back into the retractor. If you
are using a forward-facing child restraint, you may
find it helpful to use your knee to push down on
the child restraint as you tighten the belt.
1-53

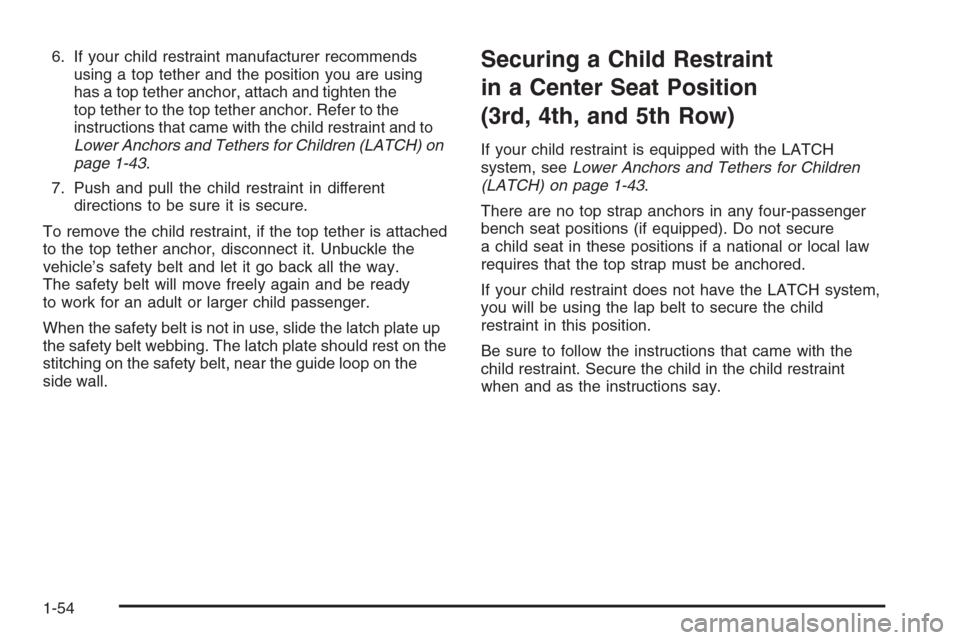

6. If your child restraint manufacturer recommends
using a top tether and the position you are using
has a top tether anchor, attach and tighten the
top tether to the top tether anchor. Refer to the
instructions that came with the child restraint and to
Lower Anchors and Tethers for Children (LATCH) on
page 1-43.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, if the top tether is attached
to the top tether anchor, disconnect it. Unbuckle the
vehicle’s safety belt and let it go back all the way.
The safety belt will move freely again and be ready
to work for an adult or larger child passenger.
When the safety belt is not in use, slide the latch plate up
the safety belt webbing. The latch plate should rest on the
stitching on the safety belt, near the guide loop on the
side wall.Securing a Child Restraint
in a Center Seat Position
(3rd, 4th, and 5th Row)
If your child restraint is equipped with the LATCH
system, seeLower Anchors and Tethers for Children
(LATCH) on page 1-43.
There are no top strap anchors in any four-passenger
bench seat positions (if equipped). Do not secure
a child seat in these positions if a national or local law
requires that the top strap must be anchored.
If your child restraint does not have the LATCH system,
you will be using the lap belt to secure the child
restraint in this position.
Be sure to follow the instructions that came with the
child restraint. Secure the child in the child restraint
when and as the instructions say.
1-54

1. Make the belt as long as possible by tilting the latch
plate and pulling it along the belt.
2. Put the child restraint on the seat.
3. Run the vehicle’s safety belt through or around the
restraint. The child restraint instructions will show
you how.4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-55

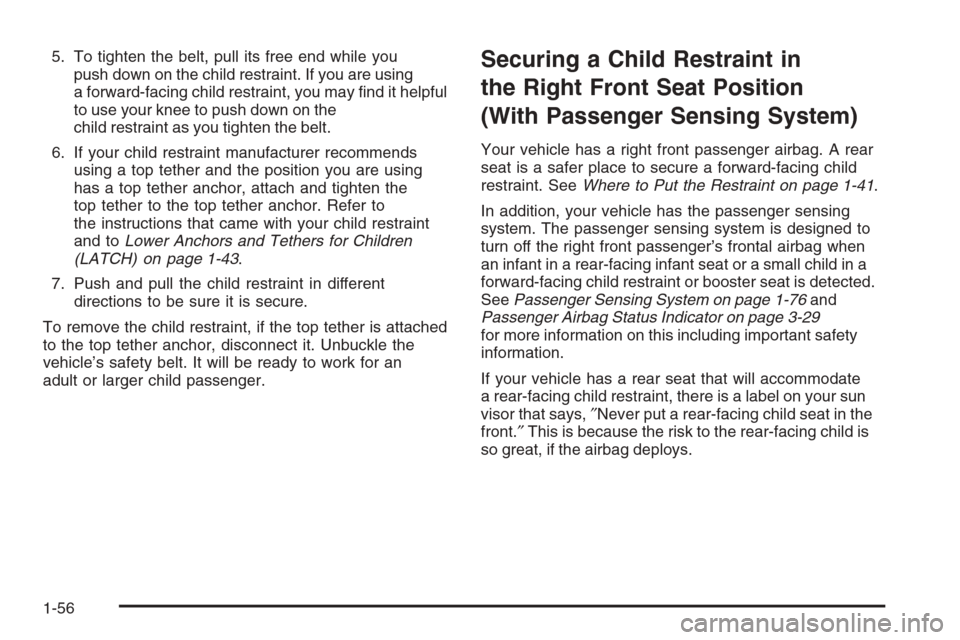

5. To tighten the belt, pull its free end while you
push down on the child restraint. If you are using
a forward-facing child restraint, you may find it helpful
to use your knee to push down on the
child restraint as you tighten the belt.
6. If your child restraint manufacturer recommends
using a top tether and the position you are using
has a top tether anchor, attach and tighten the
top tether to the top tether anchor. Refer to
the instructions that came with your child restraint
and toLower Anchors and Tethers for Children
(LATCH) on page 1-43.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, if the top tether is attached
to the top tether anchor, disconnect it. Unbuckle the
vehicle’s safety belt. It will be ready to work for an
adult or larger child passenger.Securing a Child Restraint in
the Right Front Seat Position
(With Passenger Sensing System)
Your vehicle has a right front passenger airbag. A rear
seat is a safer place to secure a forward-facing child
restraint. SeeWhere to Put the Restraint on page 1-41.
In addition, your vehicle has the passenger sensing
system. The passenger sensing system is designed to
turn off the right front passenger’s frontal airbag when
an infant in a rear-facing infant seat or a small child in a
forward-facing child restraint or booster seat is detected.
SeePassenger Sensing System on page 1-76and
Passenger Airbag Status Indicator on page 3-29
for more information on this including important safety
information.
If your vehicle has a rear seat that will accommodate
a rear-facing child restraint, there is a label on your sun
visor that says,″Never put a rear-facing child seat in the
front.″This is because the risk to the rear-facing child is
so great, if the airbag deploys.
1-56

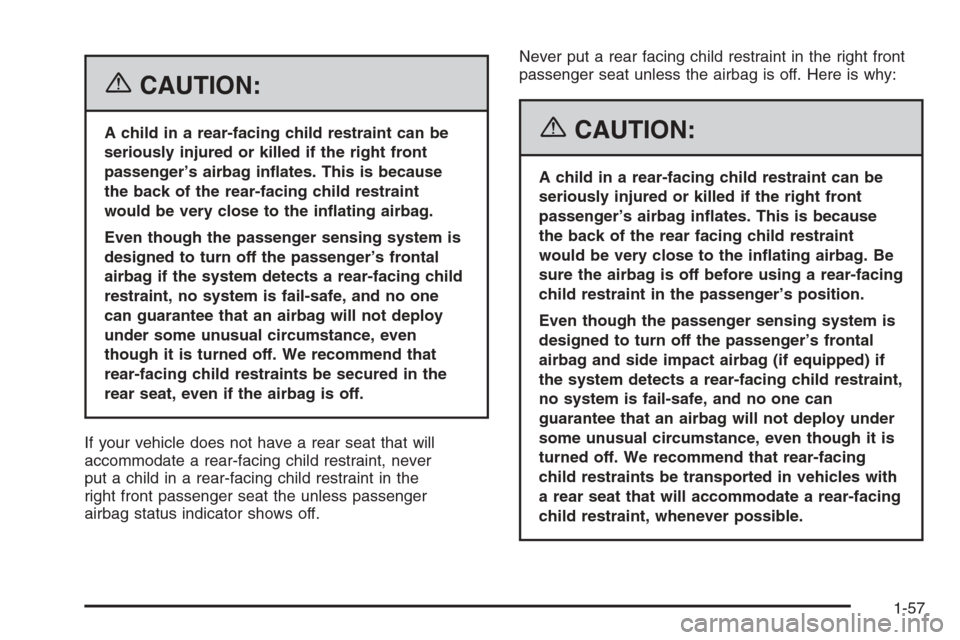

{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inates. This is because
the back of the rear-facing child restraint
would be very close to the inating airbag.
Even though the passenger sensing system is
designed to turn off the passenger’s frontal
airbag if the system detects a rear-facing child
restraint, no system is fail-safe, and no one
can guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend that
rear-facing child restraints be secured in the
rear seat, even if the airbag is off.
If your vehicle does not have a rear seat that will
accommodate a rear-facing child restraint, never
put a child in a rear-facing child restraint in the
right front passenger seat the unless passenger
airbag status indicator shows off.Never put a rear facing child restraint in the right front
passenger seat unless the airbag is off. Here is why:{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inates. This is because
the back of the rear facing child restraint
would be very close to the inating airbag. Be
sure the airbag is off before using a rear-facing
child restraint in the passenger’s position.
Even though the passenger sensing system is
designed to turn off the passenger’s frontal
airbag and side impact airbag (if equipped) if
the system detects a rear-facing child restraint,
no system is fail-safe, and no one can
guarantee that an airbag will not deploy under
some unusual circumstance, even though it is
turned off. We recommend that rear-facing
child restraints be transported in vehicles with
a rear seat that will accommodate a rear-facing
child restraint, whenever possible.
1-57

If you need to secure a forward-facing child restraint in
the right front seat position, move the seat as far
back as it will go before securing the forward-facing
child restraint. SeeManual Seats on page 1-3or
Power Seat on page 1-4.
If your child restraint is equipped with the LATCH
system, seeLower Anchors and Tethers for Children
(LATCH) on page 1-43.
You will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Your vehicle has a right front passenger’s frontal
airbag. SeePassenger Sensing System on
page 1-76. General Motors recommends that
rear-facing child restraints be secured in a rear seat,
even if the airbag is off. If your child restraint is
forward-facing, move the seat as far back as it
will go before securing the child restraint in this seat.
SeeManual Seats on page 1-3orPower Seat
on page 1-4.
When the passenger sensing system has turned off
the right front passenger’s frontal airbag, the off
indicator in the passenger airbag status indicator
should light and stay lit when you turn the ignition to
RUN or START. SeePassenger Airbag Status
Indicator on page 3-29.2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-58
