2006 CHEVROLET AVALANCHE Owners Manual

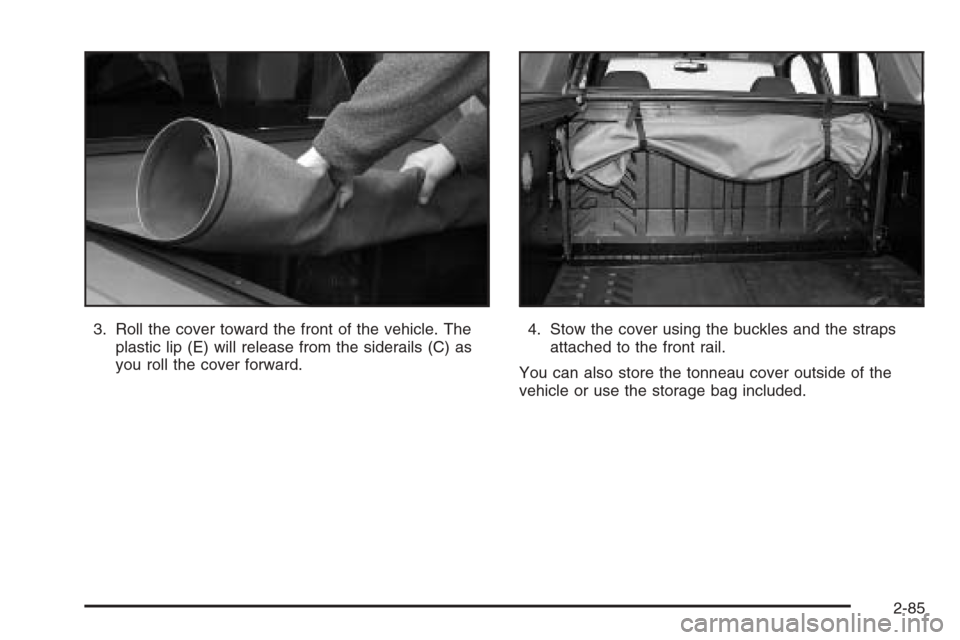

3. Roll the cover toward the front of the vehicle. The
plastic lip (E) will release from the siderails (C) as
you roll the cover forward.4. Stow the cover using the buckles and the straps
attached to the front rail.
You can also store the tonneau cover outside of the
vehicle or use the storage bag included.
2-85

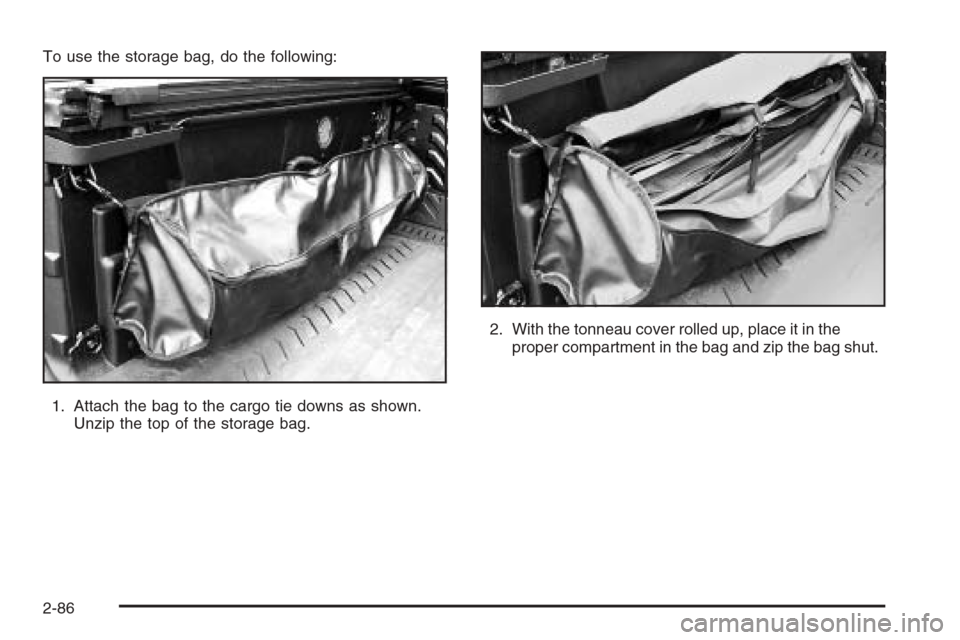

To use the storage bag, do the following:
1. Attach the bag to the cargo tie downs as shown.
Unzip the top of the storage bag.2. With the tonneau cover rolled up, place it in the
proper compartment in the bag and zip the bag shut.
2-86

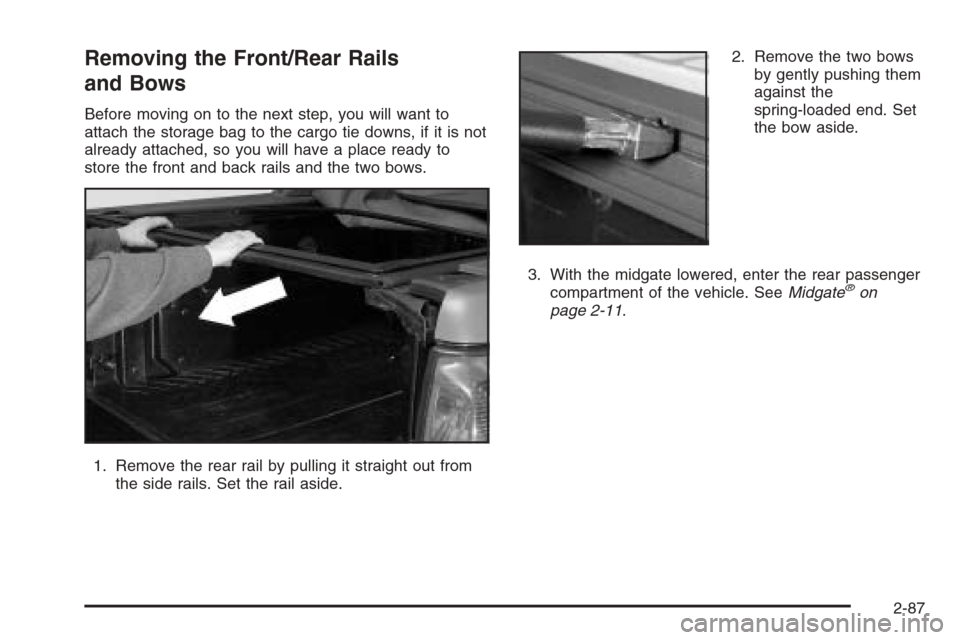

Removing the Front/Rear Rails
and Bows
Before moving on to the next step, you will want to
attach the storage bag to the cargo tie downs, if it is not
already attached, so you will have a place ready to
store the front and back rails and the two bows.
1. Remove the rear rail by pulling it straight out from
the side rails. Set the rail aside.2. Remove the two bows
by gently pushing them
against the
spring-loaded end. Set
the bow aside.
3. With the midgate lowered, enter the rear passenger
compartment of the vehicle. SeeMidgate
®on
page 2-11.
2-87

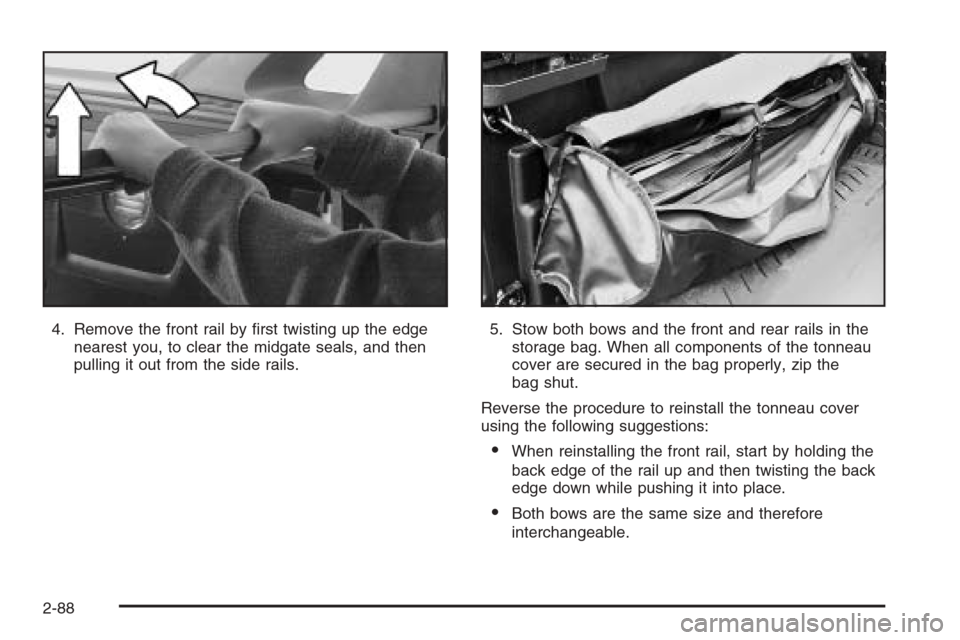

4. Remove the front rail by rst twisting up the edge
nearest you, to clear the midgate seals, and then
pulling it out from the side rails.5. Stow both bows and the front and rear rails in the
storage bag. When all components of the tonneau
cover are secured in the bag properly, zip the
bag shut.
Reverse the procedure to reinstall the tonneau cover
using the following suggestions:
When reinstalling the front rail, start by holding the
back edge of the rail up and then twisting the back
edge down while pushing it into place.
Both bows are the same size and therefore
interchangeable.
2-88

When placing the bows in the side rails, it is easiest
to place the spring-loaded bow end in rst.
When placing the bows,
locate the small notches
in the side rails.
These notches receive
the tang on the bow
ends and help the bows
seat into place.
When reinstalling the tonneau cover, start at the
front, near the cab. Place the plastic lip into the
front rail, then the rear rail, and nish with the
side rails.
To clean the tonneau cover, use mild soap and water.
If necessary, use a soft bristle brush to remove dirt
trapped in the grain of the material.
Sunroof
Your vehicle may be equipped with a power sliding
sunroof. To open or close your sunroof, the ignition
needs to be on or Retained Accessory Power (RAP)
needs to be active. SeeRetained Accessory Power
(RAP) on page 2-29.
Press and release the rear side of the button located in
the front overhead console to express-open the glass
panel and sunshade. To stop the express-open motion,
press the front or rear of the button again. To close
the glass panel, press and hold the front of the button.
The glass will not be fully seated unless the button
is held until the glass stops moving. With the sunroof
closed, press the forward side of the button to open the
sunroof to the vent position.
The sunroof is also equipped with a sunshade which
you can pull forward to block sun rays.
2-89

If a hand, arm, or other object is blocking the sunroof
glass panel as it is closing, the glass panel will stop
at the obstruction. After the obstruction is removed, the
glass panel can be closed or opened.
Use care not to leave the sunroof open for long periods
of time as debris may collect in the tracks.
If the battery has been recharged, disconnected or is
not working, you may need to reprogram the sunroof. To
do this, start the vehicle and press the forward side of
the sunroof button until the glass panel moves to a fully
closed position. Release, and press again to move to
the vent position, which occurs when the sunroof is fully
tilted upward and the button is held for an additional
twenty seconds. This will reset the memory and enable
the sunroof to function properly.Vehicle Personalization
In addition to the following features, your vehicle may
also have features that can be programmed through the
Driver Information Center (DIC). SeeDIC Vehicle
Customization on page 3-64for more information.
Memory Seat
If your vehicle has this
feature, the controls for the
memory function are
located on the driver’s door.
These buttons are used to program and recall memory
settings for the driver’s seat, both the driver’s and
passenger’s outside mirrors, and the throttle and brake
pedals for vehicles with the adjustable throttle and
brake pedal feature. The settings for these features can
be saved for up to two drivers.
2-90

To store the memory settings, do the following:
1. While the vehicle is in PARK (P), adjust the driver’s
seat, including the seatback recliner and lumbar,
both outside mirrors, and the throttle and brake
pedals to your preference.
2. Press and hold the 1 or 2 button of the memory
control for three seconds. A double chime will sound
to let you know that the position has been stored.
To repeat the procedure for a second driver, follow the
preceding steps, but press the other numbered
memory control button.
Each time button 1 or 2 is pressed and released while
the vehicle is in PARK (P), a single chime will sound and
the memory position will be recalled.
To stop recall movement of the memory seat feature at
any time, press one of the memory buttons or power
seat controls.
Easy Exit Seat
The controls for this memory function are located on the
driver’s door.
B(Easy Exit Seat):This button is used to program
and recall the desired driver’s seat position when exiting
or entering the vehicle. The seat position can be
saved for up to two drivers.To store the seat exit position, do the following:
1. Press and release the 1 or 2 button. The seat will
move to the stored memory position.
2. Adjust the seat to the desired exit position.
3. Press and hold the exit button of the memory
control for three seconds. A double chime will sound
to let you know that the position has been stored
for the selected button 1 or 2.
To repeat the procedure for a second driver, follow the
preceding steps, but press the other numbered
memory control button.
To use the seat exit position, do one of the following:
Press the exit button on the memory control.
If this feature is activated in the Driver Information
Center (DIC), removing the key from the ignition
will move the seat to the exit position.
See “Easy Exit Seat” underDIC Vehicle Customization
on page 3-64for more information on activating this
feature in the DIC.
2-91
