Use the following instructions for the proper storage
sequence and location for each panel:
A. Secure the rst secondary strap.
B. Secure the last secondary strap.
C. Put the rest of the strap system
towards the top of the lid and tray.2. Starting with cargo panel 1, load the cargo panel
with latches up and facing away from you.
2-69

3. Store cargo panel 2 by loading the cargo panel with
latches down and facing toward you.4. Store cargo panel 3 by loading the cargo panel with
latches up and facing away from you.
2-70

5. Move the rest of the strap system inside the cargo
box, covering the three cargo covers (A). Fasten
the four strap clips (B).6. Tighten all straps by pulling on the free end of
each strap.
2-71

7. Close both cross locks at the center of the strap
system to secure tightly.
Panels 3, 2, 1 Loaded
2-72

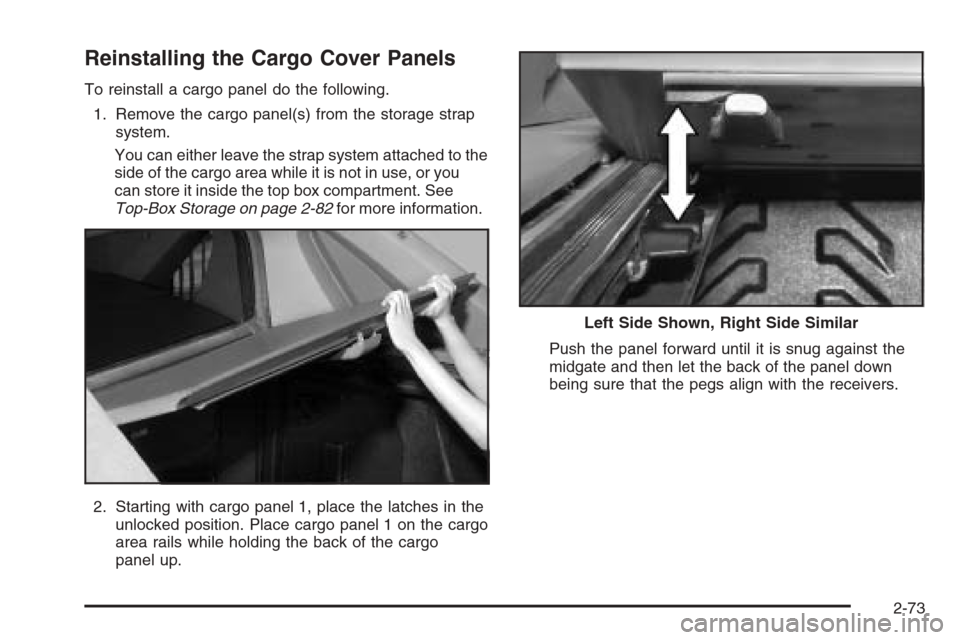

Reinstalling the Cargo Cover Panels
To reinstall a cargo panel do the following.
1. Remove the cargo panel(s) from the storage strap
system.
You can either leave the strap system attached to the
side of the cargo area while it is not in use, or you
can store it inside the top box compartment. See
Top-Box Storage on page 2-82for more information.
2. Starting with cargo panel 1, place the latches in the
unlocked position. Place cargo panel 1 on the cargo
area rails while holding the back of the cargo
panel up.Push the panel forward until it is snug against the
midgate and then let the back of the panel down
being sure that the pegs align with the receivers.
Left Side Shown, Right Side Similar
2-73

3. Push both left latches away from you to lock the
latches. Remember that there are two latches on
each side for panel 1. You should hear a click when
each latch locks. Lock the remaining two right
latches on panel 1.
For any cargo cover panel you must lock the left
latch in place before you can lock the right latch. If
you do not follow this exactly, the cargo cover
panels may not lock in place correctly.4. Install cargo cover 2 next. Place the latches in the
unlocked position. Place the cargo cover panel on
the cargo area rails while holding the back of
the cargo panel up.
Push the panel forward until it is snug against the
other panel and then let the back of the panel down
being sure that the pegs align with the receivers.
Left Side Shown, Right Side Similar
2-74

5. Push the latches away from you, starting with the
left latch, to lock the panel in place. You should
hear a click when each latch locks correctly.
6. Install cargo cover 3 next. Place the latches in the
unlocked position. Place the cargo cover panel on
the cargo area rails while holding the back of
the cargo panel up.Push the panel forward until it is snug against the
other panel and then let the back of the panel down
being sure that the pegs align with the receivers.
Left Side Shown, Right Side Similar
2-75

7. Push the latches away from you, starting with the
left latch, to lock the panel in place. You should
hear a click when each latch locks.
Folding and Storage of Straps
To store the folding straps do the following:
1. Extend the six strap ends on a at surface.
2. Fold the four strap ends towards the center as
shown.
