2006.5 Peugeot 407 C Dag Owner's Manual

11

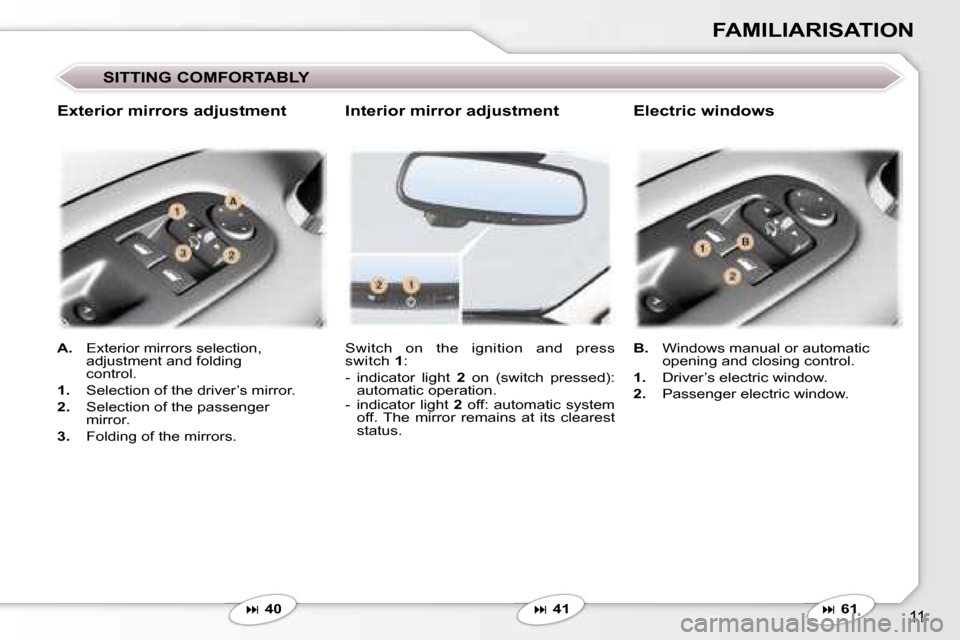

FAMILIARISATION
SITTING COMFORTABLY
Switch on the ignition and press
switch 1:
- indicator light 2 on (switch pressed):
automatic operation.
- indicator light 2 off: automatic system
off. The mirror remains at its clearest
status. B.
Windows manual or automatic
opening and closing control.
1. Driver’s electric window.
2. Passenger electric window.
A.
Exterior mirrors selection,
adjustment and folding
control.
1. Selection of the driver’s mirror.
2. Selection of the passenger
mirror.
3. Folding of the mirrors.
Interior mirror adjustment Electric windows
 61  41
 40
Exterior mirrors adjustment

12

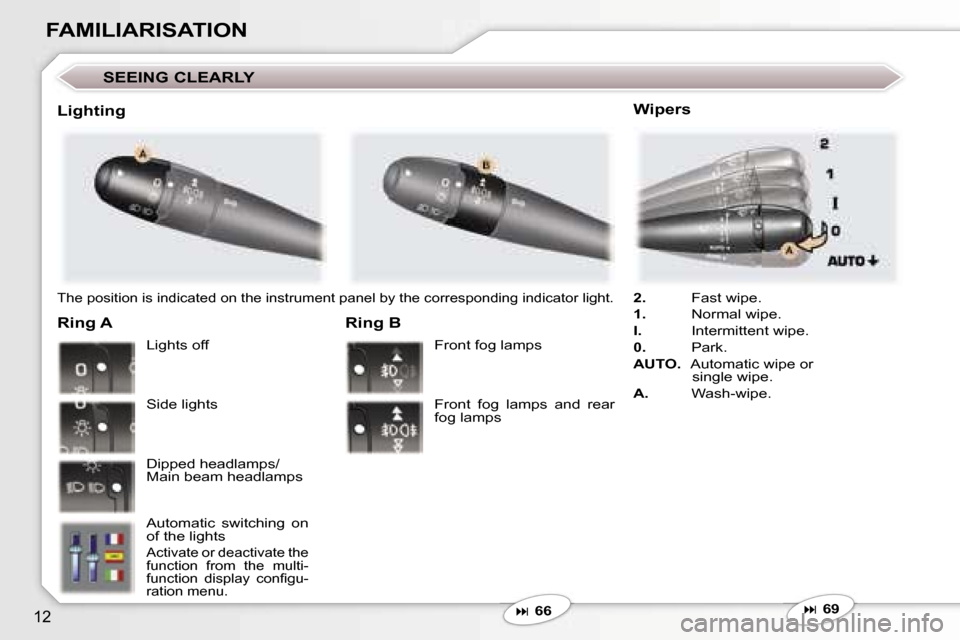

FAMILIARISATION
The position is indicated on the instrument panel by the corresponding indicator light.
Ring A
Lights off
Side lights
Dipped headlamps/
Main beam headlamps
Automatic switching on
of the lights
Activate or deactivate the
function from the multi-
function display configu-
ration menu.
Ring B
Front fog lamps
Front fog lamps and rear
fog lamps

66 2.
Fast wipe.
1. Normal wipe.
I. Intermittent wipe.
0. Park.
AUTO. Automatic wipe or
single wipe.
A. Wash-wipe.
 69
SEEING CLEARLY Wipers
Lighting

13
FAMILIARISATION

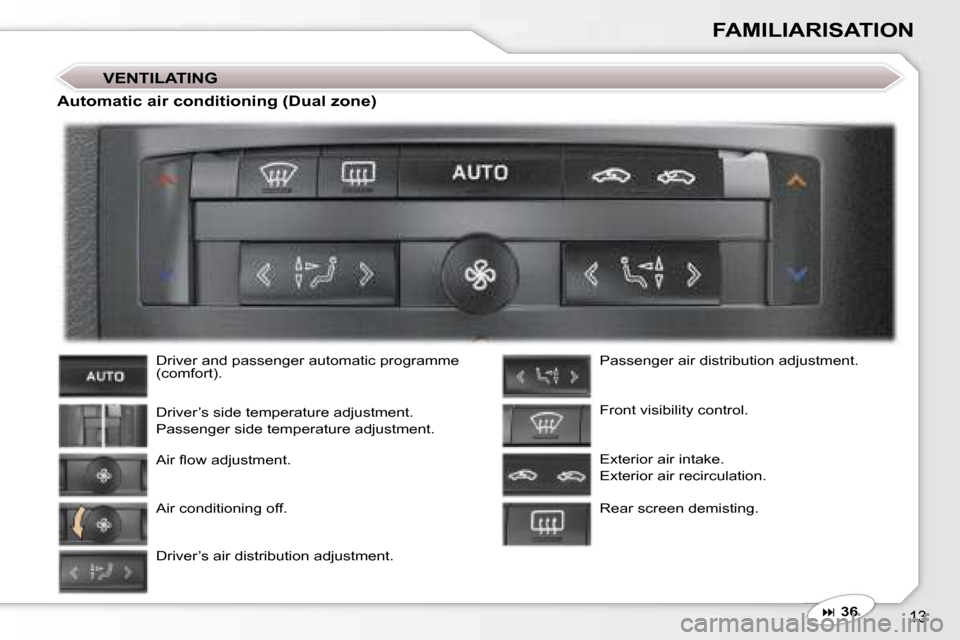

VENTILATING
Driver and passenger automatic programme
(comfort).
Driver’s side temperature adjustment.
Passenger side temperature adjustment.
Air flow adjustment.
Air conditioning off.Passenger air distribution adjustment.
Front visibility control.
Exterior air intake.
Exterior air recirculation.
Rear screen demisting.

36
Driver’s air distribution adjustment.
Automatic air conditioning (Dual zone)

14

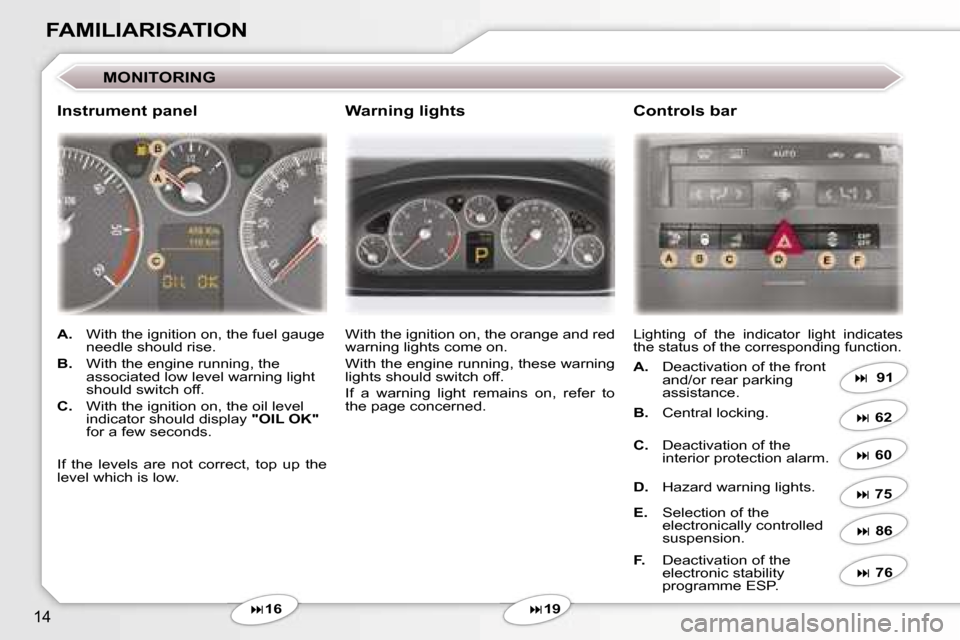

FAMILIARISATION
MONITORING
16 With the ignition on, the orange and red
warning lights come on.
With the engine running, these warning
lights should switch off.
If a warning light remains on, refer to
the page concerned.
Lighting of the indicator light indicates
the status of the corresponding function.A.
With the ignition on, the fuel gauge
needle should rise.
B. With the engine running, the
associated low level warning light
should switch off.
C. With the ignition on, the oil level
indicator should display "OIL OK"
for a few seconds.
If the levels are not correct, top up the
level which is low.
Warning lights
 19
Controls bar
Instrument panel
 91
A.
Deactivation of the front
and/or rear parking
assistance.
B. Central locking.
C. Deactivation of the
interior protection alarm.
D. Hazard warning lights.
E. Selection of the
electronically controlled
suspension.
F. Deactivation of the
electronic stability
programme ESP. 
62
 60
 75
 86

76

15

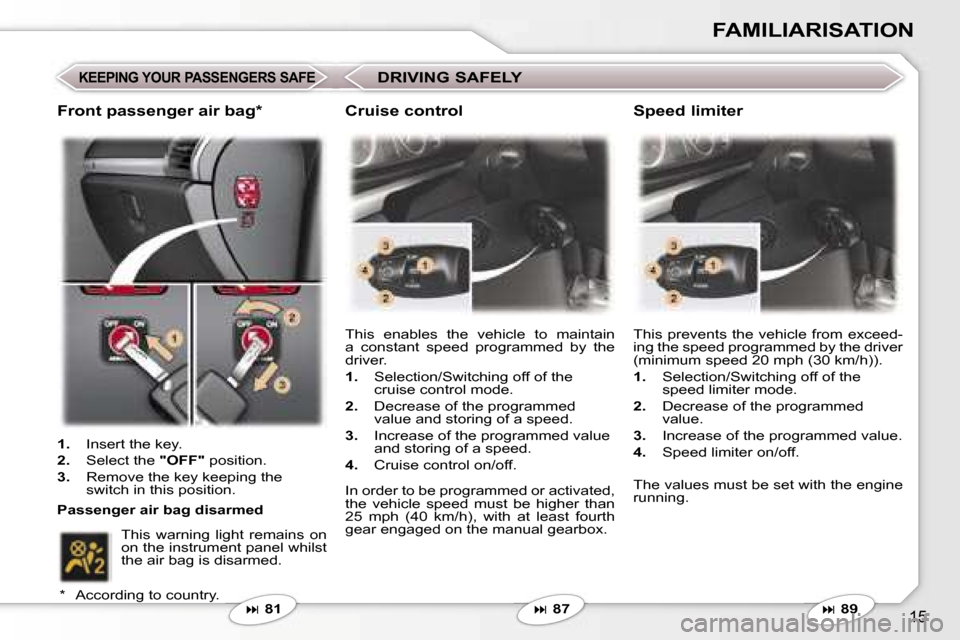

FAMILIARISATION
KEEPING YOUR PASSENGERS SAFE
 81This enables the vehicle to maintain
a constant speed programmed by the
driver.
1.
Selection/Switching off of the
cruise control mode.
2. Decrease of the programmed
value and storing of a speed.
3. Increase of the programmed value
and storing of a speed.
4. Cruise control on/off.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox. This prevents the vehicle from exceed-
ing the speed programmed by the driver
(minimum speed 20 mph (30 km/h)).
1.
Selection/Switching off of the
speed limiter mode.
2. Decrease of the programmed
value.
3. Increase of the programmed value.
4. Speed limiter on/off.
The values must be set with the engine
running.
1.
Insert the key.
2. Select the "OFF" position.
3. Remove the key keeping the
switch in this position.
DRIVING SAFELY
 87
Speed limiter
* According to country.
Passenger air bag disarmed
This warning light remains on
on the instrument panel whilst
the air bag is disarmed.
 89
Front passenger air bag* Cruise control

1
16
1 - Coolant temperature indicator dial.
2 - Lights on indicators:dipped headlamps.main beam headlamps.front fog lamps.rear fog lamps.
3 - Rev counter dial.
4 - Warning lights:seat belts not fastened in the front.fuel level.left direction indicator.
5 - Fuel level indicator dial.
5-DIAL PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX INSTRUMENT PANELS
10 - CHECK and trip recorder zero reset and service display button.
11 - Instrument panel display:Total distance recorder.Trip recorder.Cruise control/speed limiter reference value.Service indicator.Direction advice (navigation)CHECK (vehicle autotest).Trip computer information displays.Warning and status displays.
6 - Warning lights:handbrake applied or brake fluid level or electronic brake force distribution fault.right direction indicator.
7 - Speedometer dial.
8 - Warning lights:emission control system.anti-lock braking system (ABS).passenger air bag disarmed.
pre-heat (Diesel engine starting sequence).
9 - Engine oil temperature indicator dial.
Automatic gearbox leverposition indicator.
12 - Instrument panel lighting rheostat.

1
17

1
18
CHECK (vehicle autotest)
In the presence of a fault
A "minor" fault has been detected: when the CHECK OK indicator light has been displayed, the warning light(s) is(are) displayed.
You can start your vehicle; however, contact a PEUGEOT dealer as soon as possible.
A "major" fault has been detected: the CHECK OK indicator light does not appear and the warning light(s) is(are) displayed.
Do not start your vehicle.
Call a PEUGEOT dealer without delay.
* According to country.
Automatic CHECK
With the key in the ignition on position, all of the warning lights of the func-tions tested are displayed. They are switched off after a few seconds.
At the same time, an automatic CHECK (vehicle autotest) is carried out.
No "major" fault has been detected:the CHECK OK indicator light is displayed after a few seconds.
You can start your vehicle.
Manual CHECK
Pressing the "CHECK/000" button on the instrument panel starts the manual CHECK (vehicle autotest).
This function enables you to find out, at any time (with the key in the ignition on position or with the engine running):
- the warnings present,- the status of the functions activated or deactivated (wipers, automatic switching on of the lights).
The passenger air bag disarmed indicator light* remains on while the air bag is disarmed.
With the engine running and the vehicle moving, the instrument panel screen displays the warning lights (in the event of a fault).
