2006.5 Peugeot 407 C Dag Owner's Manual

9
95

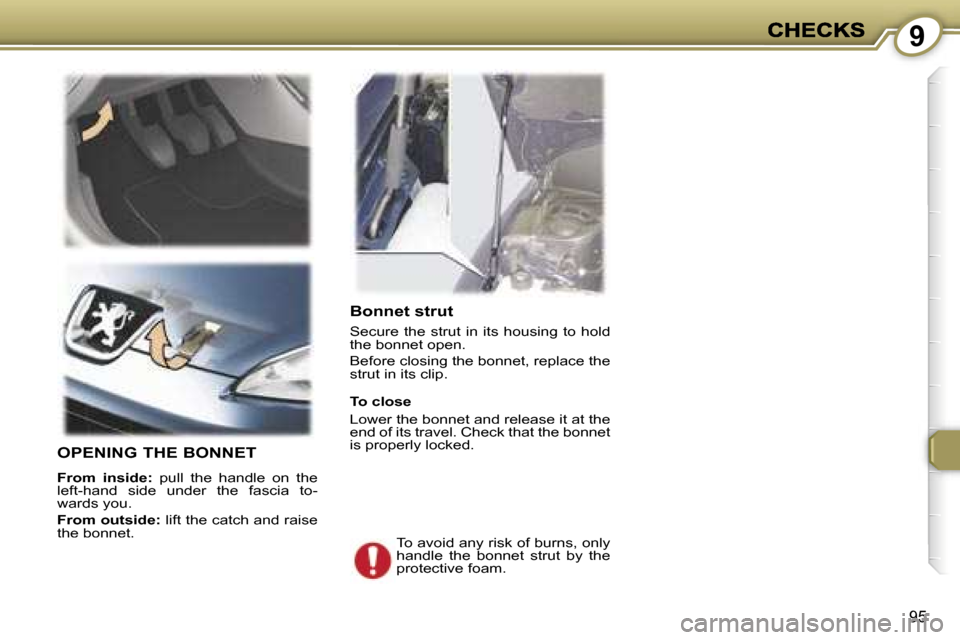

Bonnet strut
Secure the strut in its housing to hold the bonnet open.
Before closing the bonnet, replace the strut in its clip.
OPENING THE BONNET
From inside: pull the handle on the left-hand side under the fascia to-wards you.
From outside: lift the catch and raise the bonnet.To avoid any risk of burns, only handle the bonnet strut by the protective foam.
To close
Lower the bonnet and release it at the end of its travel. Check that the bonnet is properly locked.

9
96

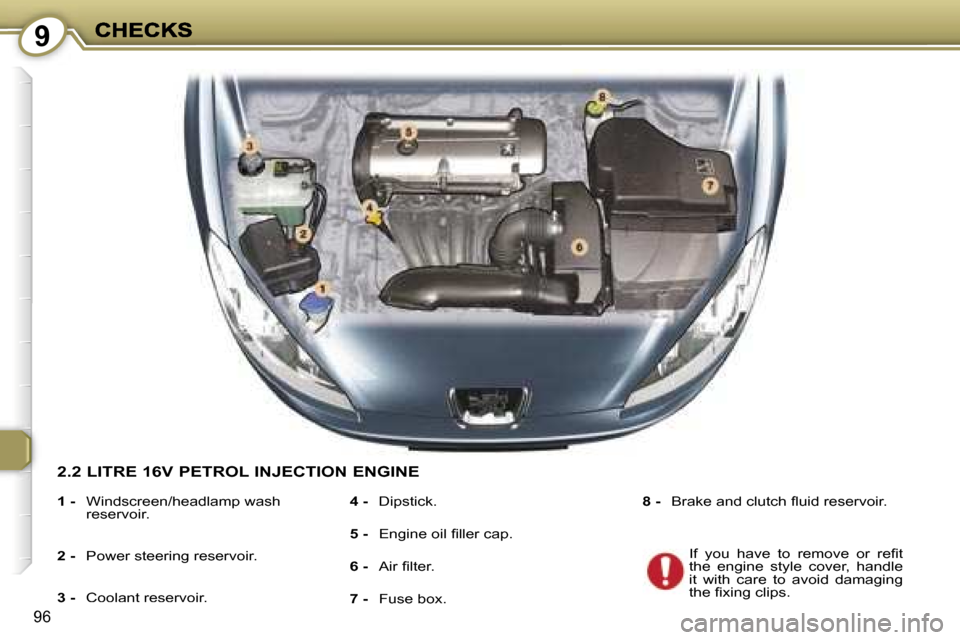

2.2 LITRE 16V PETROL INJECTION ENGINE
1 - Windscreen/headlamp wash reservoir.
2 - Power steering reservoir.
3 - Coolant reservoir.
4 - Dipstick.
5 - Engine oil filler cap.
6 - Air filter.
7 - Fuse box.
8 - Brake and clutch fluid reservoir.
If you have to remove or refit the engine style cover, handle it with care to avoid damaging the fixing clips.

9
97

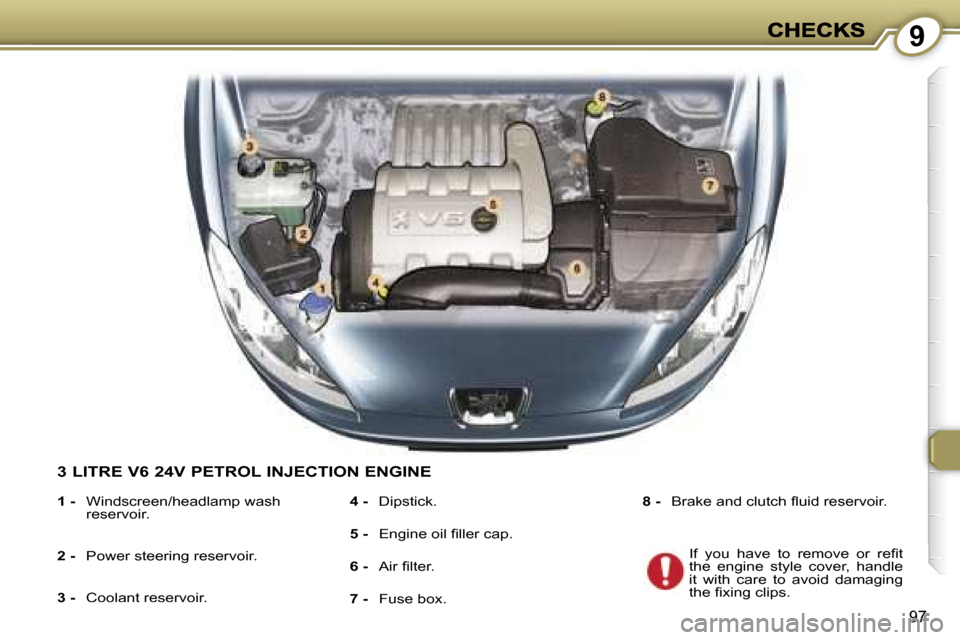

3 LITRE V6 24V PETROL INJECTION ENGINE
1 - Windscreen/headlamp wash reservoir.
2 - Power steering reservoir.
3 - Coolant reservoir.
4 - Dipstick.
5 - Engine oil filler cap.
6 - Air filter.
7 - Fuse box.
8 - Brake and clutch fluid reservoir.
If you have to remove or refit the engine style cover, handle it with care to avoid damaging the fixing clips.

9
98

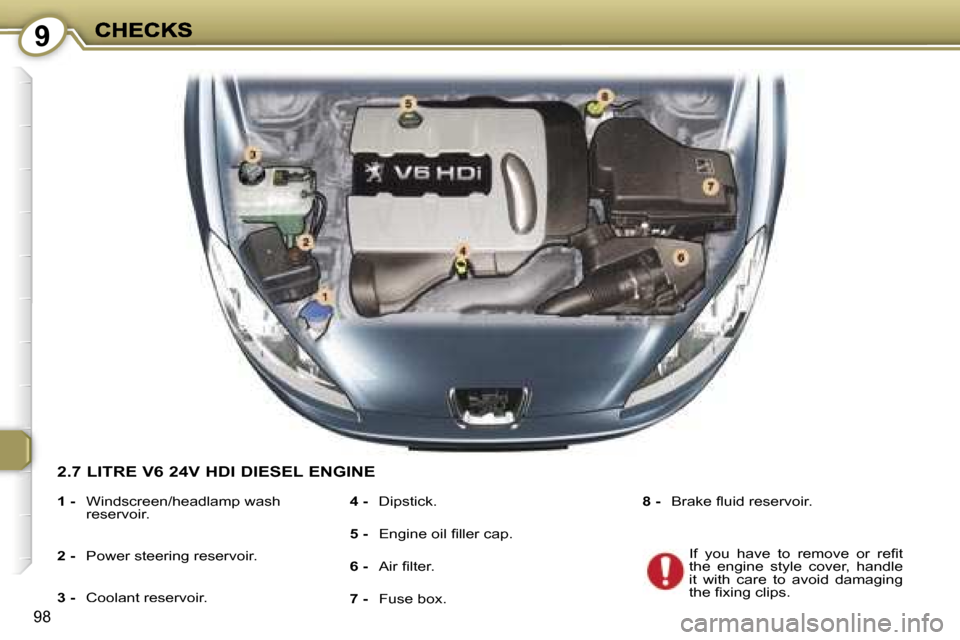

2.7 LITRE V6 24V HDI DIESEL ENGINE
1 - Windscreen/headlamp wash reservoir.
2 - Power steering reservoir.
3 - Coolant reservoir.
4 - Dipstick.
5 - Engine oil filler cap.
6 - Air filter.
7 - Fuse box.
8 - Brake fluid reservoir.
If you have to remove or refit the engine style cover, handle it with care to avoid damaging the fixing clips.

9
99

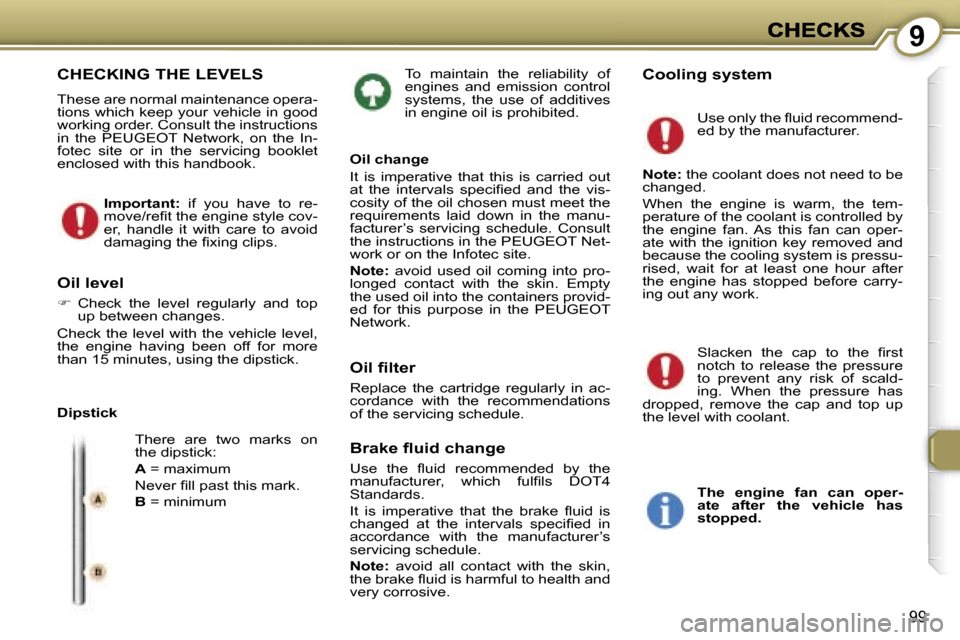

To maintain the reliability of engines and emission control systems, the use of additives in engine oil is prohibited.
Cooling systemCHECKING THE LEVELS
These are normal maintenance opera-tions which keep your vehicle in good working order. Consult the instructions in the PEUGEOT Network, on the In-fotec site or in the servicing booklet enclosed with this handbook.
Dipstick
There are two marks on the dipstick:
A = maximum
Never fill past this mark.
B = minimum
Oil level
Check the level regularly and top up between changes.
Check the level with the vehicle level, the engine having been off for more than 15 minutes, using the dipstick.
Important: if you have to re-move/refit the engine style cov-er, handle it with care to avoid damaging the fixing clips.
Oil change
It is imperative that this is carried out at the intervals specified and the vis-cosity of the oil chosen must meet the requirements laid down in the manu-facturer’s servicing schedule. Consult the instructions in the PEUGEOT Net-work or on the Infotec site.
Note: avoid used oil coming into pro-longed contact with the skin. Empty the used oil into the containers provid-ed for this purpose in the PEUGEOT Network.
Oil filter
Replace the cartridge regularly in ac-cordance with the recommendations of the servicing schedule.
Brake fluid change
Use the fluid recommended by the manufacturer, which fulfils DOT4 Standards.
It is imperative that the brake fluid is changed at the intervals specified in accordance with the manufacturer’s servicing schedule.
Note: avoid all contact with the skin, the brake fluid is harmful to health and very corrosive.
Use only the fluid recommend-ed by the manufacturer.
Note: the coolant does not need to be changed.
When the engine is warm, the tem-perature of the coolant is controlled by the engine fan. As this fan can oper-ate with the ignition key removed and because the cooling system is pressu-rised, wait for at least one hour after the engine has stopped before carry-ing out any work.
Slacken the cap to the first notch to release the pressure to prevent any risk of scald-ing. When the pressure has dropped, remove the cap and top up the level with coolant.
The engine fan can oper-ate after the vehicle has stopped.

9
100

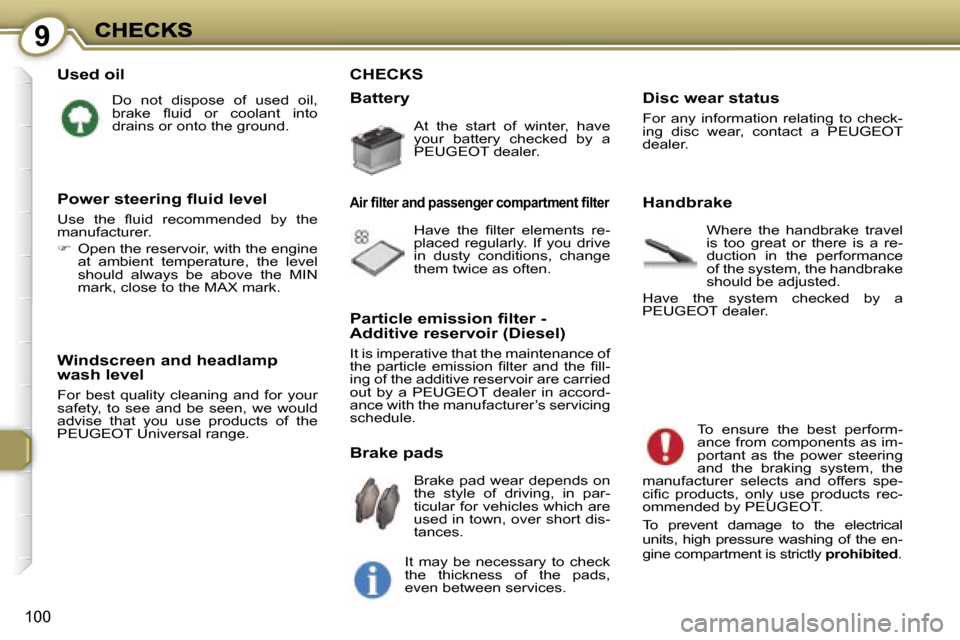

Used oil
Do not dispose of used oil, brake fluid or coolant into drains or onto the ground.
Windscreen and headlamp wash level
For best quality cleaning and for your safety, to see and be seen, we would advise that you use products of the PEUGEOT Universal range.
At the start of winter, have your battery checked by a PEUGEOT dealer.
Battery
CHECKS
Have the filter elements re-placed regularly.If you drive in dusty conditions, change them twice as often.
Air filter and passenger compartment filter
Brake pad wear depends on the style of driving, in par-ticular for vehicles which are used in town, over short dis-tances.
Brake pads
It may be necessary to check the thickness of the pads, even between services.
Where the handbrake travel is too great or there is a re-duction in the performance of the system, the handbrake should be adjusted.
Have the system checked by a PEUGEOT dealer.
Handbrake
To ensure the best perform-ance from components as im-portant as the power steering and the braking system, the manufacturer selects and offers spe-cific products, only use products rec-ommended by PEUGEOT.
To prevent damage to the electrical units, high pressure washing of the en-gine compartment is strictly prohibited.
Power steering fluid level
Use the fluid recommended by the manufacturer.
 Open the reservoir, with the engine at ambient temperature, the level should always be above the MIN mark, close to the MAX mark.
Particle emission filter - Additive reservoir (Diesel)
It is imperative that the maintenance of the particle emission filter and the fill-ing of the additive reservoir are carried out by a PEUGEOT dealer in accord-ance with the manufacturer’s servicing schedule.
Disc wear status
For any information relating to check-ing disc wear, contact a PEUGEOT dealer.

9
100
Used oil
Do not dispose of used oil, brake fluid or coolant into drains or onto the ground.
Windscreen and headlamp wash level
For best quality cleaning and for your safety, to see and be seen, we would advise that you use products of the PEUGEOT Universal range.
At the start of winter, have your battery checked by a PEUGEOT dealer.
Battery
CHECKS
Have the filter elements re-placed regularly.If you drive in dusty conditions, change them twice as often.
Air filter and passenger compartment filter
Brake pad wear depends on the style of driving, in par-ticular for vehicles which are used in town, over short dis-tances.
Brake pads
It may be necessary to check the thickness of the pads, even between services.
Where the handbrake travel is too great or there is a re-duction in the performance of the system, the handbrake should be adjusted.
Have the system checked by a PEUGEOT dealer.
Handbrake
To ensure the best perform-ance from components as im-portant as the power steering and the braking system, the manufacturer selects and offers spe-cific products, only use products rec-ommended by PEUGEOT.
To prevent damage to the electrical units, high pressure washing of the en-gine compartment is strictly prohibited.
Power steering fluid level
Use the fluid recommended by the manufacturer.
 Open the reservoir, with the engine at ambient temperature, the level should always be above the MIN mark, close to the MAX mark.
Particle emission filter - Additive reservoir (Diesel)
It is imperative that the maintenance of the particle emission filter and the fill-ing of the additive reservoir are carried out by a PEUGEOT dealer in accord-ance with the manufacturer’s servicing schedule.
Disc wear status
For any information relating to check-ing disc wear, contact a PEUGEOT dealer.

1010
101

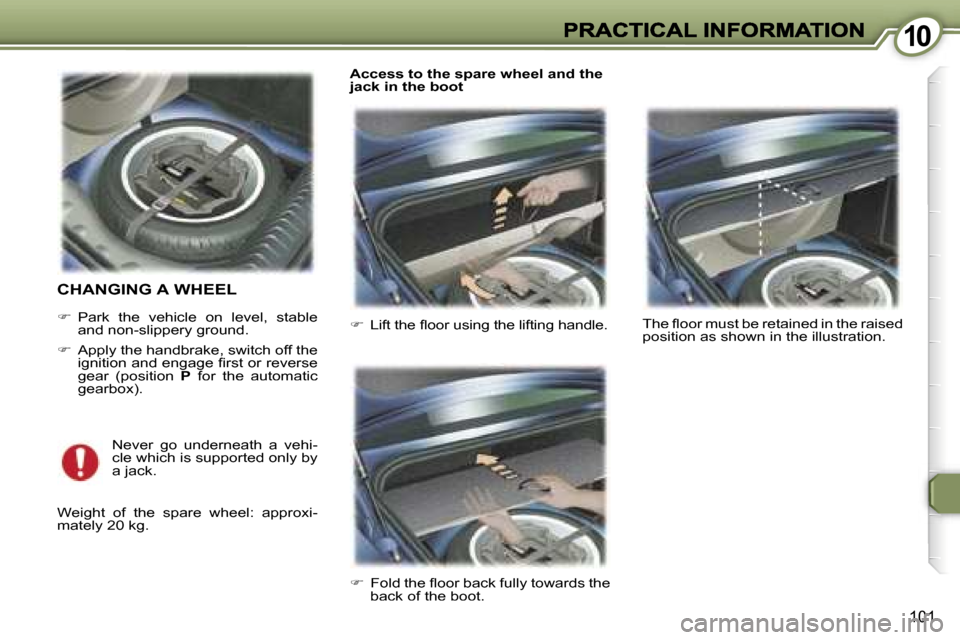

CHANGING A WHEEL
 Park the vehicle on level, stable and non-slippery ground.
 Apply the handbrake, switch off the ignition and engage first or reverse gear (position P for the automatic gearbox).
Weight of the spare wheel: approxi-mately 20 kg.
Never go underneath a vehi-cle which is supported only by a jack.
 Lift the floor using the lifting handle.
 Fold the floor back fully towards the back of the boot.
Access to the spare wheel and the jack in the boot
The floor must be retained in the raised position as shown in the illustration.
