2006.5 Peugeot 407 C Dag Owner's Manual

11
22
33
44
55
99
88
77
66
131

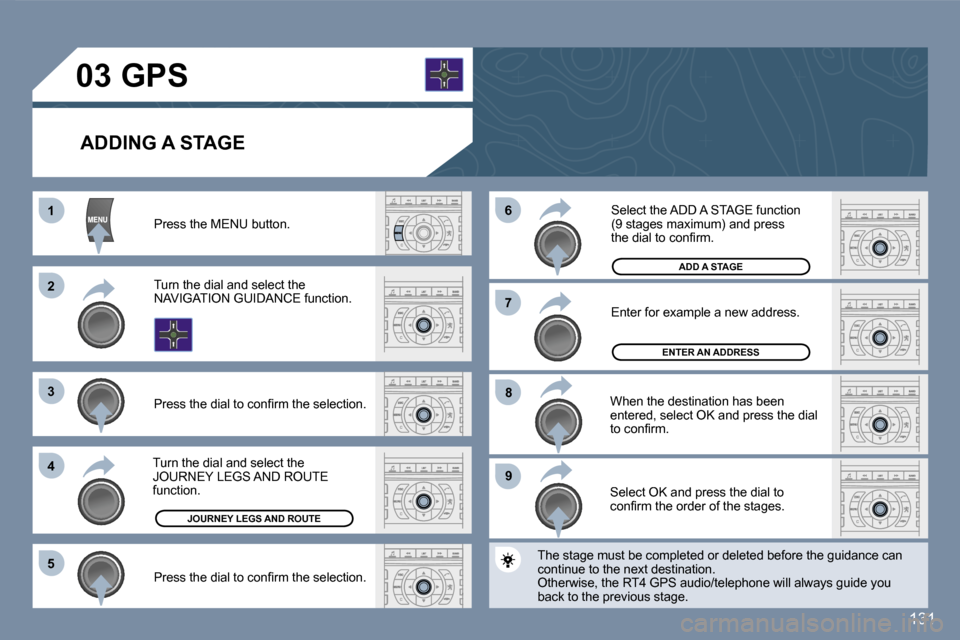

ADDING A STAGE
Press the MENU button.
Turn the dial and select the NAVIGATION GUIDANCE function.
Press the dial to confirm the selection.
Turn the dial and select the JOURNEY LEGS AND ROUTE function.
JOURNEY LEGS AND ROUTE
Select OK and press the dial to confirm the order of the stages.
When the destination has been entered, select OK and press the dial to confirm.
Enter for example a new address.
Select the ADD A STAGE function(9 stages maximum) and pressthe dial to confirm.
Press the dial to confirm the selection.
The stage must be completed or deleted before the guidance can continue to the next destination.Otherwise, the RT4 GPS audio/telephone will always guide you back to the previous stage.
ENTER AN ADDRESS
ADD A STAGE
03 GPS

11
22
33
44
55
66
77
88
132
function and press the dial to confirm.
Turn the dial and select the FILTER TRAFFIC INFORMATION function.

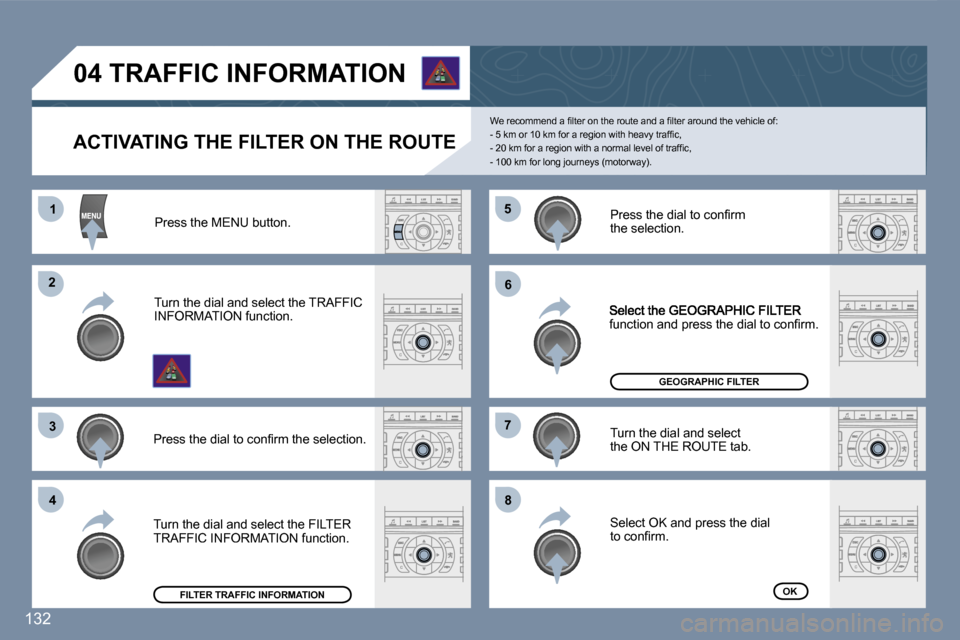

ACTIVATING THE FILTER ON THE ROUTE
We recommend a filter on the route and a filter around the vehicle of:- 5 km or 10 km for a region with heavy traffic,- 20 km for a region with a normal level of traffic,- 100 km for long journeys (motorway).
Press the MENU button.
Turn the dial and select the TRAFFIC INFORMATION function.
Press the dial to confirm the selection.
FILTER TRAFFIC INFORMATION
Press the dial to confirmthe selection.
GEOGRAPHIC FILTER
Turn the dial and selectthe ON THE ROUTE tab.
OK
04 TRAFFIC INFORMATION
Select OK and press the dialto confirm.

11
22
33
44
66
55
77
133
Select the NEW MESSAGE DISPLAY tab.The traffic information messages are extended to the filters selected (geographic...) and can also be displayed when guidance is not active.
Select the READ MESSAGES tab.The Traffic Information Messages will be read by the voice synthesiser.
Press the MENU button.
READ MESSAGES
NEW MESSAGE DISPLAY
OK

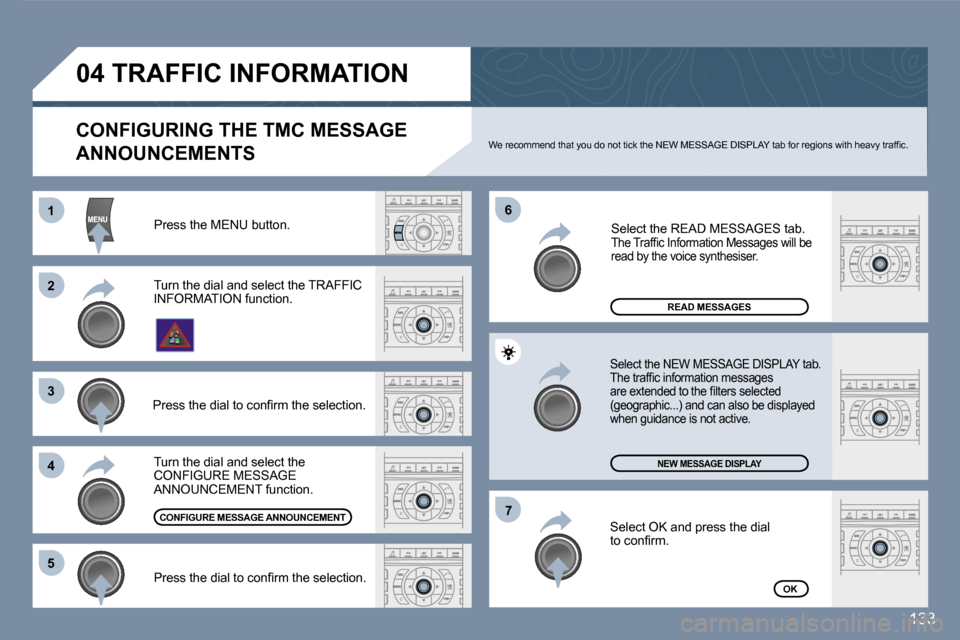

CONFIGURING THE TMC MESSAGE
ANNOUNCEMENTSWe recommend that you do not tick the NEW MESSAGE DISPLAY tab for regions with heavy traffic.
Turn the dial and select the TRAFFIC INFORMATION function.
Press the dial to confirm the selection.
Press the dial to confirm the selection.
Turn the dial and select the CONFIGURE MESSAGE ANNOUNCEMENT function.
CONFIGURE MESSAGE ANNOUNCEMENT
04 TRAFFIC INFORMATION
Select OK and press the dialto confirm.

1
22
33
44
11
22
33
44
134

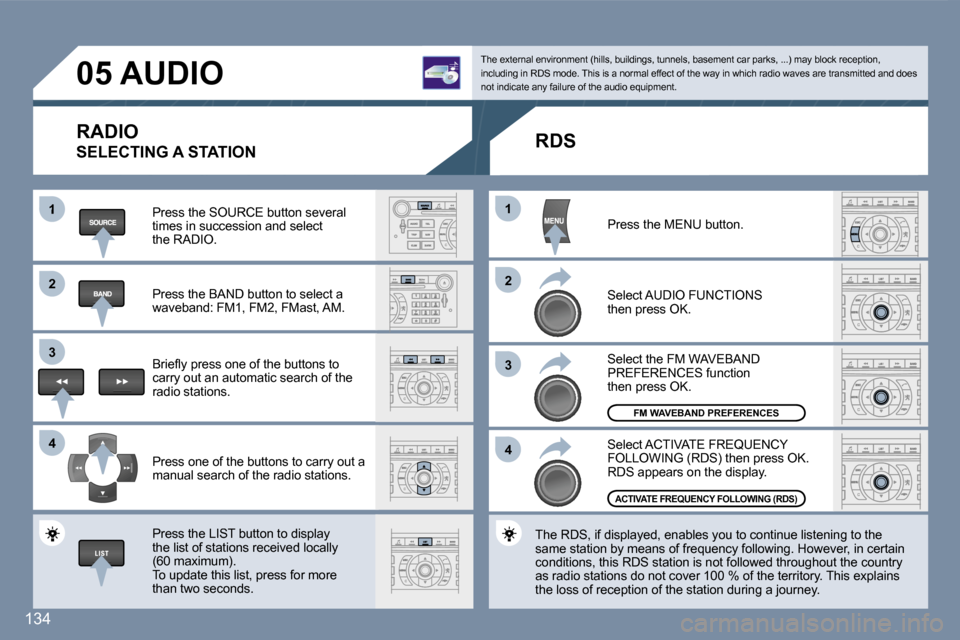

05 AUDIO
RADIO
SELECTING A STATION
Press the SOURCE button several times in succession and selectthe RADIO.
Press the BAND button to select a waveband: FM1, FM2, FMast, AM.
Briefly press one of the buttons to carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
Press the LIST button to displaythe list of stations received locally(60 maximum).To update this list, press for morethan two seconds.
The external environment (hills, buildings, tunnels, basement car parks, ...) may block reception, including in RDS mode. This is a normal effect of t he way in which radio waves are transmitted and doe s not indicate any failure of the audio equipment.
RDS
Select ACTIVATE FREQUENCY FOLLOWING (RDS) then press OK. RDS appears on the display.
Select the FM WAVEBAND PREFERENCES functionthen press OK.
Select AUDIO FUNCTIONSthen press OK.
Press the MENU button.
The RDS, if displayed, enables you to continue list ening to the same station by means of frequency following. Howev er, in certain conditions, this RDS station is not followed throughout the country as radio stations do not cover 100 % of the territory. This explainsthe loss of reception of the station during a journey.
FM WAVEBAND PREFERENCES
ACTIVATE FREQUENCY FOLLOWING (RDS)

11
22
135
05 AUDIO

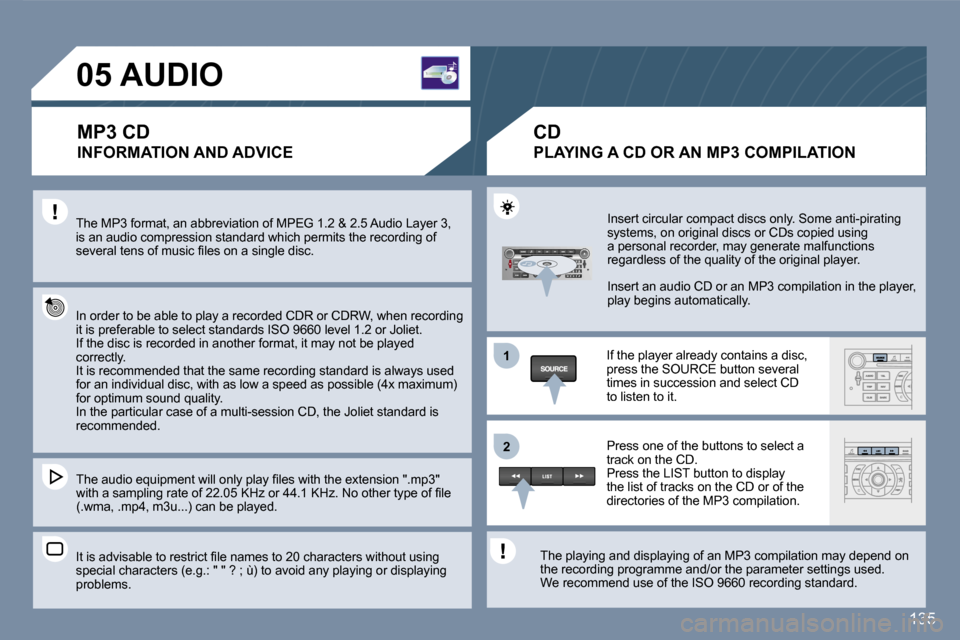

MP3 CD
INFORMATION AND ADVICE
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3, is an audio compression standard which permits the recording of several tens of music files on a single disc.
In order to be able to play a recorded CDR or CDRW, when recording it is preferable to select standards ISO 9660 level 1.2 or Joliet.If the disc is recorded in another format, it may not be played correctly.It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality.In the particular case of a multi-session CD, the Joliet standard is recommended.
The audio equipment will only play files with the ex tension ".mp3" with a sampling rate of 22.05 KHz or 44.1 KHz. No o ther type of file (.wma, .mp4, m3u...) can be played.
It is advisable to restrict file names to 20 characters without using special characters (e.g.: " " ? ; ù) to avoid any playing or displaying problems.
CD
PLAYING A CD OR AN MP3 COMPILATION
Insert circular compact discs only. Some anti-pirat ing systems, on original discs or CDs copied using a personal recorder, may generate malfunctions regardless of the quality of the original player.
Insert an audio CD or an MP3 compilation in the pla yer, play begins automatically.
If the player already contains a disc, press the SOURCE button several times in succession and select CDto listen to it.
Press one of the buttons to select a track on the CD.Press the LIST button to display the list of tracks on the CD or of the directories of the MP3 compilation.
The playing and displaying of an MP3 compilation ma y depend on the recording programme and/or the parameter settings used.We recommend use of the ISO 9660 recording standard .

22
33
11
55
66
44
136
COPY CD TO JUKEBOX
COMPLETE CD
CREATE ALBUM
OK
Select COPY CD TO JUKEBOX and press the dial to confirm.
Select COMPLETE CD to copythe entire CD and press the dialto confirm.
Select CREATE ALBUM and press the dial to confirm.
The AUTO CREATION tab automatically copies the CD by default into an album of the type "album n°...".
The audio or MP3 CD is copied onto the hard disc. Copying may take approximately 20 minutes depending on the dura tion of the CD. During this copying phase, it is not possible to listen to the CD or to albums previously recorded on the hard disc.
Select the letters one by one and select OK to confirm.
If it is not an MP3 CD, the Jukebox automatically c ompresses the CD in MP3 format. The compression may take appr oximately 20 minutes depending on the duration of the CD. During this compression phase, it is possible to listen to the CD or to albums previously recorded on the hard disc.
A long press on the SOURCE buttons starts the copyi ng of the CD.
When copying an MP3 CD, the Jukebox only retains th e last album level. It is not possible to copy files from the Jukebox to a CD.The STOP THE CD COPY action does not delete the file s which have already been transferred onto the jukebox hard disc.
Select AUDIO FUNCTIONS and press the dial to confirm.
Insert a CD or an MP3 compilation and press the MENU button.

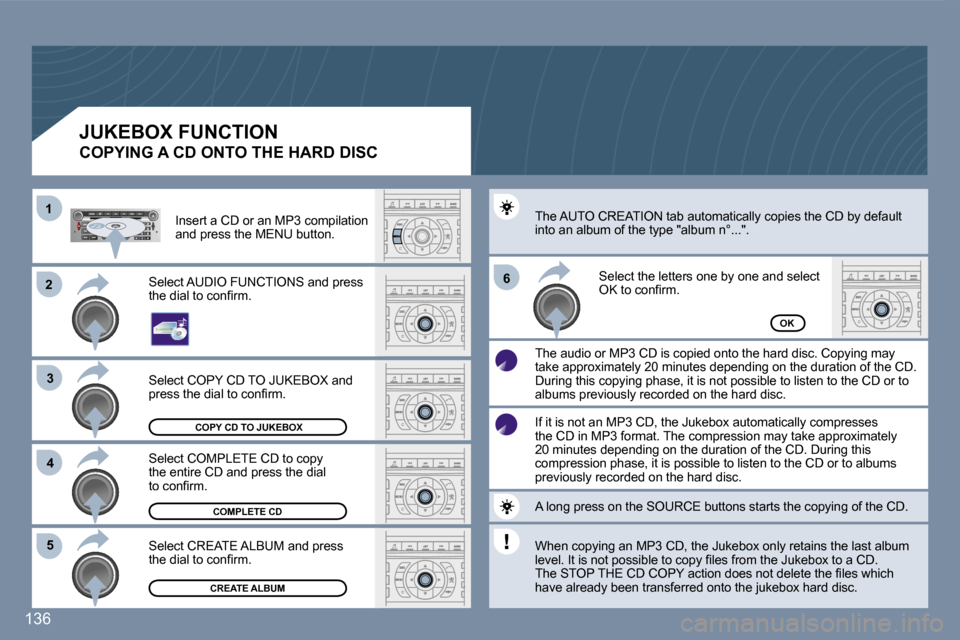

JUKEBOX FUNCTION
COPYING A CD ONTO THE HARD DISC

66
77
55
22
33
44
11
137
JUKEBOX
RENAME
JUKEBOX MANAGEMENT

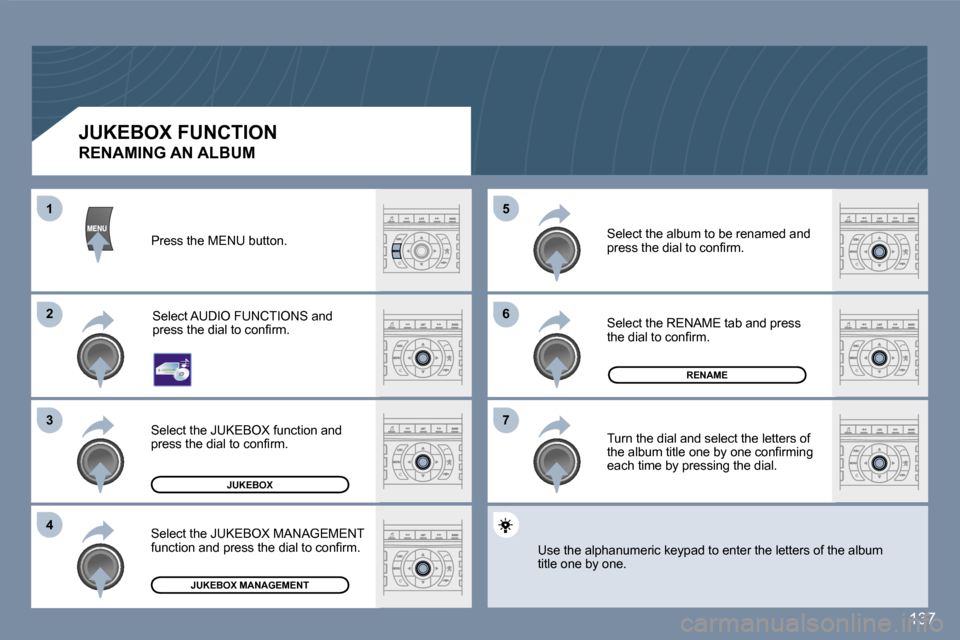

JUKEBOX FUNCTION
RENAMING AN ALBUM
Press the MENU button.
Select AUDIO FUNCTIONS and press the dial to confirm.
Select the JUKEBOX function and press the dial to confirm.
Select the JUKEBOX MANAGEMENT function and press the dial to confirm.
Select the album to be renamed and press the dial to confirm.
Select the RENAME tab and pressthe dial to confirm.
Turn the dial and select the letters of the album title one by one confirming each time by pressing the dial.
Use the alphanumeric keypad to enter the letters of the albumtitle one by one.

8822
33
138
Press the SOURCE button several times in succession and select the JUKEBOX function.
Select the DELETE function to delete an albumor a track from the Jukebox.
DELETE
OK

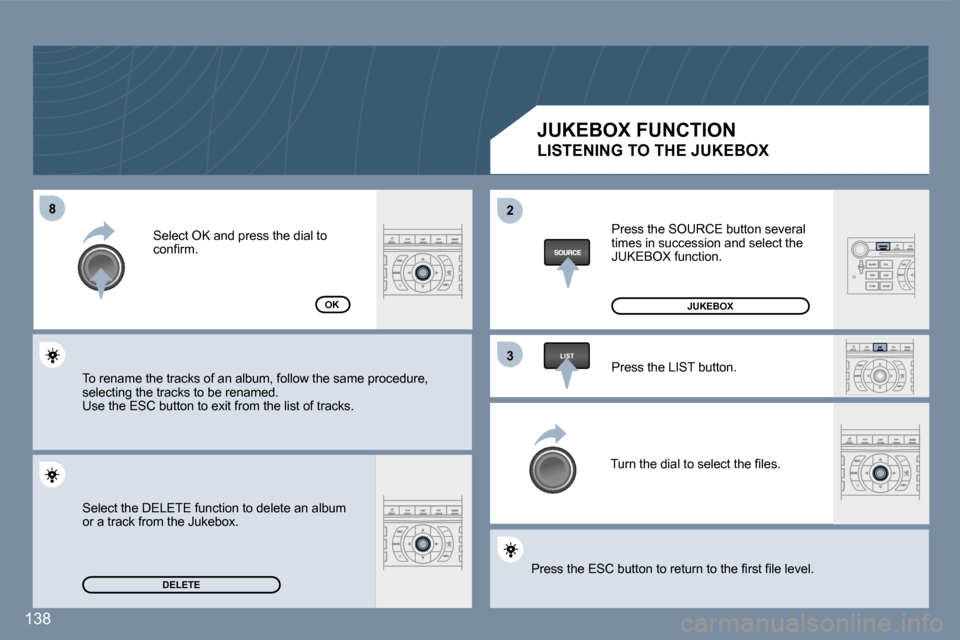

JUKEBOX FUNCTION
LISTENING TO THE JUKEBOX
Press the LIST button.
Turn the dial to select the files.
Press the ESC button to return to the first file level.
JUKEBOX
Select OK and press the dial to confirm.
To rename the tracks of an album, follow the same p rocedure, selecting the tracks to be renamed.Use the ESC button to exit from the list of tracks.
