122 E N G I N E 1 . 4 i 1 6 V

V
123
E N G I N E 1 . 6 i 1 6 V

V

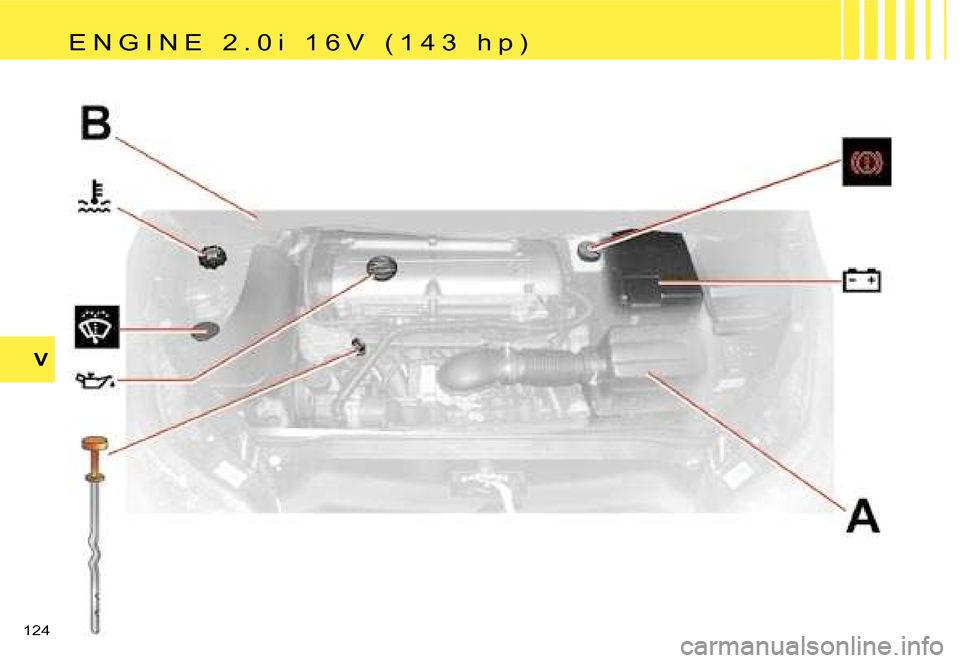

124 E N G I N E 2 . 0 i 1 6 V ( 1 4 3 h p )

V
125
E N G I N E 2 . 0 i 1 6 V ( 1 8 0 h p )

V
126
Due to the fact that the diesel
system is a high pressure
system:
IT IS FORBIDDEN TO CARRY OUT
ANY REPAIRS TO THE SYSTEM.
HDi engines are of a highly technical nature.
All maintenance and repairs require specific qualificati ons
which only your CITROËN Dealer can guarantee.
Only on HDi 110 engines
without particle filter.
E N G I N E H D i 9 2 - H D i 1 1 0
E N G I N E H D i 1 1 0 F A P

V
127
Due to the fact that the diesel
system is a high pressure
system:
IT IS FORBIDDEN TO CARRY OUT
ANY REPAIRS TO THE SYSTEM.
HDi engines are of a highly technical nature.
All maintenance and repairs require specific qualificati ons
which only your CITROËN Dealer can guarantee.
E N G I N E H D i 1 3 8
E N G I N E H D i 1 3 8 F A P

A
B
V
128 Air filter
Follow the recommendations
in the Maintenance Guide.
When working under the bonnet, when the engine is hot (even stopped and the ignition switched off), the cooling fan could operate at any time.
Check the engine oil level frequently between routine service visits,
as well as prior to long journeys.
Engine coolant
The coolant level should
be between the
MAX and
MIN marks on the header
tank.
If the engine is hot, wait 15 min-
utes.
Quality: See “Maintenance Guide”
Never work on the cooling sys-
tem if the engine is hot. (See
“Levels”).
12 volt battery
See “Emergency starting
with a slave battery”. Engine oil
Check the oil level with the
vehicle parked on level
ground, after the engine
has been switched off for at least
fifteen minutes.
Quality: See “Maintenance Guide”
Brake fluid
The fluid level must be
situated within the MAX
and MIN marks visible on
the reservoir.
Quality: See “Maintenance Guide”
If the warning lamp comes on
while you are driving, stop imme-
diately and contact the CITROËN
network.
Dust filter / odour filter
(active carbon)
See “Maintenance Guide”
Take out the oil dipstick.
The level must be between
the
MAX and MIN marks
on the dipstick
It should never exceed the maximum mark.
Windscreen, rear screen
and headlamp washer
fluid
It is recommended that you use
products approved by CITROËN.
Capacity: See “Capacities”
MAX
MIN
L E V E L S
R e f e r t o t h e c h a p t e r U s e r P r e c a u t i o n

V
129
Radiator - coolant
The coolant must only be checked
or topped up if the power unit is
cold.
Engine hot
Release the protection cover.
Wait 15 minutes or until the tem-
perature is below 100 degrees C.
Using a cloth to protect your hands,
slowly slacken the filler cap as
far as the safety catch. Allow the
pressure to reduce before remov-
ing filler cap.
Adding engine oil
Remove the dipstick before top-
ping up.
Check the level after filling.
It should never exceed the
maximum mark.
Screw on the cap before closing
the bonnet.
Quality:
See “Maintenance Guide”.
When working under the bonnet, when the engine is hot
(even stopped and the ignition switched off), the cooling fan could operate at any time. Topping up the
cooling system
The coolant level
should be between
the
MAX and
MIN marks on the
header tank.
Top up the level. If you have to
add more than 1 litre, you should
have the cooling system checked
by CITROËN.
Make sure that the cap is on
correctly
Note: The necessity to top up
frequently would indicate a mal-
function that should be checked at
the earliest opportunity.
Note: on vehicles equipped with a
particle filter, the cooling fan may
operate for some ten minutes after
the engine has stopped.
L E V E L S
