2006.5 Citroen C4 DAG Owner's Manual

III
90 Manual operation
The rear doors are locked by
operating the lever.
When the manual safety is in use,
the aperture is horizontal.
Electric operation
The electrical safety is activated
by pressing the control located to
the rear of the electric windows
panel. This prohibits movement of
the rear electric windows and rear
passenger doors.
It is still possible to open the doors
from the outside, provided the
vehicle is not locked.
Note: with the ignition on, if
the child safety is activated
for the two rear doors, the
warning lamp lights up on
the control on the dashboard. When the ignition is
switched on, the warning
lamp comes on then goes
out again approx. 10 sec-
onds after the engine is started.
Note:
Activation of the function
is confirmed by the lighting of the
warning lamp accompanied by a
message.
C H I L D S A F E T Y

III
91
CHILD SEATS secured by
means of the vehicle seat belt
In conformity with Directive 2000/3,
the table below tells you to what
extent each of the seat positions
in your vehicle may take a child
seat that is secured by means of
the vehicle seat belt and approved
as “Universal” as a function of the
weight of the child.
Consult “User Precautions”: the
chapter on “Child Safety” at the
end of this handbook, in order
to ensure that you are install-
ing your child in conditions of
maximum safety.
Take care to comply with the fitting instructions given in the ch ild
seat manufacturer’s user guide.
U: Seat suitable for the installation of a universal rear- fa
cing child seat
and a universal forward- facing child seat
U(R): Seat position suitable for installation of a universal rear- facing
child seat and of a forward- facing seat. The vehicle seat sho uld be
adjusted to the highest position.
(a) It is essential to deactivate the front passenger’s airbag when a “rear
facing” child seat is installed in the front passenger’s seat position.
Before placing your child in the front passenger’s seat positio n, consult the
legislation currently in force in your country on the carrying of ch ildren in
this position.
L-: Only the child seats indicated may be installed in the se at position
concerned (depending on country).
X: Position not suitable for installation of a child seat o f the weight group
indicated.
Seat(s) Weight of child
Up to 10 kg
Up to 13 kg
(groups 0 and 0+) 9 - 18 kg
(group 1) 15 - 25 kg
(group 2) 22 - 36 kg
(group 3)
Front pas- senger (a) Fixed seat U U U U
Height-adjust- able seat U(R) U(R) U(R) U(R)
Lateral rear U U U U
Central rear L2 X L4 L4
C H I L D R E S T R A I N T S

c
ab
III
92 ISOFIX anchoring points and
the ISOFIX fastening system
The lateral rear seat positions are
equipped with the ISOFIX regula-
tion anchorages.
There are 3 rings for each seat
position:
- Two “bottom” rings
a and b
located between the backrest
and the vehicle seat. These are
about 28 cm apart.
- One “top” ring c located in the
boot between the wheelarch and
the seat backrest.
ISOFIX child seats have two
latches which are easy to secure
on the two “bottom” rings a and b. Some ISOFIX child seats also
have a top belt, which is for attach-
ing on the ISOFIX “top” ring
c.
To attach the top belt, raise the
head restraint of the vehicle seat,
then pass the bucke between the
two supports. Next fix the buckle
on the “top” ring c and tension the
top belt.
In all cases, the head restraint has
to be raised to the maximum.
This fixing system is intended for
children weighing up to 18 kg.

C H I L D R E S T R A I N T S

ab
III
93
Incorrect installation of a child
seat in a vehicle compromises
protection of the child in the event
of a collision. The ISOFIX fasten-
ing system enables you to reduce
those risks posed by incorrect
fitting, offering you a convenient,
strong and reliable fitting for a
child seat in your vehicle.
In the front passenger’s seat, it is essential to deactivate the
front passenger’s airbag as soon as a “rear-facing” child seat is
installed in this position. Otherwise the child risks be ing killed or
seriously injured should the airbag deploy.
Take care to comply with the fitting instructions given in the ch ild
seat manufacturer’s user guide.
The ISOFIX child seat recommended for your vehicle is:
ISOFIX RÖMER Duo:
It is marketed in the CITROËN network. It is equipped with
a top belt and
so it is approved as an “ISOFIX universal” child seat.
If it is installed in a rear seat position, the vehicle’s corre sponding front
seat should be adjusted so that the child’s feet do not t ouch the backrest
of this front seat.
This ISOFIX child seat can also be installed in seat position s that are not
equipped with ISOFIX anchoring points. In this case, it is co mpulsory to
secure it to the vehicle seat by means of the vehicle seat belt .
C H I L D R E S T R A I N T S

III
94 1 - Spotlamps
A press on one of the buttons will switch the corresponding sp
otlamp on
or off.
They will not come on if the ignition is switched off or t he vehicle is in
economy mode.
Automatic lighting of interior lamps
- When you enter the vehicle:
They come on immediately you unlock the vehicle or open a door .
They go out 30 seconds after doors have been closed, or after the igni-
tion has been switched on.
- When you leave the vehicle:
They come on when you remove the ignition key (for about 30 se conds),
or when a door is opened.
They go out after 30 seconds with the doors closed, or immedia tely the
vehicle is locked.

In this position, the interior lamp comes on when you open a door
or the boot.
In this position, it is deactivated and switched off permane ntly.
In the front, the spotlamps are deactivated.
In this position, lighting is permanent.
2 - Front and rear interior lamps
I N T E R I O R L I G H T I N G

III
95
Glovebox lighting
Comes on automatically when the
cover is opened. Do not forget to
close it again. Does not work with
the ignition off.
Boot lighting
Operates automatically on open-
ing the tailgate.
Sill lighting
These light up automatically with
the interior lamps.
I N T E R I O R L I G H T I N G

III
96 Glovebox
To open, pull the handle and lower
the lid.
The glovebox has:
- Storage locations for pens, spec-
tacles, telephone cards, etc.
- Three sockets for connecting audio/video equipment.
- A ventilation duct A can be
adjusted manually. It uses the
same conditioned air as the air
vents. Storage drawer
To open: press at the centre of the
drawer.
To retrieve an object, lift the drawer
up using the aperture provided.
Floor mats
Use only the fixings provided in
the wallet that is attached.
If removing the mat on the driver’s
side :
- slide the seat as far as possible
rearwards,
- completely undo the fixings,
-
remove the fixings, then the floor mat.When refitting, position the floor
mat correctly and press the fixings
firmly home.
Check that the floor mat is securely
in position.
Storage flap
To open: press at the centre.
I N T E R I O R C O M F O R T
To prevent any hindrance
under the pedals :
- use only the floor mats thatare compatible with the
fixings already present in
the vehicle. It is essential to
use these fixings.
- never fit any further floor mats on top.
WARNING: As a safety
measure,
the glovebox must remain
shut when the vehicle is in motion.

III
97

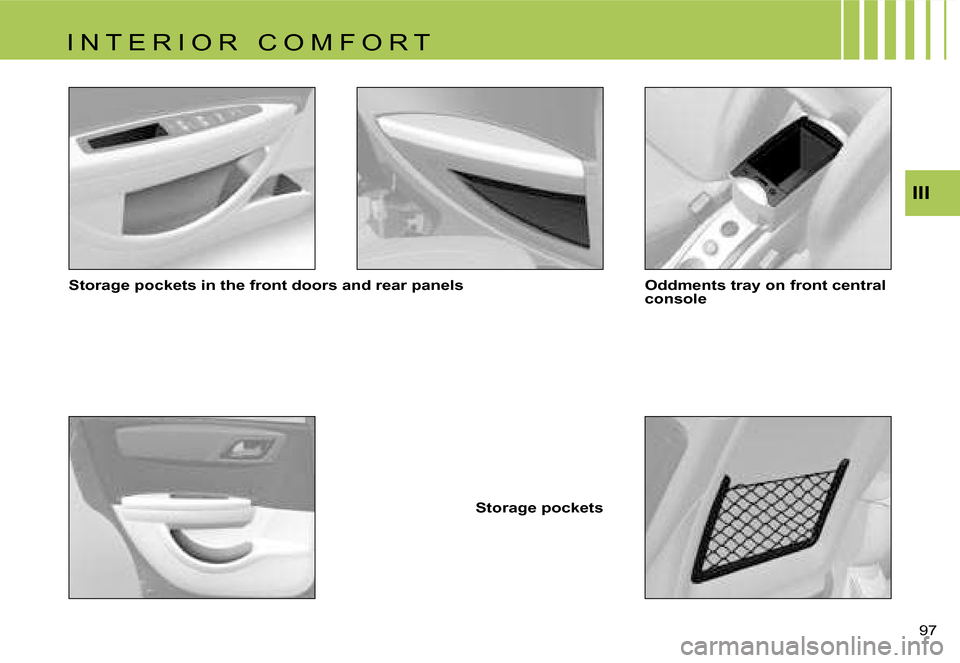

Storage pockets in the front doors and rear panels
Storage pocketsOddments tray on front central
console
I N T E R I O R C O M F O R T
