2005 TOYOTA MR2 SPYDER Owners Manual

572005 MR2 from Aug. ’04Prod. (OM17527U)
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
SB13097
2. To remove the child restraint system,
press the buckle release button and
allow the belt to retract.

582005 MR2 from Aug. ’04Prod. (OM17527U)
—U sin g a to p st rap
SB13110
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
SB13111
Use the anchor bracket on the luggage
trim to attach the top strap.
Anchor brackets are installed for a pas-
senger seating position.
This symbol indicates the location of the
anchor bracket.
SB13112a
TO USE THE ANCHOR BRACKET
1. Lightly push up the anchor bracket
cover, then pull it forward to re-
move.

592005 MR2 from Aug. ’04Prod. (OM17527U)

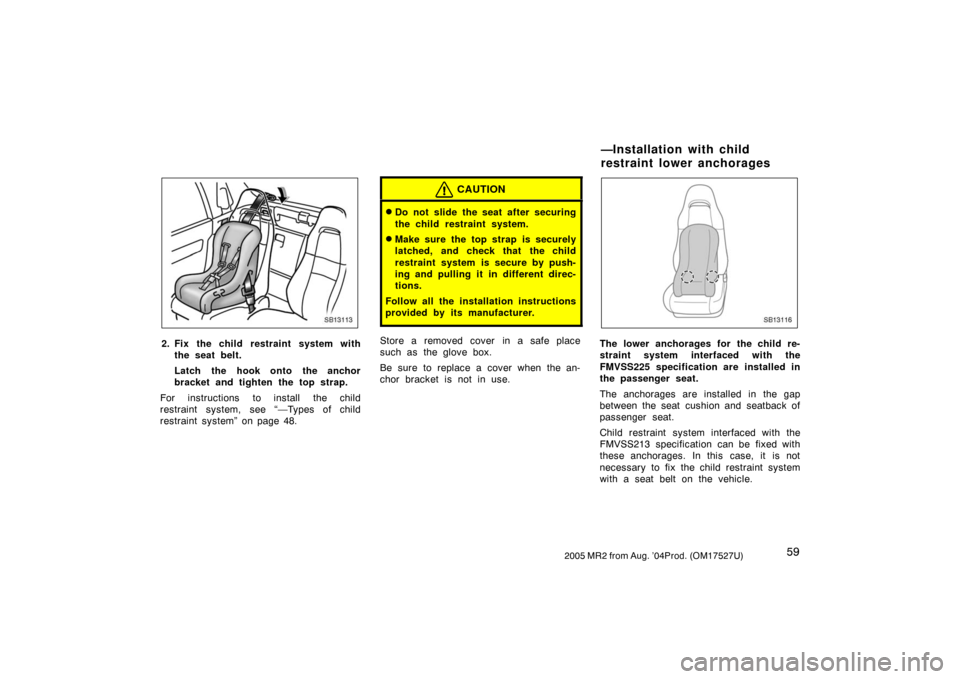

SB13113
2. Fix the child restraint system with
the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child
restraint system, see “—Types of child
restraint system” on page 48.
CAUTION
Do not slide the seat after securing
the child restraint system.
Make sure the top strap is securely
latched, and check that the child
restraint system is secure by push-
ing and pulling it in different direc-
tions.
Follow all the installation instructions
provided by its manufacturer.
Store a removed cover in a safe place
such as the glove box.
Be sure to replace a cover when the an-
chor bracket is not in use.
SB13116
The lower anchorages for the child re-
straint system interfaced with the
FMVSS225 specification are installed in
the passenger seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
passenger seat.
Child restraint system interfaced with the
FMVSS213 specification can be fixed with
these anchorages. In this case, it is not
necessary to fix the child restraint system
with a seat belt on the vehicle.
—Installation with child
restraint lower anchorages

602005 MR2 from Aug. ’04Prod. (OM17527U)
SB13118b
Rearmost
positionMore than
3 notches
CHILD RESTRAINT SYSTEM
INSTALLATION
1. Fold down the seatback and slide
the seat backward into the rearmost
position. Then slide it forward by
more than 3 notches.
SB13117a
9th lock
position1st lock
position
2. Raise the seatback back to the 1st
lock position (most upright position)
until it locks into place. Adjust the
seatback to the 9th lock position.
Make sure the seatback is locked se-
curely.SB13115a
Ty p e A

612005 MR2 from Aug. ’04Prod. (OM17527U)

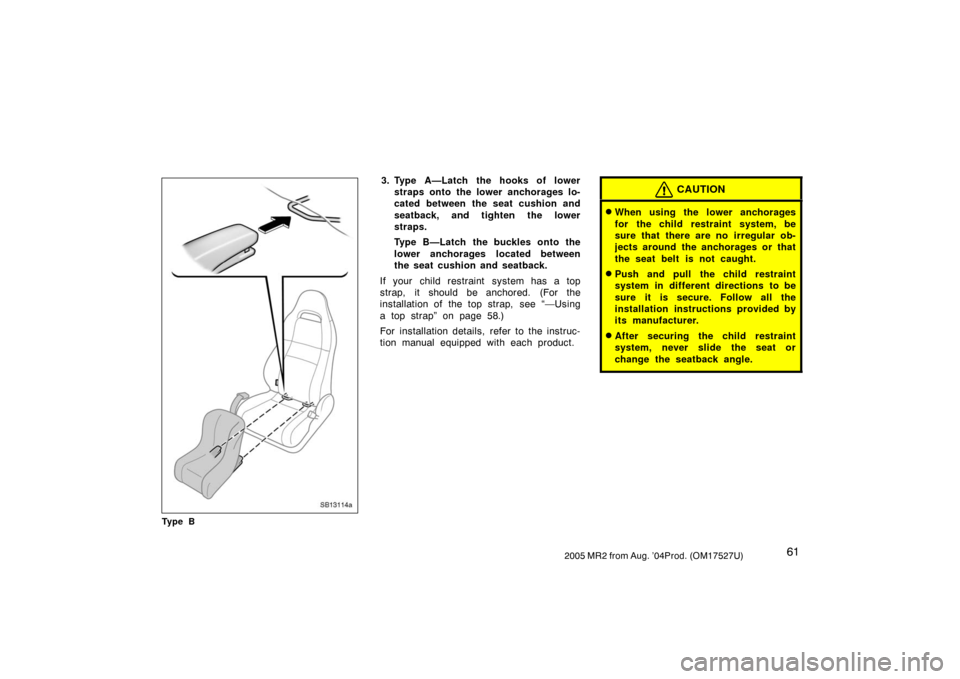

SB13114a
Ty p e B
3. Type A—Latch the hooks of lower
straps onto the lower anchorages lo-
cated between the seat cushion and
seatback, and tighten the lower
straps.
Type B—Latch the buckles onto the
lower anchorages located between
the seat cushion and seatback.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 58.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never slide the seat or
change the seatback angle.

622005 MR2 from Aug. ’04Prod. (OM17527U)

632005 MR2 from Aug. ’04Prod. (OM17527U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel64 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors64 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti−glare inside rear view mirror66 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 4

642005 MR2 from Aug. ’04Prod. (OM17527U)
Tilt steering wheel
SB13049
To change the steering wheel angle,
hold the steering wheel, push the lock
release lever, tilt the steering wheel to
the desired angle and return the lever
to its original position.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Outside rear view mirrors—
SB13050
Adjust the mirror so that you can see
the side of your vehicle in the mirror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
