42005 MR2 from Aug. ’04Prod. (OM17527U)
Instrument cluster overview
SB11023a
1. Speedometer
2. Service reminder indicators and indica-
tor lights
3. Gear position indicators
(sequential manual transmission)4. Engine coolant temperature gauge
5. Low fuel level warning light
6. Fuel gauge7. Tachometer
8. Trip meter reset knob
9. Odometer and two trip meters

52005 MR2 from Aug. ’04Prod. (OM17527U)
Indicator symbols on the instrument panel
SRS warning light∗
1Brake system warning light∗
1
Discharge warning light∗
1
Low engine oil pressure warning light∗
1
Malfunction indicator lamp∗
1
Anti−lock brake system warning light∗
1
Driver ’s seat belt reminder light∗
1
Headlight high beam indicator light
Turn signal indicator lights
Power steering system warning light∗
1
∗
1
: For details, see “Service reminder indicators and warning
buzzers” on page 77 in Section 1−5.
∗
2: If this light flashes, see “Sequential manual transmission” on
page 85 in Section 1−6.
∗
3: If this light flashes, see “Cruise control” on page 98 in Sec-
tion 1−6.
Passenger ’s seat belt reminder light∗
1Sequential manual transmission warning light∗
1
Cruise control indicator light∗
3
Open door warning light∗
1
Gear position indicator light∗
2

352005 MR2 from Aug. ’04Prod. (OM17527U)
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt and the seat belt extend-
er are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from injury.
—Seat belt pretensioners
SB13089a
The driver and passenger seat belt pre-
tensioners are designed to be activated
in response to a severe frontal impact.
When the sensor detects a severe frontal
impact, the seat belts are quickly drawn
back by the retractors so that the belts
snugly restrain the occupants.
The seat belt pretensioners are activated
even if there is no passenger in the seat.
The seat belt pretensioners and SRS air-
bags may not operate together in all colli-
sions.
SB13091a
The seat belt pretensioner system con-
sists mainly of the following components
and their locations are shown in the il-
lustration.
1. Front airbag sensor
2. Seat belt pretensioner assemblies
3. Airbag sensor assembly
4. SRS warning light
The seat belt pretensioners are controlled
by the airbag sensor assembly. The airbag
sensor assembly consists of a safing sen-
sor and airbag sensor.

362005 MR2 from Aug. ’04Prod. (OM17527U)
When the seat belt pretensioners are acti-
vated, an operating noise may be heard
and a small amount of non−toxic gas may
be released. This does not indicate that
a fire is occurring. This gas is normally
harmless.
Once the seat belt pretensioners have
been activated, the seat belt retractors
remain locked.
CAUTION
Do not modify, remove, strike or open
the seat belt pretensioner assemblies,
airbag sensor or surrounding area or
wiring. Failure to follow these instruc-
tions may prevent the seat belt pre-
tensioners from activating correctly,
cause sudden operation of the system
or disable the system, which could
result in death or serious injury. Con-
sult your Toyota dealer about any re-
pair and modification.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
seat belt pretensioners in some
cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
Repairs on or near the seat belt
retractor assemblies
Modification of the suspension sys-
tem
Modification of the front end struc-
ture
Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
Repair made on or near the front
fenders, front end structure or con-
sole
SB13102a
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the seat belt pretensioners are
operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, seat belt pretensioner assemblies,
inflators, warning light, interconnecting wir-
ing and power sources. (For details, see
“Service reminder indicators and warning
buzzers” on page 77.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.

412005 MR2 from Aug. ’04Prod. (OM17527U)

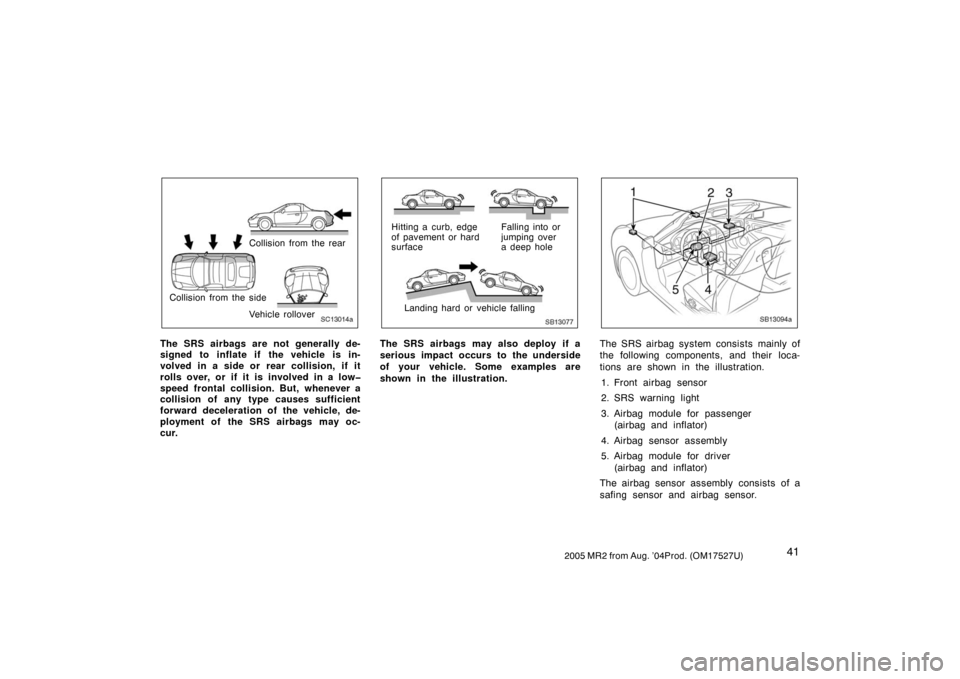

SC13014a
Collision from the rear
Collision from the side
Vehicle rollover
The SRS airbags are not generally de-
signed to inflate if the vehicle is in-
volved in a side or rear collision, if it
rolls over, or if it is involved in a low
speed frontal collision. But, whenever a
collision of any type causes sufficient
forward deceleration of the vehicle, de-
ployment of the SRS airbags may oc-
cur.
SB13077
Hitting a curb, edge
of pavement or hard
surfaceFalling into or
jumping over
a deep hole
Landing hard or vehicle falling
The SRS airbags may also deploy if a
serious impact occurs to the underside
of your vehicle. Some examples are
shown in the illustration.
SB13094a
The SRS airbag system consists mainly of
the following components, and their loca-
tions are shown in the illustration.
1. Front airbag sensor
2. SRS warning light
3. Airbag module for passenger
(airbag and inflator)
4. Airbag sensor assembly
5. Airbag module for driver
(airbag and inflator)
The airbag sensor assembly consists of a
safing sensor and airbag sensor.

442005 MR2 from Aug. ’04Prod. (OM17527U)
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, dashboard
near the passenger airbag, passen-
ger airbag cover, passenger airbag
or airbag sensor assembly. Doing
so may prevent the airbag system
from activating correctly, cause sud-
den activation of the system or dis-
able the system, which could result
in death or serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can in-
terfere with proper operation of the
SRS airbag system in some cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
Modification of the suspension sys-
tem
Modification of the front end struc-
ture
Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the pas-
senger airbag
SB13102a
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS airbags are operating
properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, seat belt pretensioner assemblies,
inflators, warning light, interconnecting wir-
ing and power sources. (For details, see
“Service reminder indicators and warning
buzzers” on page 77.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.

462005 MR2 from Aug. ’04Prod. (OM17527U)
The indicator comes on when the passen-
ger airbag system is off.
To check the airbag cut−off system status,
turn the ignition switch to the “ON” posi-
tion. The “AIRBAG” warning light and the
“OFF” indicator light should go on for
approximately 4 seconds. If the airbag
switch is turned off, the “OFF” indicator
will continue to illuminate, and if the air-
bag switch is turned on, the “OFF” indica-
tor will not illuminate.CAUTION
Make sure that the indicator light is
off.
Do not turn off the passenger air-
bag manual onoff switch except
when a member of a passenger risk
group identified in TABLE 1 (on
page 40) is occupying the passen-
ger seating position.
When the passenger airbag manual
onoff switch is turned off, the pas-
senger airbag will not inflate in a
collision and turning off the pas-
senger airbag can reduce the occu-
pant protection which your vehicle
safety systems can provide to you
in certain accidents and increase
the likelihood of serious personal
injuries.
For details, see “SRS driver airbag
and passenger airbag” on page 37 in
this Section.
Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
now require the use of a child restraint
system.
Your vehicle conforms to SAEJ1819.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Toyota strongly urges use of a
proper child restraint system that
conforms to the size of the child.
Child restraint—
—Child restraint precautions

742005 MR2 from Aug. ’04Prod. (OM17527U)
Fuel gauge
SB15009a
Low fuel level
warning light
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is on.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, acceler-
ating or making turns. This is cause by
the movement of the fuel in the tank.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
SB15007a
The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves to the “H” position,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop−and−go traffic.
Engine coolant temperature
gauge
