2005 TOYOTA MR2 SPYDER Owners Manual

492005 MR2 from Aug. ’04Prod. (OM17527U)

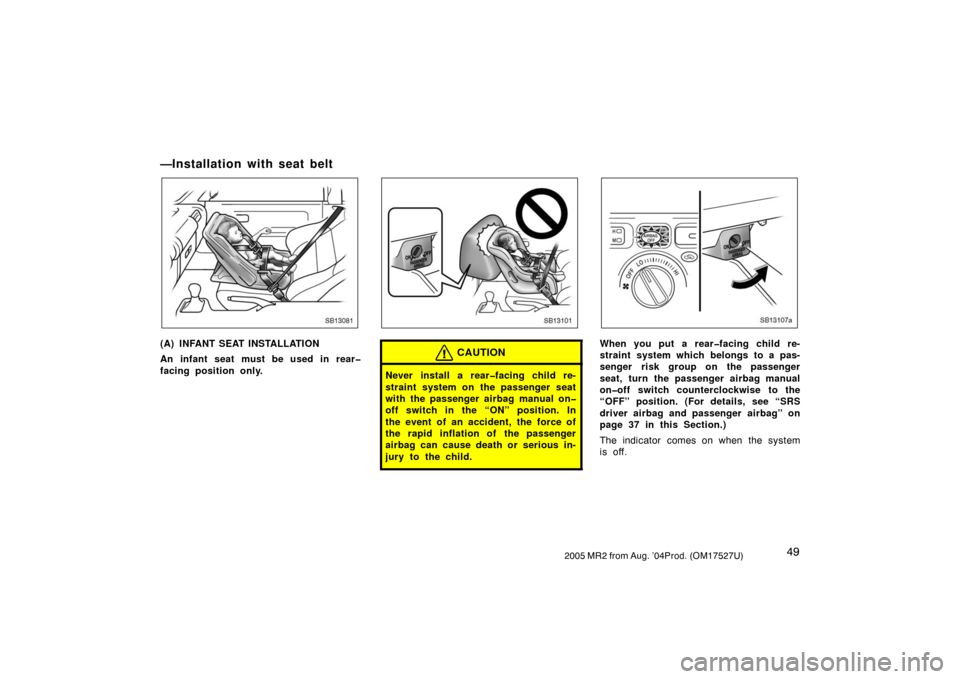

—Installation with seat belt
SB13081
(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.
SB13101
CAUTION
Never install a rearfacing child re-
straint system on the passenger seat
with the passenger airbag manual on
off switch in the “ON” position. In
the event of an accident, the force of
the rapid inflation of the passenger
airbag can cause death or serious in-
jury to the child.
SB13107a
When you put a rearfacing child re-
straint system which belongs to a pas-
senger risk group on the passenger
seat, turn the passenger airbag manual
onoff switch counterclockwise to the
“OFF” position. (For details, see “SRS
driver airbag and passenger airbag” on
page 37 in this Section.)
The indicator comes on when the system
is off.

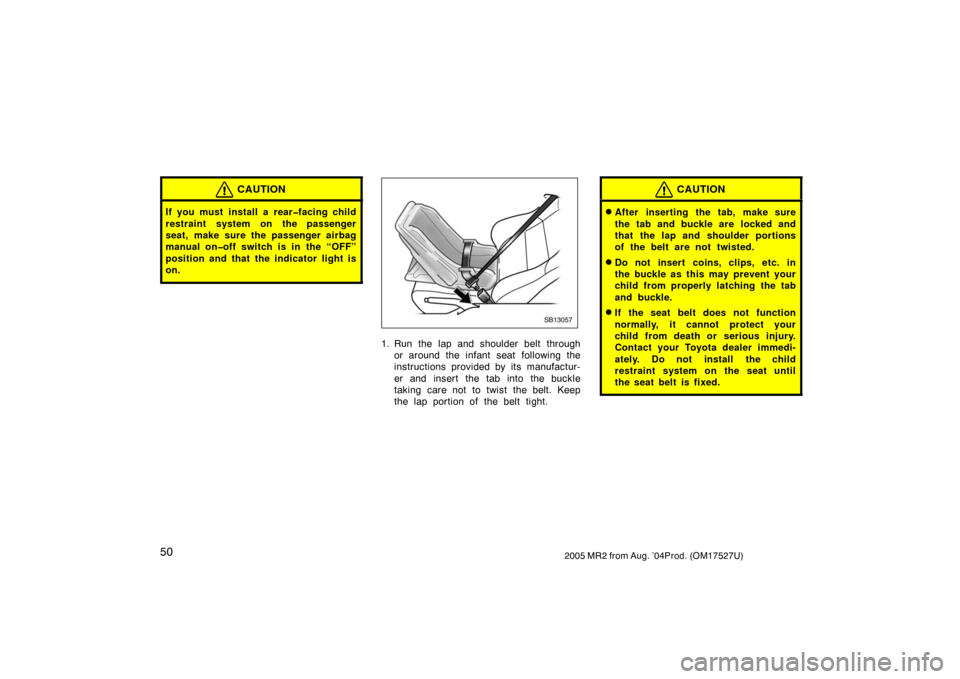

502005 MR2 from Aug. ’04Prod. (OM17527U)
CAUTION
If you must install a rearfacing child
restraint system on the passenger
seat, make sure the passenger airbag
manual onoff switch is in the “OFF”
position and that the indicator light is
on.
SB13057
1. Run the lap and shoulder belt through
or around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.

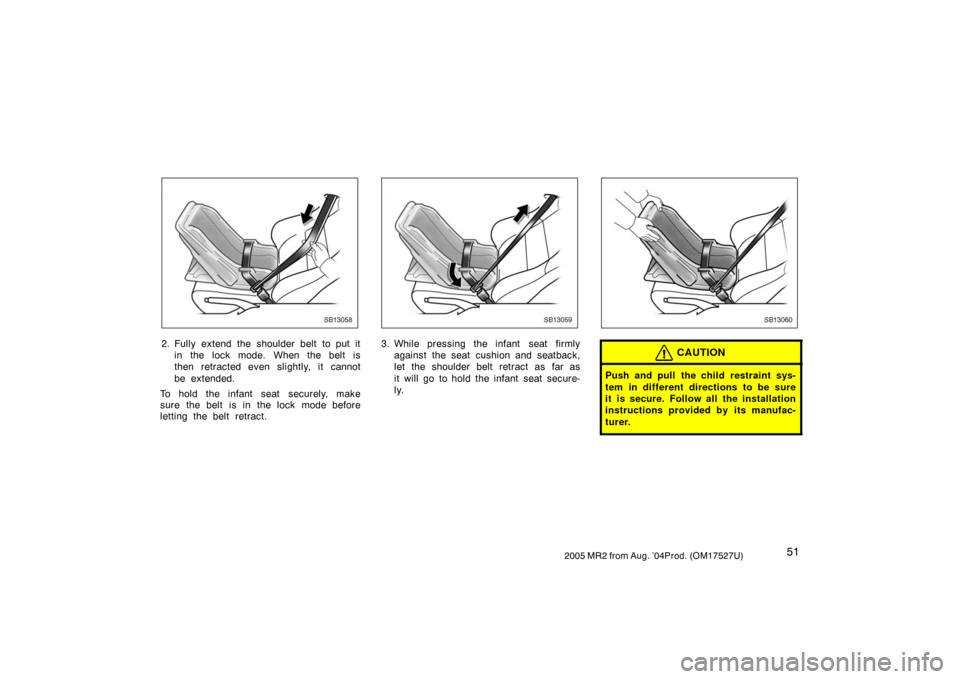

512005 MR2 from Aug. ’04Prod. (OM17527U)
SB13058
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.
SB13059
3. While pressing the infant seat firmly
against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.
SB13060
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

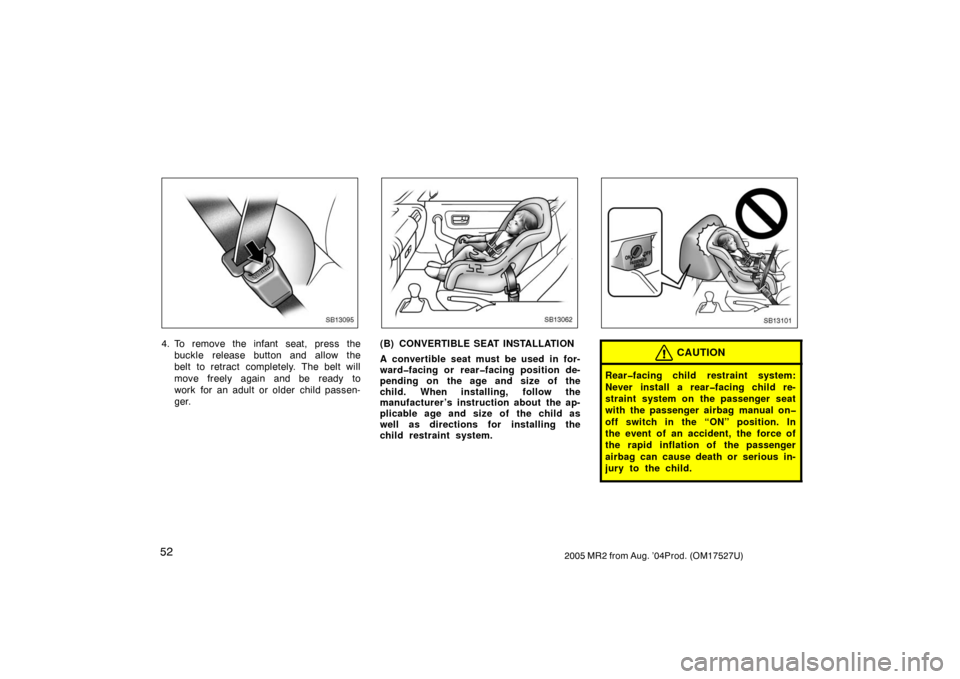

522005 MR2 from Aug. ’04Prod. (OM17527U)
SB13095
4. To remove the infant seat, press the
buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.
SB13062
(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
wardfacing or rearfacing position de-
pending on the age and size of the
child. When installing, follow the
manufacturer ’s instruction about the ap-
plicable age and size of the child as
well as directions for installing the
child restraint system.
SB13101
CAUTION
Rearfacing child restraint system:
Never install a rearfacing child re-
straint system on the passenger seat
with the passenger airbag manual on
off switch in the “ON” position. In
the event of an accident, the force of
the rapid inflation of the passenger
airbag can cause death or serious in-
jury to the child.

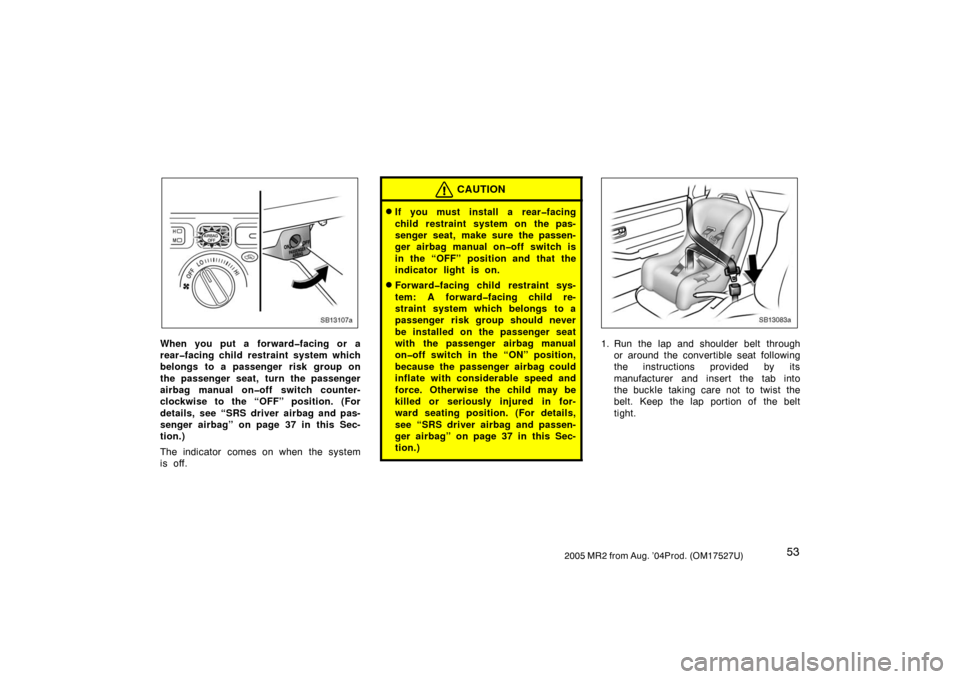

532005 MR2 from Aug. ’04Prod. (OM17527U)
SB13107a
When you put a forwardfacing or a
rearfacing child restraint system which
belongs to a passenger risk group on
the passenger seat, turn the passenger
airbag manual onoff switch counter-
clockwise to the “OFF” position. (For
details, see “SRS driver airbag and pas-
senger airbag” on page 37 in this Sec-
tion.)
The indicator comes on when the system
is off.
CAUTION
If you must install a rearfacing
child restraint system on the pas-
senger seat, make sure the passen-
ger airbag manual onoff switch is
in the “OFF” position and that the
indicator light is on.
Forwardfacing child restraint sys-
tem: A forwardfacing child re-
straint system which belongs to a
passenger risk group should never
be installed on the passenger seat
with the passenger airbag manual
onoff switch in the “ON” position,
because the passenger airbag could
inflate with considerable speed and
force. Otherwise the child may be
killed or seriously injured in for-
ward seating position. (For details,
see “SRS driver airbag and passen-
ger airbag” on page 37 in this Sec-
tion.)
SB13083a
1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.

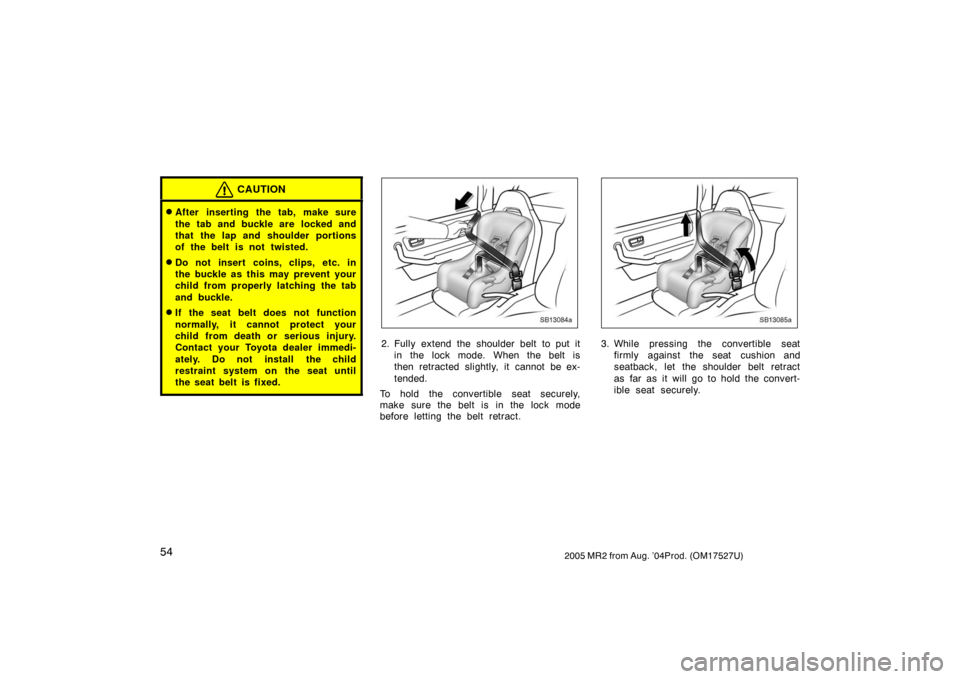

542005 MR2 from Aug. ’04Prod. (OM17527U)
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
SB13084a
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted slightly, it cannot be ex-
tended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.
SB13085a
3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.

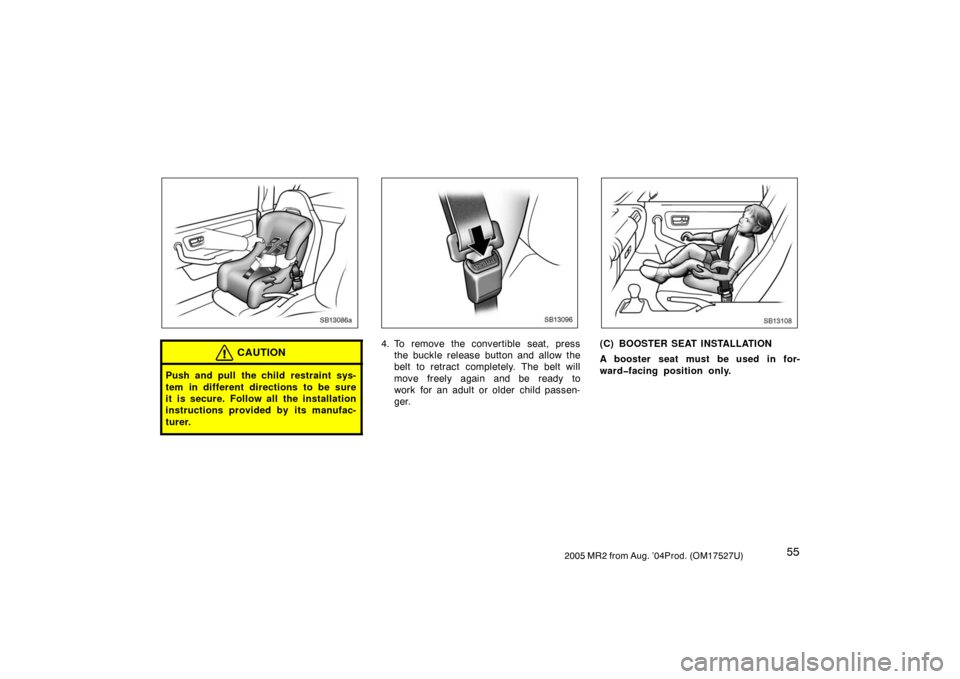

552005 MR2 from Aug. ’04Prod. (OM17527U)
SB13086a
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
SB13096
4. To remove the convertible seat, press
the buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.
SB13108
(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
wardfacing position only.

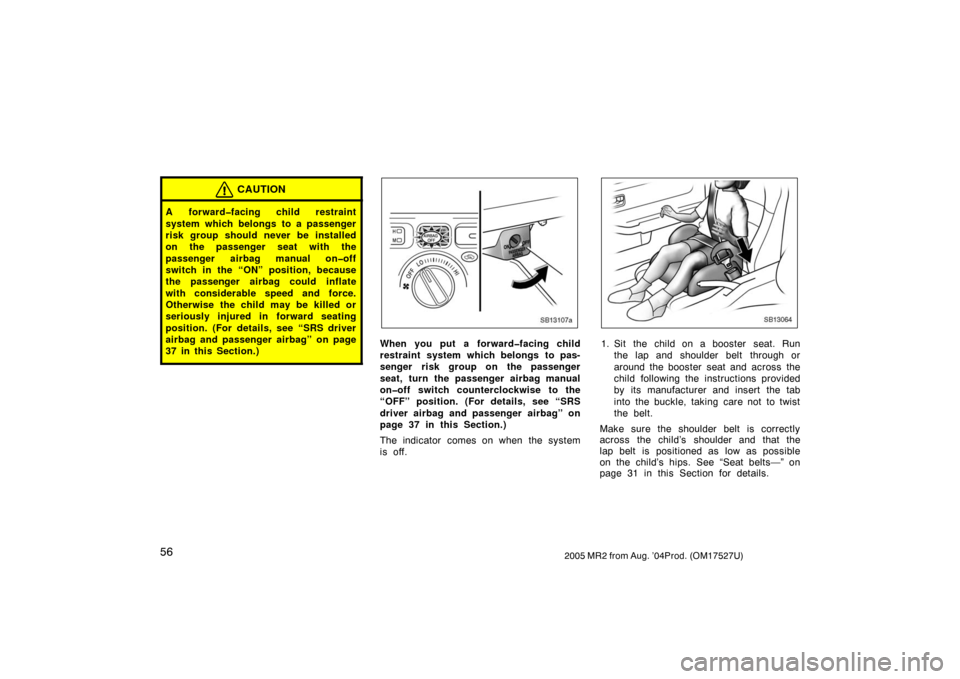

562005 MR2 from Aug. ’04Prod. (OM17527U)
CAUTION
A forwardfacing child restraint
system which belongs to a passenger
risk group should never be installed
on the passenger seat with the
passenger airbag manual onoff
switch in the “ON” position, because
the passenger airbag could inflate
with considerable speed and force.
Otherwise the child may be killed or
seriously injured in forward seating
position. (For details, see “SRS driver
airbag and passenger airbag” on page
37 in this Section.)
SB13107a
When you put a forwardfacing child
restraint system which belongs to pas-
senger risk group on the passenger
seat, turn the passenger airbag manual
onoff switch counterclockwise to the
“OFF” position. (For details, see “SRS
driver airbag and passenger airbag” on
page 37 in this Section.)
The indicator comes on when the system
is off.
SB13064
1. Sit the child on a booster seat. Run
the lap and shoulder belt through or
around the booster seat and across the
child following the instructions provided
by its manufacturer and insert the tab
into the buckle, taking care not to twist
the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts—” on
page 31 in this Section for details.
