The spare tire with turning direc-
tion indicators is of a unidirec-
tional type and is intended for use
on the passenger side of the ve-
hicle.
This spare tire has the same size and
the same turning direction as the
standard tire of the front passenger
side. However, the spare tire must
only be used temporary because the
wheel differs from the standard tire.
CAUTION
The spare tire was designed
especially for your Toyota. Do
not use it on any other vehicle.
Do not use more than one
spare tire at the same time.
Do not exceed 80 km/h (50
mph) when driving with the
spare tire.
The standard tire should be re-
paired and reinstalled as soon
as possible.
Avoid sudden acceleration,
sudden deceleration and sharp
turns with the spare tire.
SB41053a
Spare tire
SB41054b
Tool bag
—Spare tire with turning
direction indicators—R eq u ired to o ls an d sp are
tire

1702005 MR2 from Aug. ’04Prod. (OM17527U)
1. Get the tool bag and spare tire.
You will find a jack in the tool bag.
To prepare yourself for an emergency,
you should familiarize yourself with
the use of the jack, each of the tools
and their storage locations.
SB41047
To remove the spare tire:
1. Open the front box cover in the
trunk.
SB41061a
2. Remove the spare wheel cover.

1712005 MR2 from Aug. ’04Prod. (OM17527U)
SB41063b

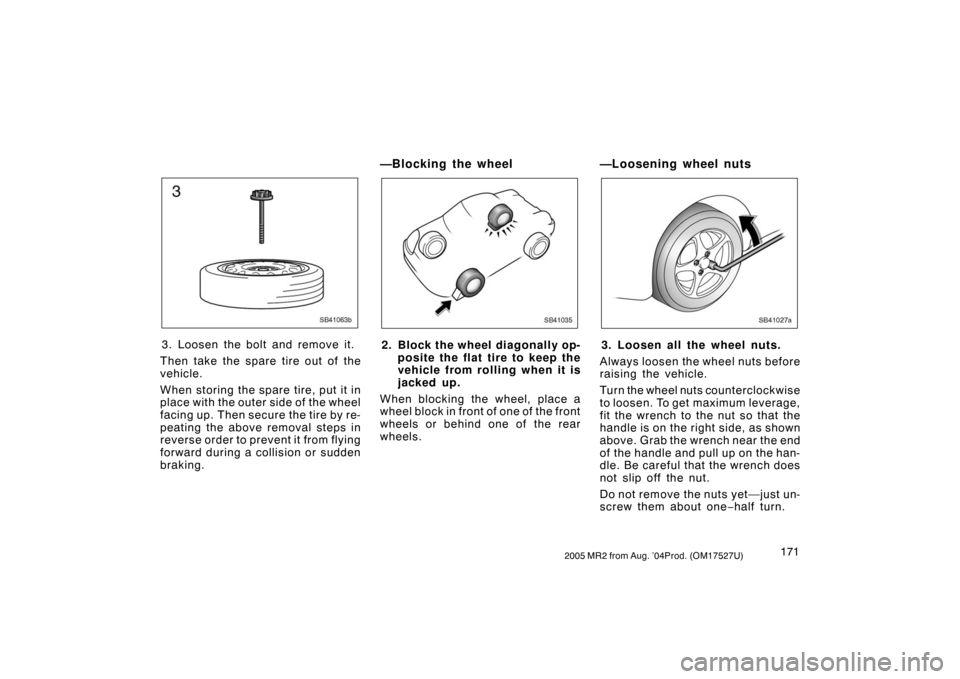

3. Loosen the bolt and remove it.
Then take the spare tire out of the
vehicle.
When storing the spare tire, put it in
place with the outer side of the wheel
facing up. Then secure the tire by re-
peating the above removal steps in
reverse order to prevent it from flying
forward during a collision or sudden
braking.
—Blocking the wheel
SB41035
2. Block the wheel diagonally op-
posite the flat tire to keep the
vehicle from rolling when it is
jacked up.
When blocking the wheel, place a
wheel block in front of one of the front
wheels or behind one of the rear
wheels.
—Loosening wheel nuts
SB41027a
3. Loosen all the wheel nuts.
Always loosen the wheel nuts before
raising the vehicle.
Turn the wheel nuts counterclockwise
to loosen. To get maximum leverage,
fit the wrench to the nut so that the
handle is on the right side, as shown
above. Grab the wrench near the end
of the handle and pull up on the han-
dle. Be careful that the wrench does
not slip off the nut.
Do not remove the nuts yet—just un-
screw them about one−half turn.

1722005 MR2 from Aug. ’04Prod. (OM17527U)
CAUTION
Never use oil or grease on the
bolts or nuts. The nuts may loos-
en and the wheels may fall off,
which could cause a serious ac-
cident.
—Positioning the jack

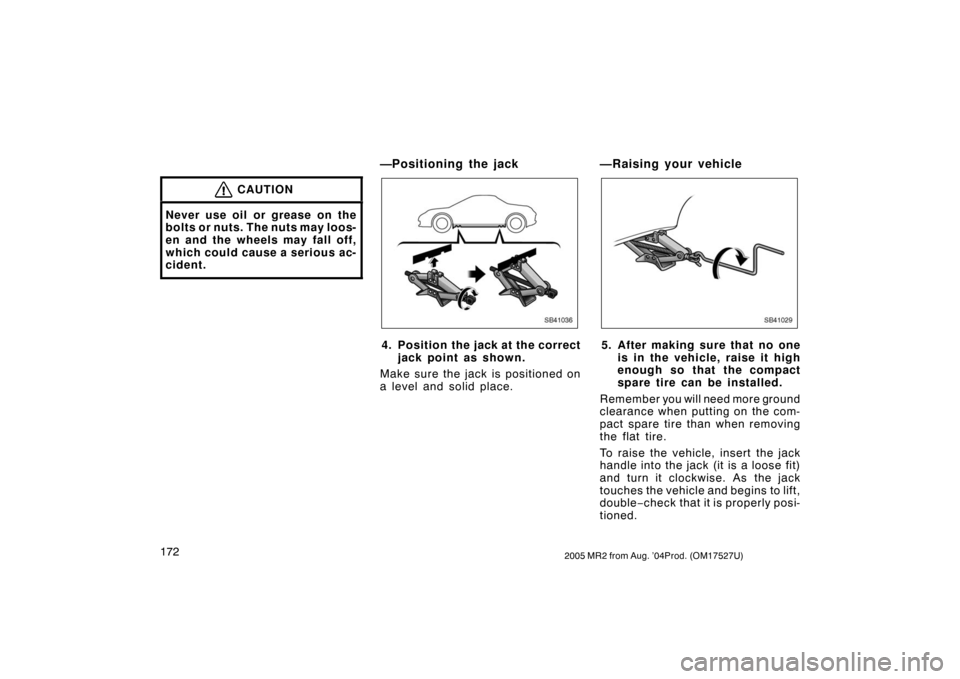

SB41036
4. Position the jack at the correct
jack point as shown.
Make sure the jack is positioned on
a level and solid place.
—Raising your vehicle
SB41029
5. After making sure that no one
is in the vehicle, raise it high
enough so that the compact
spare tire can be installed.
Remember you will need more ground
clearance when putting on the com-
pact spare tire than when removing
the flat tire.
To raise the vehicle, insert the jack
handle into the jack (it is a loose fit)
and turn it clockwise. As the jack
touches the vehicle and begins to lift,
double−check that it is properly posi-
tioned.

1732005 MR2 from Aug. ’04Prod. (OM17527U)
CAUTION
Never get under the vehicle when
the vehicle is supported by the
jack alone.
—Changing wheels

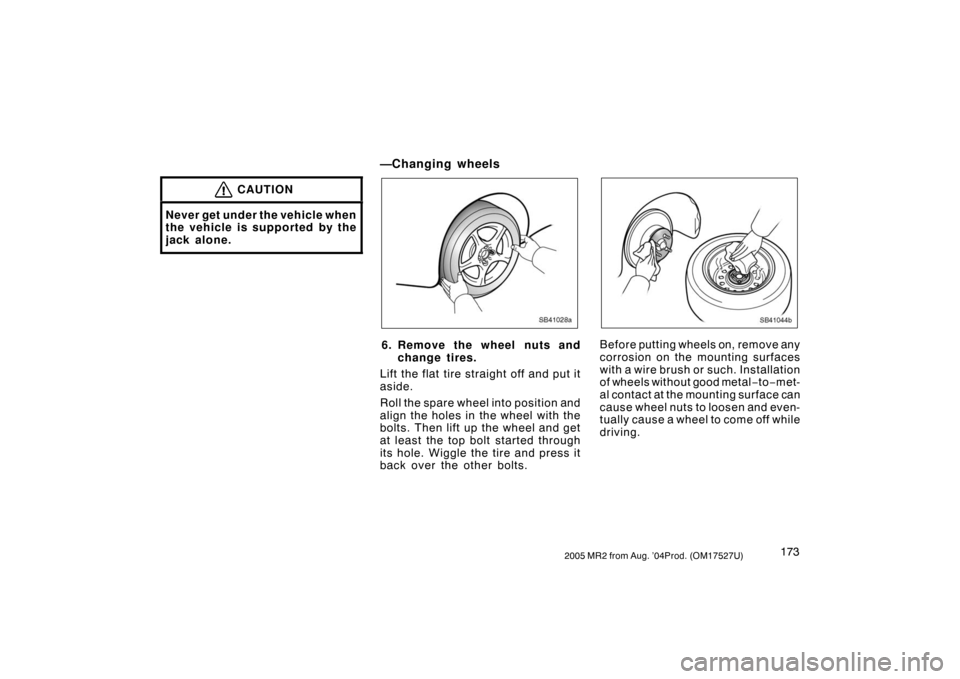

SB41028a
6. Remove the wheel nuts and
change tires.
Lift the flat tire straight off and put it
aside.
Roll the spare wheel into position and
align the holes in the wheel with the
bolts. Then lift up the wheel and get
at least the top bolt started through
its hole. Wiggle the tire and press it
back over the other bolts.
SB41044b
Before putting wheels on, remove any
corrosion on the mounting surfaces
with a wire brush or such. Installation
of wheels without good metal−to−met-
al contact at the mounting surface can
cause wheel nuts to loosen and even-
tually cause a wheel to come off while
driving.

1742005 MR2 from Aug. ’04Prod. (OM17527U)
—Reinstalling wheel nuts

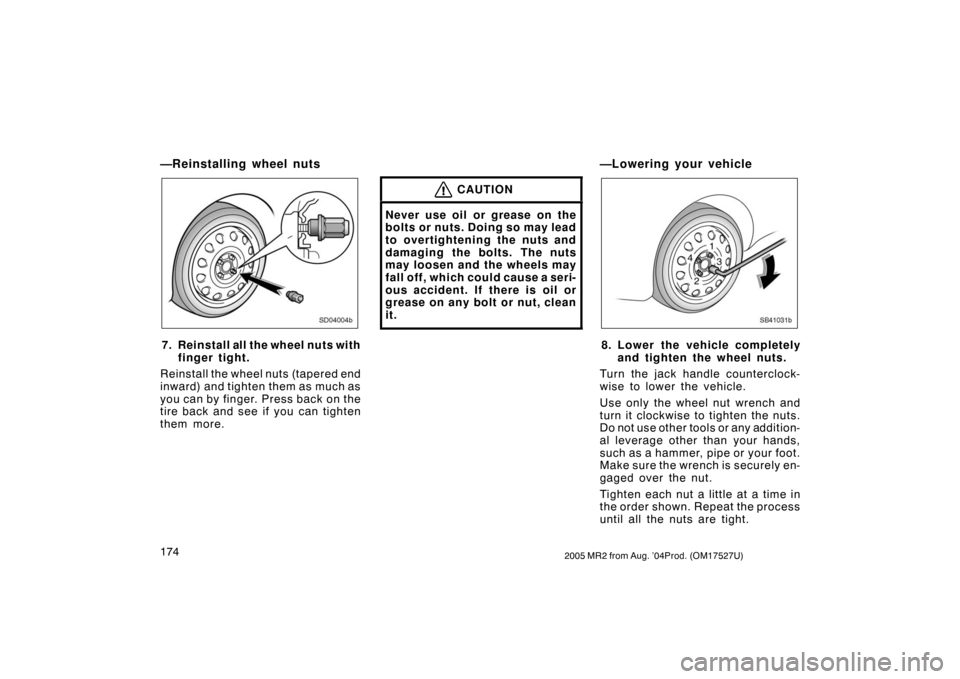

SD04004b
7. Reinstall all the wheel nuts with
finger tight.
Reinstall the wheel nuts (tapered end
inward) and tighten them as much as
you can by finger. Press back on the
tire back and see if you can tighten
them more.
CAUTION
Never use oil or grease on the
bolts or nuts. Doing so may lead
to overtightening the nuts and
damaging the bolts. The nuts
may loosen and the wheels may
fall off, which could cause a seri-
ous accident. If there is oil or
grease on any bolt or nut, clean
it.
—Lowering your vehicle
SB41031b
8. Lower the vehicle completely
and tighten the wheel nuts.
Turn the jack handle counterclock-
wise to lower the vehicle.
Use only the wheel nut wrench and
turn it clockwise to tighten the nuts.
Do not use other tools or any addition-
al leverage other than your hands,
such as a hammer, pipe or your foot.
Make sure the wrench is securely en-
gaged over the nut.
Tighten each nut a little at a time in
the order shown. Repeat the process
until all the nuts are tight.

1752005 MR2 from Aug. ’04Prod. (OM17527U)
CAUTION
When lowering the vehicle,
make sure all portions of your
body and all other persons
around will not be injured as
the vehicle is lowered to the
ground.
Have the wheel nuts tightened
with torque wrench to 103 N·m
(10.5 kgf·m, 76 ft·lbf), as soon
as possible after changing
wheels. Otherwise, the nuts
may loosen and the wheels
may fall off, which could cause
a serious accident.
—After changing wheels
9. Check the air pressure of the re-
placed tire.
Adjust the air pressure to the specifi-
cation designated on page 244 in
Section 8. If the pressure is lower,
drive slowly to the nearest service
station and fill to the correct pressure.
Do not forget to reinstall the tire valve
cap as dirt and moisture could get into
the valve core and possibly cause air
leakage. If the cap is missing, have
a new one put on as soon as possible.
10.Restow all the tools, jack and
flat tire securely.
As soon as possible after changing
wheels, tighten the wheel nuts to the
torque specified on page 244 in Sec-
tion 8 with a torque wrench. Have a
technician repair the flat tire and re-
place the spare tire with it.CAUTION
Before driving, make sure all the
tools, jack and flat tire are se-
curely in place in their storage
location to reduce the possibility
of personal injury during a colli-
sion or sudden braking.

1762005 MR2 from Aug. ’04Prod. (OM17527U)
SB41025
Remove the wheel ornament from the
flat tire before restowing the flat tire.
SB41037
NOTICE
The size of the front wheel and
the rear wheel is different. In
order to prevent the wrong
installation, there is a pin on
the assembly surface inside the
rear wheel as shown above.
Therefore, the rear wheels can-
not be installed on the front.
If your vehicle becomes stuck in snow,
mud, sand, etc., then you may attempt
to rock the vehicle free by moving it
forward and backward.
CAUTION
Do not attempt to rock the vehicle
free by moving it forward and back-
ward if people or objects are any-
where near the vehicle. During the
rocking operation the vehicle may
suddenly move forward or backward
as it becomes unstuck, causing injury
or damage to nearby people or ob-
jects.
