2005 TOYOTA MR2 SPYDER stop start

82005 MR2 from Aug. ’04Prod. (OM17527U)
Keys
SB12039
Your vehicle is supplied with two kinds
of keys.
1. Master keys (black)—These keys work
in every lock. Your Toyota dealer will
need one of them to make a new key
with a built−in transponder chip.
2. Sub key (gray)—This key will not work
in the glove box and luggage space.A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
To protect items locked in the glove box
or luggage space when using valet park-
ing, leave the sub key with the attendant.
Since the doors can be locked without a
key, you should always carry a spare
master key in case you accidentally lock
your keys inside the vehicle.
SY12001
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.

92005 MR2 from Aug. ’04Prod. (OM17527U)
SY12002a
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
SY12003
Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.

792005 MR2 from Aug. ’04Prod. (OM17527U)
(a) Brake System Warning Light
This light comes on in the following cases
when the ignition key is in the “ON” posi-
tion.
When the parking brake is applied...
This light comes on for a few seconds
when the ignition key is turned to the
“ON” position even after the parking brake
is released.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Toyota dealer in the following case:
The light does not come on even if the
parking brake is applied when the igni-
tion key is in the “ON” position.
The light does not come on even if the
ignition key is turned on with the park-
ing brake released.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Toyota dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will become longer. De-
press the brake pedal firmly and
bring the vehicle to an immediate
stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
(b) Driver’s Seat Belt Reminder Light
and Buzzer
The light and buzzer act as a reminder to
buckle up the driver’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes and
buzzer sounds if the driver ’s seat belt is
not fastened. Unless the driver fastens the
belt, the light continues flashing and the
buzzer stops after about 4 to 8 seconds.
(c) Passenger ’s Seat Belt Reminder
Light
The light acts as a reminder to have the
passenger buckle up the seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes if a
passenger sits in the passenger seat and
does not fasten the seat belt. Unless the
passenger fastens the belt, the light stays
flashing. However, if a passenger uses an
additional seat cushion, the light may not
flash even when the seat belt is not
buckled up.
If luggage or other load is placed on the
passenger seat, depending on its weight
and how it is placed on the seat, built−in
sensors in the seat cushion may detect
the pressure, causing the reminder light to
flash.

802005 MR2 from Aug. ’04Prod. (OM17527U)
(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(e) Low Engine Oil Pressure Warning
Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
(f) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the engine starts. This
means that the warning light system is
operation properly.
If the lamp remains on, or the lamp
comes on while driving, first check the
following.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.If the lamp does not go off even after
several trips, contact your Toyota dealer
as soon as possible.
If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, elec-
tronic throttle control system, automatic
transmission electrical system or warn-
ing light system itself.
Contact your Toyota dealer as soon as
possible to service the vehicle.
If engine speed does not increase when
the accelerator pedal is depressed, there
may be a problem somewhere in the elec-
tronic throttle control system.
At this time, vibration may occur. Howev-
er, if you depress the accelerator pedal
more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle
checked by your Toyota dealer as soon as
possible.
Even if the abnormality of the electronic
throttle control system is corrected during
low speed driving, the system may not be
recovered until the engine is stopped and
the ignition key is turned to “ACC” or
“LOCK” position.

912005 MR2 from Aug. ’04Prod. (OM17527U)
SD16019
(g) Backing up
While holding down the brake pedal, shift
the selector lever to the “R” position. The
reverse warning buzzer will sound at this
time. Depress the accelerator pedal slow-
ly, as when starting off. Before driving off,
make sure by using the gear position indi-
cator that the gear is in reverse.
When the gear will not engage even
though the selector lever is shifted to the
“R” from “N” position, the “N” indicator will
flash and a warning buzzer (long pulse
sound) will sound. In this case, the sys-
tem will re−try shifting, or the driver can
operate the selector lever to shift, as fol-
lows.
The system will re−try shifting automat-
ically. This will take some time, noise
may be heard from the gears, and shift
shock may occur. However, they do not
indicate malfunction.
The driver can shift the selector lever
to the “N” position once, then shift to
the “R” position.
NOTICE
The system will not allow shifting
to the “R” position if the vehicle
speed is over 3 km/h (2 mph). In
case the selector lever is operated
under this condition, the “N” indica-
tor in the instrument cluster will
flash. However, when the vehicle
speed drops below 3 km/h (2 mph),
the gear is shifted to reverse. Make
sure that the vehicle has stopped
completely before shifting to the
“R” position.
Do not hold the vehicle on an uphill
with the accelerator pedal applied.
Doing so may damage the clutch.
Always use the brake pedal or park-
ing brake.
If the gear cannot be engaged to
reverse when the selector lever is
shifted from the “N” to “R” posi-
tion, try to shift the selector lever
to the “N” position once, then shift
it to “R” position a few seconds
later.
(h) Stopping
The vehicle can be stopped by depressing
the brake pedal regardless of the gear
position. This is because the clutch is
automatically disengaged to prevent the
engine from stopping. If the selector lever
is in the “S” position, the gear will be
downshifted to 1st when the vehicle stops.
However, if you do not drive the vehicle
over 40 km/h (24 mph) or convert the
drive position after starting with the gear
in 2nd, the gear will not be downshifted
to 1st when the vehicle stops the next
time and the gear is left in 2nd.
When stopping, for example, at a traffic
light, be sure to shift the selector lever to
the “N” position, and depress the brake
pedal firmly. For your safety, apply parking
brake, too, when stopping on a hill.

922005 MR2 from Aug. ’04Prod. (OM17527U)
If you stop for more than 90 seconds with
the selector lever in the “S” position with-
out holding down the brake pedal while
the engine is running, a warning buzzer
(long pulse sound) will sound, and the “N”
indicator in the instrument cluster will
flash, and the system will automatically
shift the transmission gear to the neutral
gear position.
If the driver ’s door is opened with the
selector lever in the “S” position without
depressing the brake pedal, warning buzz-
er (long pulse sound) will also sound. 10
seconds later, the “N” indicator in the in-
strument cluster will also flash, and the
system will automatically shift the trans-
mission gear to the neutral gear position.
The gear will resume to 1st or 2nd when
the system is operated as follows:
Brake pedal “ON”: The gear position
before the system selected the “N”
position is resumed.
Operate the selector lever to the “+”
direction: Resume to 2nd gear.
Operate the selector lever to the “−”
direction: Resume to 1st gear.
Push upshift switch on the steering
wheel: Resume to 2nd gear.
Push downshift switch on the steering
wheel.: Resume to 1st gear.
“S”“N”“S”: Resume to 1st gear.
When starting off again, always confirm
the gear position by the gear position indi-
cator.

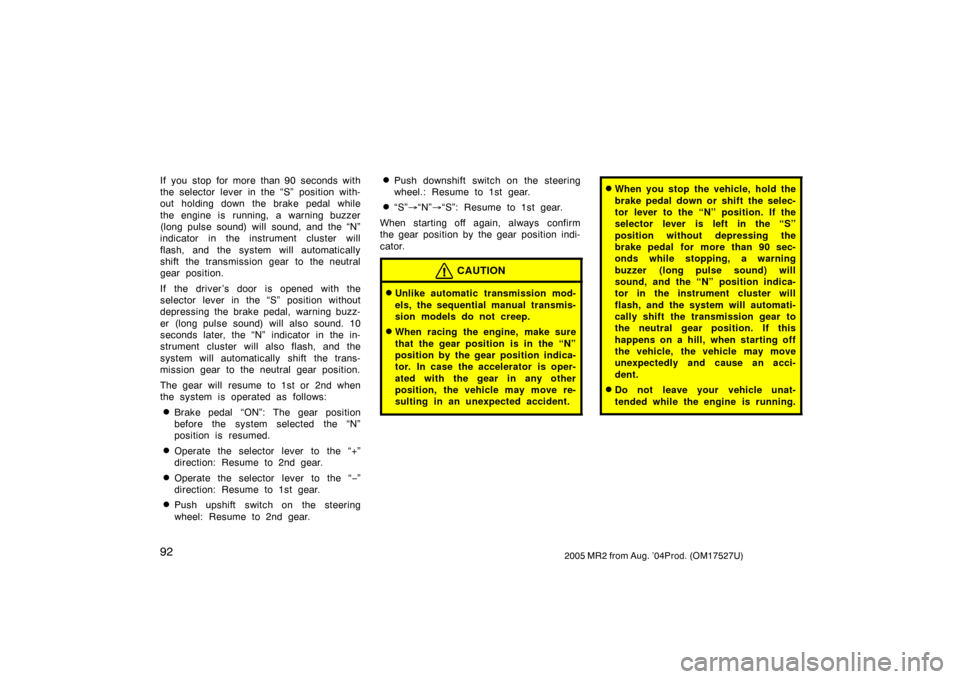

CAUTION
Unlike automatic transmission mod-
els, the sequential manual transmis-
sion models do not creep.
When racing the engine, make sure
that the gear position is in the “N”
position by the gear position indica-
tor. In case the accelerator is oper-
ated with the gear in any other
position, the vehicle may move re-
sulting in an unexpected accident.
When you stop the vehicle, hold the
brake pedal down or shift the selec-
tor lever to the “N” position. If the
selector lever is left in the “S”
position without depressing the
brake pedal for more than 90 sec-
onds while stopping, a warning
buzzer (long pulse sound) will
sound, and the “N” position indica-
tor in the instrument cluster will
flash, and the system will automati-
cally shift the transmission gear to
the neutral gear position. If this
happens on a hill, when starting off
the vehicle, the vehicle may move
unexpectedly and cause an acci-
dent.
Do not leave your vehicle unat-
tended while the engine is running.

932005 MR2 from Aug. ’04Prod. (OM17527U)
When leaving the vehicle, stop the
engine and park the vehicle with
the gear engaged. In case you need
to leave the vehicle with the engine
running, apply the parking brakes
firmly, and shift the selector lever
in the “N” position. When the driv-
er’s door is opened with the selec-
tor lever in the “S” position while
stopping with the engine running,
warning buzzer (long pulse sound)
will sound. 10 seconds later, the
“N” indicator in the instrument
cluster will also flash, and the sys-
tem will automatically shift the
transmission gear to the neutral
gear position. If this happens on a
hill when starting off the vehicle,
the vehicle may move unexpectedly
and cause an accident.NOTICE
Do not hold or stop the vehicle on
a hill with the accelerator pedal ap-
plied. Otherwise, the warning buzz-
er (long pulse sound) will sound,
and in some cases the engine will
stall. It will also cause excessive
damage to the clutch.
If the selector lever is operated
more than necessary, the system
may not allow operation of the se-
lector lever for a certain period of
time, and the gear may not be
shifted appropriately. Therefore, do
not operate the selector lever if not
necessary.
(i) Parking
Unlike the automatic transmission, the se-
quential manual transmission does not
have a parking position. The vehicle can
be parked with the selector lever in any
position. Apply the parking brake firmly,
and while depressing the brake pedal,
shift the selector lever into the “R” posi-
tion on a level or downhill, and into the
“S(1)” position on an uphill.
SD16020
1: Uphill
2: Level or downhill
To stop the engine:
Check the transmission gear position by
the gear position indicator, then turn the
ignition switch off to stop the engine. Re-
lease the brake pedal after a few sec-
onds. The selector lever will be locked in
the position just before the ignition switch
was turned off.
You can check the gear position by the
gear position indicator within 5 seconds
after turning the ignition switch off.

952005 MR2 from Aug. ’04Prod. (OM17527U)
The selector lever is shifted from the
“N” position to the “S” or “R” position
soon after starting the engine.
In this case, shift the selector lever to the
“N” position once, and after a few sec-
onds, shift the selector lever again to the
“S” or “R” position.
When the selector lever is shifted to
the “S” position while starting the en-
gine, the selector lever position and
the gear position do not match.
In this case, shift the selector lever to the
“N” position once and confirm that the
engine has started. Then, shift the selec-
tor lever to the “S” or “R” position.
At the same time when turning the igni-
tion switch to the “ON” position and
shifting the selector lever from the “N”
position to the “S” or “R” position.
In this case, shift the selector lever to the
“N” position once, then shift the selector
lever again to the “S” or “R” position.
At the same time when turning the igni-
tion switch to the “OFF” position and
shifting the selector lever from the “N”
to the “S” or “R” position.In this case, turn the ignition “ON” before
operate the shift lever. Shift the selector
lever to the “N” position once, then shift
the selector lever again to the “S” or “R”
position.
“N” indicator flashing and warning
buzzer (long pulse sound) beeping.
The system is re−trying shift operation
from the “N” to “S” or “R” position due
to shift failure.
Stopping for more than 90 seconds
without depressing the brake pedal,
while the engine is running with the
selector lever in the “S” position.
10 seconds after the driver ’s door is
opened with the selector lever in the
“S” position while the engine is run-
ning.
Turn the ignition switch to the “OFF”
position and shift the selector lever
from the “N” to “S” position at the
same time.
If this condition lasts for a long time, shift
the selector lever to the “N” position once
and shift the selector lever again to the
“S” or “R” position.
SD16022
“1st” indicator blinking
At the same time when turning the igni-
tion switch to the “ON” position and
shifting the selector lever from the “S”
position to the “N” or “R” position.
At the same time when turning the igni-
tion switch to the “OFF” position and
shifting the selector lever from the “S”
to “N” position.
In this case, shift the selector lever to the
“S” position once, then shift the selector
lever again to the “N” position.
