2005 TOYOTA MR2 SPYDER window

22005 MR2 from Aug. ’04Prod. (OM17527U)
Instrument panel overview
1. Side vents
2. Instrument cluster
3. Center vents
4. Interior light
5. Glove box
6. Manual transmission gear shift lever or
sequential manual transmission selector
lever
7. Parking brake lever
8. Power window switches
9. Power rear view mirror control switches
10. Power window lock switch
11. Power door lock switch
12. Front fog light switch
13. Instrument panel light control switch
SB11025b

32005 MR2 from Aug. ’04Prod. (OM17527U)
1. Headlight and turn signal switches
2. Transmission shift switches
(with sequential manual transmission)
3. Wiper and washer switches
4. Clock
5. Rear window defogger switch
6. Emergency flasher switch
7. Auxiliary box
8. Engine immobilizer system indicator light
9. Air conditioning controls
10. Audio system
11. Cup holders
12. Ashtray
13. Cigarette lighter
14. Cruise control switch
(sequential manual transmission)
15. Ignition switch
16. Tilt steering lock release lever
SB11022a

72005 MR2 from Aug. ’04Prod. (OM17527U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobilizer system10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine hood16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Soft top20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 2

132005 MR2 from Aug. ’04Prod. (OM17527U)
Power windows
SB12049
The windows can be operated with the
switch on the center console.
The power windows work when the ignition
switch is in the “ON” position.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s side of
the center console.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
SB12050
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
SB12090
OPERATING THE PASSENGER’S
WINDOW
Use the switch on the passenger ’s side
of the center console.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.

142005 MR2 from Aug. ’04Prod. (OM17527U)
SB12081a

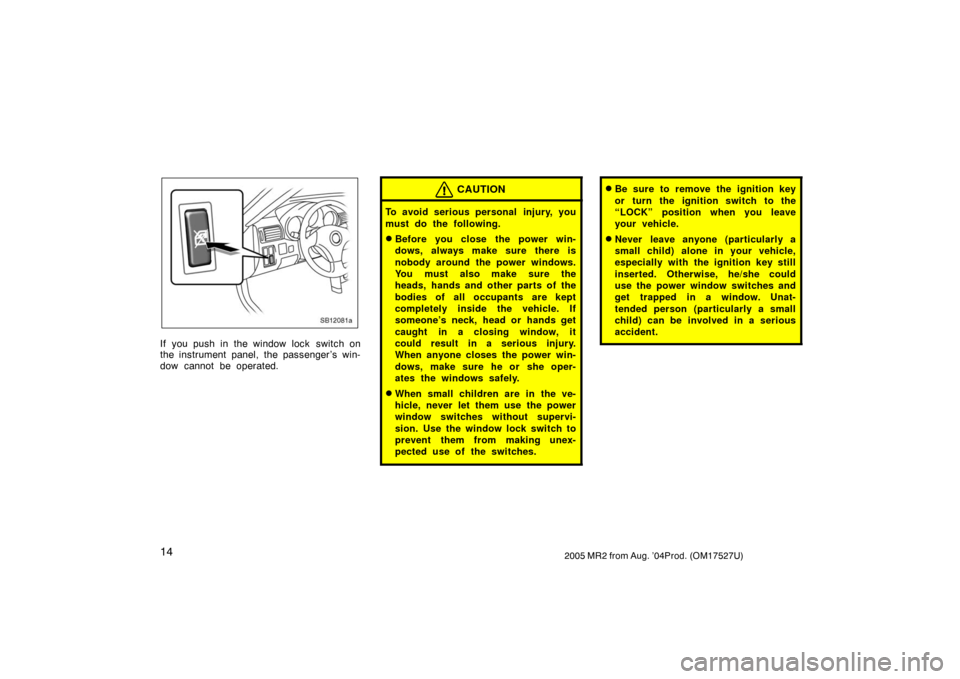

If you push in the window lock switch on
the instrument panel, the passenger ’s win-
dow cannot be operated.
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power win-
dows, make sure he or she oper-
ates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
or turn the ignition switch to the
“LOCK” position when you leave
your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.

202005 MR2 from Aug. ’04Prod. (OM17527U)
SB12087
LOCKING AND UNLOCKING WITH FUEL
TANK CAP
To lock: Turn the key clockwise.
The fuel filler door opener lever can be
locked by the key.
When leaving the vehicle with the soft top
lowered, make sure to lock the fuel filler
door opener lever with the key.
The engine hood lock release lever is
locked at the same time.Sequential manual transmission: Before
raising or lowering the soft top, lower both
side windows, apply the parking brake, put
the selector lever in the “S(1)” position
and stop the engine.
Manual transmission: Before raising or
lowering the soft top, lower both side win-
dows, apply the parking brake, stop the
engine and put the transmission lever in
the first position.
CAUTION
When raising or lowering the soft
top, keep hands off from the hinges
of the top side rails and any part
of the top linkage.
To prevent personal injury, do not
raise or lower the soft top when the
wind is strong.
The vehicle should never be driven
with the soft top partially lowered.
Make sure the top has been either
fully latched to the windshield
frame or fully lowered before driv-
ing.
NOTICE
Make sure there are no items or
packages in the folding board when
lowering in the soft top. Even small
items may interfere with the soft
top operation and can cause dam-
age.
Do not sit or place excessive
weight on the soft top when the top
is up or down. Damage to the top
may occur.
Do not raise or lower the soft top
when the temperature is below 5C
(41F). Damage to the top or rear
window may result. If necessary to
do so, warm the vehicle in a heated
garage prior to operating the soft
top mechanism.
Do not lower the soft top if the top
is damp or wet. Possible interior
water damage, water stains or mil-
dew on the top material may result.
Soft top—
—Soft top precautions

212005 MR2 from Aug. ’04Prod. (OM17527U)
When the soft top is completely
lowered, keep the rear window de-
fogger turned off to avoid damage
to the top.
It may be hard to fix the soft top
when raising it after having kept it
open for a long time.
—Lowering the soft top
SB12077
1. Lower both side windows and sun
visors. Then pull down the lock lev-
ers on both sides of the vehicle fully
while pushing down the button.
Be sure not to leave any object on the
folding board.
If the battery is discharged and the win-
dows cannot be lowered, open both the
doors.
SB12071a
2. Stand outside of the vehicle and pull
the soft top up holding the part
shown in dark color in the illustra-
tion.

222005 MR2 from Aug. ’04Prod. (OM17527U)
SB12072
3. Lower the soft top backward press-
ing the rear window glass down soft-
ly.
SB12082a
CAUTION
To prevent personal injury, do not
grasp the part shown in dark color in
the illustration.
SB12079a
4. Fold the soft top slowly and house
it completely.
Press down the soft top toward the front
from the rear and lock it. You will hear
click sound when the soft top is complete-
ly housed.
Shake the soft top up and down softly to
check whether the soft top is fixed se-
curely.
Raise both sun visors.
