2005 TOYOTA MR2 SPYDER window

232005 MR2 from Aug. ’04Prod. (OM17527U)

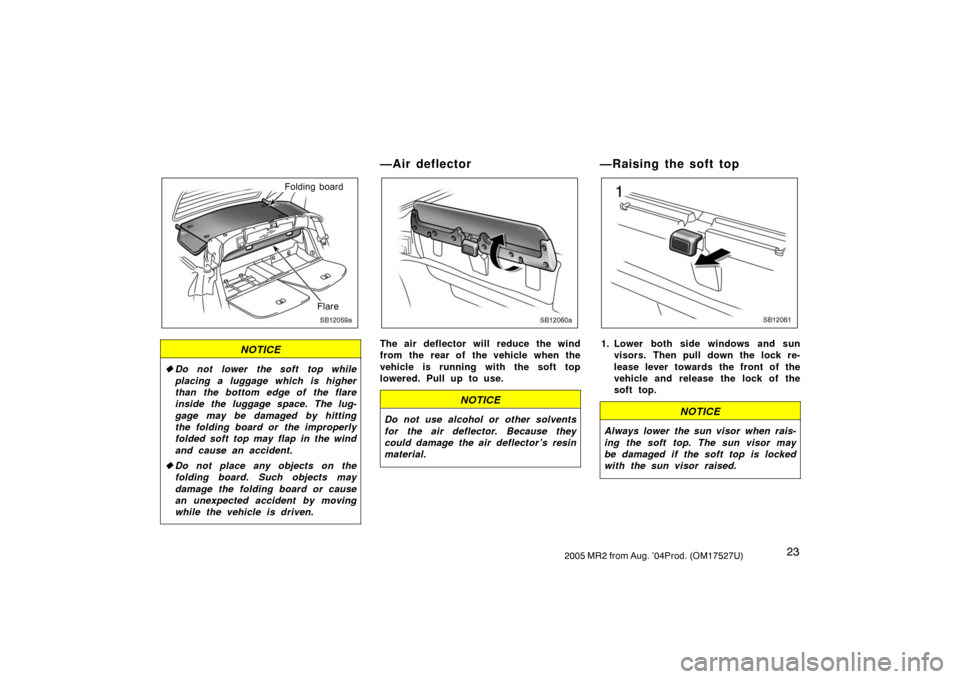

SB12059a
Folding board
Flare
NOTICE
Do not lower the soft top while
placing a luggage which is higher
than the bottom edge of the flare
inside the luggage space. The lug-
gage may be damaged by hitting
the folding board or the improperly
folded soft top may flap in the wind
and cause an accident.
Do not place any objects on the
folding board. Such objects may
damage the folding board or cause
an unexpected accident by moving
while the vehicle is driven.
—Air deflector
SB12060a
The air deflector will reduce the wind
from the rear of the vehicle when the
vehicle is running with the soft top
lowered. Pull up to use.
NOTICE
Do not use alcohol or other solvents
for the air deflector. Because they
could damage the air deflector’s resin
material.
—Raising the soft top
SB12061
1. Lower both side windows and sun
visors. Then pull down the lock re-
lease lever towards the front of the
vehicle and release the lock of the
soft top.
NOTICE
Always lower the sun visor when rais-
ing the soft top. The sun visor may
be damaged if the soft top is locked
with the sun visor raised.

242005 MR2 from Aug. ’04Prod. (OM17527U)

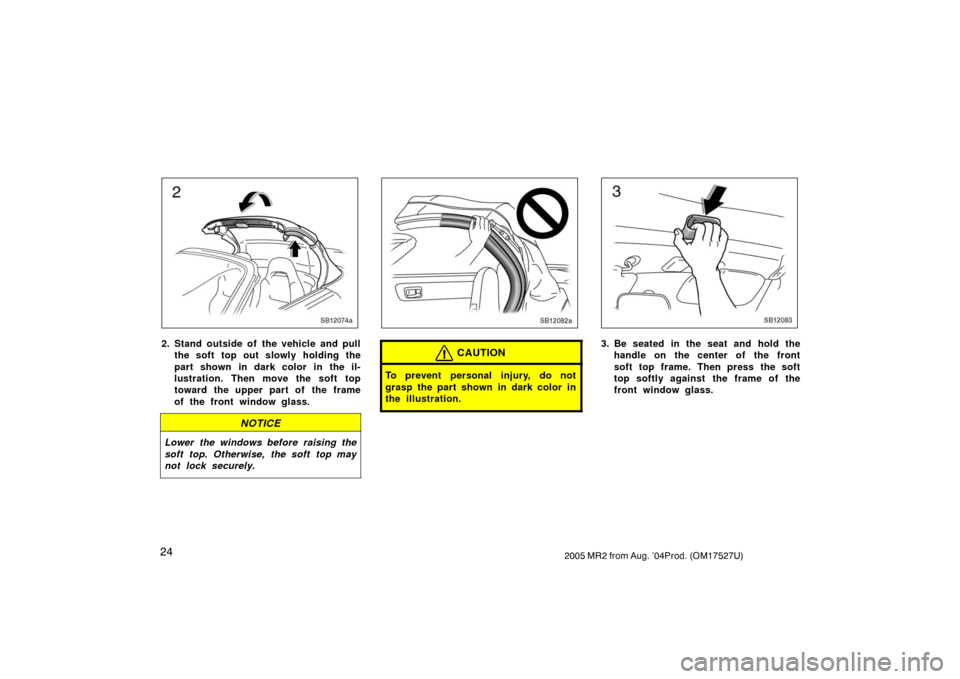

SB12074a
2. Stand outside of the vehicle and pull
the soft top out slowly holding the
part shown in dark color in the il-
lustration. Then move the soft top
toward the upper part of the frame
of the front window glass.
NOTICE
Lower the windows before raising the
soft top. Otherwise, the soft top may
not lock securely.
SB12082a
CAUTION
To prevent personal injury, do not
grasp the part shown in dark color in
the illustration.
SB12083
3. Be seated in the seat and hold the
handle on the center of the front
soft top frame. Then press the soft
top softly against the frame of the
front window glass.

252005 MR2 from Aug. ’04Prod. (OM17527U)

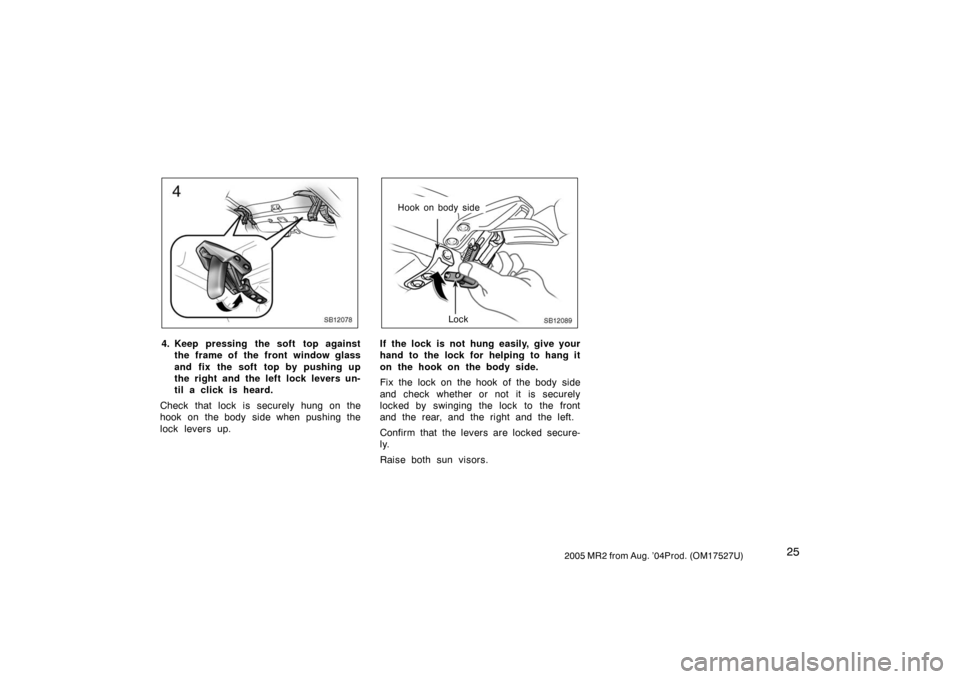

SB12078
4. Keep pressing the soft top against
the frame of the front window glass
and fix the soft top by pushing up
the right and the left lock levers un-
til a click is heard.
Check that lock is securely hung on the
hook on the body side when pushing the
lock levers up.
SB12089
Hook on body side
LockHook on body side
If the lock is not hung easily, give your
hand to the lock for helping to hang it
on the hook on the body side.
Fix the lock on the hook of the body side
and check whether or not it is securely
locked by swinging the lock to the front
and the rear, and the right and the left.
Confirm that the levers are locked secure-
ly.
Raise both sun visors.

672005 MR2 from Aug. ’04Prod. (OM17527U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals68 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers69 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior light70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wipers and washer71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 5

712005 MR2 from Aug. ’04Prod. (OM17527U)
Windshield wipers and washer

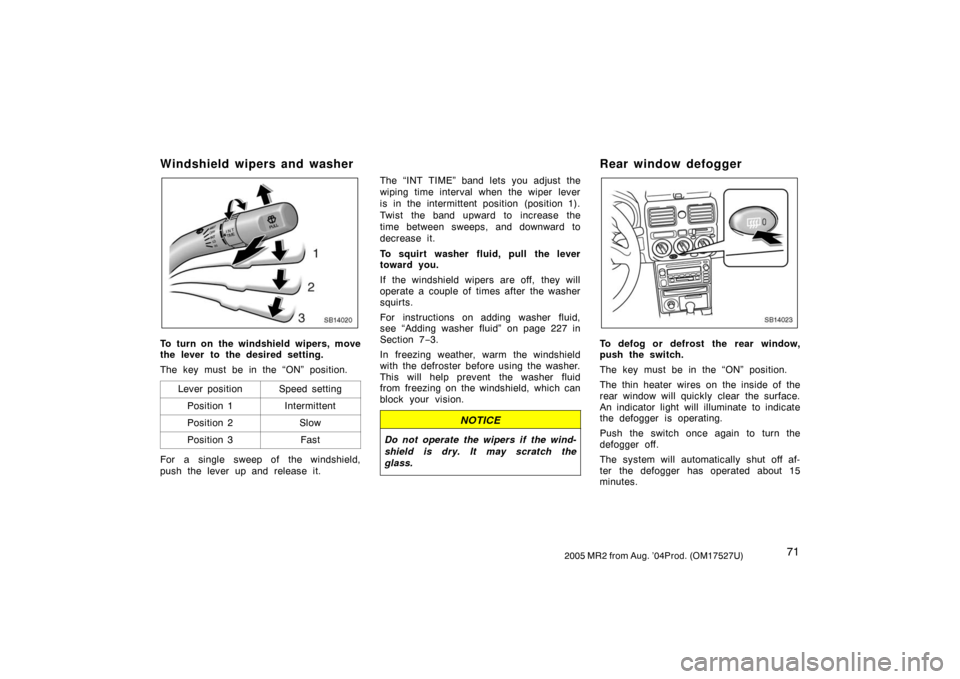

SB14020
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it.The “INT TIME” band lets you adjust the
wiping time interval when the wiper lever
is in the intermittent position (position 1).
Twist the band upward to increase the
time between sweeps, and downward to
decrease it.
To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 227 in
Section 7−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on the windshield, which can
block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
Rear window defogger
SB14023
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the surface.
An indicator light will illuminate to indicate
the defogger is operating.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.

722005 MR2 from Aug. ’04Prod. (OM17527U)
Make sure you turn the defogger off when
the window is clear. Leaving the defogger
on for a long time could cause the battery
to discharge, especially during stop−and−
go driving. The defogger is not designed
for drying rain water or for melting snow.
NOTICE
To prevent the battery from being
discharged, turn the switch off
when the engine is not running.
When cleaning the inside of the
rear window, be careful not to
scratch or damage the heater wires
or connectors.
When the soft top is completely
lowered, keep the rear window de-
fogger turned off to avoid damage
to the top.

11 72005 MR2 from Aug. ’04Prod. (OM17527U)
Air flow selector settings Operating tips
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the seats clear to
allow air to circulate throughout the ve-
hicle.
On cold days, set the fan speed to
“high” for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.

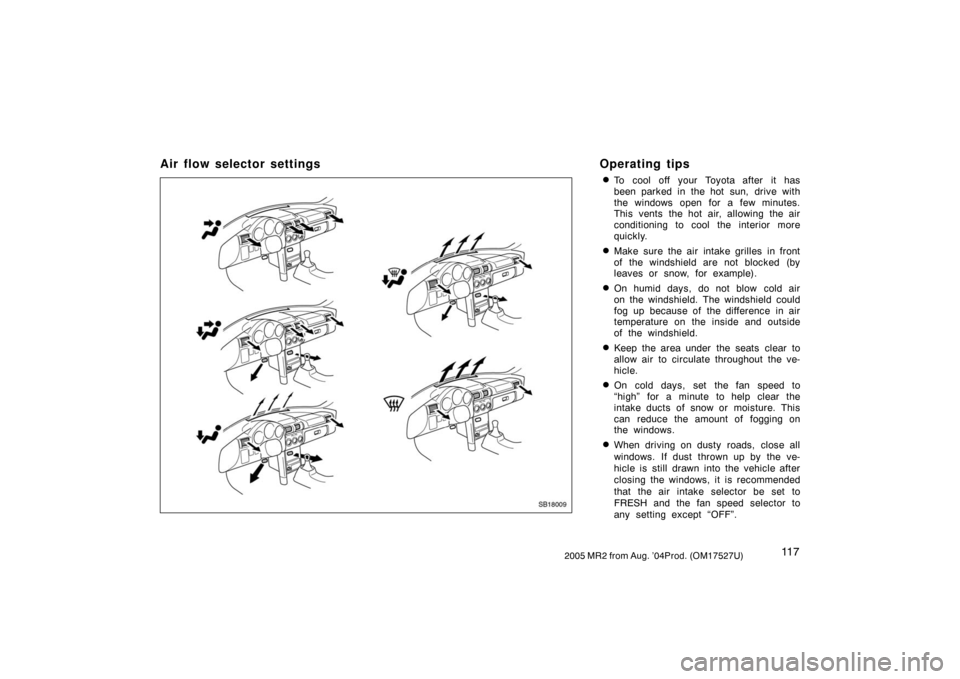

SB18009

11 82005 MR2 from Aug. ’04Prod. (OM17527U)
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls to:
Fan speed—Any setting except “OFF”
Temperature—To w a r d s WARM
(red zone)
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging. select fresh af-
ter the vehicle interior has been
warmed.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield.Air conditioning
For best results, set controls to:
Fan speed—Any setting except “OFF”
Temperature—To w a r d s COLD
(blue zone)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For quick cooling, move the air intake
selector to recirculate for a few min-
utes.
Ventilation
For best results, set controls to:
Fan speed—Any setting except “OFF”
Temperature—To w a r d s COLD
(blue zone)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
