2005 TOYOTA MR2 SPYDER window

2452005 MR2 from Aug. ’04Prod. (OM17527U)

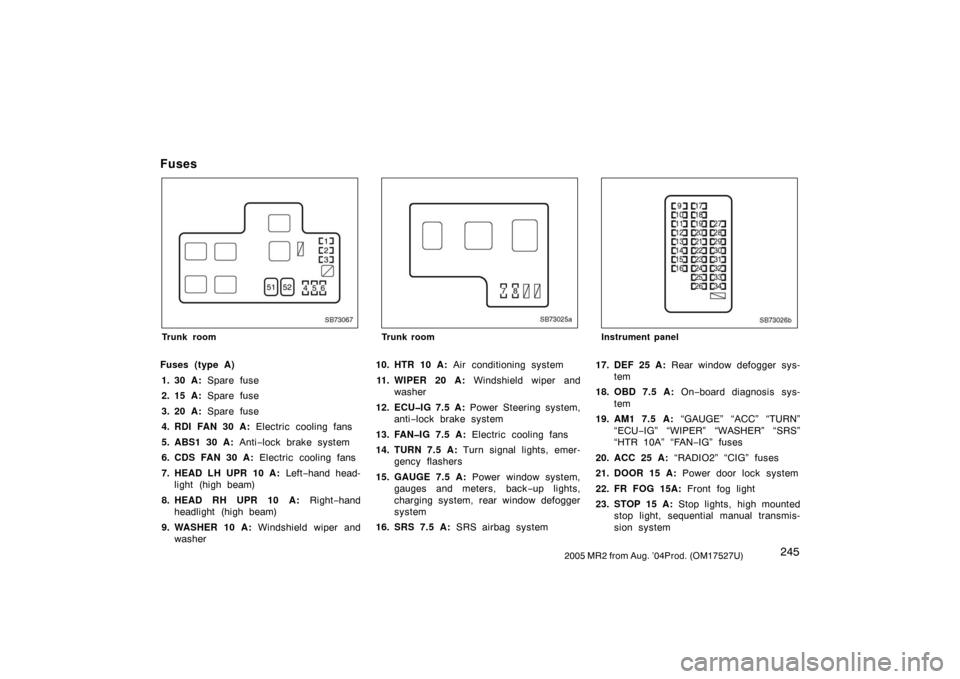

Fuses
SB73067
Trunk room
Fuses (type A)
1. 30 A: Spare fuse
2. 15 A: Spare fuse
3. 20 A: Spare fuse
4. RDI FAN 30 A: Electric cooling fans
5. ABS1 30 A: Anti−lock brake system
6. CDS FAN 30 A: Electric cooling fans
7. HEAD LH UPR 10 A: Left−hand head-
light (high beam)
8. HEAD RH UPR 10 A: Right−hand
headlight (high beam)
9. WASHER 10 A: Windshield wiper and
washer
SB73025a
Trunk room
10. HTR 10 A: Air conditioning system
11. WIPER 20 A: Windshield wiper and
washer
12. ECUIG 7.5 A: Power Steering system,
anti−lock brake system
13. FANIG 7.5 A: Electric cooling fans
14. TURN 7.5 A: Turn signal lights, emer-
gency flashers
15. GAUGE 7.5 A: Power window system,
gauges and meters, back−up lights,
charging system, rear window defogger
system
16. SRS 7.5 A: SRS airbag system
SB73026b
Instrument panel
17. DEF 25 A: Rear window defogger sys-
tem
18. OBD 7.5 A: On−board diagnosis sys-
tem
19. AM1 7.5 A: “GAUGE” “ACC” “TURN”
“ECU−IG” “WIPER” “WASHER” “SRS”
“HTR 10A” “FAN−IG” fuses
20. ACC 25 A: “RADIO2” “CIG” fuses
21. DOOR 15 A: Power door lock system
22. FR FOG 15A: Front fog light
23. STOP 15 A: Stop lights, high mounted
stop light, sequential manual transmis-
sion system

2462005 MR2 from Aug. ’04Prod. (OM17527U)
SB73068a
Engine compartment
24. TAIL1 20 A: “TAIL2” “PANEL” fuses
25. D P/W 20 A: Power window system
26. P P/W 20 A: Power window system
27. RADIO1 15 A: Power antenna, audio
28. DOME 10 A: Clock
29. ECUB 10 A: Daytime running light
system, gauges and meters
30. TAIL2 10 A: Taillights, parking lights,
license plate lights, gauges and meters
31. PANEL 7.5 A: Clock, illuminations
32. RADIO2 7.5 A: Gauges and meters,
outside rear view mirror system, clock33. CIG 15 A: Cigarette lighter
34. I/UP 7.5 A: Engine idle up system
35. ALTS 7.5 A: Charging system
36. ECUB1 25 A: “ECU−B” “DOME” fuses
37. SMTB 10A: Sequential manual trans-
mission system
38. HORN 10 A: Horn
39. HAZ 15 A: Turn signal lights, emergen-
cy flashers
40. AM2 15 A: Starter system, multiport
fuel injection system/sequential multi-
port fuel injection system, SRS airbag
system
41. IG2 15 A: Ignition system, multiport
fuel injection system/sequential multi-
port fuel injection system
42. EFI1 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, engine immobilizer system
43. ETCS 15A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
44. HPU 30A: Sequential manual transmis-
sion system
45. HEAD RH LWR 10A: Right−hand head-
light (low beam)46. HEAD LH LWR 10A: Left−hand head-
light (low beam)
47. EFI2 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
48. ST 7.5 A: Starter system
49. SMTIG 10A: Sequential manual trans-
mission system
50. DRL NO.1 7.5 A: Daytime running light
system
Fuses (type B)
51. ABS2 50 A: Anti−lock brake system
52. EHPS 50 A: Power steering system
53. MAIN 40 A: Starter system, “DRL
NO.1” “HEAD LH LWR” “HEAD RH
LW R ” f u s e s
54. HTR 40 A: Air conditioning system
Fuses (type C)
55. ALT 100 A: “AM1” “D P/W” “P P/W”
“DOOR” “STOP” “EHPS” “DEF” “TAIL1”
“OBD” “HTR 40A” fuses
