(f) Operating a video CD
PLAYING A VIDEO CD
Push the “AUDIO” button to display this
screen.
It you touch the “PICTURE” switch when the
vehicle is completely stopped and the parking
brake is applied, the video screen returns.DISPLAYING OPERATION SWITCHES
If you touch the part where switches are not
located while you are watching video on the
video CD, video CD operation switches will
appear.
“Page2” switch: Use this switch to display
the operation switches on the second page.
“Page1” switch: Use this switch to display
the operation switches on the top page.
“Hide Buttons” switch: Use this switch to
turn off the operation switches from the dis-
play.
If “
” appears on the display when you touch
the switch, the operation is not permitted.

144
DESCRIPTION OF EACH SWITCH
Switches on top page
“Sel. Number” switch: The track or number
search screen appears. (See “SEARCHING
BY TRACK” on page 144.)
“Prev. Page” switch: When you touch this
switch while the disc menu is displayed, the
previous page appears on the screen. If you
touch this switch while the player is playing
video, the previous track is searched and
played.
“Next Page” switch: When you touch this
switch while the disc menu is displayed, the
next page appears on the display. If you
touch this switch while the player is playing
video, the next track is searched and played.
“Main/Sub” switch: A multiplex transmis-
sion changing switch. The mode changes
from Main/Sub to Main, to Sub and back to
Main/Sub by touching this switch.
Switches on second page
“
” switch: Use this switch to pause
the video screen. When you touch this switch
again, the video screen advance frame by
frame.
“” switch: Touch this switch to fast re-
verse during playback.
“” switch: Touch this switch during pause
to resume playing.
“” switch: Touch this switch to fast for-
ward during the playback and start playing
slowly during pause.
SEARCHING BY TRACK
Enter the track numbers using “”, “+”
and “+10” switches and touch “Enter”.
The player starts playing video for that
title number.
You can select a track number by pushing “”
or “” on the “SEEK·TRACK” button.
Touch “Back”, and the previous screen re-
turns.
(g) If the player malfunctions
If the player or another unit equipped with the
player malfunction, your audio system will
display one of the six following messages.
If “DISC CHECK” appears on the display:
It indicates that the disc dirty, damaged, or it
was inserted upside down. Clean the disc or
insert it correctly. If a disc which is not play-
able is inserted, “DISC CHECK” will also ap-
pear on the screen. For appropriate discs for
this player, see “Audio system operating
hints” on page 146.

145 If “REGION CODE ERROR” appears on
the display: It indicates that the DVD region
code is not set properly.
If “DVD ERROR” appears on the display:
It indicates that the inside of the player unit
may be too hot due to the very high ambient
temperature. Remove the magazine from the
player and allow the player to cool down.
If the malfunction is not rectified: Take
your vehicle to your dealer.
(h) DVD player and DVD video disc infor-
mation
DVD VIDEO DISCS
This DVD player conforms to NTSC color
TV formats. The DVD video disc conform-
ing to another formats such as PAL or SE-
CAM cannot be used.
Region codes: Some DVD video discs have
a region code indicating a country where you
can use the DVD video disc on this DVD
player. If the DVD video disc is not labeled as
“ALL” or “1”, you cannot use it on this DVD
player. If you attempt to play an inappropriate
DVD video disc on this player, “REGION
CODE ERROR” appears on the screen.
Even if the DVD video disc does not have a
region code, there is a case that you cannot
use it.Marks shown on DVD video discs:
Indicates NTSC
format of color TV.
Indicates the number
of audio tracks.
Indicates the number
of language subtitles.
Indicates the number
of angles.
Indicates the screen to
be selected.
Wide screen: 16:9
Standard: 4:3
Indicates a region code by
which this video disc can be
played.
ALL: in all countries
Number: region code
DVD VIDEO DISC GLOSSARY
DVD video discs: Digital versatile Disc that
holds video. DVD video discs have adopted
“MPEG2”, one of the world standards of digi-
tal compression technologies. The picture
data is compressed by 1/40 on average and
stored. Variable rate encoded technology in
which the volume of data assigned to the pic-
ture is changed depending on the picture for-
mat has also been adopted. Audio data is
stored using PCM and Dolby digital, which
enables higher quality of sound. Further-
more, multi−angle and multi−language fea-
tures will also help you enjoy the more ad-
vanced technology of DVD video.
Viewer restrictions: This feature limits what
can be viewed in conformity with a level of re-
strictions of the country. The level of restric-
tions varies depending on the DVD video
disc. Some DVD video discs cannot be
played at all, or violent scenes are skipped or
replaced with other scenes.
Level 1: DVD video discs for children can be
played.
Level 2 − 7: DVD video discs for children and
G−rated movie can be played.
Level 8: All types of the DVD video discs can
be played.
Multiangle feature: You can enjoy the
same scene at different angles.

146 Multilanguage feature: You can select a
language of the subtitle and audio.
Region codes: The region codes are pro-
vided on DVD players and DVD discs. If the
DVD video disc does not have the same re-
gion code as the DVD player, you cannot play
the disc on the DVD player. For region codes,
see page 145.
Audio: This DVD player can play liner PCM,
Dolby digital and MPEG audio format DVD.
Other decoded type cannot be played.
Title and chapter: Video and audio pro-
grams stored in DVD video disc are divided in
parts by title and chapter.
Title: The largest unit of the video and audio
programs stored on DVD video discs. Usual-
ly, one piece of movie, one album, or one au-
dio program is assigned as a title.
Chapter: The unit smaller than that of title. A
title comprises plural chapters.
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and
the doubleD symbol are trademarks of
Dolby Laboratories. Confidential unpub-
lished works.
19921997 Dolby Laboratories. All
rights reserved.This product incorporates copyright
protection technology that is protected by
method claims of certain U.S. patents and
other intellectual property rights owned
by Macrovision Corporation and other
rights owners. Use of this copyright
protection technology must be authorized
by Macrovision Corporation, and is in-
tended for home and other limited viewing
uses only unless otherwise authorized by
Macrovision Corporation. Reverse engi-
neering or disassembly is prohibited.
“DTS” is a trademark of Digital Theater
Systems, Inc.
Audio system operating hints
NOTICE
To ensure correct audio system opera-
tion:
Be careful not to spill beverages over
the system.
Do not put anything other than a cas-
sette tape or compact disc into the
slot.
Do not put anything other than an ap-
propriate disc into the DVD player.
The use of a cellular phone inside or
near the vehicle may cause a noise
from the speakers of the system
which you are listening to. However,
this does not indicate a malfunction.
RADIO RECEPTION
Usually, a problem with radio reception does
not mean there is a problem with your radio —
it is just the normal result of conditions outside
the vehicle.

147 For example, nearby buildings and terrain
can interfere with FM reception. Power lines
or telephone wires can interfere with AM sig-
nals. And of course, radio signals have a lim-
ited range. The farther you are from a station,
the weaker its signal will be. In addition, re-
ception conditions change constantly as your
vehicle moves.
Here are some common reception problems
that probably do not indicate a problem with
your radio:
FM
Fading and drifting stations — Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may no-
tice fading and drifting, which increase with
the distance from the radio transmitter. They
are often accompanied by distortion.
Multi−path — FM signals are reflective, mak-
ing it possible for two signals to reach your an-
tenna at the same time. If this happens, the
signals will cancel each other out, causing a
momentary flutter or loss of reception.
Static and fluttering — These occur when sig-
nals are blocked by buildings, trees, or other
large objects. Increasing the bass level may
reduce static and fluttering.Station swapping — If the FM signal you are
listening to is interrupted or weakened, and
there is another strong station nearby on the
FM band, your radio may tune in the second
station until the original signal can be picked
up again.
AM
Fading — AM broadcasts are reflected by the
upper atmosphere—especially at night.
These reflected signals can interfere with
those received directly from the radio station,
causing the radio station to sound alternately
strong and weak.
Station interference — When a reflected sig-
nal and a signal received directly from a radio
station are very nearly the same frequency,
they can interfere with each other, making it
difficult to hear the broadcast.
Static — AM is easily affected by external
sources of electrical noise, such as high ten-
sion power lines, lightening, or electrical mo-
tors. This results in static.CARING FOR YOUR CASSETTE PLAYER
AND TAPES
For the best performance for your cassette
player and tapes:
Clean the tape head and other parts regularly.
A dirty tape head or tape path can de-
crease sound quality and tangle your cas-
sette tapes. The easiest way to clean
them is by using a cleaning tape. (A wet
type is recommended.)
Use high−quality cassettes.
Low−quality cassette tapes can cause
many problems, including poor sound, in-
consistent playing speed, and constant
auto−reversing. They can also get stuck
or tangled in the cassette player.
Do not use a cassette if it has been dam-
aged or tangled or if its label is peeling off.
Do not leave a cassette in the player if you
are not listening to it, especially if it is hot
outside.
Store cassettes in their cases and out of
direct sunlight.
Avoid using cassettes with a total playing
time longer than 100 minutes (50 minutes
per side). The tape used in these cas-
settes is thin and could get stuck or
tangled in the cassette player.

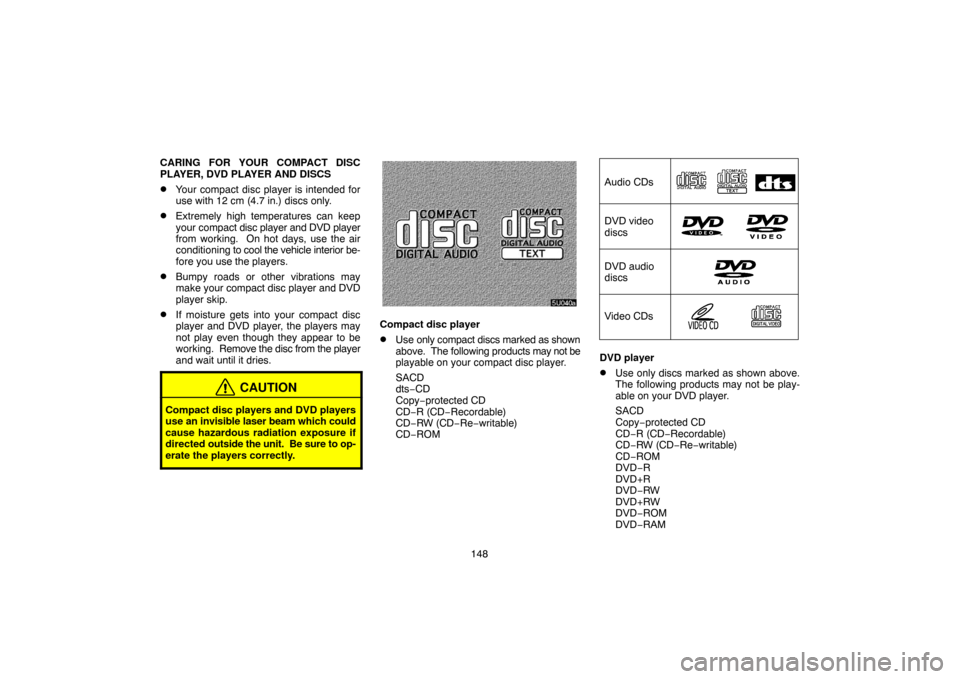

148 CARING FOR YOUR COMPACT DISC
PLAYER, DVD PLAYER AND DISCS
Your compact disc player is intended for
use with 12 cm (4.7 in.) discs only.
Extremely high temperatures can keep
your compact disc player and DVD player
from working. On hot days, use the air
conditioning to cool the vehicle interior be-
fore you use the players.
Bumpy roads or other vibrations may
make your compact disc player and DVD
player skip.
If moisture gets into your compact disc
player and DVD player, the players may
not play even though they appear to be
working. Remove the disc from the player
and wait until it dries.
CAUTION
Compact disc players and DVD players
use an invisible laser beam which could
cause hazardous radiation exposure if
directed outside the unit. Be sure to op-
erate the players correctly.
Compact disc player
Use only compact discs marked as shown
above. The following products may not be
playable on your compact disc player.
SACD
dts−CD
Copy−protected CD
CD−R (CD−Recordable)
CD−RW (CD−Re−writable)
CD−ROM
Audio CDs
DVD video
discs
Video CDs
DVD audio
discs
DVD player
Use only discs marked as shown above.
The following products may not be play-
able on your DVD player.
SACD
Copy−protected CD
CD−R (CD−Recordable)
CD−RW (CD−Re−writable)
CD−ROM
DVD−R
DVD+R
DVD−RW
DVD+RW
DVD−ROM
DVD−RAM

149
Special shaped discs
Transparent/translucent discs
Low quality discs
Labeled discs
NOTICE
Do not use special shaped, transparent/
translucent, low quality or labeled discs
such as those shown in the illustrations.
The use of such discs may damage the
player or changer, or it may be impossi-
ble to eject the disc.

150
CorrectWrong
Handle discs carefully, especially when
you are inserting them. Hold them on the
edge and do not bend them. Avoid getting
fingerprints on them, particularly on the
shiny side.
Dirt, scratches, warping, pin holes, or oth-
er disc damage could cause the player to
skip or to repeat a section of a track. (To
see a pin hole, hold the disc up to the
light.)
Remove discs from the players when you
are not using them. Store them in their
plastic cases away from moisture, heat,
and direct sunlight.
To clean a disc: Wipe it with a soft, lint−free
cloth that has been dampened with water.
Wipe in a straight line from the center to the
edge of the disc (not in circles). Dry it with
another soft, lint−free cloth. Do not use a con-
ventional record cleaner or anti−static device.
