2005 SUBARU FORESTER Owners Manual

3-36
Instruments and controls
will illuminate. y
By pressing and releasing the right button, the com-
pass display is toggled on or off. When the compass is
on, an illuminated compass reading will appear in the
lower part of the mirror.
Even with the mirror in anti-glare mode, the mirror sur-
face turns bright if the transmission is shifted into re-
verse. This is to ensure good rearward visibility duringreversing. V Photosensors
The mirror has a photosensor attached on both the
front and back sides. If the glare from the headlights of
vehicles behind you strikes the mirror, these sensors detect it and make the reflection surface of the mirror
dimmer to help prevent you from being blinded. For
this reason, use care not to cover the sensors with
stickers, or other similar items. Periodically wipe the
sensors clean using a piece of dry soft cotton cloth or
an applicator. V
Compass calibration
1. For optimum calibration, switch off all nonessential
electrical accessories (rear window defogger, heater/
air conditioning system, spotlight, etc.) and ensure all
doors are shut.
2. Drive to an open, level area away from large metal-
lic objects or structures and make certain the ignition
switch is in the “ON” position.
3. Press and hold the left button for 3 seconds then re-
lease, and the compass will enter the calibration
mode. “CAL” and direction will be displayed.
4. Drive slowly in a circle until “CAL” disappears from
the display (about two or three circles).
5. The compass is now calibrated. Further calibration
is not required. The compass will automatically cali-
brate from this point forward.
HS3038BA

3-37
Instruments and controls
– CONTINUED –
VCompass zone adjustment
Compass calibration zones
1. The zone setting is factory preset to Zone 8. Refer
to the “Compass calibration zone” map shown above
or one attached to the end of this manual to verify that
the compass zone setting is correct for your geograph- ical location.
2. Press and hold the right button for 3 seconds then
release, and the word “ZONE” will briefly appear and
then the zone number will be displayed.
3. Press the right hand button repeatedly to cycle the
display through all possible zone settings. Stop cycling
when the correct zone setting for your location is dis- played.
4. Releasing the button for 3 seconds will exit the
zone setting mode. „
Outside mirrors
T Convex mirror (passenger side)
Objects look smaller in a convex mirror and far-
ther away than when viewed in a flat mirror. Do
not use the convex mirror to judge the distance
of vehicles behind you when changing lanes.
Use the inside mirror (or glance backwards) to
10
9
8
7
6
5
4
3
1112
13
HGF048AA
HS3040BA

3-38
Instruments and controls
determine the actual size and distance of ob-
jects that you view in convex mirror.

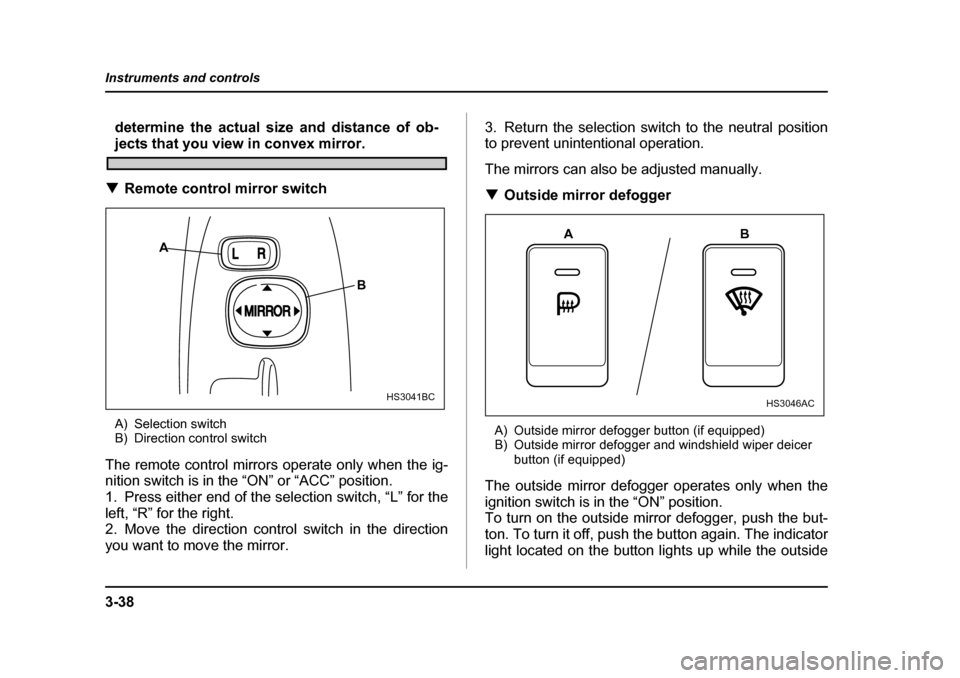

T Remote control mirror switch
A) Selection switch
B) Direction control switch
The remote control mirrors operate only when the ig-
nition switch is in the “ON” or “ACC” position.
1. Press either end of the selection switch, “L” for the
left, “R” for the right.
2. Move the direction control switch in the direction
you want to move the mirror. 3. Return the selection switch to the neutral position
to prevent unintentional operation.
The mirrors can also be adjusted manually. T
Outside mirror defogger
A) Outside mirror defogger button (if equipped)
B) Outside mirror defogger and windshield wiper deicer button (if equipped)
The outside mirror defogger operates only when the
ignition switch is in the “ON” position.
To turn on the outside mirror defogger, push the but-
ton. To turn it off, push the button again. The indicator
light located on the button lights up while the outside
MIRROR
LRA
B
HS3041BC
AB
HS3046AC

3-39
Instruments and controls
– CONTINUED –
mirror defogger is operating.
The defogger will automatically shut off after about 15
minutes. If the mirror clears before that time, push the
button to turn it off. It also turns off when the ignition
switch is turned to the “ACC” or “LOCK” position. If de-
frosting or defogging is desired when you restart your
vehicle, you have to push the button to turn it on again.
NOTE
On vehicles equipped with a windshield wiper de-
icer, the windshield wiper deicer switch is also
used to operate the outside mirror defogger.
To prevent the battery from being discharged,
do not operate the defogger continuously for
any longer than necessary.
Tilt steering wheel
1. Adjust the seat position. Refer to the “Front seats”
section (chapter 1).
2. Push the tilt lock lever down.
3. Move the steering wheel to the desired level.
4. Pull the lever up to lock the steering wheel in place.
5. Make sure that the steering wheel is securely
locked by moving it up and down.
Do not adjust the steering wheel tilt position
while driving. This may cause loss of vehicle
US3053BA

3-40
Instruments and controls
control and result in personal injury.Horn
To sound the horn, push the horn pad.
UG3034BA

4-1
4
Climate control
Ventilator ....................................................... 4-2 Air flow selection .............................................. 4-2
Center and side ventilators .............................. 4-3
Manual climate control system ................... 4-4 Control panel ..................................................... 4-4
Heater operation ............................................... 4-6
Air conditioner operation (if equipped) .......... 4-9
Automatic climate control system (if equipped) .............................................. 4-11Control panel ..................................................... 4-11
To use as full-automatic climate control system ............................................................. 4-12
To use as semi-automatic climate control
system ............................................................. 4-12
Fan speed control dial ...................................... 4-12
Temperature control dial .................................. 4-13
Air flow control dial .......................................... 4-13
Air inlet selection button .................................. 4-14
Air conditioner button ...................................... 4-15
Temperature sensors ....................................... 4-16
Operating tips for heater and air conditioner ................................................ 4-17Cleaning ventilation grille ................................ 4-17
Efficient cooling after parking in direct sunlight ........................................................... 4-17
Lubrication oil circulation in the refrigerant circuit .............................................................. 4-17
Checking air conditioning system before
summer season .............................................. 4-17
Cooling and dehumidifying in high humidity and low temperature weather conditions .... 4-18 Air conditioner compressor shut-off when
engine is heavily loaded ................................ 4-18
Refrigerant for your climate control system .. 4-18
Air filtration system (if equipped) ................ 4-18 Replacing an air filter ....................................... 4-19

4-2
Climate control
Climate controlVentilator „
Air flow selection
US4033BA

4-3
Climate control
– CONTINUED –
„Center and side ventilators
T Center ventilators
Move the tab up and down or right and left to adjust the
flow direction. T
Side ventilators
A) Open
B) Close
Move the tab up and down or right and left to adjust the
flow direction.
To open or close the ventilator, turn the thumb-wheel
up or down.
HS4009BA
HS4010BC
A
B
