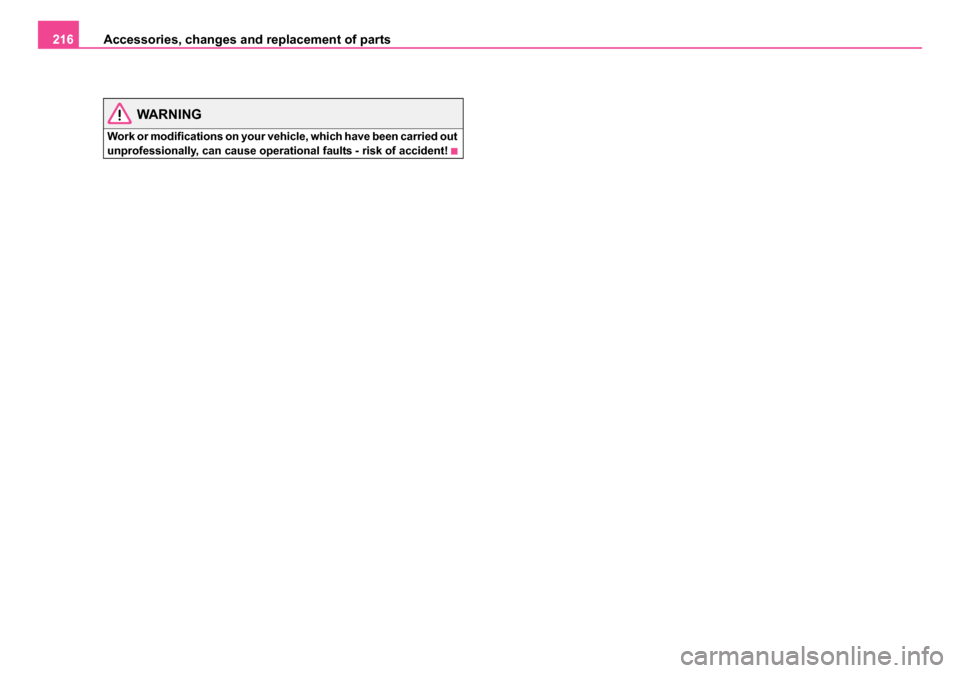

Accessories, changes and replacement of parts
216
WARNING
Work or modifications on your vehicle, which have been carried out
unprofessionally, can cause operati onal faults - risk of accident!
sqc.1.book Seite 216 Mittwoch, 13. April 2005 1:09 13

Breakdown assistance217
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
Breakdown assistance
Breakdown assistance
First-aid box* and warning triangle*
The first-aid box is attached by a strap to the left-hand side of the luggage
compartment or can be housed in a special bag which is a Škoda original
accessory.
The warning triangle is stored in a textile bag. There is a velcro fastener
on the underside of the textile bag. The textile bag is fixed lengthwise (in
the direction of travel) on the floor behind the rear seats with the help of
the velcro fastener in such a way that it lies against the right-hand side of
the luggage compartment.
Individual parts of the equipment (the first-aid box, etc.) are stored on vehi-
cles which do not have a spare wheel by placing them in a plastic sleeve and fixing them to the floor of the luggage compartment using velcro
fasteners.
Room for the warning triangle and first-aid box on vehicles of the type
estate car
is found in the well under the carpet of the luggage compart-
ment behind the spare wheel.
The warning triangle on vehicles of the type Sedan is located in the lower
part of the boot lid ⇒fig. 153 .
Other types have the warning triangle located in the well under the carpet
of the luggage compartment.
Note
Pay attention to the use-by-date of the contents of the first-aid box.
Fire extinguisher*
The fire extinguisher is attached with a strap and a holder to the boot lid.
Please read carefully the instructions which are attached to the fire
extinguisher.
The fire extinguisher must be checked by an authorised person or
company annually (please observe the various differing national legal
requirements).
Fig. 153 Placing of the
warning triangle in the
boot lid (on a sedan)
sqc.1.book Seite 217 Mittwoch, 13. April 2005 1:09 13

Breakdown assistance
218
WARNING
If the fire extinguisher is not correctly attached, in case of sudden
manoeuvres or an accident it can be “thrown” through the interior
compartment and cause injuries.
Note
•The fire extinguisher must comply with the relevant and valid legal
requirements.
•Pay attention to the expiration date of the fire extinguisher. If the fire
extinguisher is used after the expiration date, its proper function is no
longer assured.
•The fire extinguisher is only supplied in certain countries within the
scope of delivery.
Vehicle tool kit
The vehicle tool kit and the lifting jack are stored in a locable plastic box
in the spare wheel ⇒fig. 154 . There is also space here for the removable
ball for the trailer towing device*.
The vehicle tool kit contains the following parts (depending on equipment
fitted):
•Wheel wrench,
•Hook for pulling off a full wheel trim,
•Towing eye,
•Adapter for the wheel bolts lock.
After using the lifting jack, screw in the arm of the lifting jack fully before
placing it back in its stowage area.
WARNING
•The hexagon socket in the handle of the screwdriver should
only be used to fit on the wheel bolts. Never use the hexagon
socket of the screwdriver for tightening the wheel bolts because
you will not be able to achieve the necessary tightening torque with
the hexagon socket - risk of accident!
•The factory-supplied lifting jack is only intended for your model
of vehicle. On no account attempt to lift a heavier vehicle or other
loads - risk of injury!
•Ensure that the vehicle tool kit is safely attached in the luggage
compartment.
Fig. 154 Luggage
compartment: Storage
compartment for
vehicle too kit
sqc.1.book Seite 218 Mittwoch, 13. April 2005 1:09 13

Breakdown assistance219
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
Spray for repairing a tyre*
The spray for repairing a tyre is intended for rapid repair of small defects
in a tyre consisting of a damage up to a size of up to 5 mm. The spray is
not at all intended to replace a permanent repair on the tyre; this repair
only serves to reach the next workshop. The repair can be undertaken on
the vehicle immediately. Please read the attached instructions care-
fully before the repair.
The spray for repairing a tyre is located with the warning triangle in a bag.
There is a velcro fastener on the underside of the bag. The bag is fixed to
the floor of the luggage compartment with the aid of the velcro fastener in
such a way that the side of the bag lies against the right-hand side of the
luggage compartment and the rear seat.
The spray bottle in vehicles of the type estate car and sedan is placed
in the spare wheel well under the luggage compartment floor behind the
spare wheel.
Note
Vehicles which do not have a spare wheel have the spray bottle stored in
a box under the luggage compartment floor.
Tyre repair kit*
The tyre repair kit is intended for the repair of minor tyre defects. The tyre
repair kit contains a compressor, inflation bottle, operating instructions
and accessories.
The repair with the tyre repair kit is not at all intended to replace a
permanent repair on the tyre, this repair only serves to reach the next
workshop. The repair can be undertaken on the vehicle immediately.
Please read the attached instructions carefully before the repair.
The tyre repair kit is located in a textile bag. There is a velcro fastener on
the underside of the bag. The bag is fixed to the floor of the luggage
compartment with the aid of the velcro fastener in such a way that the side
of the bag lies against the right-hand side of the luggage compartment and
the rear seat.
The tyre repair kit in vehicles of the type estate car and sedan is placed
in the spare wheel well under the luggage compartment floor behind the
spare wheel.
Fig. 155 Spray for
repairing a tyre
sqc.1.book Seite 219 Mittwoch, 13. April 2005 1:09 13

Breakdown assistance
220
Spare wheel*
The spare wheel is stowed in the spare wheel well in the
luggage compartment below the floor covering.
The spare wheel lies in a well under the luggage compartment floor and is
fixed in place along with the vehicle tool kit box using special screws
⇒ fig. 156 .
One should check the inflation pressure in the spare wheel (at best when
generally checking the tyre air pressures - see sign on the fuel filler flap
⇒ page 188) to ensure that the spare wheel is always ready to use.
Unidirectional tyres*
If you have such tyres on your vehicle, please refer to the notes below:
•The spare wheel provided with a car fitted with unidirectional tyres has
different dimensions. The wheel is provided with a warning sticker.
•After fitting on the wheel, the warning sticker must not be concealed
(e.g. by the wheel trim).
•Do not drive with this spare wheel at more than 80 km/h - risk of acci-
dent. Avoid accelerating at full throttle, sharp braking and fast cornering.
•The inflation pressure for this spare wheel is identical to the inflation
pressure of the standard tyres.
•Use this spare wheel only to reach the nearest service station as it is
not intended for continuous use.
Note
Some vehicles are only fitted with spray to make tyre repairs
⇒ page 219.
Changing a wheel
Preliminary work
The following steps should be carried out before actually
changing the wheel.
– If it is necessary to change a wheel, park the vehicle as far
away as possible from the traffic flow. The place you choose
should be level.
– Have all the occupants get out. While changing a wheel, the
occupants of the vehicle should not stand on the road (it is
better behind a crash barrier).
– Apply the handbrake firmly.
– Engage 1st gear or if your vehicle is fitted with an automatic
gearbox, position the selector lever into position P .
Fig. 156 Luggage
compartment: Spare
wheel
sqc.1.book Seite 220 Mittwoch, 13. April 2005 1:09 13

Breakdown assistance221
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
– If a trailer is coupled, uncouple it.
– Take the vehicle tool kit and the spare wheel ⇒ page 218
out of the luggage compartment.
WARNING
•If you find yourself in flowing traffic switch on the hazard
warning lights system and place the warning triangle on the side of
the road at the prescribed distance from your vehicle while
observing all national legal provisions. In this way you are
protecting not only yourself but also other road users.
•Never start the engine with the vehicle sitting on the raised jack
- danger of suffering injury!
Caution
If you have to change a wheel on a slope first block the opposite wheel
with a stone or similar object in order to secure the vehicle from unexpect-
edly rolling away.
Note
Comply with the national legal regulations.
Changing a wheel
Always change a wheel on a level surface as far as possible.
– Take off the full wheel trim* ⇒page 222 or the caps
⇒ page 223. – In the case of light alloy wheels remove the wheel trim cap
⇒page 223.
– Slacken the wheel bolts ⇒page 224.
– Jack up the vehicle until the wheel to be changed is clear of the ground ⇒page 224.
– Unscrew the wheel bolts and place them on a clean surface (cloth, paper etc.).
– Take off the wheel.
– Fit on the spare wheel and tighten the wheel bolts slightly.
– Lower the car.
– Tighten the wheel bolts firmly, alternately and diagonally using the wheel wrench ⇒page 224.
– Mount the full wheel trim/wheel trim cap or the caps.
Note
•All bolts must be clean and must turn easily.
•You must never grease or oil the wheel bolts!
•When fitting on unidirectional tyres, ensure that the tyres rotate in the
correct direction ⇒page 208.
Subsequent steps
After changing the wheel, you must perform the following steps.
sqc.1.book Seite 221 Mittwoch, 13. April 2005 1:09 13

Breakdown assistance
222
– Stow and attach the replaced wheel in the spare wheel well.
– Stow the vehicle tool kit in the space provided.
–Check the tyre pressure on the spare wheel just mounted as
soon as possible.
– Have the tightening torque of the wheel bolts checked with
a torque wrench as soon as possible. The tightening torque for
steel and light alloy wheels must be 120 Nm.
– Have the defective tyre repaired as soon as possible.
WARNING
It is necessary to observe the guidelines given on ⇒page 211,
“New tyres and wheels” if the vehicle is subsequently fitted with
tyres which are different to those it was fitted with at the works.
Note
•If you find, when changing the wheel, that the wheel bolts are corroded
and difficult to turn, the bolts must be replaced before checking the tight-
ening torque.
•Drive cautiously and only at a moderate speed to a workshop where
the tightening torque can be checked.
Full wheel trim*
Removing
– Hook the clamp found in the vehicle tool kit into the reinforced edge of the full wheel trim.
– Push the wheel key through the clamp, support the wheel key on the tyre and pull off the wheel trim ⇒fig. 157 .
Installing
– First press the full wheel trim onto the wheel at the valve opening provided. Then press the full wheel trim into the
wheel in such a way that its entire circumference locks
correctly in place.
Fig. 157 Removing the
full wheel trim
sqc.1.book Seite 222 Mittwoch, 13. April 2005 1:09 13

Breakdown assistance223
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
Caution
•Use the pressure of your hand, do not knock on the full wheel trim!
Heavy knocks mainly on the points where the full wheel trim has not been
inserted into the wheel, can result in damage to the guide and centering
elements of the full wheel trim.
•First check for yourself that the theft-deterrent wheel bolt is located
⇒ page 225, “Securing wheels against being stolen*” in the hole in the
area of the valve before fitting the full wheel trim onto a steel wheel which
is attached with a theft-deterrent wheel bolt.
Wheel trim caps*
Removing
– Carefully ⇒fig. 158 lever off the wheel trim cap using the
removal hook .
Wheel bolts with caps*
The caps are designed to protect the wheel bolts.
Removing
– Insert the plastic clip (in the car tool kit) sufficiently far onto
the cap until the inner catches of the clip are positioned at the
collar of the cap.
– Pull the cap off with the plastic clip ⇒ fig. 159.
Installing
– Insert the caps onto the bolts.
Fig. 158 Pulling off the
wheel trim cap
Fig. 159 Changing a
wheel: Removing the
cap
sqc.1.book Seite 223 Mittwoch, 13. April 2005 1:09 13
