2005 RENAULT MEGANE ESP

Downloaded from www.Manualslib.com manuals search engine
NU761_2_Gcv-FRA.qxd 4/11/05 11:12 Page 3
BC84 - NU761-2C:\Documentum\Checkout\NU761_2_Tcv-ENG.win 7/12/2005 9:13- page 2
has chosen ELF
Engines of all types
except 1. 9 dCi wi th
particle filter
1.9 dCi engines
with particle filter
Petrol and LPG engines
except 2.0T 16V
Renault Sport
Engine all types except
2.0T 16V Renault Sport
and 1.9 dCi with a par-
ticle filter
Gearbox
ELF EXCELLIUM LDX 5W-40ACEA A3 / B4Optimum performance and maximum protection in the most severe conditions
All types of driving
ELF EVOLUTION SXR 5W-40ACEA A3 / B4
Optimum performance
All types of driving
ELF SOLARIS RNX 5W-30ACEA C3
Optimum performance, par ticle filter protection and respect for the environment
All types of driving
ELF EVOLUTION SXR 5W-30ACEA A5 / B5
Fuel economy, engine protection and respect for the environment.
All types of driving
ELF COMPETITION ST 10W-40
ELF TURBO DIESEL 10W-40ACEA A3 / B4
ACEA B3 / B4
Other RENAULT approved lubricants for normal use.
Elf has developed specific lubricants for each Renault transmission:Tranself TRJ 75W80, Tranself TRT 75W80, Tranself TRP 75W80, Tranself TRX 75W80 for manual
gearboxes, Renaultmatic D3Syn and Renaultmatic D2 for automatic transmissions.These fluids are actively involved in the operation of your vehicle. (*)
RENAULT recommends using approved ELF products when topping up or changing the oil.
(*) Refer to your vehicle's Warranty and Services booklet for information regarding which grade of oil to use.
Consult your RENAULT Dealer or visit www.lubricants.elf.com

Downloaded from www.Manualslib.com manuals search engine
NU761_2_G1-FRA.qxd 10/11/05 15:52 Page 0.02
0.02
Brief overview
 Tyre pressures ........................................................................\
...............................................0.04 - 0.07
 RENAULT card: use
........................................................................\
..................................1.02 ➟1.08
 Child restraints/seats
........................................................................\
...............................1.32 ➟1.42
 Warning lights (instrument panel)
........................................................................\
......1.46 ➟1.77
 Engine Stop/Start
........................................................................\
.....................................................2.05
 Driving
........................................................................\
....................................................... ...................2.37
Tyre pressure monitor
........................................................................\
.........................2.15 ➟2.18
Electronic Stability Program: ESP
........................................................................\
.................2.19
Traction control: ASR
........................................................................\
.............................2.20 - 2.21
Emergency brake assist
........................................................................\
......................................2.24
Cruise control/Speed limiter
........................................................................\
............2.25 ➟2.31
 Heating/air conditioning
........................................................................\
........................3.02 ➟3.16
 Bonnet/maintenance
........................................................................\
................................4.02 ➟4.14
 Practical advice (changing bulbs, fuses, breakdown, faults)
........................................................................\
........................5.02 ➟5.37
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 0.02 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
24088

3

1

2

4

NU761_2_G1-FRA.qxd 10/11/05 15:52 Page 1.02
1.02
Driver’s responsibility
Never leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised. With
the card in the reader, it would be
possible to start the engine or
operate electrical equipment such
as the electric windows and there is
a risk that they may trap part of
their body (neck, arms, hands, etc.).
Risk of serious injury.
RENAULT card
1 - Unlocking the doors and luggage
compartment.
2 - Locking all doors and luggage
compartment.
3 - Locking/unlocking the luggage
compartment.
4 - Integral emergency key.
The RENAULT card is used to:
- lock/unlock the doors and luggage
compartment and the fuel filler
flap (refer to the following pages);
- automatically close the electric windows and the sunroof; refer to
the paragraphs on “windows with
automatic opening” and “sunroof”
in section 3 (depending on vehicle);
- start the engine; refer to the paragraph on “Starting the engine”
in section 2.
Battery life
It is supplied by a battery which
should be replaced when the message
“Change card battery” appears on the
instrument panel (refer to the
paragraph on the “RENAULT card:
battery” in section 5).
Range of the RENAULT card
This varies according to the
environment. It is therefore
important to make sure when
handling the RENAULT card that
you do not lock or unlock the doors
by inadvertently pressing the
buttons. Advice
Do not keep your RENAULT card in
a place where it could be damaged
accidentally, such as in a back
pocket where you might sit on it.
RENAULT CARDS: general information
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.02 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
2
4
5

NU761_2_G1-FRA.qxd 10/11/05 15:52 Page 1.06
1.06
Driver’s responsibility
Never leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised.
There is a risk that they could start
the engine or operate electrical
equipment (electric windows) and
trap part of their body (neck, arms,
hands, etc.). Risk of serious injury.
HANDS-FREE RENAULT CARD: use (continued)
Locking the doors and luggage
compartment
Holding the RENAULT card and with
the doors and luggage compartment
closed, press button 4located on one
of the handles 2or button 5on the
luggage compartment.
The side indicator lights and hazard
warning lights flash twice to
indicate that the doors have locked.
Note: the RENAULT card must be
within the vehicle’s access zone for
locking with the buttons to be
possible. If a door or the luggage compartment
is open or not properly shut, or if a
RENAULT card is present in the
reader, the doors or luggage
compartment lock then quickly
unlock and the hazard warning
lights and indicator lights do not
flash.If you wish to check that the doors
are locked after locking with the
RENAULT card or the buttons on the
handles, you have approximately
three
seconds to try the door
handles without unlocking them.
After this delay, the Hands-Free
mode is activated once again and
any movement of the handle will
unlock the doors.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.06 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
3
4

NU761_2_G1-FRA.qxd 10/11/05 15:53 Page 1.10
1.10
If there is a fault, you will
hear a beep and the
integrated indicator will
not light up.Rear door central locking
must be reactivated following
disconnection of the battery
by pressing switch
3.
Safety of rear occupants
The driver can inhibit
operation of the rear electric
windows and doors by
pressing switch 3on the side with
the symbol.
Driver’s responsibility
Never leave your vehicle without
removing the RENAULT card from
inside and never leave a child (or a
pet) inside. With the key in the
ignition it would be possible to
operate the electric windows and
there is a risk that a child or animal
may be seriously injured (by
trapping his or her neck, arm, hand,
etc.). If something gets trapped,
reverse the direction of travel as
soon as possible by pressing the
relevant switch.
OPENING AND CLOSING THE DOORS (continued)
Child safety
Vehicles fitted with switch 3with
integrated indicator light
Press switch 3to prevent the
operation of the rear electric windows
and opening of the rear doors.
The indicator light in the switch
lights up to confirm that the doors
are locked. Other cases
To make it impossible for the rear
doors to be opened from the inside,
press switch
4 and check from the
inside that the doors are securely
locked.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.10 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
3

1

2

NU761_2_G1-FRA.qxd 10/11/05 15:53 Page 1.23
1.23
REAR SEAT BELTS
Rear centre seat belt
Pull the belt out slowly from its
housing 1.
Fasten the sliding buckle 2into the
corresponding red 3unit.
Rear side and central seat belts
The belts are locked, unlocked and
adjusted in the same way as the
front belts.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.23 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
NU761_2_G1-FRA.qxd 10/11/05 15:53 Page 1.30
1.30

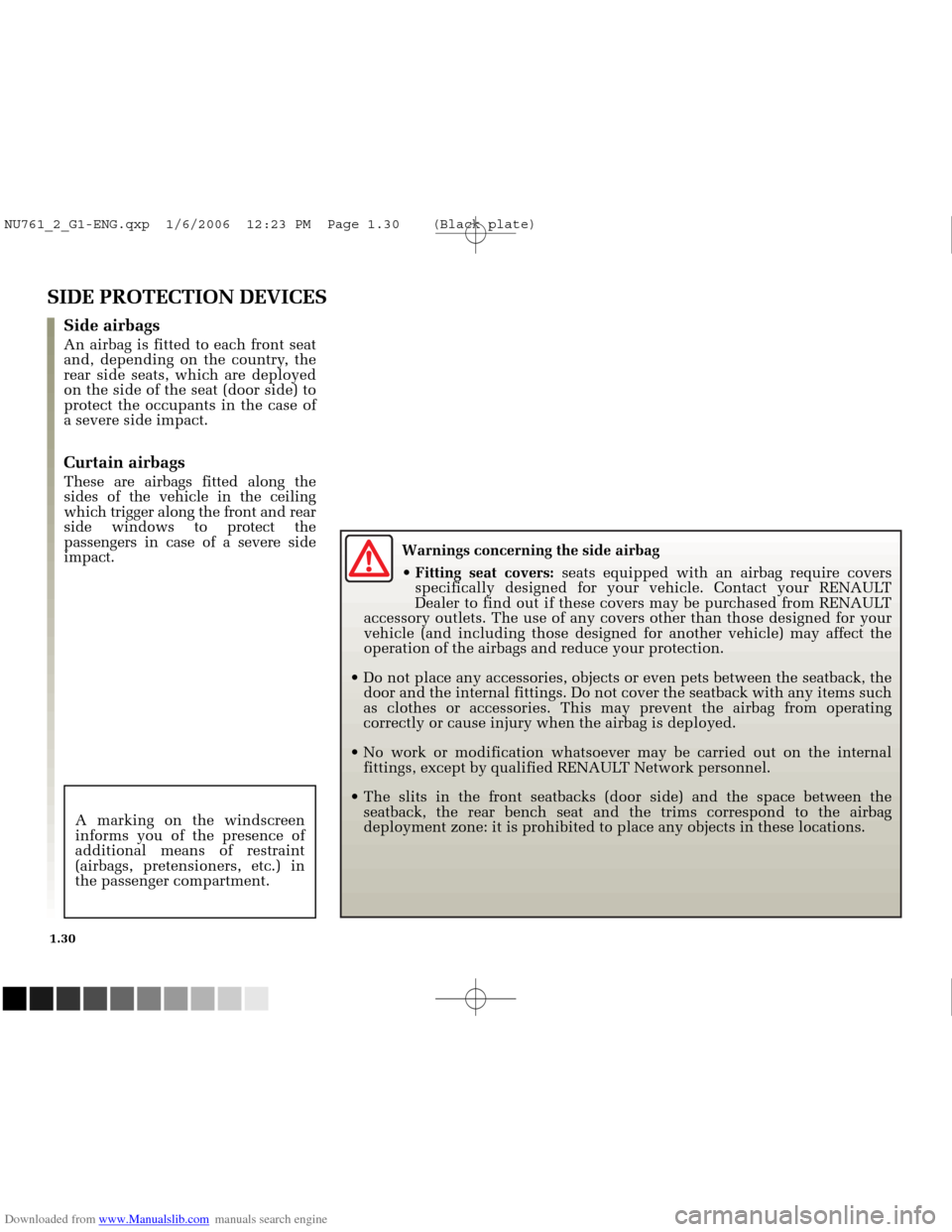

Warnings concerning the side airbag
 Fitting seat covers: seats equipped with an airbag require covers
specifically designed for your vehicle. Contact your RENAULT
Dealer to find out if these covers may be purchased from RENAULT
accessory outlets. The use of any covers other than those designed for y\
our
vehicle (and including those designed for another vehicle) may affect \
the
operation of the airbags and reduce your protection.
 Do not place any accessories, objects or even pets between the seatback,\
the door and the internal fittings. Do not cover the seatback with any items\
such
as clothes or accessories. This may prevent the airbag from operating
correctly or cause injury when the airbag is deployed.
 No work or modification whatsoever may be carried out on the internal fittings, except by qualified RENAULT Network personnel.
 The slits in the front seatbacks (door side) and the space between the\
seatback, the rear bench seat and the trims correspond to the airbag
deployment zone: it is prohibited to place any objects in these location\
s.
SIDE PROTECTION DEVICES
Side airbags
An airbag is fitted to each front seat
and, depending on the country, the
rear side seats, which are deployed
on the side of the seat (door side) to
protect the occupants in the case of
a severe side impact.
Curtain airbags
These are airbags fitted along the
sides of the vehicle in the ceiling
which trigger along the front and rear
side windows to protect the
passengers in case of a severe side
impact.
A marking on the windscreen
informs you of the presence of
additional means of restraint
(airbags, pretensioners, etc.) in
the passenger compartment.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.30 (Black plate)

Downloaded from www.Manualslib.com manuals search engine
NU761_2_G1-FRA.qxd 10/11/05 15:53 Page 1.32
1.32
Under no circumstances
should babies or children
be allowed to travel sitting
on the knees of another
passenger in the vehicle.
If a frontal impact occurs at 30 mph
(50 km/h) a child weighing 30 kg
will be transformed into a missile
equivalent to one ton: you will find
it impossible to hold the child, even
if you yourself are wearing a belt.
It is particularly dangerous to put
the belt round your child when he
or she is sitting on your lap. Never
use the belt for more than one
person at the same time.
CHILD SAFETY
Remember that a collision at 30 mph
(50 km/h) is the same as falling a
distance of 10 metres. Expressed in
other terms, transporting a child
without a restraint is the equivalent
of allowing him or her to play on a
fourth-floor balcony without
railings.In all countries there are regulations
governing the use of restraints for
children and babies.
In Europe, children under 10 years
of age
(1)must be seated in an
approved safety device which is
suitable for the weight and size of
the child.
The driver is responsible for
ensuring that this equipment is used
correctly.
Child restraints for which type
approval was obtained after January
1992 offer a level of safety much
greater than for restraints with type
approval before that date.
It is therefore advisable to select a
child restraint that complies with
European regulation ECE 44.
Restraints that comply with this
legislation must be marked with an
orange label bearing the letter E
followed by a number (which
represents the country where it is
type approved) and the year in
which the type approval was
granted.
Refer to the Child safety equipment
booklet available from the Renault
Network to choose the seat suited to
your child and recommended for
your vehicle. There are some passenger seats on
which the installation of child seats
is forbidden.
To find the authorised seats and
types of child seats that can be
installed in each of the authorised
seats, refer to the table in the
following pages.
Before installing a child seat in the
front seat
(if installation is permitted)
If fitted to the passenger seat, carry
out the following adjustments:
- move the passenger seat as far back as possible,
- set the seatback to its fully upright position,
- raise the seat base as far as possible,
- raise the headrest to its highest setting,
- move the seat belt height control to the low position.
(1) You must always comply with the
laws of the country in which you are
travelling. They may be different to
the guidelines in this handbook.
NU761_2_G1-ENG.qxp 1/6/2006 12:23 PM Page 1.32 (Black plate)
