2005 Peugeot 307 CC Dag Owner's Manual

Audio equipment and telematics58 -
01-03-2005
59Audio equipment and telematics-
01-03-2005
Compact disc changer
Selecting the CD changerPress the "SOURCE"
button several times.
Selecting a disc
Press one of the buttons "1" to
"5" on the changer to select the
corresponding disc.
Buttons 5 and 6 permit the
selection of the previous / next disc
in the changer. Selecting a track
Press button
8 to select the next
track.
Press button 7 to return to the start
of the current track or to select the
previous track.
You can also select a track directly
via the list of tracks on the CD:
- press the "LIST" button to display the list,
- press the 5 or 6 down button or
turn the dial to select the track,
- press the navigator to start playing the track.
Accelerated play
Press and hold one of the buttons
7 or 8 for forwards or backwards
accelerated play respectively.
The accelerated play stops when the
button is released. "CHANGER" menu
Press the navigator, in the changer
permanent application, to gain
access to the following functions:
- random play with "Activate
Random",
- playing of the start of the track with "Activate Introscan",
- repeating of the CD with "Activate repeat",
- displaying of the tracks of the CD with "List of tracks".
These functions are only applied to
the tracks of the CD currently being
played.
Insert circular compact
discs only.
Some anti-pirating systems,
on original discs or CDs
copied by a personal CD
writer may cause faults, irrespective
of the quality of the original player.

Audio equipment and telematics60 -
01-03-2005
61Audio equipment and telematics-
01-03-2005
RT3 TELEPHONE
This function is a GSM dual-band
telephone (900 and 1 800 MHz)
incorporated in the RT3 GPS audio/
telephone.
It is a "hands-free" telephone. This
function is provided by a microphone
located next to the front courtesy
light, the audio equipment speakers,
a steering column control and voice
commands which allow access to
most of the functions (the audio/
telephone control panel buttons
allow access to all of the functions).
Display of the principal "mobile" type
functions, as well as consultation of
the directories, is provided by the
multi-function display.
This function is active whatever
position the ignition key is in, even
after thirty minutes, when the switch
to economy mode message appears
on the multi-function display.
When the ignition has been switched
off, the audio/telephone can be
switched on again by pressing the
"TEL" (green) button or by inserting
a CD in the player.
For safety reasons, the
driver must carry out the
operations while the vehicle
is stationary.
Using the menus
Press the "MENU"
button to display the
general menu.
Select the "Telematics"
application, then
validate "Telephone
functions" to access the principal
telephone functions, then the various
menus, in order to reach the one
required. This menu allows you to access the
following functions:
- Network: allows you to select the
network search mode and to see
the networks available.
- Duration of calls: allows you to consult the duration recorder of
calls made and zero re-set.
- Security: allows you to use or modify the PIN code and to erase
the list of calls and text messages
(SMS).
- Telephone options: allows you to conigure the calls with entering of
my number, automatic answering
after X rings, speciication of ring
options and allows you to conigure
the call diversion number.

Audio equipment and telematics60 -
01-03-2005
61Audio equipment and telematics-
01-03-2005

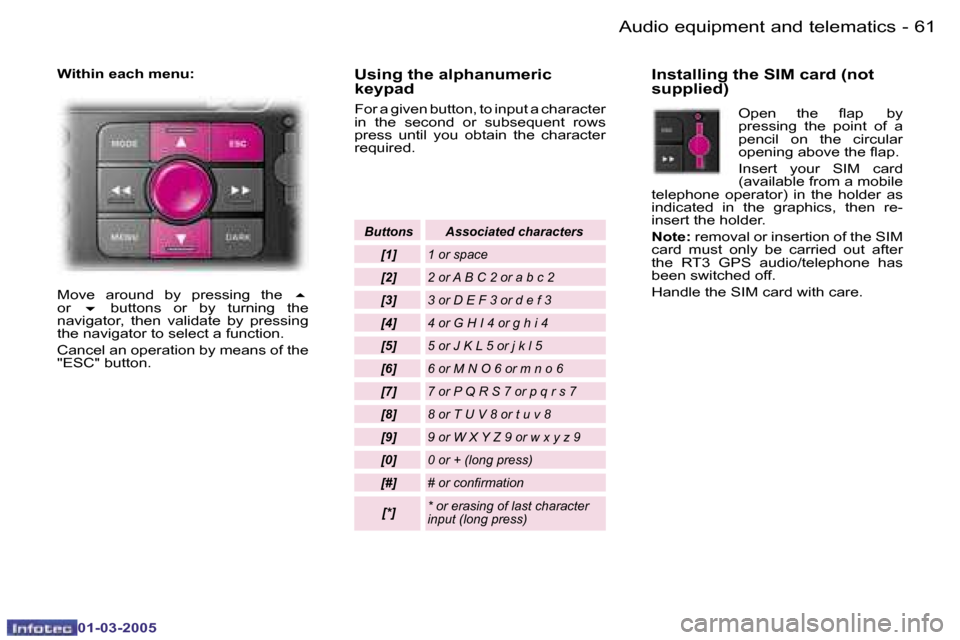

Within each menu:
Move around by pressing the 5
or 6 buttons or by turning the
navigator, then validate by pressing
the navigator to select a function.
Cancel an operation by means of the
"ESC" button.Using the alphanumeric
keypad
For a given button, to input a character
in the second or subsequent rows
press until you obtain the character
required.
Installing the SIM card (not
supplied)
Open the lap by
pressing the point of a
pencil on the circular
opening above the lap.
Insert your SIM card
(available from a mobile
telephone operator) in the holder as
indicated in the graphics, then re-
insert the holder.
Note: removal or insertion of the SIM
card must only be carried out after
the RT3 GPS audio/telephone has
been switched off.
Handle the SIM card with care.
Buttons Associated characters
[1] 1 or space
[2] 2 or A B C 2 or a b c 2
[3] 3 or D E F 3 or d e f 3
[4] 4 or G H I 4 or g h i 4
[5] 5 or J K L 5 or j k l 5
[6] 6 or M N O 6 or m n o 6
[7] 7 or P Q R S 7 or p q r s 7
[8] 8 or T U V 8 or t u v 8
[9] 9 or W X Y Z 9 or w x y z 9
[0] 0 or + (long press)
[#] # or conirmation
[*] * or erasing of last character
input (long press)

Audio equipment and telematics62 -
01-03-2005
63Audio equipment and telematics-
01-03-2005
Inputting the PIN code
The PIN code is required each time
the ignition is switched on, unless
the PIN code has been stored or
protection by PIN is not activated on
the SIM card.
Input your PIN code using the
alphanumeric keypad and validate
by pressing the navigator or button
# to access the network. Connection
to the network is validated by the
appearance of a symbol on the
multifunction screen.
If you make three errors in succession
when inputting your PIN code, your
SIM card will be blocked. To unblock
it, you will need to input the PUK
code. The PUK code will be supplied
to you by the person selling your SIM
card (input of the PUK code allows
for 10 errors in succession; after this
the SIM card becomes permanently
unusable).Cancelling of PIN code request
In the menu "Telephone functions"

select "Security", then "Process the
PIN code", then validate the "Cancel"
function.
Recommendation: do not lose your
SIM card. Losing it would mean
anyone who inds it would be able to
make unlimited calls.
Telephone function screens
Not in use
The screen indicates the presence
of voice messages or text messages
(SMS) not listened to, the cumulatve
time in use since the last zero reset
and the status of your telephone. In use
The screen indicates the time elapsed
since the start of the conversation, as
well as the number* or name of the
person to whom you are speaking
(if recorded in the directory) and the
status of your telephone.
* If this option and service are
available.

Audio equipment and telematics62 -
01-03-2005
63Audio equipment and telematics-
01-03-2005
Making a callPress the button
to display the
contextual menu of
the telephone.
Pressing the end of
the steering column
control
for more than 2 seconds calls
up a contextual menu limited to the
"Directory", "List of calls" and "Voice
mail" functions.
Entering a number
Select the function "Enter number"
then enter the number of the person
you wish to speak to using the
alphanumeric keypad.
Press the "Pick up" button to make
the call.
Making a call from a directory
Select the "Directory" function to
access all the iles containing a
telephone number or the "List of
calls" function to access the list of the
last twenty incoming (if the number
display option is active) or outgoing
calls.
There are two directories, the RT3
GPS audio/telephone directory and
the SIM card directory. To consult the
SIM directory, insert your SIM card
and enter your PIN code. Receiving a call
When a ringing sounds
to let you know that a
call is waiting, you
can choose either to
accept it by pressing
the "Pick up" button
or the end of the steering wheel
control or not to accept it by pressing
the "Hang up" button or by selecting
and validating the "NO" button on the
"Answer?" screen.
If you accept the
call, to end your
communication, press
the "Hang up" button.
If you do not
accept the call, it is
transferred to your voice mail or to a
call diversion number.
You can activate or deactivate this
transfer by pressing the "Hang up"
button for more than two seconds.
Text messages (SMS)
Accessing text messages
When the buzzer sounds (if the
SMS text messages buzzer option is
active) and a superimposed screen
announces "Do you wish to read
the new text message (SMS)?",
you can choose to read the text
message received by selecting and
validating "YES" or postpone reading
it by selecting and validating "NO",
by pressing the "ESC" button or
by waiting until the announcement
disappears.
Note: the old text messages
stored and the new text messages,
the reading of which you wish to
postpone, can be consulted. Press
the "MENU" button then validate
the "Telematic" icon, select "Text
messages (SMS)" and validate the
function "Reading of text messages
received" by pressing the navigator.
Then scroll through the list by turning
the knob and press the knob to select
the text message to be read (if the
voice synthesiser is active).

Audio equipment and telematics64 -
01-03-2005
65Audio equipment and telematics-
01-03-2005
Sending a text message
Before typing your irst text message,
check that your text messages (SMS)
centre number is stored correctly in
the sub-menu "Server centre N°". If
it is not, any text messages typed
before this number is entered will not
be sent.
In the menu "Text messages (SMS)"
validate the function "Typing of a text
message". Type your text message
using the alphanumeric keypad and
validate it using the "OK" button to
store it or validate the "Send" button
to send it. Validation of the "Send"
button enables you to enter the
number of your recipient or select it
from the directory or from the list of
calls and send the message."Duration of calls" menu
Select the "Duration of calls" function
from the "Telephone functions"
menu
to consult the duration counters for
the calls made. The part counter
totals the duration of the calls since
the last zero reset carried out using
the "Zero reset" button.
"Telephone options" menu
Select the "Telephone options"
function from the "Telephone
functions" menu to access the
functions:
• "Conigure the calls" which permits activation and deactivation of the
"show my number" and "automatic
answering after X rings" functions,
• "Ringing options" which permits
adjustment of the ringing volume
for voice calls, activation of the text
messages (SMS) receipt buzzer
and selection of a ring tone from
the ive offered,
• "Diversion number/voice mail" which permits recording of the call
diversion number chosen by the
customer, otherwise the call will be
transferred to the voice mail.
Services*
Press the button to
display the "Services"
menu and select
one of the following
services:
• "Customer Contact Centre" contacts the PEUGEOT Customer
Contact Centre directly and permits
access to the services offered (this
call is suspended if an emergency
or assistance call has been made).
• "PEUGEOT Assistance" enables you to contact the call centre which
controls the PEUGEOT assistance
service directly, make an assist-
ance request and receive rapid
assistance (you have 6 seconds
within which to cancel the call
when it is made) . During the as-
sistance call phase it is not pos-
sible to make any other calls with
the exception of emergency calls.
Signing the speciic PEUGEOT
contract means that you will be
located; in this case, a star will ap-
pear in the text on the multifunction
screen.
• "Operator services" gives access to the list of services speciic to your
operator (e.g.: customer service,
consumption monitoring, news,
stock market, weather, travel,
games, etc) if access is available.
* If option and service available.

Audio equipment and telematics64 -
01-03-2005
65Audio equipment and telematics-
01-03-2005
Emergency call*
In an emergency, press
and hold the "SOS"
button until a signal
is heard and a call
validation / deletion
screen is displayed
(delay of 6 seconds) or enter 112
directly.
Make an emergency call when you
are involved in a situation which leads
you to fear serious consequences
(injuries, ...) for those exposed to
it (if you witness or are involved in
an accident resulting in injuries, an
attack, ...).
Before making a call of this kind,
the audio/telephone must detect a
cellular network and you must have
inserted your SIM card .
If you have not signed the speciic
PEUGEOT contract, the parameters
of the "SOS" button are set so
that a call is made to 112 - unique
number made available by the
worldwide GSM network, reserved
for emergency calls.
If you have signed the speciic
PEUGEOT contract, your call will be
located and you will be put in contact
with a PEUGEOT emergency
representative.
For further details, refer to the
general conditions of your contract.
"PEUGEOT Assistance" /
Emergency call
A green diode lashes on the RT3
GPS audio/telephone panel, when
the emergency call procedure or
a call to "PEUGEOT Assistance"
begins, then lights continuously
when the call is taken by the services
concerned.
It is not possible to make or receive
calls or send or receive SMS text
messages during the connection;
these will be diverted to your voice
mail.
Directory
General
The "Directory" application gives
access to 400 iles divided into
4 independent sub-directories
("User1", "User2", "User3" and
"User4"). It enables you to manage
these iles, make calls using the SIM
card and activate guidance.
* If option and service available. Main menu
From the general menu,
select the "Directory"
application to access its
main menu and select
one of the following
functions:
• "Call", to call a number stored in a ile,
• "Activate guidance to", to initiate guidance to a location stored in a
ile,
• "Management of directory iles", to add, delete, modify and consult
directory iles or exchange them
with the SIM card,
• "Directory coniguration", to select the working directory and deine
the default directory when the
system is switched on.

Audio equipment and telematics66 -
01-03-2005
Creation / Modiication of a ile
To create a ile, from the "Directory"
menu, select the "Management of
directory iles" function, then "Add".
In the ile, select the section to be
illed in, conirm and then enter the
information.
To modify an existing ile, select it by
means of the "Consult or modify the
ile" function of the "Management of
directory iles" menu, then make the
modiications.
When entering the address, the
navigation CD ROM must be
present to obtain guidance to this
destination.Recording a description
associated with a directory ile
When a description is associated
with a directory ile, you can record
the description vocally to use it later
for direct access by means of voice
commands (e.g.: "Call" "[Name of
voice description]" or "Guide to"
"[Name of voice description]").
Select "Consult or modify the ile"
from the "Management of directory
iles" menu to access the description
entering and recording screen.
Press the record button and follow
the instructions.RDS TMC (Trafic Message
Channel) Trafic Information
You can access the information
relating to trafic conditions from the
"Audio functions" or "Telematics"
menu, then from the "TMC Trafic
Information" function (see section
"Satellite navigation system").
The RT3 GPS audio/telephone
permits access to the TMC RDS
trafic information broadcast free on
the FM waveband.
