2005 Peugeot 307 CC Dag Owner's Manual

Technical data158 -
01-03-2005
159Technical data-
01-03-2005

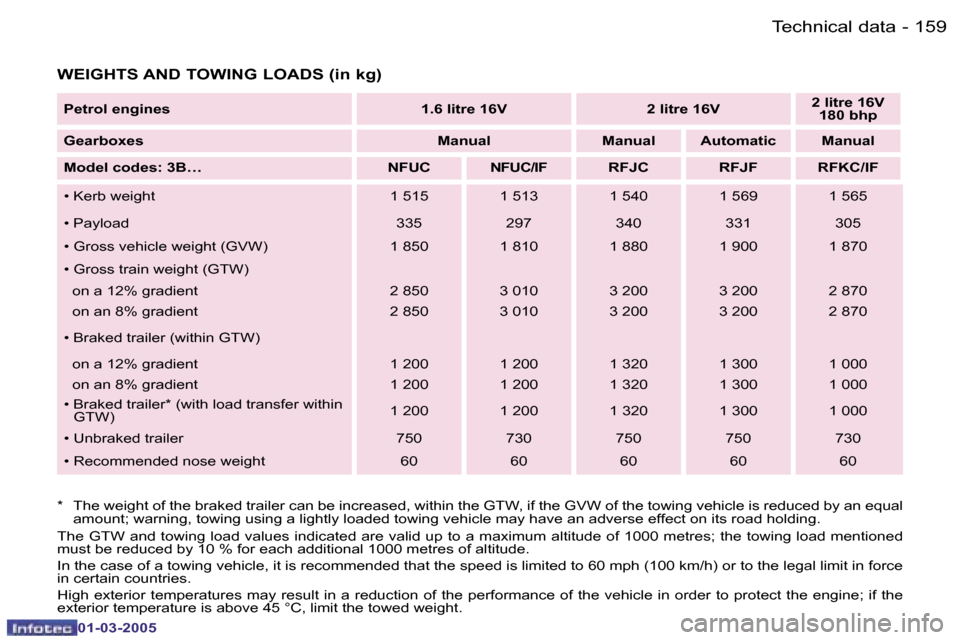

WEIGHTS AND TOWING LOADS (in kg)
* The weight of the braked trailer can be increased, within the GTW, if the GVW of the towing vehicle is reduced by an equal
amount; warning, towing using a lightly loaded towing ve hicle may have an adverse effect on its road holding.
The GTW and towing load values indicated are valid up to a maximum altitude of 1000 metres; the towing load mention ed
must be reduced by 10 % for each additional 1000 metres of al titude.
In the case of a towing vehicle, it is recommended that the speed is limited to 60 mph (100 km/h) or to the legal limit in force
in certain countries.
High exterior temperatures may result in a reduction of the perfo rmance of the vehicle in order to protect the engine; if the
exterior temperature is above 45 °C, limit the towed weight.
Petrol engines 1.6 litre 16V 2 litre 16V 2 litre 16V
180 bhp
Gearboxes Manual Manual Automatic Manual
Model codes: 3B… NFUC NFUC/IF RFJC RFJF RFKC/IF
• Kerb weight 1 515 1 513 1 540 1 569 1 565
• Payload 335 297 340 331 305
• Gross vehicle weight (GVW) 1 850 1 810 1 880 1 900 1 870
• Gross train weight (GTW)
on a 12% gradient 2 850 3 010 3 200 3 200 2 870
on an 8% gradient 2 850 3 010 3 200 3 200 2 870
• Braked trailer (within GTW)
on a 12% gradient 1 200 1 200 1 320 1 300 1 000
on an 8% gradient 1 200 1 200 1 320 1 300 1 000
• Braked trailer* (with load transfer within GTW) 1 200 1 200 1 320 1 300 1 000
• Unbraked trailer 750 730 750 750 730
• Recommended nose weight 60 60 60 60 60

Technical data160 -
01-03-2005
161Technical data-
01-03-2005

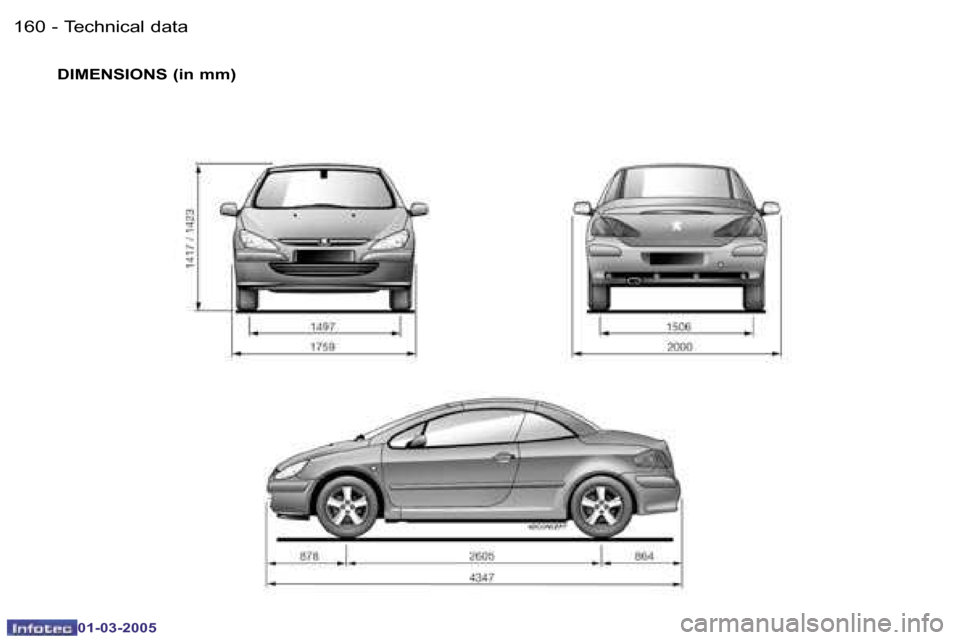

DIMENSIONS (in mm)

Technical data160 -
01-03-2005
161Technical data-
01-03-2005

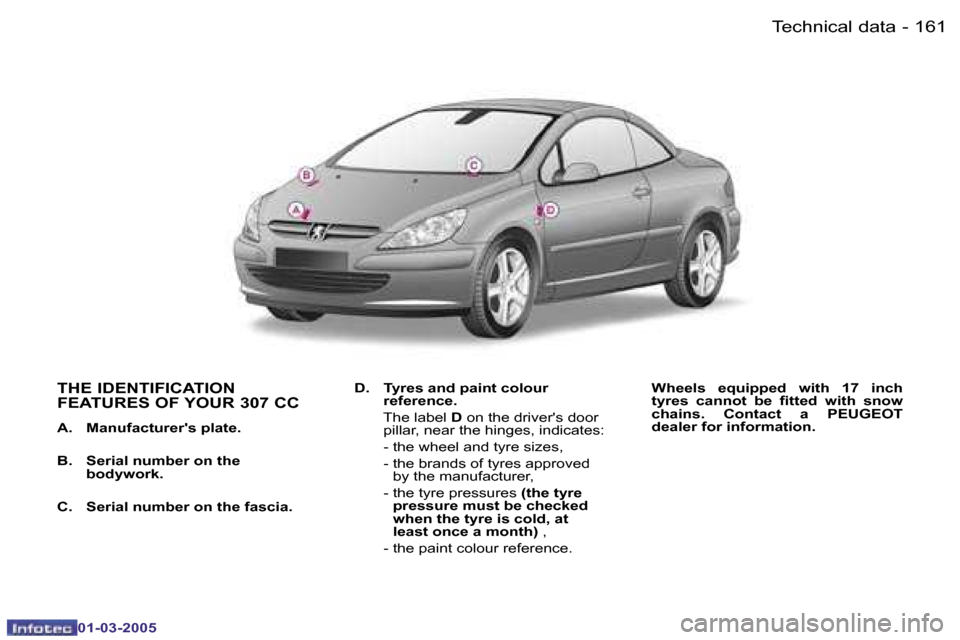

THE IDENTIFICATION
FEATURES OF YOUR 307 CC
A. Manufacturer's plate.
B. Serial number on the bodywork.
C. Serial number on the fascia. D. Tyres and paint colour
reference.
The label D on the driver's door
pillar, near the hinges, indicates:
- the wheel and tyre sizes,
- the brands of tyres approved by the manufacturer,
- the tyre pressures (the tyre
pressure must be checked
when the tyre is cold, at
least once a month) ,
- the paint colour reference. Wheels equipped with 17 inch
tyres cannot be itted with snow
chains. Contact a PEUGEOT
dealer for information.
