2005 Peugeot 307 CC Dag Owner's Manual

Audio equipment and telematics44 -
01-03-2005
45Audio equipment and telematics-
01-03-2005
CD changer
Selecting CD changer modePress the "SOURCE"
button several times.
To access the CD
changer, you must
insert at least one CD
in the changer.
Selecting a disc
Press one of the buttons "1" to "5"
on the CD changer to select the
corresponding disc.
Buttons 5 and 6 permit the
selection of the previous / next disc
in the changer.
Each time a disc is selected, a
window appears as a superimposed
display to indicate the presence of
discs in the changer cartridge:
- "Disc" if a CD is present,
- "Cannot be played" if the CD is faulty or upside down,
- Blank line if there is no CD present.
The CD Text  is not
available when playing a
CD via the changer. Selecting a track
Press button
8 to select the next
track.
Press button 7 to return to the start
of the current track or to select the
previous track.
Accelerated play
Keep button
8 or 7 pressed for
forwards or backwards accelerated
play.
Accelerated play stops as soon as
the button is released.
Insert circular compact
discs only. Some anti-
pirating systems, on
original discs or CDs copied
by a personal CD writer
may cause malfunctions,
irrespective of the quality of
the original player.
"CHANGER" menu
Press the "MENU"
button to access the
general menu and
select the "Audio
functions" menu then
"Audio CD preferen-
ces" or press the "OK"
button in CD changer
mode to select the fol-
lowing functions:
- Activate/Deactivate playing of the track intros (SCAN),
- Activate/Deactivate CD changer repeat (RPT),
- Activate/Deactivate random playing of the tracks (RDM).
These functions are only applied to
the tracks of the CD currently being
played.
A function selected in the
"CHANGER" menu remains active
when the CD mode is selected.

Audio equipment and telematics46 -
01-03-2005
47Audio equipment and telematics-
01-03-2005
CD CHANGER
This is located in the centre of the
fascia under the radio. It holds up to
5 discs.
To load the changer, insert the discs
with the printed side upwards.To select a disc, press the
corresponding button
"1" to "5"
briely. Play begins automatically.
To remove a disc, press the
corresponding button "1" to "5" for
more than two seconds.
Insert circular compact
discs only.
Some anti-pirating systems,
on original discs or CDs
copied using a personal
recorder, may cause malfunctions,
irrespective of the quality of the
original player.
In the cabriolet position, remember to
remove the compact discs from your
changer (risk of theft).

Audio equipment and telematics46 -
01-03-2005
47Audio equipment and telematics-
01-03-2005

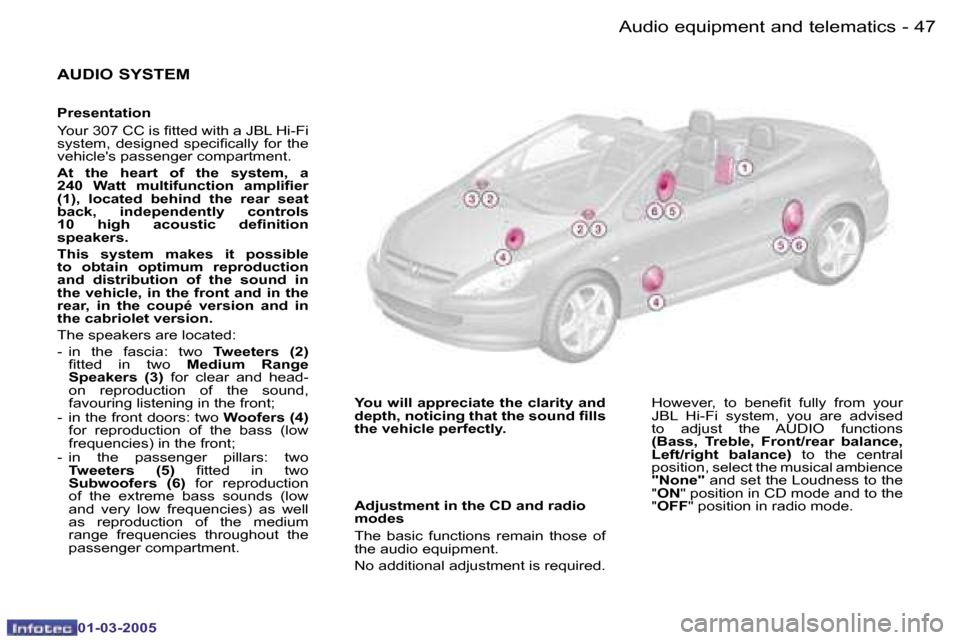

AUDIO SYSTEM
Presentation
Your 307 CC is itted with a JBL Hi-Fi
system, designed speciically for the
vehicle's passenger compartment.
At the heart of the system, a
240 Watt multifunction ampliier
(1), located behind the rear seat
back, independently controls
10 high acoustic deinition
speakers.
This system makes it possible
to obtain optimum reproduction
and distribution of the sound in
the vehicle, in the front and in the
rear, in the coupé version and in
the cabriolet version.
The speakers are located:
- in the fascia: two Tweeters (2)
itted in two Medium Range
Speakers (3) for clear and head-
on reproduction of the sound,
favouring listening in the front;
- in the front doors: two Woofers (4)
for reproduction of the bass (low
frequencies) in the front;
- in the passenger pillars: two Tweeters (5) itted in two
Subwoofers (6) for reproduction
of the extreme bass sounds (low
and very low frequencies) as well
as reproduction of the medium
range frequencies throughout the
passenger compartment. You will appreciate the clarity and
depth, noticing that the sound ills
the vehicle perfectly.
However, to beneit fully from your
JBL Hi-Fi system, you are advised
to adjust the AUDIO functions
(Bass, Treble, Front/rear balance,
Left/right balance)
to the central
position, select the musical ambience
"None" and set the Loudness to the
" ON " position in CD mode and to the
" OFF " position in radio mode.
Adjustment in the CD and radio
modes
The basic functions remain those of
the audio equipment.
No additional adjustment is required.

Audio equipment and telematics48 -
01-03-2005
49Audio equipment and telematics-
01-03-2005

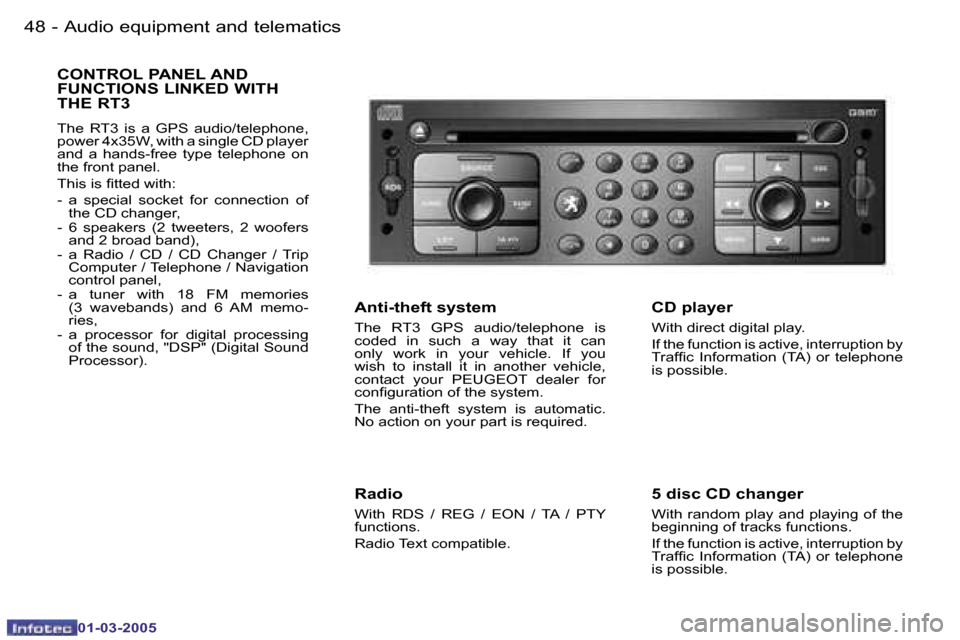

CONTROL PANEL AND
FUNCTIONS LINKED WITH
THE RT3
The RT3 is a GPS audio/telephone,
power 4x35W, with a single CD player
and a hands-free type telephone on
the front panel.
This is itted with:
- a special socket for connection of the CD changer,
- 6 speakers (2 tweeters, 2 woofers and 2 broad band),
- a Radio / CD / CD Changer / Trip Computer / Telephone / Navigation
control panel,
- a tuner with 18 FM memories (3 wavebands) and 6 AM memo-
ries,
- a processor for digital processing of the sound, "DSP" (Digital Sound
Processor).
Anti-theft system
The RT3 GPS audio/telephone is
coded in such a way that it can
only work in your vehicle. If you
wish to install it in another vehicle,
contact your PEUGEOT dealer for
coniguration of the system.
The anti-theft system is automatic.
No action on your part is required.
CD player
With direct digital play.
If the function is active, interruption by
Trafic Information (TA) or telephone
is possible.
Radio
With RDS / REG / EON / TA / PTY
functions.
Radio Text compatible.
5 disc CD changer
With random play and playing of the
beginning of tracks functions.
If the function is active, interruption by
Trafic Information (TA) or telephone
is possible.

Audio equipment and telematics48 -
01-03-2005
49Audio equipment and telematics-
01-03-2005
Control pad
Emergency call.AUDIO: access to the musical
ambience, bass, treble, loudness,
rear/front sound distribution, left/right
sound distribution and automatic
volume adjustment settings.
LIST: displaying and updating of the
list of stations received, of the tracks
on the CD.
TA/PTY: TA function on / off (trafic
information priority) - access to the
PTY function (search by type of
programme, if the coding is activated
by the broadcasting stations).
BAND AST: selection of the
frequency wavebands FM1, FM2,
FMast (Autostore function) and AM.
Button (A)
ON / OFF and volume adjustment.
Button (B)
CD eject. Keypad (2)
TEL (green): pick up an incoming
call.
LION: access to the PEUGEOT
services menu.
TEL (red): hang up.
Keypad (3) (alphanumeric block)
Storing of the radio station.
Selection of the stored station, of the
CD in relation to the position in the
CD changer.
Telephone keypad - description
inputting keypad.
Keypad (4)
MODE: changing of the display of
the permanent application (audio
equipment, navigation, ...).
MENU: displaying of the general
menu.
ESC (Escape): cancellation of the
operation in progress.
DARK: 1
st press: black screen under
the banner - 2nd press: completely
black screen - 3rd press: return to the
display.
Keypad (5)
The navigator.
Flap for SIM card (not
supplied).
Keypad (1)
SOURCE: change of source between
radio, CD and CD changer.

Audio equipment and telematics50 -
01-03-2005
51Audio equipment and telematics-
01-03-2005
Audio equipment steering
wheel control
Volume adjustment
1. Increase by pressing the back
2. Decrease by pressing the back
1+2. Cutting off / Restoring of the
sound
Search / Selection by pressing
3. Higher radio frequency - CD /
CD changer: next
4. Lower radio frequency - CD /
CD changer: previous Press for conirmation
5.
Change of sound source,
pick up / hang up, selection
conirmation
Press for more than 2 seconds: access to the telephone
displays
Selection of stations / CD changer
CD by rotation
6. Higher stored station - Next CD -
Next item - Zoom plus
7. Lower stored station - Previous
CD - Previous item - Zoom
minus
Navigator
Located on the RT3 GPS audio/
telephone control keypad, this
enables you to select and conirm
the functions, commands and
parameters displayed.
It incorporates:
- the up 5, down 6, left 7, right 8
arrows which enable you to move
the cursor on the screen,
- the central button which enables you to move the cursor on the
screen and conirm.
All selections can be cancelled
prior to conirmation by pressing the
"ESC" button or automatically after a
few seconds without any action.
Details of each of the keypad controls
are indicated on the following pages. This allows you direct and easy
access to most of the audio and
telematic functions which are also
available on the audio/telephone
control panel.

Audio equipment and telematics50 -
01-03-2005
51Audio equipment and telematics-
01-03-2005
Audio equipment steering
wheel control
Volume adjustment
1. Increase by pressing the back
2. Decrease by pressing the back
1+2. Cutting off / Restoring of the
sound
Search / Selection by pressing
3. Higher radio frequency - CD /
CD changer: next
4. Lower radio frequency - CD /
CD changer: previous Press for conirmation
5.
Change of sound source,
pick up / hang up, selection
conirmation
Press for more than 2 seconds: access to the telephone
displays
Selection of stations / CD changer
CD by rotation
6. Higher stored station - Next CD -
Next item - Zoom plus
7. Lower stored station - Previous
CD - Previous item - Zoom
minus
Navigator
Located on the RT3 GPS audio/
telephone control keypad, this
enables you to select and conirm
the functions, commands and
parameters displayed.
It incorporates:
- the up 5, down 6, left 7, right 8
arrows which enable you to move
the cursor on the screen,
- the central button which enables you to move the cursor on the
screen and conirm.
All selections can be cancelled
prior to conirmation by pressing the
"ESC" button or automatically after a
few seconds without any action.
Details of each of the keypad controls
are indicated on the following pages. This allows you direct and easy
access to most of the audio and
telematic functions which are also
available on the audio/telephone
control panel.

Audio equipment and telematics50 -
01-03-2005
51Audio equipment and telematics-
01-03-2005

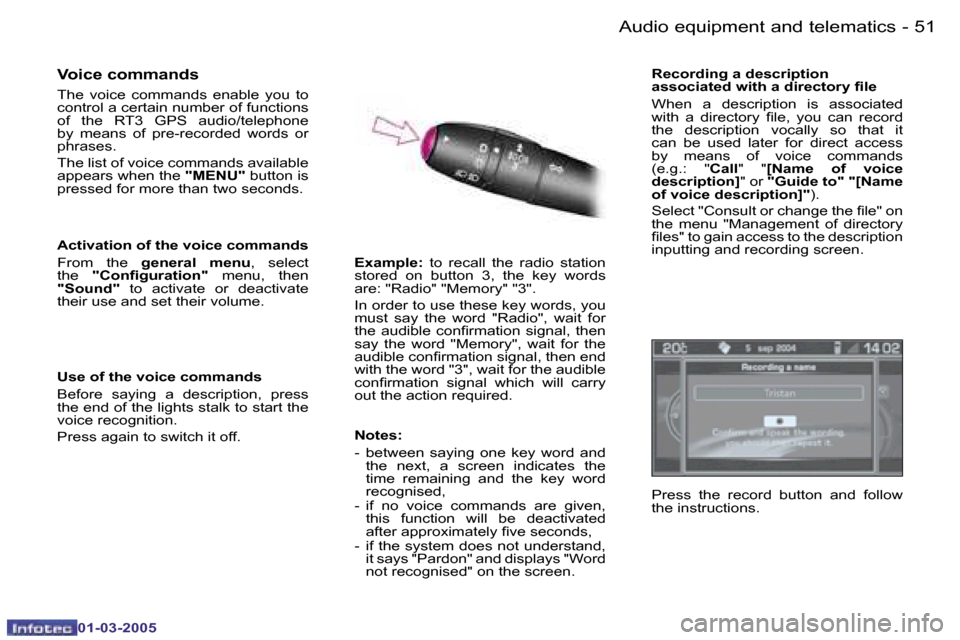

Voice commands
The voice commands enable you to
control a certain number of functions
of the RT3 GPS audio/telephone
by means of pre-recorded words or
phrases.
The list of voice commands available
appears when the "MENU" button is
pressed for more than two seconds.
Activation of the voice commands
From the general menu , select
the "Coniguration" menu, then
"Sound" to activate or deactivate
their use and set their volume. Example:
to recall the radio station
stored on button 3, the key words
are: "Radio" "Memory" "3".
In order to use these key words, you
must say the word "Radio", wait for
the audible conirmation signal, then
say the word "Memory", wait for the
audible conirmation signal, then end
with the word "3", wait for the audible
conirmation signal which will carry
out the action required.
Notes:
- between saying one key word and the next, a screen indicates the
time remaining and the key word
recognised,
- if no voice commands are given, this function will be deactivated
after approximately ive seconds,
- if the system does not understand, it says "Pardon" and displays "Word
not recognised" on the screen. Recording a description
associated with a directory ile
When a description is associated
with a directory ile, you can record
the description vocally so that it
can be used later for direct access
by means of voice commands
(e.g.: "
Call" " [Name of voice
description] " or "Guide to" "[Name
of voice description]" ).
Select "Consult or change the ile" on
the menu "Management of directory
iles" to gain access to the description
inputting and recording screen.
Press the record button and follow
the instructions.
Use of the voice commands
Before saying a description, press
the end of the lights stalk to start the
voice recognition.
Press again to switch it off.
