2005 NISSAN X-TRAIL Combination meter

AT-204
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

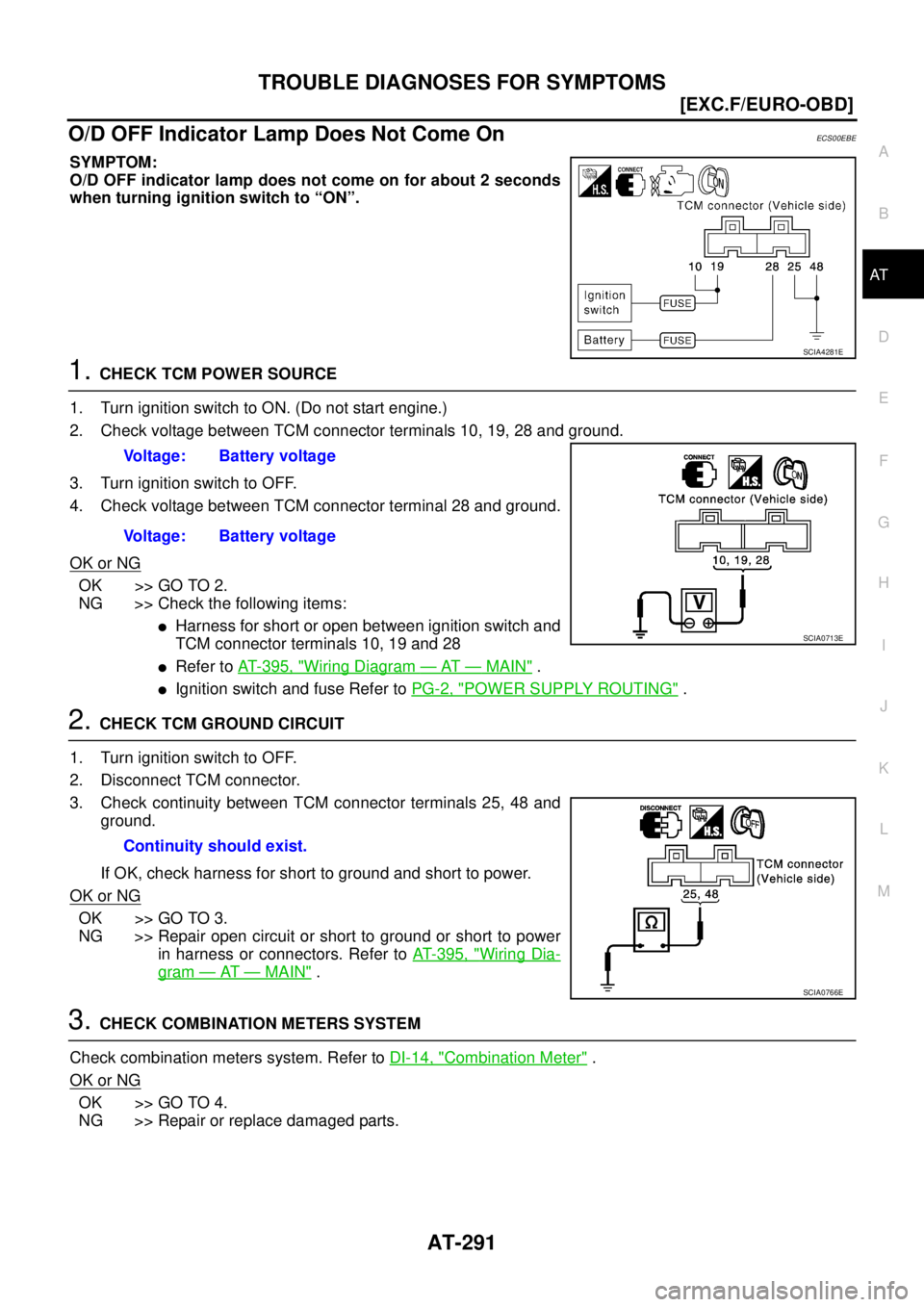

O/D OFF Indicator Lamp Does Not Come OnECS004SU
SYMPTOM:
O/D OFF indicator lamp does not come on for about 2 seconds
when turning ignition switch to “ON”.
1. CHECK TCM POWER SOURCE
1. Turn ignition switch to ON. (Do not start engine.)
2. Check voltage between TCM connector terminals 10, 19, 28 and ground.
3. Turn ignition switch to OFF.
4. Check voltage between TCM connector terminal 28 and ground.
OK or NG
OK >> GO TO 2.
NG >> Check the following items:

Harness for short or open between ignition switch and
TCM connector terminals 10, 19 and 28

Refer to AT- 3 9 5 , "Wiring Diagram — AT — MAIN" .

Ignition switch and fuse Refer to PG-2, "POWER SUPPLY ROUTING" .
2. CHECK TCM GROUND CIRCUIT
1. Turn ignition switch to OFF.
2. Disconnect TCM connector.
3. Check continuity between TCM connector terminals 25, 48 and
ground.
If OK, check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors. Refer to AT- 3 9 5 , "
Wiring Dia-
gram — AT — MAIN" .
3. CHECK COMBINATION METERS SYSTEM
Check combination meters system. Refer to DI-14, "
Combination Meter" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
SCIA4281E
Voltage: Battery voltage
Voltage: Battery voltage
SCIA0713E
Continuity should exist.
SCIA0766E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-239
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

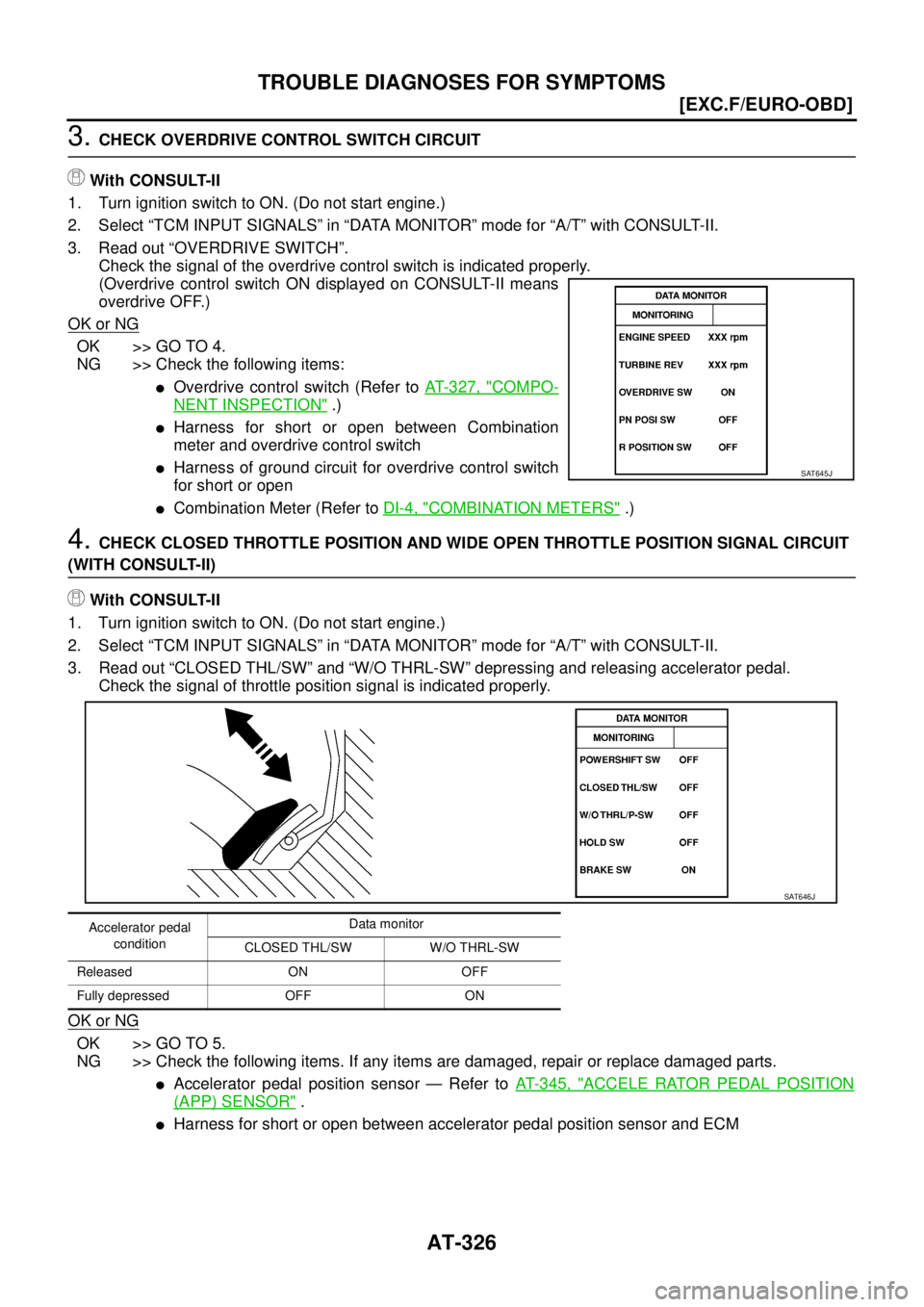

3. CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “OVERDRIVE SWITCH”.
Check the signal of the overdrive control switch is indicated properly.
(Overdrive control switch ON displayed on CONSULT-II means
overdrive OFF.)
OK or NG
OK >> GO TO 4.
NG >> Check the following items:

Overdrive control switch (Refer to AT- 2 4 0 , "COMPO-
NENT INSPECTION" .)

Harness for short or open between Combination
meter and overdrive control switch

Harness of ground circuit for overdrive control switch
for short or open

Combination Meter (Refer to DI-4, "COMBINATION METERS" .)
4. CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “CLOSED THL/SW” and “W/O THRL-SW” depressing and releasing accelerator pedal.
Check the signal of throttle position signal is indicated properly.
OK or NG
OK >> GO TO 5.
NG >> Check the following items. If any items are damaged, repair or replace damaged parts.

Accelerator pedal position sensor — Refer to AT- 1 7 3 , "DTC P1705 ACCELERATOR PEDAL
POSITION (APP) SENSOR" .

Harness for short or open between accelerator pedal position sensor and ECM
SAT645J
Accelerator pedal
conditionData monitor
CLOSED THL/SW W/O THRL-SW
Released ON OFF
Fully depressed OFF ON
SAT646J

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-291
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

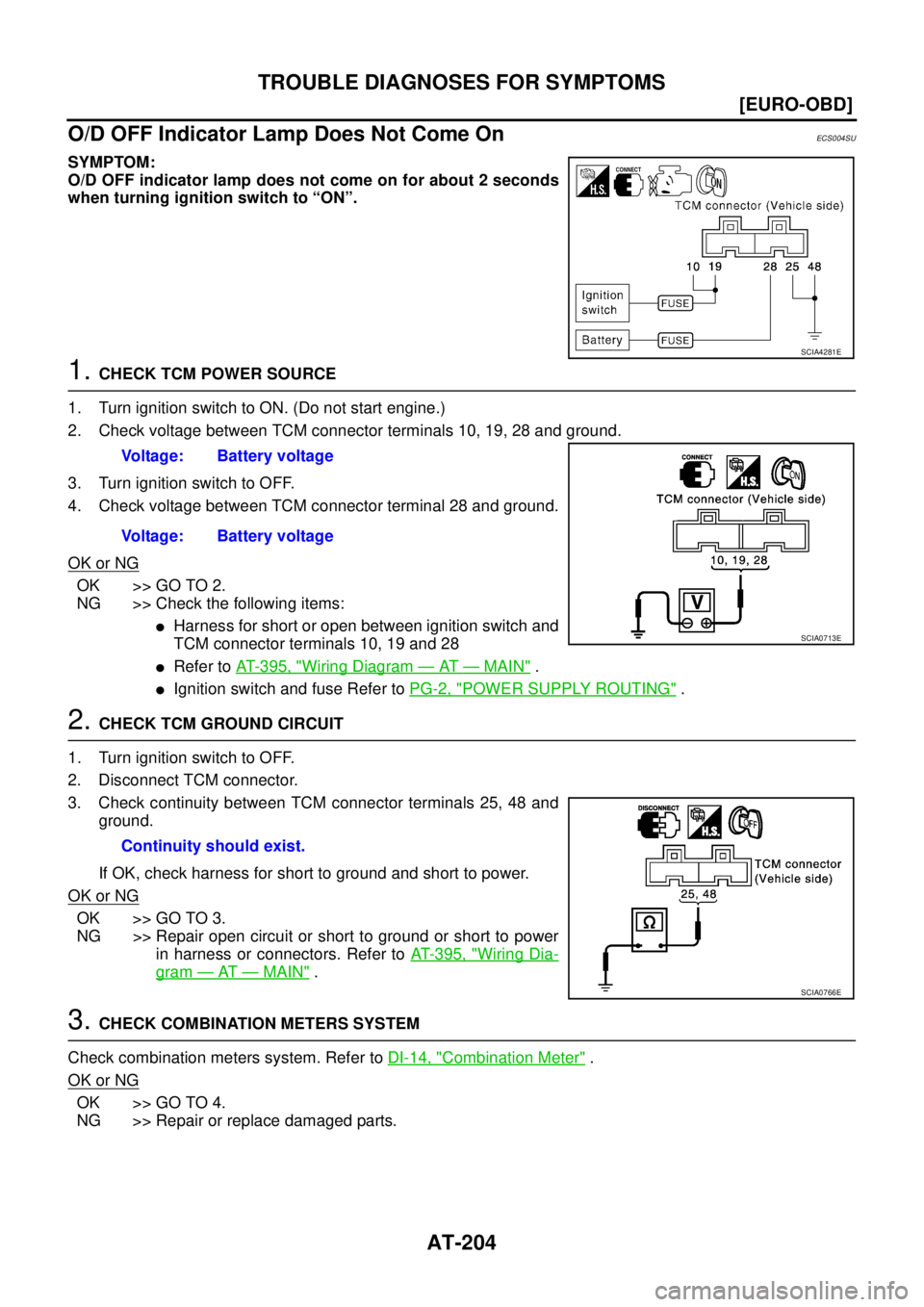

O/D OFF Indicator Lamp Does Not Come OnECS00EBE
SYMPTOM:
O/D OFF indicator lamp does not come on for about 2 seconds
when turning ignition switch to “ON”.
1. CHECK TCM POWER SOURCE
1. Turn ignition switch to ON. (Do not start engine.)
2. Check voltage between TCM connector terminals 10, 19, 28 and ground.
3. Turn ignition switch to OFF.
4. Check voltage between TCM connector terminal 28 and ground.
OK or NG
OK >> GO TO 2.
NG >> Check the following items:

Harness for short or open between ignition switch and
TCM connector terminals 10, 19 and 28

Refer to AT- 3 9 5 , "Wiring Diagram — AT — MAIN" .

Ignition switch and fuse Refer to PG-2, "POWER SUPPLY ROUTING" .
2. CHECK TCM GROUND CIRCUIT
1. Turn ignition switch to OFF.
2. Disconnect TCM connector.
3. Check continuity between TCM connector terminals 25, 48 and
ground.
If OK, check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors. Refer to AT- 3 9 5 , "
Wiring Dia-
gram — AT — MAIN" .
3. CHECK COMBINATION METERS SYSTEM
Check combination meters system. Refer to DI-14, "
Combination Meter" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
SCIA4281E
Voltage: Battery voltage
Voltage: Battery voltage
SCIA0713E
Continuity should exist.
SCIA0766E

AT-326
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

3. CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “OVERDRIVE SWITCH”.
Check the signal of the overdrive control switch is indicated properly.
(Overdrive control switch ON displayed on CONSULT-II means
overdrive OFF.)
OK or NG
OK >> GO TO 4.
NG >> Check the following items:

Overdrive control switch (Refer to AT- 3 2 7 , "COMPO-
NENT INSPECTION" .)

Harness for short or open between Combination
meter and overdrive control switch

Harness of ground circuit for overdrive control switch
for short or open

Combination Meter (Refer to DI-4, "COMBINATION METERS" .)
4. CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “CLOSED THL/SW” and “W/O THRL-SW” depressing and releasing accelerator pedal.
Check the signal of throttle position signal is indicated properly.
OK or NG
OK >> GO TO 5.
NG >> Check the following items. If any items are damaged, repair or replace damaged parts.

Accelerator pedal position sensor — Refer to AT- 3 4 5 , "ACCELE RATOR PEDAL POSITION
(APP) SENSOR" .

Harness for short or open between accelerator pedal position sensor and ECM
SAT645J
Accelerator pedal
conditionData monitor
CLOSED THL/SW W/O THRL-SW
Released ON OFF
Fully depressed OFF ON
SAT646J

DTC VEHICLE SPEED SENSOR MTR
AT-339
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

DTC VEHICLE SPEED SENSOR MTRPFP:24814
DescriptionECS004TM
The vehicle speed sensor·MTR is built into the speedometer assem-
bly. The sensor functions as an auxiliary device to the revolution sen-
sor when it is malfunctioning. The TCM will then use a signal sent
from the vehicle speed sensor·MTR.
CONSULT-II Reference ValueECS00CSH
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CSA
Possible CauseECS00CSB
Check the following items.

Harness or connector
(The sensor circuit is open or shorted.)

Vehicle speed sensor
DTC Confirmation ProcedureECS00CSC
After the repair, perform the following procedure to confirm the malfunction is eliminated.
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
SCIA0716E
Monitor item Condition Display value
VHCL/S SE·MTR (km/h) During driving Approximately matches the speedometer
reading.
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: VHCL SPEED SEN·MTR
TCM does not receive the proper voltage
signal from the sensor.

Harness or connectors
(The sensor circuit is open or shorted.)

Combination meter

4WD/ABS control unit : 2nd judgement flicker
SAT014K

DTC VEHICLE SPEED SENSOR MTR
AT-343
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL

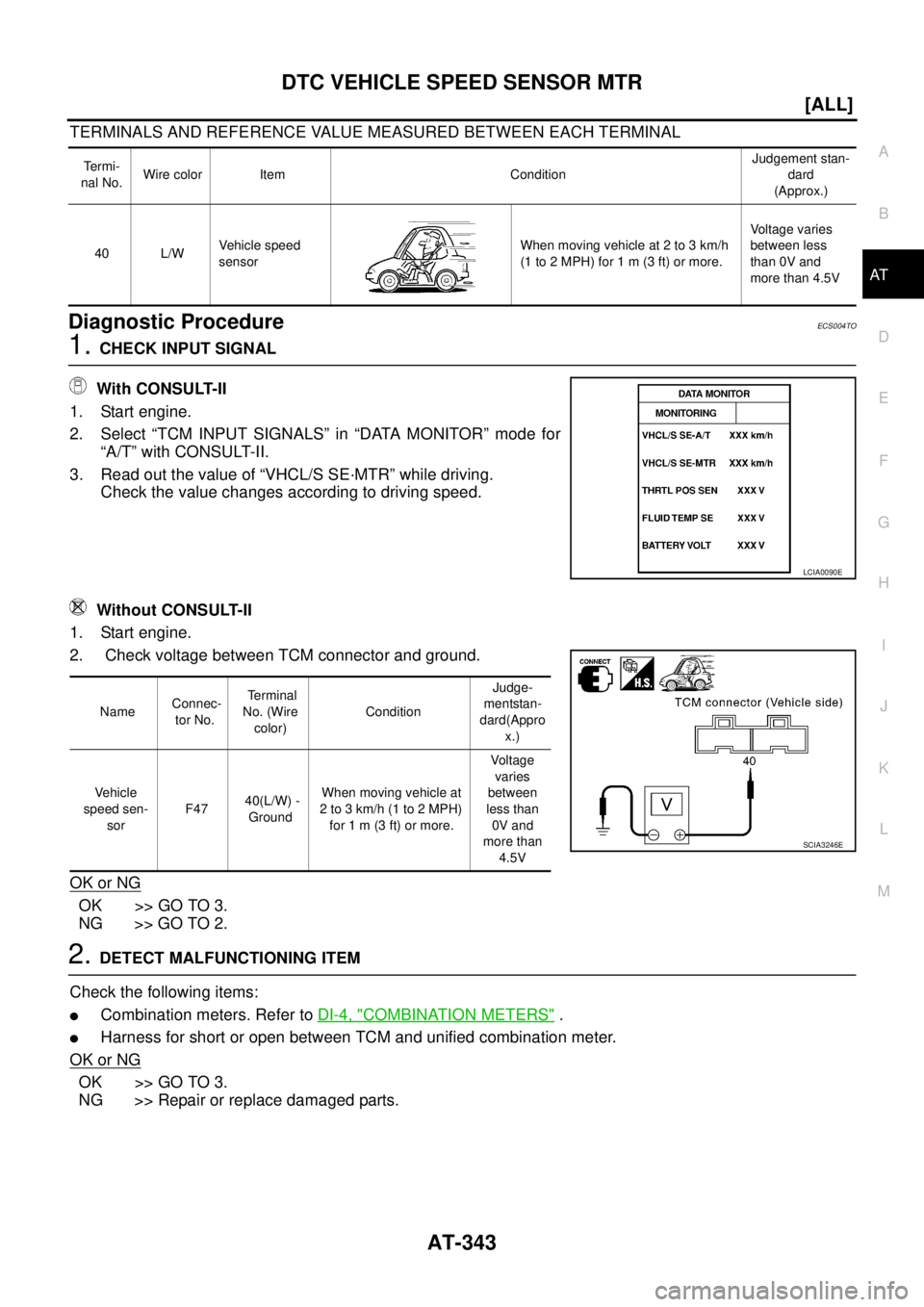

Diagnostic ProcedureECS004TO
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out the value of “VHCL/S SE·MTR” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING ITEM
Check the following items:

Combination meters. Refer to DI-4, "COMBINATION METERS" .

Harness for short or open between TCM and unified combination meter.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
40 L/WVehicle speed
sensorWhen moving vehicle at 2 to 3 km/h
(1 to 2 MPH) for 1 m (3 ft) or more.Voltage varies
between less
than 0V and
more than 4.5V
LCIA0090E
Name Connec-
tor No. Terminal
No. (Wire
color) ConditionJudge-
mentstan-
dard(Appro
x.)
Vehicle
speed sen-
sor F47 40(L/W) -
GroundWhen moving vehicle at
2 to 3 km/h (1 to 2 MPH)
for 1 m (3 ft) or more.Voltage
varies
between
less than
0V and
more than
4.5V
SCIA3246E

ALL MODE 4X4 SYSTEM
TF-15
C
E
F
G
H
I
J
K
L
MA
B
TF

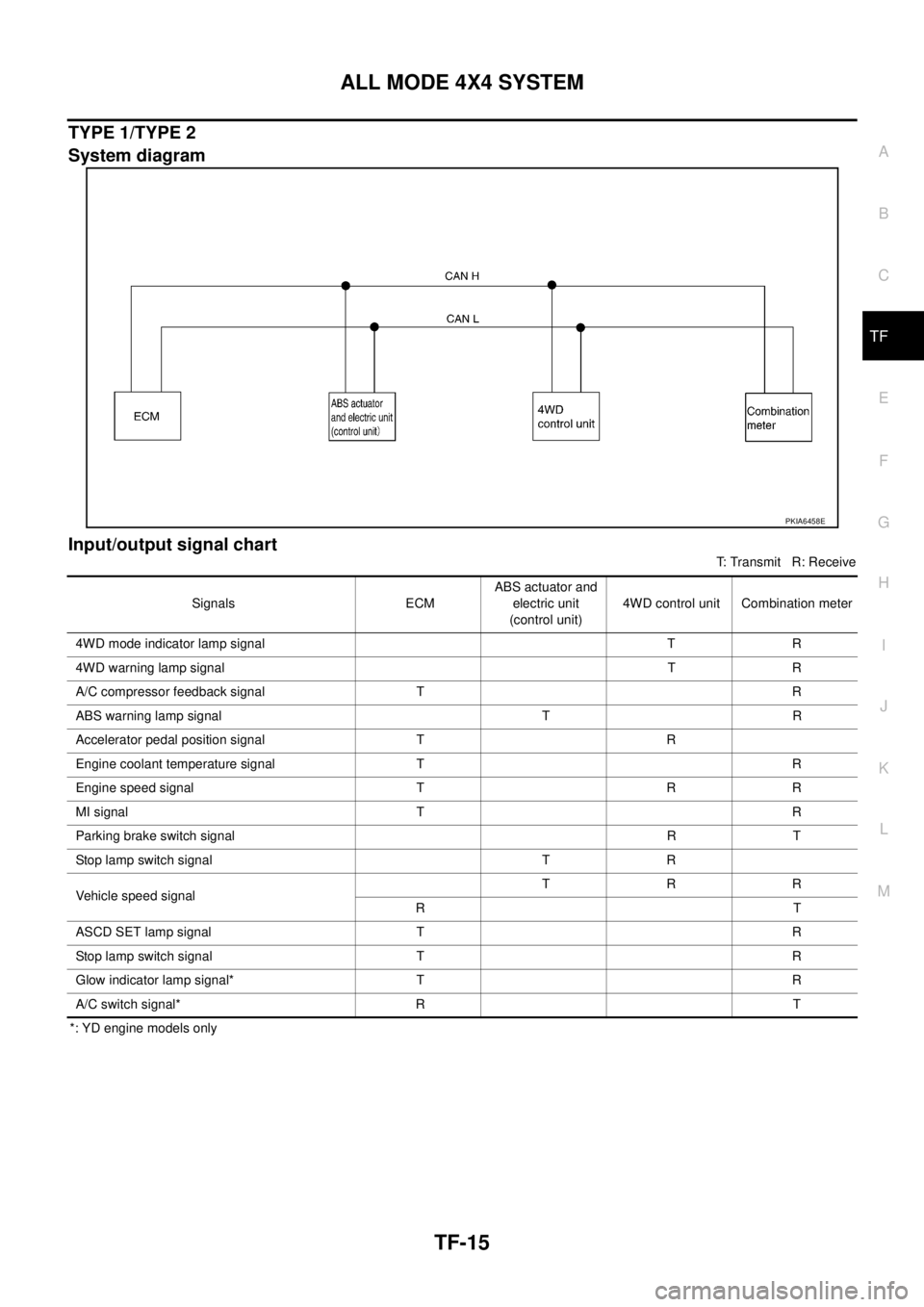

TYPE 1/TYPE 2
System diagram
Input/output signal chart
T: Transmit R: Receive
*: YD engine models only
PKIA6458E
Signals ECMABS actuator and
electric unit
(control unit)4WD control unit Combination meter
4WD mode indicator lamp signal T R
4WD warning lamp signalTR
A/C compressor feedback signal T R
ABS warning lamp signal T R
Accelerator pedal position signal T R
Engine coolant temperature signal T R
Engine speed signal T R R
MI signal T R
Parking brake switch signalRT
Stop lamp switch signal T R
Vehicle speed signalTRR
RT
ASCD SET lamp signal T R
Stop lamp switch signal T R
Glow indicator lamp signal* T R
A/C switch signal* R T

TF-16
ALL MODE 4X4 SYSTEM

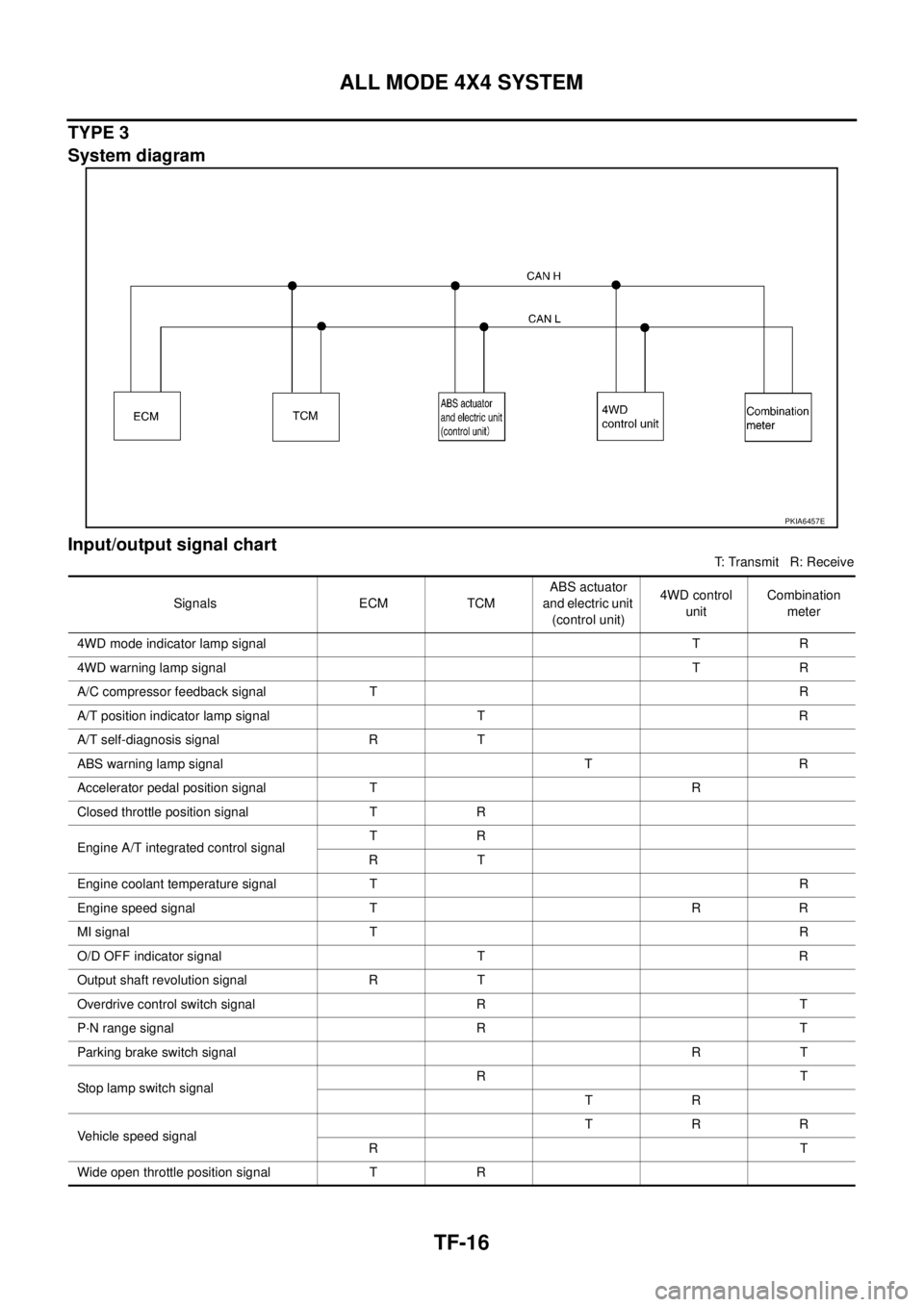

TYPE 3
System diagram
Input/output signal chart
T: Transmit R: Receive
PKIA6457E
Signals ECM TCMABS actuator
and electric unit
(control unit)4WD control
unitCombination
meter
4WD mode indicator lamp signalTR
4WD warning lamp signalTR
A/C compressor feedback signal TR
A/T position indicator lamp signal T R
A/T self-diagnosis signal R T
ABS warning lamp signal T R
Accelerator pedal position signal T R
Closed throttle position signal T R
Engine A/T integrated control signalTR
RT
Engine coolant temperature signal TR
Engine speed signal T R R
MI signal TR
O/D OFF indicator signal T R
Output shaft revolution signal R T
Overdrive control switch signal R T
P·N range signal R T
Parking brake switch signalRT
Stop lamp switch signalRT
TR
Vehicle speed signalTRR
RT
Wide open throttle position signal T R
