TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTPFP:00006
DescriptionEBS0117J
Intermittent incidents may occur. In many cases, the incident resolves itself (the part or circuit function returns
to normal without intervention). It is important to realize that the symptoms described in the customer's com-
plaint often do not recur on (1st/2nd trip) DTC visits. Realize also that the most frequent cause of intermittent
incidents occurrences is poor electrical connections. Because of this, the conditions under which the incident
occurred may not be clear. Therefore, circuit checks made as part of the standard diagnostic procedure may
not indicate the specific malfunctioning area.
COMMON INTERMITTENT INCIDENTS REPORT SITUATIONS
Diagnostic ProcedureEBS0117K
1. INSPECTION START
Erase (1st/2nd trip) DTCs. Refer to EC-999, "
HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFOR-
MATION" .
>> GO TO 2.
2. CHECK GROUND TERMINALS
Check ground terminals for corroding or loose connection.
Refer to EC-1055, "
Ground Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
3. SEARCH FOR ELECTRICAL INCIDENT
Perform GI-23, "
How to Perform Efficient Diagnosis for an Electrical Incident" , “INCIDENT SIMULATION
TESTS”.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace.
STEP in Work Flow Situation
II The CONSULT-II is used. The SELF-DIAG RESULTS screen shows time data other than “0”.
III The symptom described by the customer does not recur.
IV (1st/2nd trip) DTC does not appear during the DTC Confirmation Procedure.
VI The Diagnostic Procedure for XXXX does not indicate the malfunctioning area.

EC-1048
[YD (WITH EURO-OBD)]
POWER SUPPLY AND GROUND CIRCUIT

2. CHECK ECM POWER SUPPLY CIRCUIT-I
1. Turn ignition switch ON.
2. Check voltage between ECM terminals 107, 108 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector M1

10A fuse

Harness for open or short between ECM and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors. Voltage: Battery voltage
MBIB0610E

POWER SUPPLY AND GROUND CIRCUIT
EC-1049
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

4. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-1055, "
Ground Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace ground connections.
5. CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminals 1, 2, 3, 114 and ground. Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to power in harness or connectors.
PBIB2020E
Continuity should exist.

EC-1050
[YD (WITH EURO-OBD)]
POWER SUPPLY AND GROUND CIRCUIT

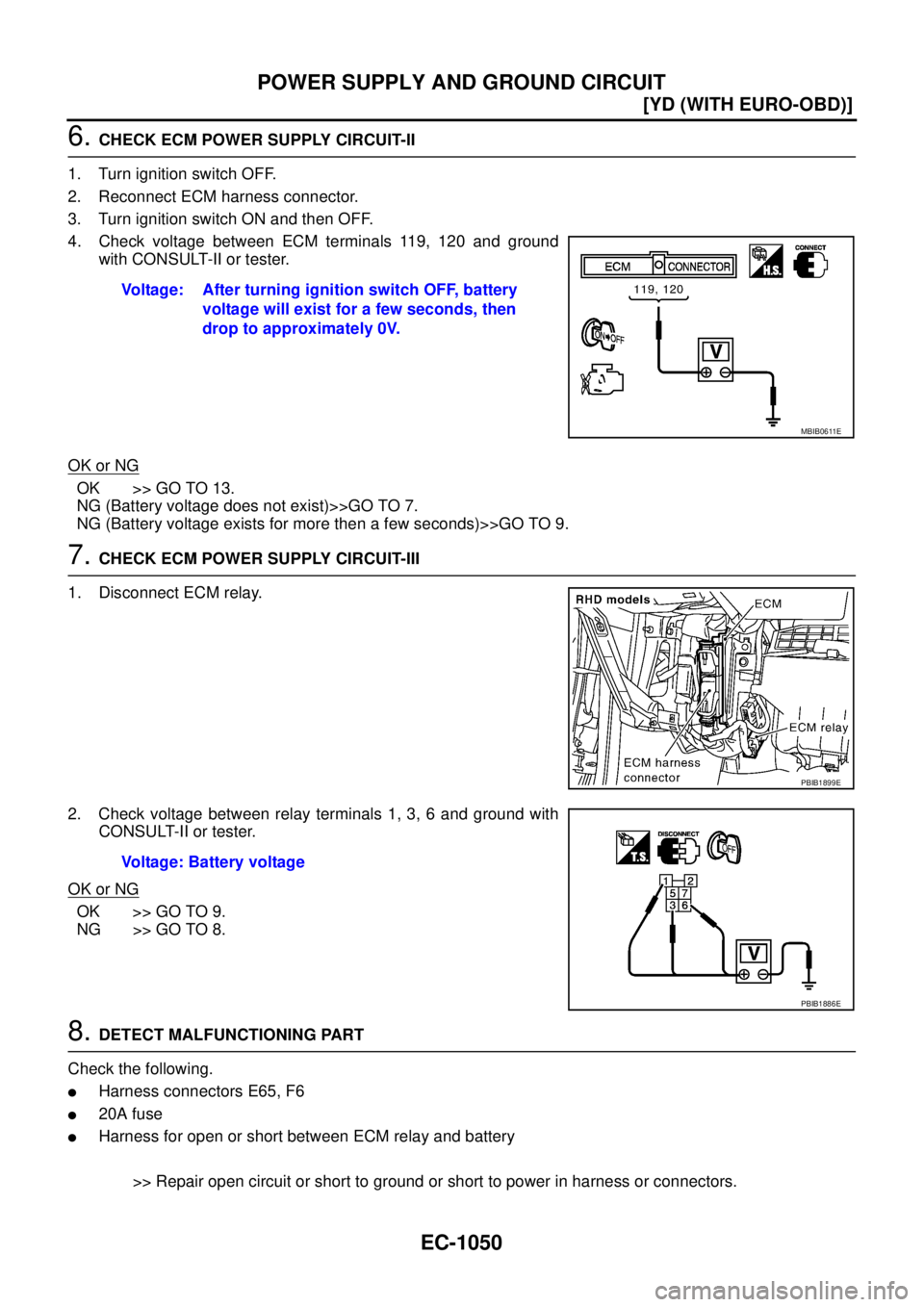

6. CHECK ECM POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Reconnect ECM harness connector.
3. Turn ignition switch ON and then OFF.
4. Check voltage between ECM terminals 119, 120 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 13.
NG (Battery voltage does not exist)>>GO TO 7.
NG (Battery voltage exists for more then a few seconds)>>GO TO 9.
7. CHECK ECM POWER SUPPLY CIRCUIT-III
1. Disconnect ECM relay.
2. Check voltage between relay terminals 1, 3, 6 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E65, F6

20A fuse

Harness for open or short between ECM relay and battery
>> Repair open circuit or short to ground or short to power in harness or connectors. Voltage: After turning ignition switch OFF, battery
voltage will exist for a few seconds, then
drop to approximately 0V.
MBIB0611E
PBIB1899E
Voltage: Battery voltage
PBIB1886E

POWER SUPPLY AND GROUND CIRCUIT
EC-1051
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

9. CHECK OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals 105, 113 and ECM relay terminal 2. Refer to Wiring
Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F30, M63

Harness for open or short between ECM and ECM relay.
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK ECM POWER SUPPLY CIRCUIT-IV
1. Check harness continuity between ECM terminal 119 and ECM relay terminal 5, ECM terminal 120 and
ECM relay terminal 7. Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 13.
NG >> GO TO 12.
12. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F30, M63

Harness for open or short between ECM and ECM relay.
>> Repair open circuit or short to ground or short to power in harness or connectors.
13. CHECK ECM RELAY
Refer to EC-1054, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace ECM relay.Continuity should exist.
Continuity should exist.

EC-1052
[YD (WITH EURO-OBD)]
POWER SUPPLY AND GROUND CIRCUIT

14. CHECK ECM POWER SUPPLY CIRCUIT-V
Check voltage between ECM terminal 121 and ground with CON-
SULT-II or tester.
OK or NG
OK >> GO TO 16.
NG >> GO TO 15.
15. DETECT MALFUNCTIONING PART
Check the following.

20A fuse

Harness connectors E116, M75 (LHD models)

Harness connectors E105, M13 (RHD models)

Harness for open or short between ECM and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors. Voltage: Battery voltage
MBIB0026E

POWER SUPPLY AND GROUND CIRCUIT
EC-1053
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

16. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-1055, "
Ground Inspection" .
OK or NG
OK >> GO TO 17.
NG >> Repair or replace ground connections.
17. CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminals 1, 2, 3, 114 and ground. Refer to Wiring Diagram.
2. Also check harness for short to power.
OK or NG
OK >> GO TO 18.
NG >> Repair open circuit or short to power in harness or connectors.
18. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
PBIB2020E
Continuity should exist.

EC-1054
[YD (WITH EURO-OBD)]
POWER SUPPLY AND GROUND CIRCUIT

Component InspectionEBS0117O
ECM RELAY
1. Apply 12V direct current between ECM relay terminals 1 and 2.
2. Check continuity between relay terminals 3 and 5, 6 and 7.
3. If NG, replace ECM relay.
Condition Continuity
12V direct current supply between ter-
minals 1 and 2Ye s
OFF No
PBIB0077E
