DTC P0504 ASCD BRAKE SWITCH
EC-1545
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC confirmation ProcedureEBS01FDP
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Steps 3 and 4 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine (ESP switch OFF).
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Drive the vehicle for at least 5 consecutive seconds under the
following condition.
If DTC is detected, go to EC-1548, "
Diagnostic Procedure" .
If DTC is not detected, go to the following step.
4. Drive the vehicle for at least 5 consecutive seconds under the
following condition.
5. If DTC is detected, go to EC-1548, "
Diagnostic Procedure" .
Overall Function CheckEBS01FEH
Use this procedure to check the overall function of the ASCD brake switch circuit. During this check, a DTC
might not be confirmed.
WITHOUT CONSULT-II
1. Turn ignition switch ON.

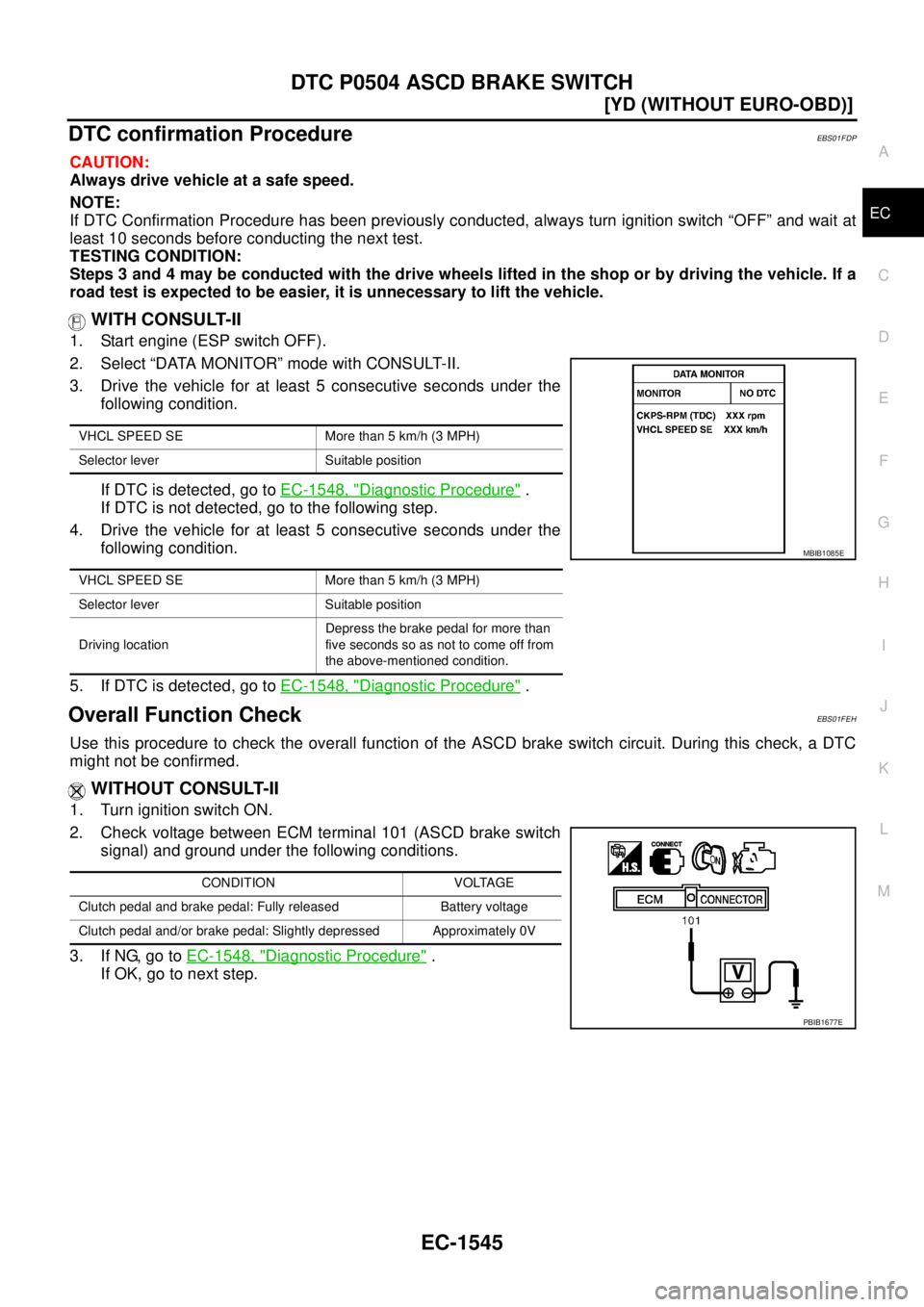

2. Check voltage between ECM terminal 101 (ASCD brake switch
signal) and ground under the following conditions.
3. If NG, go to EC-1548, "
Diagnostic Procedure" .
If OK, go to next step.
VHCL SPEED SE More than 5 km/h (3 MPH)
Selector lever Suitable position
VHCL SPEED SE More than 5 km/h (3 MPH)
Selector lever Suitable position
Driving locationDepress the brake pedal for more than
five seconds so as not to come off from
the above-mentioned condition.
MBIB1085E
CONDITION VOLTAGE
Clutch pedal and brake pedal: Fully released Battery voltage
Clutch pedal and/or brake pedal: Slightly depressed Approximately 0V
PBIB1677E

EC-1554
[YD (WITHOUT EURO-OBD)]
DTC P0563 BATTERY VOLTAGE

DTC P0563 BATTERY VOLTAGEPFP:24410
On Board Diagnosis LogicEBS01221
The MI will not light up for this self-diagnosis.
DTC Confirmation ProcedureEBS01222
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 35 seconds.
4. If DTC is detected, go to EC-1554, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine and let it idle for at least 35 seconds.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If DTC is detected, go to EC-1554, "
Diagnostic Procedure" .
Diagnostic ProcedureEBS01223
1. INSPECTION START
Are jumper cables connected for the jump starting?
Ye s o r N o
Yes >> GO TO 3.
No >> GO TO 2.
2. CHECK BATTERY AND ALTERNATOR
Check that the proper type of battery and alternator is installed.
Refer to SC-4, "
BATTERY" and SC-13, "CHARGING SYSTEM" .
OK or NG
OK >> GO TO 5.
NG >> Replace with a proper one.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0563
0563Battery voltage highAn excessively high voltage from the battery is
sent to ECM.

Battery

Battery terminal

Alternator
SEF817Y

TC BOOST CONTROL SOLENOID VALVE
EC-1661
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference valves, and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may damage the
ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureEBS0125W

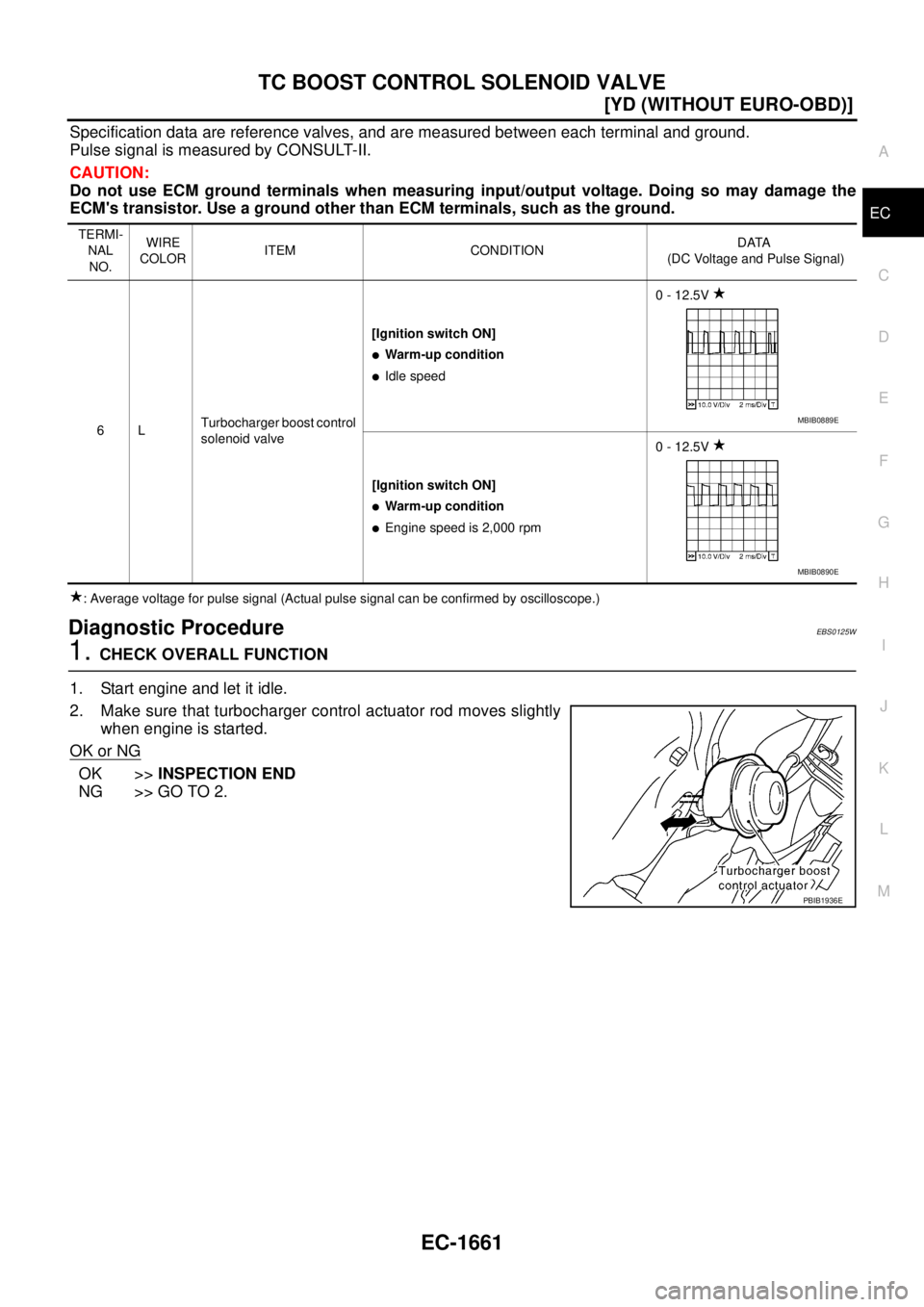

1. CHECK OVERALL FUNCTION
1. Start engine and let it idle.
2. Make sure that turbocharger control actuator rod moves slightly
when engine is started.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
6LTurbocharger boost control
solenoid valve[Ignition switch ON]

Warm-up condition

Idle speed0 - 12.5V
[Ignition switch ON]

Warm-up condition

Engine speed is 2,000 rpm0 - 12.5V
MBIB0889E
MBIB0890E
PBIB1936E

AT-3
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC CONTROL UNIT(EEPROM) ........................... 200
Description ........................................................... 200
On Board Diagnosis Logic ................................... 200
Possible Cause .................................................... 200
DTC Confirmation Procedure ............................... 200
Diagnostic Procedure ........................................... 201
TROUBLE DIAGNOSES FOR SYMPTOMS .......... 202
Wiring Diagram — AT — NONDTC ...................... 202
O/D OFF Indicator Lamp Does Not Come On ..... 204
Engine Cannot Be Started In “P” and “N” Position . 206
In “P” Position, Vehicle Moves Forward Or Back-
ward When Pushed .............................................. 207
In “N” Position, Vehicle Moves ............................. 208
Large Shock. “N” → “R” Position .......................... 209
Vehicle Does Not Creep Backward In “R” Position . 210
Vehicle Does Not Creep Forward In “D”, “2” Or “1”
Position ................................................................ 212
Vehicle Cannot Be Started From D
1 ..................... 214
A/T Does Not Shift: D
1 → D2 Or Does Not Kickdown:
D
4 → D2 ............................................................... 217
A/T Does Not Shift: D
2 → D3 ............................... 220
A/T Does Not Shift: D
3 → D4 ............................... 222
A/T Does Not Perform Lock-up ............................ 224
A/T Does Not Hold Lock-up Condition ................. 225
Lock-Up Is Not Released ..................................... 227
Engine Speed Does Not Return To Idle (Light Brak-
ing D
4 → D3 ) ....................................................... 228
Vehicle Does Not Start From D
1 ........................... 230
A/T Does Not Shift: D
4 → D3 , When Overdrive Con-
trol Switch “ON” → “OFF” ..................................... 231
A/T Does Not Shift: D
3 → 22 , When Selector Lever
“D” → “2” Position ................................................ 232
A/T Does Not Shift: 2
2 → 11 , When Selector Lever
“2” → “1” Position ................................................. 233
Vehicle Does Not Decelerate By Engine Brake ... 235
TCM Self-Diagnosis Does Not Activate ............... 237
EXC.F/EURO-OBD
ON BOARD DIAGNOSTIC SYSTEM DESCRIP-
TION ........................................................................ 242
CONSULT-II ......................................................... 242
Diagnostic Procedure Without CONSULT-II ......... 246
TROUBLE DIAGNOSIS — INTRODUCTION ......... 251
Introduction .......................................................... 251
Work Flow ............................................................ 255
TROUBLE DIAGNOSIS — BASIC INSPECTION .. 256
A/T Fluid Check .................................................... 256
Stall Test ............................................................... 257
Line Pressure Test ............................................... 260
Road Test ............................................................. 262
TROUBLE DIAGNOSIS — GENERAL DESCRIP-
TION ........................................................................ 277
Symptom Chart .................................................... 277
TCM Terminals and Reference Value ................... 286
TROUBLE DIAGNOSES FOR SYMPTOMS .......... 289
Wiring Diagram — AT — NONDTC ...................... 289
O/D OFF Indicator Lamp Does Not Come On ..... 291
Engine Cannot Be Started In “P” and “N” Position . 293In “P” Position, Vehicle Moves Forward Or Back-
ward When Pushed ..............................................294
In “N” Position, Vehicle Moves ..............................295
Large Shock. “N” → “R” Position ..........................296
Vehicle Does Not Creep Backward In “R” Position .297
Vehicle Does Not Creep Forward In “D”, “2” Or “1”
Position .................................................................299
Vehicle Cannot Be Started From D
1 .....................301
A/T Does Not Shift: D
1 → D2 Or Does Not Kickdown:
D
4 → D2 ................................................................304
A/T Does Not Shift: D
2 → D3 ................................307
A/T Does Not Shift: D
3 → D4 ................................309
A/T Does Not Perform Lock-Up ............................311
A/T Does Not Hold Lock-Up Condition .................312
Lock-Up Is Not Released ......................................314
Engine Speed Does Not Return To Idle (Light Brak-
ing D
4 → D3 ) ........................................................315
Vehicle Does Not Start From D
1 ...........................317
A/T Does Not Shift: D
4 → D3 , When Overdrive Con-
trol Switch “ON” → “OFF” .....................................318
A/T Does Not Shift: D
3 → 22 , When Selector Lever
“D” → “2” Position .................................................319
A/T Does Not Shift: 2
2 → 11 , When Selector Lever
“2” → “1” Position .................................................320
Vehicle Does Not Decelerate By Engine Brake ....322
TCM Self-Diagnosis Does Not Activate ................324
ALL
CAN COMMUNICATION LINE ...............................329
Description ............................................................329
On Board Diagnosis Logic ....................................329
Possible Cause .....................................................329
DTC Confirmation Procedure ...............................329
Wiring Diagram — AT — CAN ..............................330
Diagnostic Procedure ...........................................331
VEHICLE SPEED SENSOR·A/T (REVOLUTION
SENSOR) ................................................................332
Description ............................................................332
CONSULT-II Reference Value ..............................332
On Board Diagnosis Logic ....................................332
Possible Cause .....................................................332
DTC Confirmation Procedure ...............................332
Wiring Diagram — AT — VSSA/T ........................334
Diagnostic Procedure ...........................................335
DTC VEHICLE SPEED SENSOR MTR ..................339
Description ............................................................339
CONSULT-II Reference Value ..............................339
On Board Diagnosis Logic ....................................339
Possible Cause .....................................................339
DTC Confirmation Procedure ...............................339
Wiring Diagram — AT — VSSMTR ......................341
Diagnostic Procedure ...........................................343
ACCELE RATOR PEDAL POSITION (APP) SEN-
SOR .........................................................................345
Description ............................................................345
On Board Diagnosis Logic ....................................345
Possible Cause .....................................................345
DTC Confirmation Procedure ...............................345

AT-44
[EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Malfunction Indicator (MI)ECS004QL
1. The malfunction indicator will light up when the ignition switch is
turned ON without the engine running. This is for checking the
lamp.

If the malfunction indicator does not light up, refer to DI-35,
"Schematic" .
(Or see MI & CONSULT-II in EC section. Refer to EC-64,
"Malfunction Indicator (MI)" (WITH EURO-OBD) or EC-568,
"Malfunction Indicator (MI)" (WITHOUT EURO-OBD) or EC-
103, "CONSULT-II Function (ENGINE)" (WITH EURO-OBD)
or EC-604, "
CONSULT-II Function (ENGINE)" (WITHOUT
EURO-OBD).
2. When the engine is started, the malfunction indicator should go
off.
If the lamp remains on, the on board diagnostic system has detected an emission-related (EURO-OBD)
malfunction. For detail, refer to EC-52, "
ON BOARD DIAGNOSTIC (OBD) SYSTEM" .
CONSULT-IIECS004QM
After performing “SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)” AT- 4 5 , place check marks for
results on the “DIAGNOSTIC WORKSHEET”, AT- 5 8
. Reference pages are provided following the items.
NOTICE:
1. The CONSULT-II electrically displays shift timing and lock-up timing (that is, operation timing of each sole-
noid).
Check for time difference between actual shift timing and the CONSULT-II display. If the difference is
noticeable, mechanical parts (except solenoids, sensors, etc.) may be malfunctioning. Check mechanical
parts using applicable diagnostic procedures.
2. Shift schedule (which implies gear position) displayed on CONSULT-II and that indicated in Service Man-
ual may differ slightly. This occurs because of the following reasons:
–Actual shift schedule has more or less tolerance or allowance,
–Shift schedule indicated in Service Manual refers to the point where shifts start, and
–Gear position displayed on CONSULT-II indicates the point where shifts are completed.
3. Shift solenoid valve “A” or “B” is displayed on CONSULT-II at the start of shifting. Gear position is dis-
played upon completion of shifting (which is computed by TCM).
4. Additional CONSULT-II information can be found in the Operation Manual supplied with the CONSULT-II
unit.
FUNCTION
SAT652J
Diagnostic test mode Function Reference page
Work supportThis mode enables a technician to adjust some devices faster and more accurately by
following the indications on CONSULT-II.—
Self-diagnostic results Self-diagnostic results can be read and erased quickly.AT- 4 5
Data monitor Input/Output data in the ECM can be read.AT- 4 6
CAN diagnostic support
monitorThe results of transmit/receive diagnosis of CAN communication can be read. —
Function testConducted by CONSULT-II instead of a technician to determine whether each system
is “OK” or “NG”.—
DTC work support Select the operating condition to confirm Diagnosis Trouble Codes.AT- 4 7
TCM part number TCM part number can be read. —

AT-60
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION

4. 4-3. Cruise testAT- 7 4
AT- 7 8Part-1
❏ Vehicle Cannot Be Started From D
1 , AT-214 .
❏ A/T Does Not Shift: D
1 → D2 Or Does Not Kickdown: D4 → D2 , AT- 2 1 7 .
❏ A/T Does Not Shift: D
2 → D3 , AT-220 .
❏ A/T Does Not Shift: D
3 → D4 , AT-222 .
❏ A/T Does Not Perform Lock-up, AT- 2 2 4
.
❏ A/T Does Not Hold Lock-up Condition, AT- 2 2 5
.
❏ Lock-up Is Not Released, AT- 2 2 7
.
❏ Engine Speed Does Not Return To Idle (Light Braking D
4 → D3 ), AT- 2 2 8 .
Part-2AT- 8 1
❏ Vehicle Does Not Start From D1 , AT-230 .
❏ A/T Does Not Shift: D
1 → D2 Or Does Not Kickdown: D4 → D2 , AT- 2 1 7 .
❏ A/T Does Not Shift: D
2 → D3 , AT-220 .
❏ A/T Does Not Shift: D
3 → D4 , AT-222 .
Part-3AT- 8 2
❏ A/T Does Not Shift: D4 → D3 When Overdrive Control Switch “ON” → “OFF”, AT- 2 3 1 .
❏ Engine Speed Does Not Return To Idle (Engine Brake In D
3 ), AT-228 .
❏ A/T Does Not Shift: D
3 → 22 , When Selector Lever “D” → “2” Position, AT-232 .
❏ Engine Speed Does Not Return To Idle (Engine Brake In 2
2 ), AT- 2 2 8 .
❏ A/T Does Not Shift: 2
2 → 11 , When Selector Lever “2” → “1” Position, AT- 2 3 3 .
❏ Vehicle Does Not Decelerate By Engine Brake, AT-235
.
❏ TCM Self-diagnosis Does Not Activate (PNP & Overdrive control switches, and throttle position sensor
circuit checks), AT-237
.
❏ SELF-DIAGNOSTIC PROCEDURE/DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PRO-
CEDURE — Mark detected items.
❏ PNP switch, AT-100
.
❏ A/T fluid temperature sensor, AT-106
.
❏ Vehicle speed sensor·A/T (Revolution sensor), AT- 11 2
.
❏ Engine speed signal, AT- 11 9
.
❏ Torque converter clutch solenoid valve, AT- 1 4 8
.
❏ Line pressure solenoid valve, AT-154
.
❏ Shift solenoid valve A, AT-161
.
❏ Shift solenoid valve B, AT-167
.
❏ Accelerator pedal position (App) sensor, AT-173
.
❏ Overrun clutch solenoid valve, AT-178
.
❏ PNP & overdrive control switches, and throttle position sensor, AT- 2 3 7
.
❏ A/T fluid temperature sensor and TCM power source, AT-184
.
❏ Vehicle speed sensor·MTR, AT- 1 9 2
.
❏ CAN communication line, AT- 9 7
.
❏ Control unit (RAM), control unit (ROM), AT- 1 9 8
.
❏ Control unit (EEP ROM), AT- 2 0 0
.
❏ Battery
❏ Others
5.❏ For self-diagnosis NG items, inspect each component. Repair or replace the damaged parts.AT- 5 2
6.❏ Perform all Road Test and re-mark required procedures.AT- 7 0
7.❏ Perform DTC Confirmation Procedure for following MI indicating items and check out NG items.EC-53
❏ DTC (P0731) A/T 1st gear function, AT-125 .
❏ DTC (P0732) A/T 2nd gear function, AT- 1 3 0
.
❏ DTC (P0733) A/T 3rd gear function, AT-135
.
❏ DTC (P0734) A/T 4th gear function, AT-140
.
8.❏ Perform the Diagnostic Procedures for all remaining items marked NG. Repair or replace the damaged parts.
Refer to the Symptom Chart when you perform the procedures. (The chart also shows some other possible
symptoms and the component inspection orders.)AT- 8 5
9.❏ Erase DTC from TCM and ECM memories.AT- 4 2

AT-64
[EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION

TROUBLE DIAGNOSIS — BASIC INSPECTIONPFP:00000
A/T Fluid CheckECS004QQ
FLUID LEAKAGE CHECK
1. Clean area suspected of leaking. — for example, mating surface
of converter housing and transaxle case.
2. Start engine, apply foot brake, place selector lever in D position
and wait a few minutes.
3. Stop engine.
4. Check for fresh leakage.
FLUID CONDITION CHECK
FLUID LEVEL CHECK
Refer to AT- 1 6 , "Checking A/T Fluid" .
SAT767B
SAT288G
Fluid color Suspected problem
Dark or black with burned odor Wear of frictional material
Milky pink Water contamination — Road water
entering through filler tube or breather
Varnished fluid, light to dark brown and
tackyOxidation — Over or under filling, —
Overheating
SAT638A

AT-80
[EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION

5. CHECK LOCK-UP (D4 TO D4 L/U)
Check lock-up (D
4 to D4 L/U).
Specified speed when lock-up occurs. Refer to AT- 5 3 0 , "
VEHICLE SPEED WHEN PERFORMING LOCK-UP"
.
Read vehicle speed, throttle opening when lock-up duty
becomes 94%. Refer to AT- 4 6 , "
DATA MONITOR MODE (A/T)" .
Does A/T perform lock-up at the specified speed?
YES >> GO TO 6.
NO >>

Mark the box on the “DIAGNOSTIC WORKSHEET”.
Refer to AT- 5 8
.

GO TO AT- 2 2 4 , "A/T Does Not Perform Lock-up" .

Continue “Road Test”.
6. CHECK LOCK-UP HOLD
Check lock-up hold.
When lock-up duty becomes 94%. Refer to AT- 4 6 , "
DATA MONITOR MODE (A/T)" .
Does A/T hold lock-up condition for more than 30 seconds?
YES >> GO TO 7.
NO >>

Mark the box on the “DIAGNOSTIC WORKSHEET”. Refer to AT- 5 8 .

GO TO AT- 2 2 5 , "A/T Does Not Hold Lock-up Condition" .

Continue “Road Test”.
7. CHECK SHIFT-DOWN (D4 L/U TO D4 )
Release accelerator pedal.
When lock-up duty becomes 4%. Refer to AT- 4 6 , "
DATA
MONITOR MODE (A/T)" .
Is lock-up released when accelerator pedal is released?
YES >> GO TO 8.
NO >>

Mark the box on the “DIAGNOSTIC WORKSHEET”.
Refer to AT- 5 8
.

GO TO AT- 2 2 7 , "Lock-Up Is Not Released" .

Continue “Road Test”.
8. CHECK SHIFT-DOWN (D4 TO D3 )
Decelerate vehicle by applying foot brake lightly.
Read gear position and engine speed. Refer to AT- 4 6 , "
DATA
MONITOR MODE (A/T)" .
Does engine speed return to idle smoothly when A/T is shifted from
D4 to D3 ?
YES >> 1. Stop vehicle.
2. Go to AT- 8 1 , "
Cruise Test — Part 2" .
NO >>

Mark the box on the “DIAGNOSTIC WORKSHEET”.
Refer to AT- 5 8
.

GO TO AT- 2 2 8 , "Engine Speed Does Not Return To
Idle (Light Braking D4 → D3 )" .

Continue “Road Test”.
SAT957I
SAT958I
SAT959I
