2005 NISSAN X-TRAIL check engine light

EC-494
[QR (WITH EURO-OBD)]
ELECTRICAL LOAD SIGNAL

8. CHECK HEADLAMP FUNCTION
1. Start engine.
2. Turn the lighting switch ON at 2nd position.
3. Check that headlamps are illuminated.
OK or NG
OK >> GO TO 9.
NG >> Refer to LT- 2 5 , "
HEADLAMP - CONVENTIONAL TYPE -" or LT- 5 1 , "HEADLAMP (WITH DAY-
TIME) - CONVENTIONAL TYPE -" .

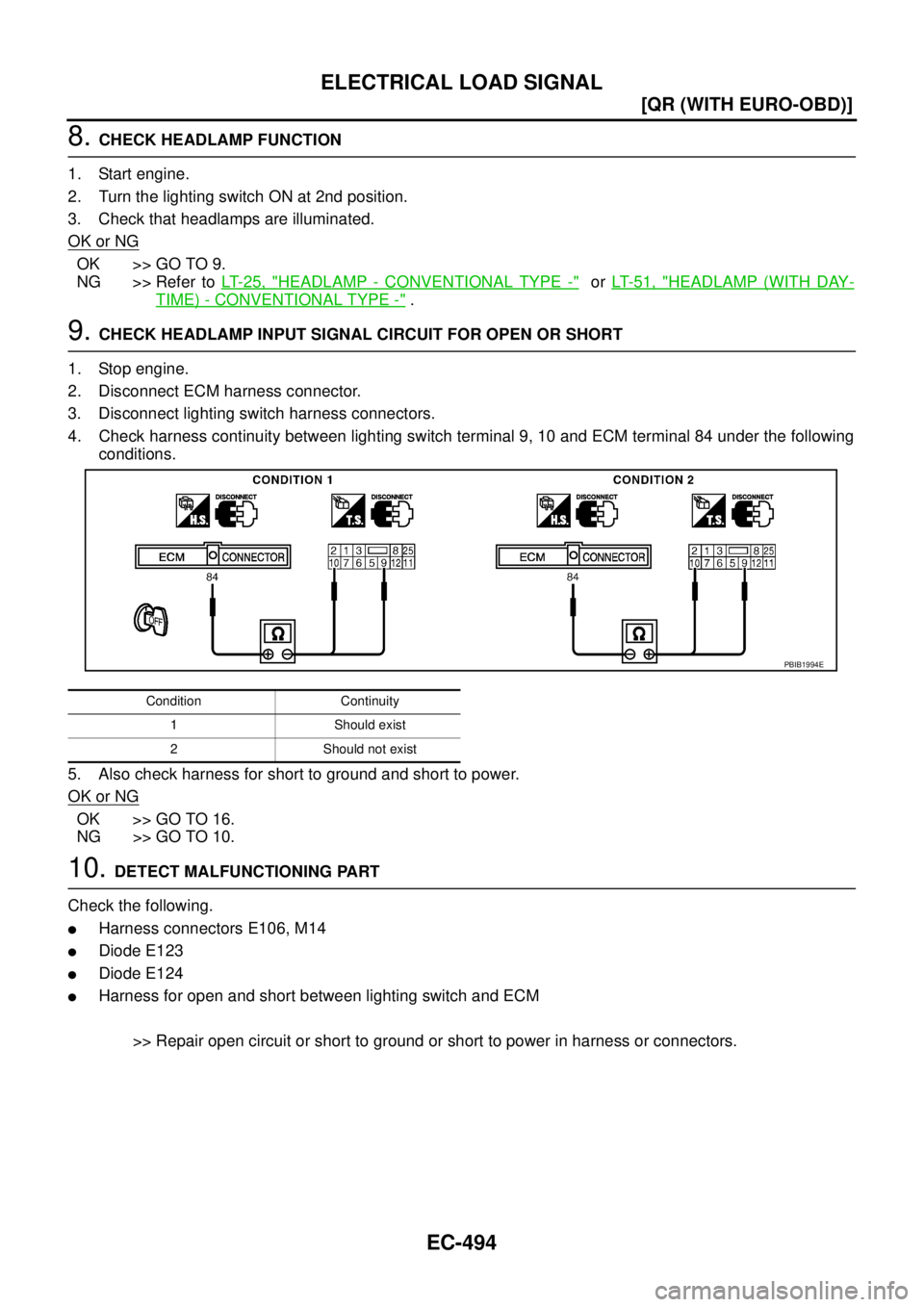

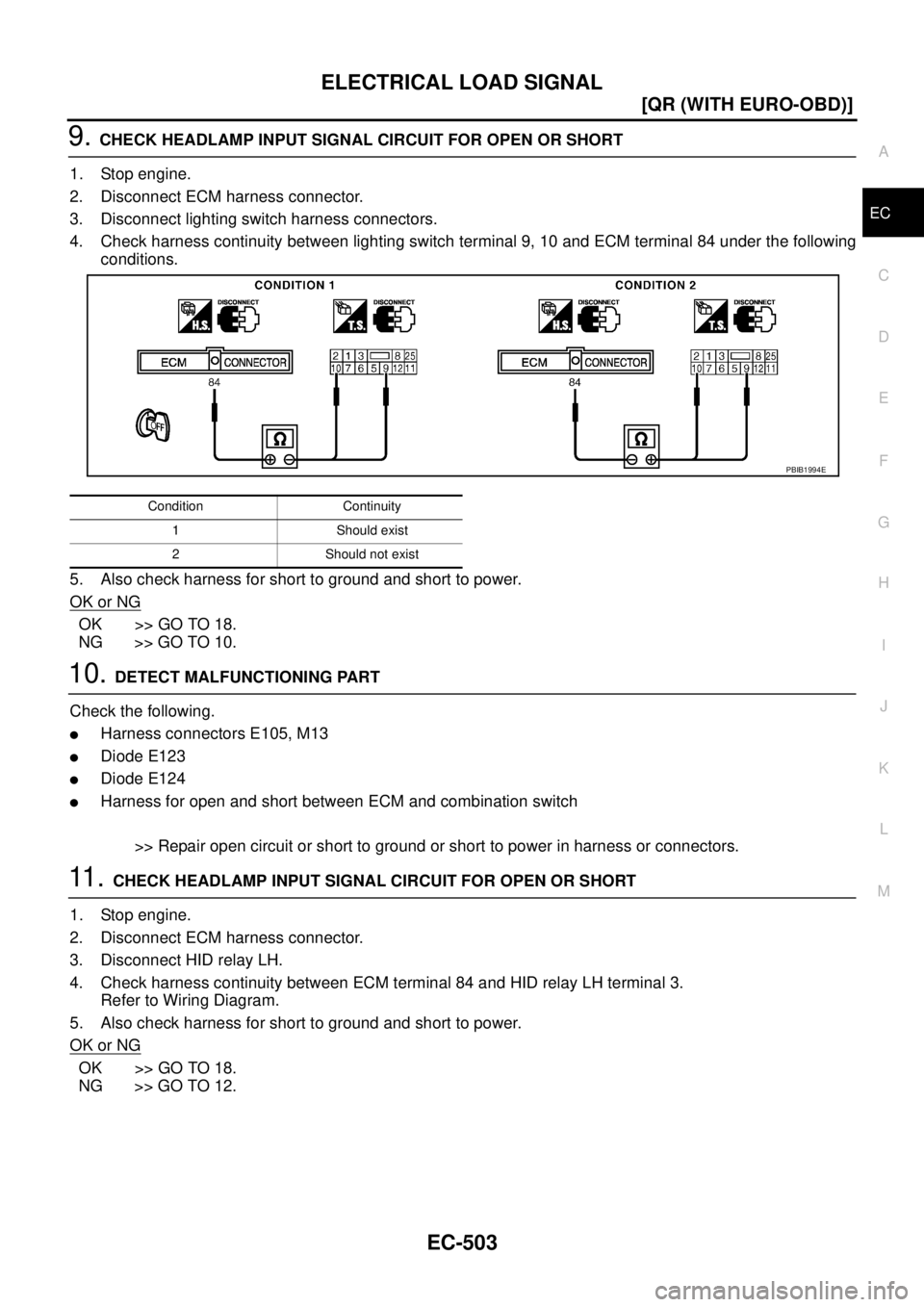

9. CHECK HEADLAMP INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect lighting switch harness connectors.
4. Check harness continuity between lighting switch terminal 9, 10 and ECM terminal 84 under the following
conditions.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 16.
NG >> GO TO 10.
10. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E106, M14

Diode E123

Diode E124

Harness for open and short between lighting switch and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
Condition Continuity
1 Should exist
2 Should not exist
PBIB1994E

EC-496
[QR (WITH EURO-OBD)]
ELECTRICAL LOAD SIGNAL

15. CHECK HEATER FAN SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect A/C AUTO AMP. harness connector.
4. Check harness continuity between A/C AUTO AMP. terminal 19 and ECM terminal 96.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 16.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
16. CHECK INTERMITTENT INCIDENT
Perform EC-124, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
LHD MODELS WITH XENON HEADLAMP
1. INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Yes >> GO TO 2.
No >> GO TO 3.

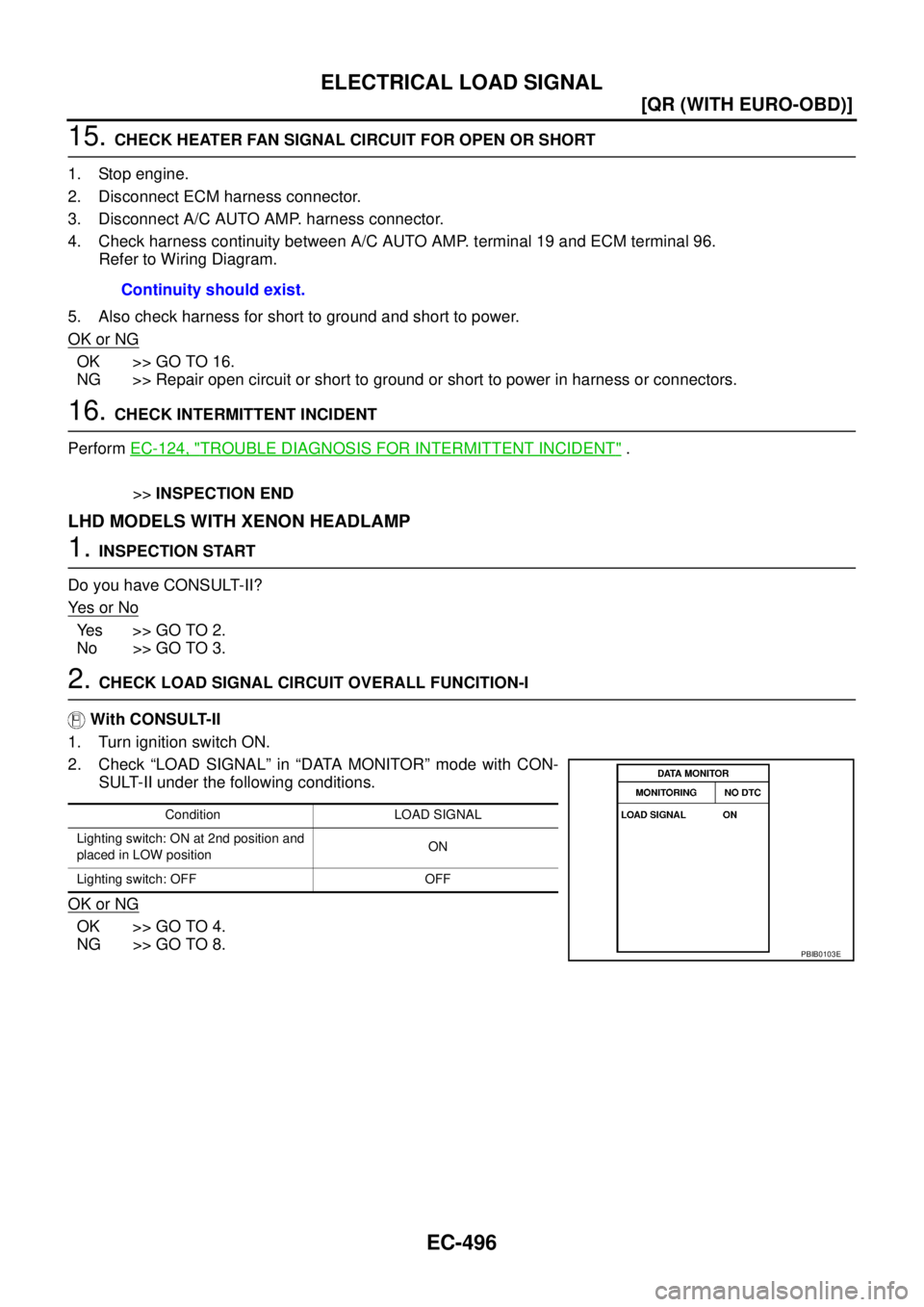

2. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCITION-I
With CONSULT-II
1. Turn ignition switch ON.
2. Check “LOAD SIGNAL” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.
OK or NG
OK >> GO TO 4.
NG >> GO TO 8.Continuity should exist.
Condition LOAD SIGNAL
Lighting switch: ON at 2nd position and
placed in LOW positionON
Lighting switch: OFF OFF
PBIB0103E

EC-498
[QR (WITH EURO-OBD)]
ELECTRICAL LOAD SIGNAL

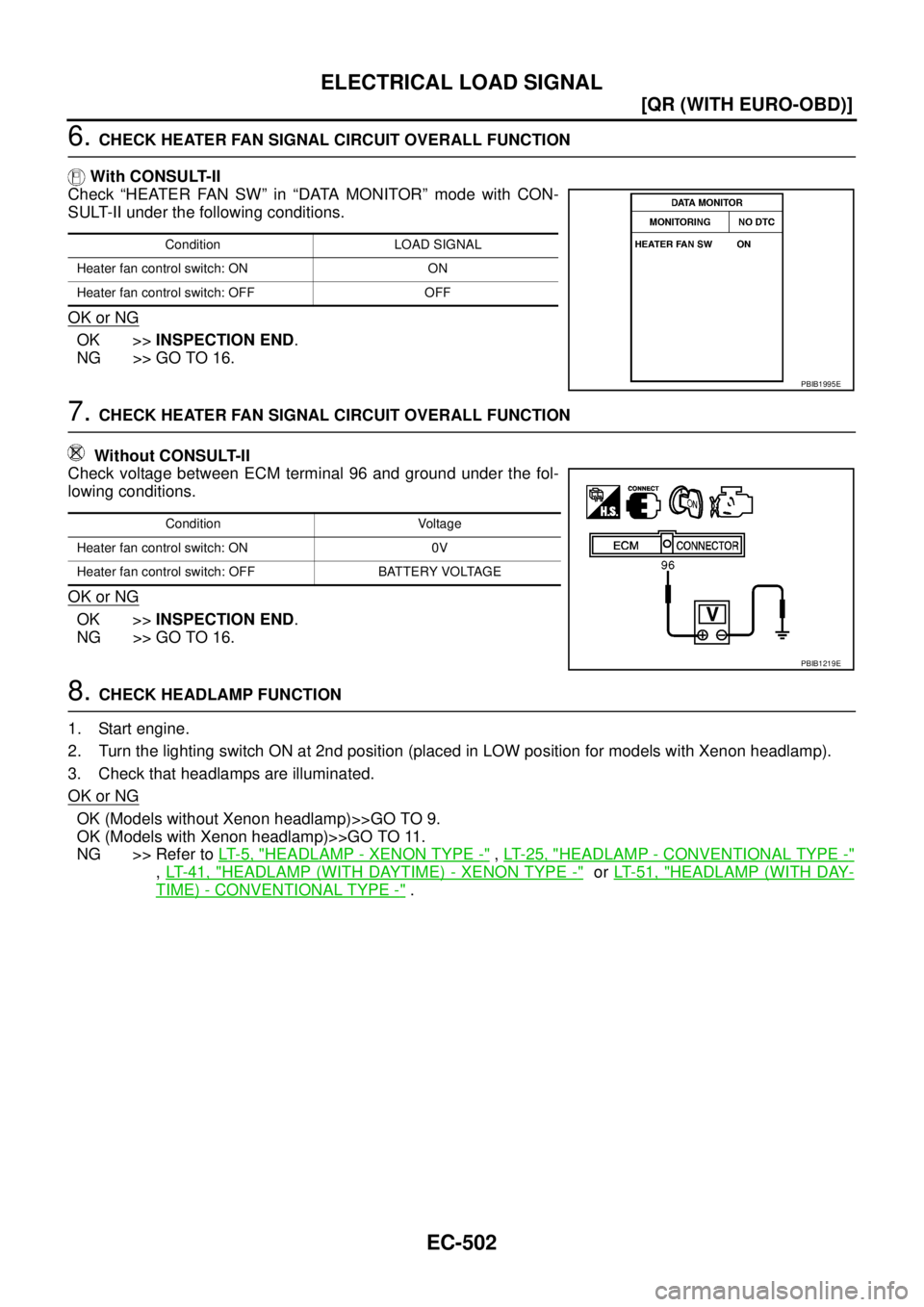

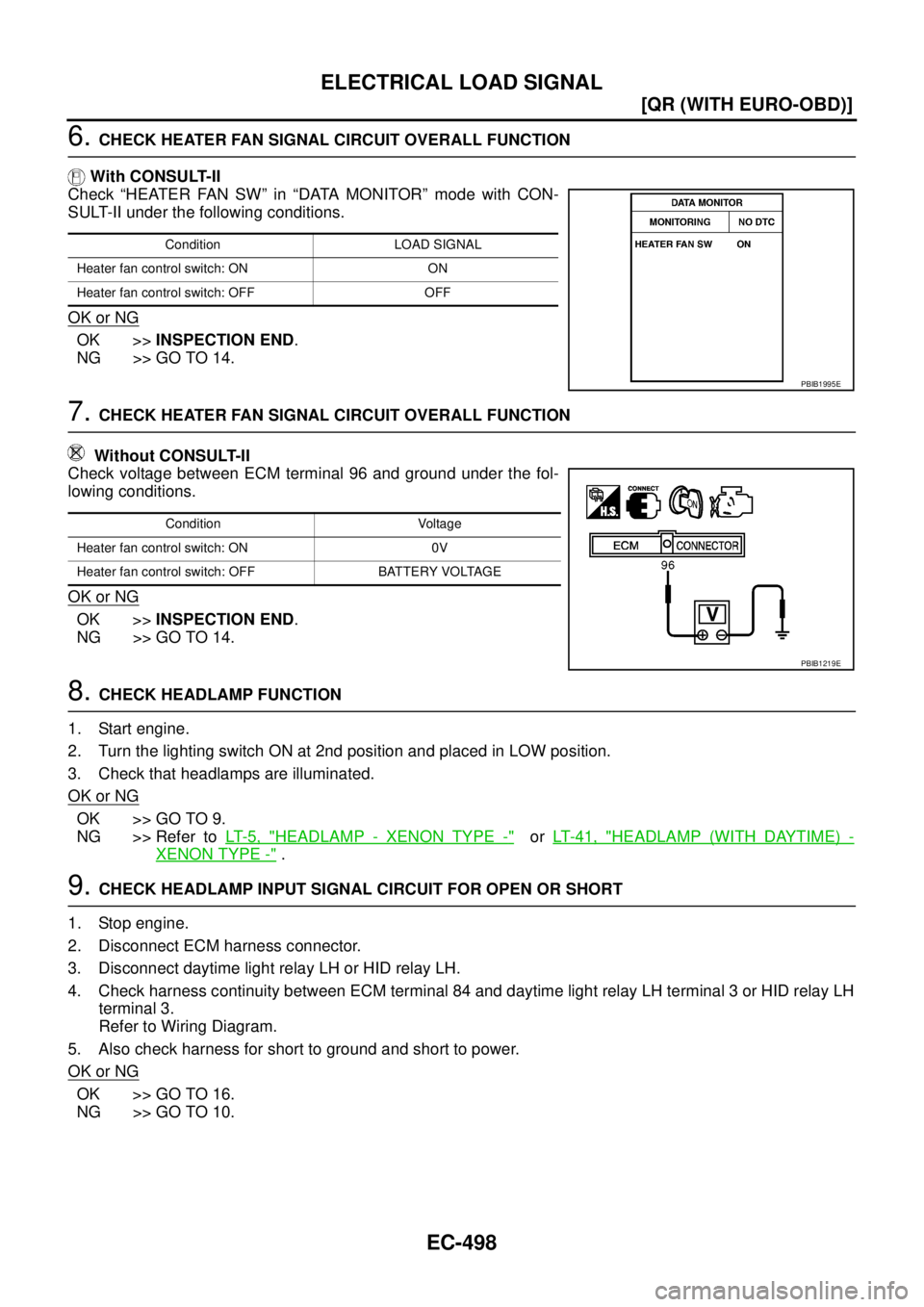

6. CHECK HEATER FAN SIGNAL CIRCUIT OVERALL FUNCTION
With CONSULT-II
Check “HEATER FAN SW” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.
OK or NG
OK >>INSPECTION END.
NG >> GO TO 14.
7. CHECK HEATER FAN SIGNAL CIRCUIT OVERALL FUNCTION
Without CONSULT-II
Check voltage between ECM terminal 96 and ground under the fol-
lowing conditions.
OK or NG
OK >>INSPECTION END.
NG >> GO TO 14.
8. CHECK HEADLAMP FUNCTION
1. Start engine.
2. Turn the lighting switch ON at 2nd position and placed in LOW position.
3. Check that headlamps are illuminated.
OK or NG
OK >> GO TO 9.
NG >> Refer to LT- 5 , "
HEADLAMP - XENON TYPE -" or LT- 4 1 , "HEADLAMP (WITH DAYTIME) -
XENON TYPE -" .
9. CHECK HEADLAMP INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect daytime light relay LH or HID relay LH.
4. Check harness continuity between ECM terminal 84 and daytime light relay LH terminal 3 or HID relay LH
terminal 3.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 16.
NG >> GO TO 10.
Condition LOAD SIGNAL
Heater fan control switch: ON ON
Heater fan control switch: OFF OFF
PBIB1995E
Condition Voltage
Heater fan control switch: ON 0V
Heater fan control switch: OFF BATTERY VOLTAGE
PBIB1219E

ELECTRICAL LOAD SIGNAL
EC-499
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

10. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E106, M14

Harness for open and short between ECM and daytime light relay LH or HID relay LH
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK REAR WINDOW DEFOGGER FUNCTION
1. Start engine.
2. Turn ON the rear window defogger switch.
3. Check the rear windshield.
Is the rear windshield heated up?
Ye s o r N o
Ye s > > G O T O 1 2 .
No >> Refer to GW-17, "
REAR WINDOW DEFOGGER" .
12. CHECK REAR WINDOW DEFOGGER INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect rear window defogger relay.
4. Check harness continuity between rear window defogger relay 3 (models without door mirror defogger), 5
(models with door mirror defogger) and ECM terminal 93.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 16.
NG >> GO TO 13.
13. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors B1, M17

Harness for open and short between rear window defogger relay and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
14. CHECK HEATER FAN CONTROL FUNCTION
1. Start engine.
2. Turn ON the fan control switch.
3. Check the blower fan motor.
Does the blower fan motor activate?
Ye s o r N o
Ye s > > G O T O 1 5 .
No >> Refer to AT C - 3 4 , "
TROUBLE DIAGNOSIS" or MTC-3, "TROUBLE DIAGNOSIS" . Continuity should exist.

EC-500
[QR (WITH EURO-OBD)]
ELECTRICAL LOAD SIGNAL

15. CHECK HEATER FAN SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect A/C AUTO AMP. harness connector.
4. Check harness continuity between A/C AUTO AMP. terminal 19 and ECM terminal 96.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 16.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
16. CHECK INTERMITTENT INCIDENT
Perform EC-124, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
RHD MODELS
1. INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Yes >> GO TO 2.
No >> GO TO 3.
2. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCITION-I
With CONSULT-II
1. Turn ignition switch ON.
2. Check “LOAD SIGNAL” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.
OK or NG
OK >> GO TO 4.
NG >> GO TO 8.Continuity should exist.
Condition LOAD SIGNAL
Lighting switch: ON at 2nd position (placed in
LOW position for models with Xenon headlamp)ON
Lighting switch: OFF OFF
PBIB0103E

EC-502
[QR (WITH EURO-OBD)]
ELECTRICAL LOAD SIGNAL

6. CHECK HEATER FAN SIGNAL CIRCUIT OVERALL FUNCTION
With CONSULT-II
Check “HEATER FAN SW” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.
OK or NG
OK >>INSPECTION END.
NG >> GO TO 16.
7. CHECK HEATER FAN SIGNAL CIRCUIT OVERALL FUNCTION
Without CONSULT-II
Check voltage between ECM terminal 96 and ground under the fol-
lowing conditions.
OK or NG
OK >>INSPECTION END.
NG >> GO TO 16.
8. CHECK HEADLAMP FUNCTION
1. Start engine.
2. Turn the lighting switch ON at 2nd position (placed in LOW position for models with Xenon headlamp).
3. Check that headlamps are illuminated.
OK or NG
OK (Models without Xenon headlamp)>>GO TO 9.
OK (Models with Xenon headlamp)>>GO TO 11.
NG >> Refer to LT- 5 , "
HEADLAMP - XENON TYPE -" , LT- 2 5 , "HEADLAMP - CONVENTIONAL TYPE -"
, LT- 4 1 , "HEADLAMP (WITH DAYTIME) - XENON TYPE -" or LT- 5 1 , "HEADLAMP (WITH DAY-
TIME) - CONVENTIONAL TYPE -" .
Condition LOAD SIGNAL
Heater fan control switch: ON ON
Heater fan control switch: OFF OFF
PBIB1995E
Condition Voltage
Heater fan control switch: ON 0V
Heater fan control switch: OFF BATTERY VOLTAGE
PBIB1219E

ELECTRICAL LOAD SIGNAL
EC-503
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

9. CHECK HEADLAMP INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect lighting switch harness connectors.
4. Check harness continuity between lighting switch terminal 9, 10 and ECM terminal 84 under the following
conditions.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 18.
NG >> GO TO 10.
10. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E105, M13

Diode E123

Diode E124

Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK HEADLAMP INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect HID relay LH.
4. Check harness continuity between ECM terminal 84 and HID relay LH terminal 3.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 18.
NG >> GO TO 12.
Condition Continuity
1 Should exist
2 Should not exist
PBIB1994E

EC-560
[QR (WITHOUT EURO-OBD)]
BASIC SERVICE PROCEDURE

3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON and wait at least 2 seconds.
5. Turn ignition switch OFF and wait at least 10 seconds.
Throttle Valve Closed Position LearningEBS010WW
DESCRIPTION
Throttle Valve Closed Position Learning is an operation to learn the fully closed position of the throttle valve by
monitoring the throttle position sensor output signal. It must be performed each time harness connector of
electric throttle control actuator or ECM is disconnected.
OPERATION PROCEDURE
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
Make sure that throttle valve moves during above 10 seconds by confirming the operating sound.
Idle Air Volume LearningEBS010WX
DESCRIPTION
Idle Air Volume Learning is an operation to learn the idle air volume that keeps each engine within the specific
range. It must be performed under any of the following conditions:

Each time electric throttle control actuator or ECM is replaced.

Idle speed or ignition timing is out of specification.
PREPARATION
Before performing Idle Air Volume Learning, make sure that all of the following conditions are satisfied.
Learning will be cancelled if any of the following conditions are missed for even a moment.

Battery voltage: More than 12.9V (At idle)

Engine coolant temperature: 70 - 95°C (158 - 203°F)

PNP switch: ON

Electric load switch: OFF
(Air conditioner, head lamp, rear window defogger)
On vehicles equipped with daytime light systems, set lighting switch to the 1st position to light
only small lamps.

Steering wheel: Neutral (Straight-ahead position)

Vehicle speed: Stopped

Transmission: Warmed-up
For A/T models with CONSULT-II, drive vehicle until “FLUID TEMP SE” in “DATA MONITOR” mode of “A/
T” system indicates less than 0.9V.
For A/T models without CONSULT-II and M/T models, drive vehicle for 10 minutes.

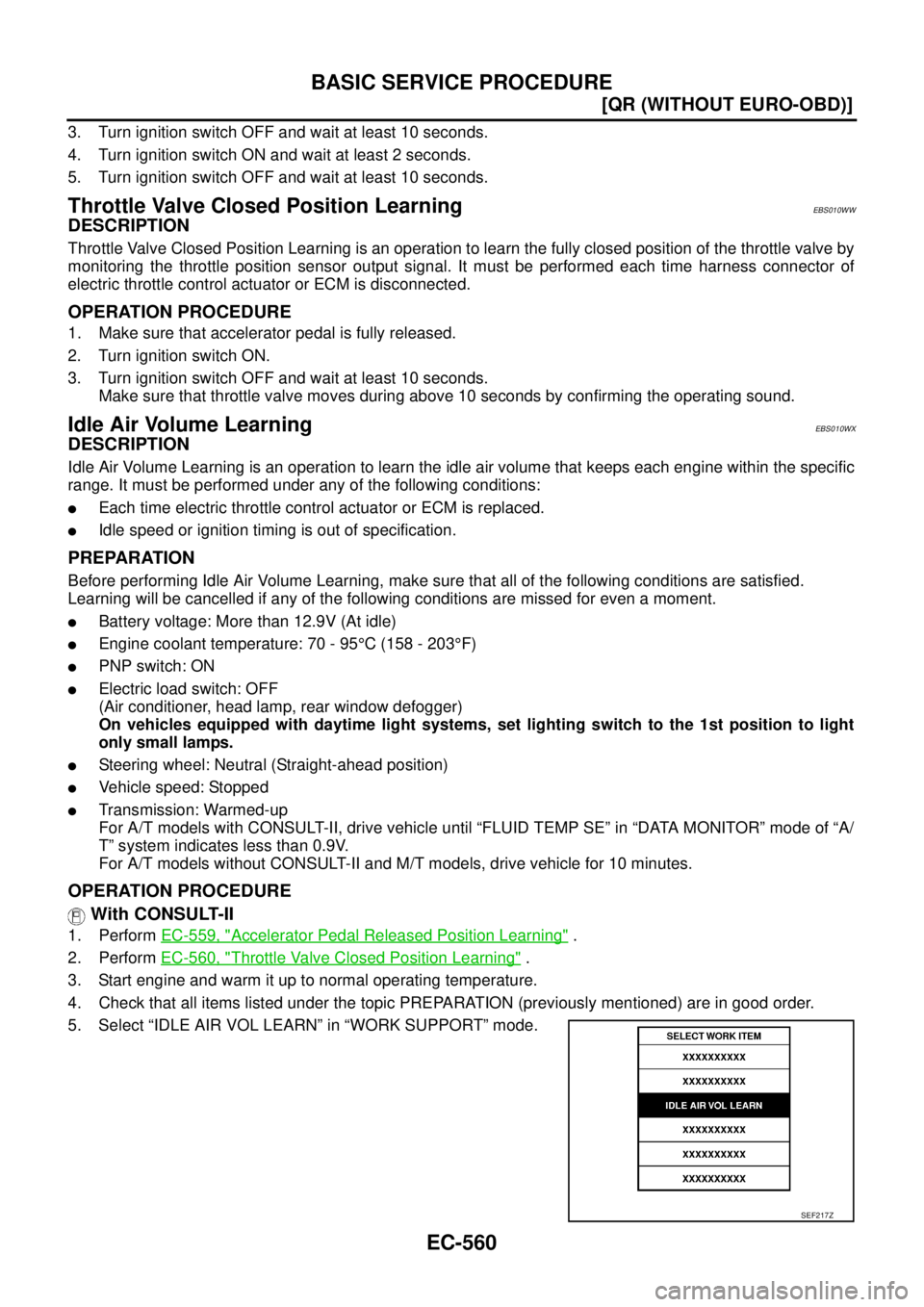

OPERATION PROCEDURE
With CONSULT-II
1. Perform EC-559, "Accelerator Pedal Released Position Learning" .
2. Perform EC-560, "
Throttle Valve Closed Position Learning" .
3. Start engine and warm it up to normal operating temperature.
4. Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.
5. Select “IDLE AIR VOL LEARN” in “WORK SUPPORT” mode.
SEF217Z
