DTC P1574 ASCD VEHICLE SPEED SENSOR

DTC P1574 ASCD VEHICLE SPEED SENSORPFP:31036
Component DescriptionEBS01FBI
ECM receives two vehicle speed sensor signals via CAN communication line. One is sent from ESP/TCS/ABS
control unit (models with ESP) or “ABS actuator and electric unit (control unit)”(models without ESP), and the
other is from TCM (Transmission control module).
The ECM uses these signals for ASCD control. Refer to EC-969, "
AUTOMATIC SPEED CONTROL DEVICE
(ASCD)" for ASCD functions.
On Board Diagnosis LogicEBS01FBJ
This self-diagnosis has the one trip detection logic.
The MI will not light up for this diagnosis.
NOTE:

If DTC P1574 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-633, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .

If DTC P1574 is displayed with DTC P0500, first perform the trouble diagnosis for DTC P0500.
Refer to EC-709, "
DTC P0500 VSS" .

If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-716, "
DTC P0605 ECM" .
DTC Confirmation ProcedureEBS01FBK
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Step 3 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test
is expected to be easier, it is unnecessary to lift the vehicle.
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P1574
1574ASCD vehicle speed
sensorECM detects a difference between two vehicle
speed signals is out of the specified range.

Harness or connectors
(The CAN communication line is open or
shorted)

Harness or connectors
(Revolution sensor circuit is open or shorted)

Harness or connectors
(Wheel sensor circuit is open or shorted.)

TCM

ESP/TCS/ABS control unit (models with ESP)

“ABS actuator and electric unit (control unit)”
(models without ESP)

Combination meter

Wheel sensor

Revolution sensor

ECM

DTC P1574 ASCD VEHICLE SPEED SENSOR
EC-801
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

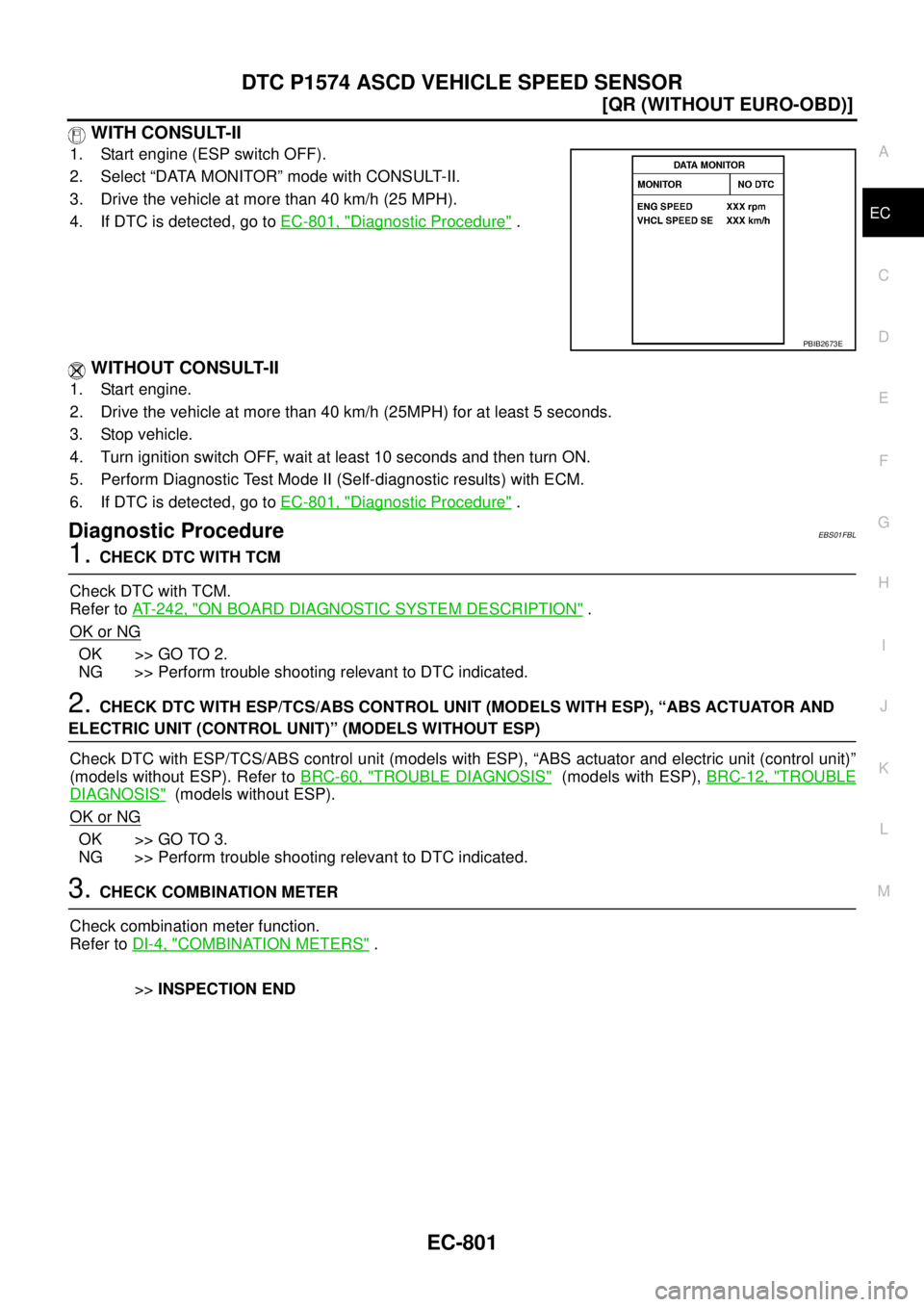

WITH CONSULT-II
1. Start engine (ESP switch OFF).
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Drive the vehicle at more than 40 km/h (25 MPH).
4. If DTC is detected, go to EC-801, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. Drive the vehicle at more than 40 km/h (25MPH) for at least 5 seconds.
3. Stop vehicle.
4. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
5. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
6. If DTC is detected, go to EC-801, "
Diagnostic Procedure" .
Diagnostic ProcedureEBS01FBL
1. CHECK DTC WITH TCM
Check DTC with TCM.
Refer to AT- 2 4 2 , "
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION" .
OK or NG
OK >> GO TO 2.
NG >> Perform trouble shooting relevant to DTC indicated.
2. CHECK DTC WITH ESP/TCS/ABS CONTROL UNIT (MODELS WITH ESP), “ABS ACTUATOR AND
ELECTRIC UNIT (CONTROL UNIT)” (MODELS WITHOUT ESP)
Check DTC with ESP/TCS/ABS control unit (models with ESP), “ABS actuator and electric unit (control unit)”
(models without ESP). Refer to BRC-60, "
TROUBLE DIAGNOSIS" (models with ESP), BRC-12, "TROUBLE
DIAGNOSIS" (models without ESP).
OK or NG
OK >> GO TO 3.
NG >> Perform trouble shooting relevant to DTC indicated.
3. CHECK COMBINATION METER
Check combination meter function.
Refer to DI-4, "
COMBINATION METERS" .
>>INSPECTION END
