DTC P0745 LINE PRESSURE SOLENOID VALVE
AT-157
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004RW

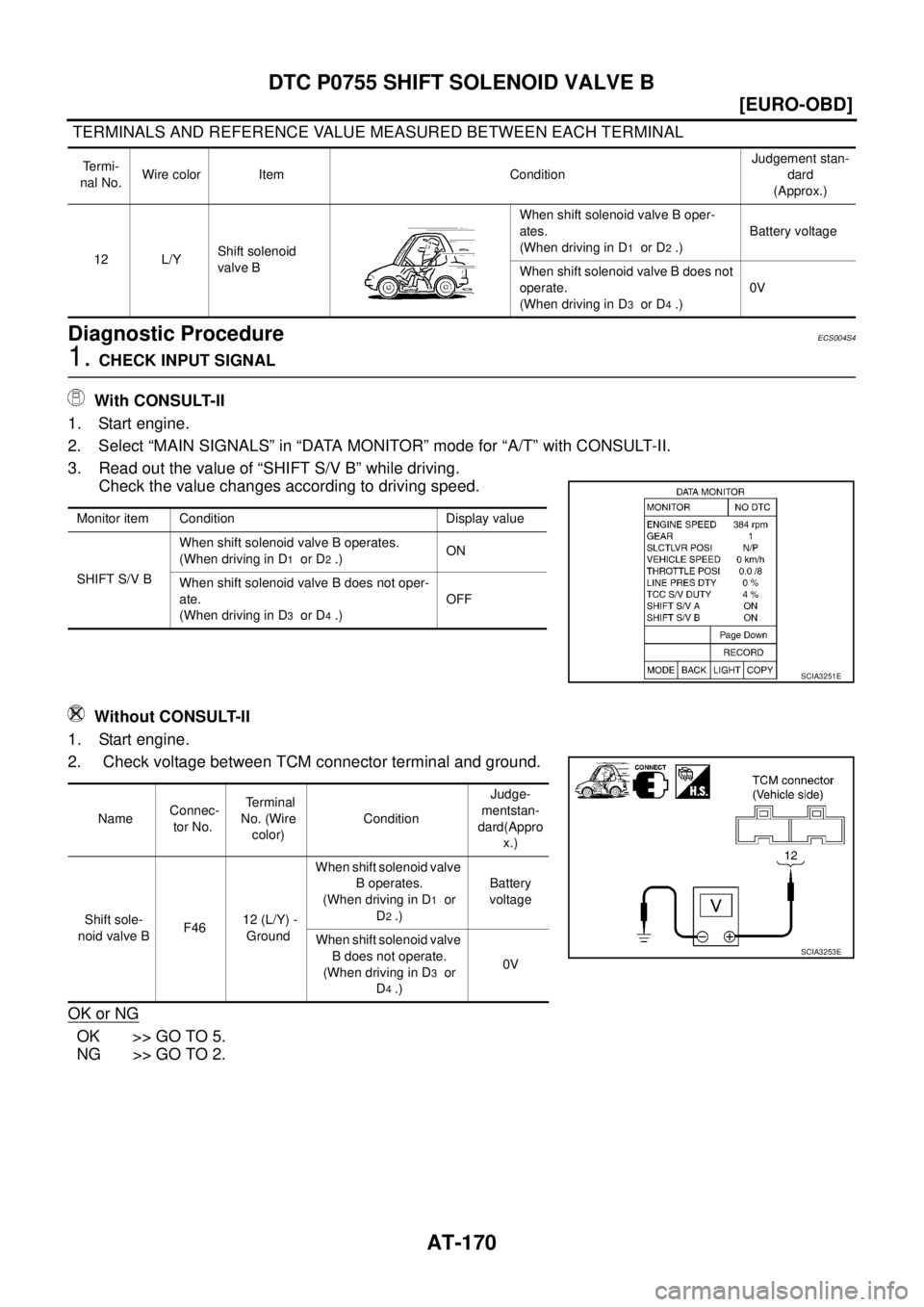

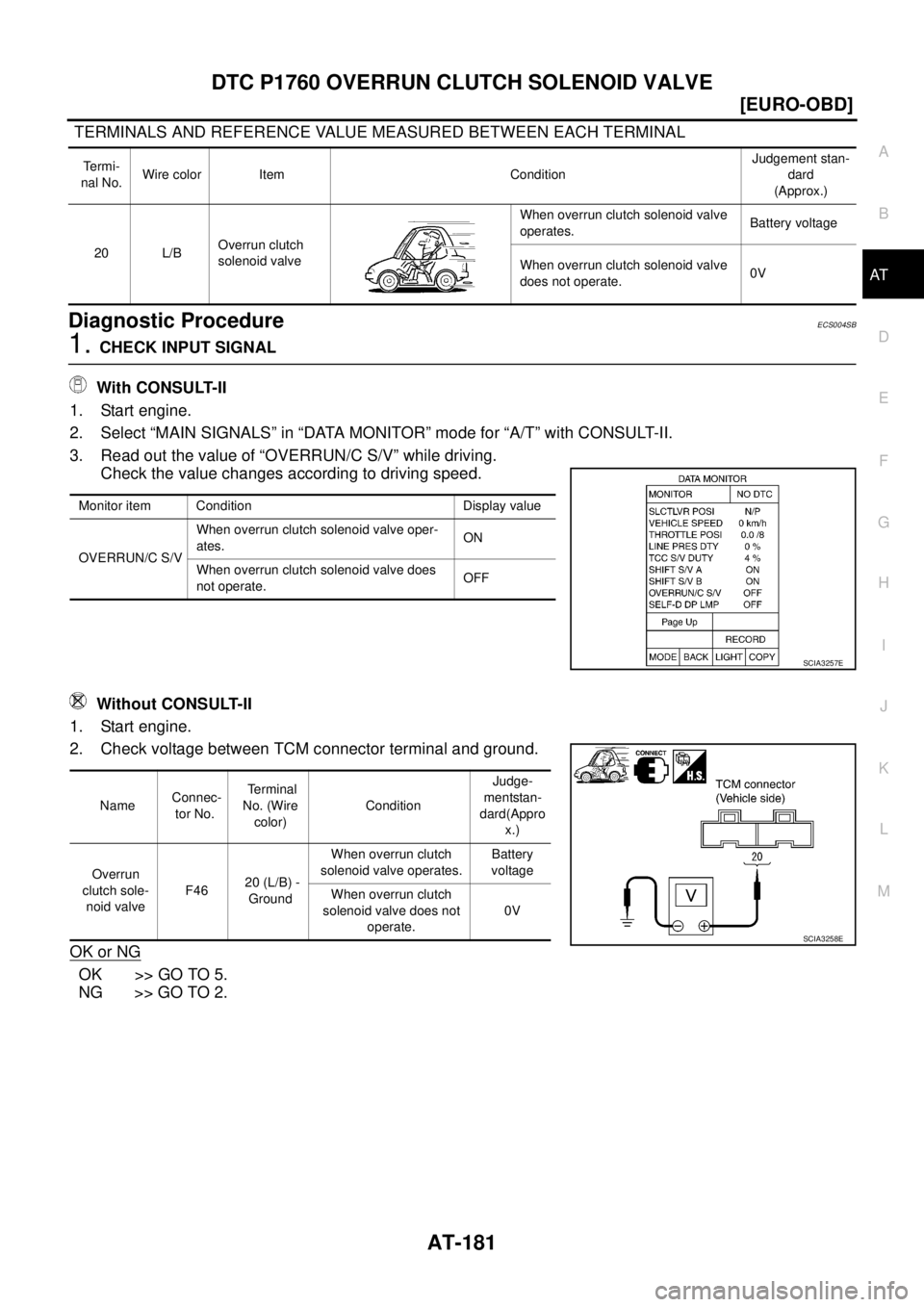

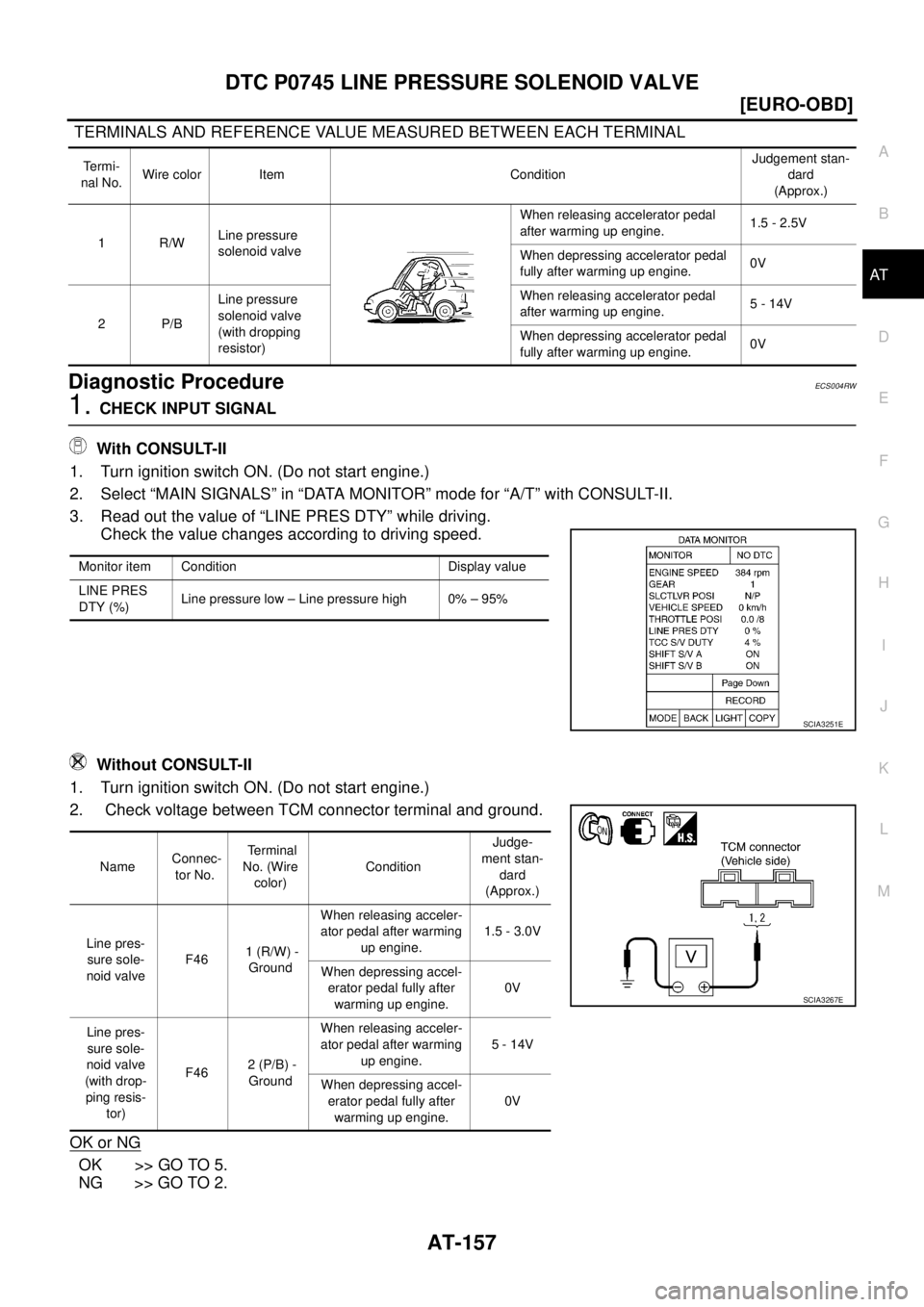

1. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “LINE PRES DTY” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
1R/WLine pressure
solenoid valveWhen releasing accelerator pedal
after warming up engine.1.5 - 2.5V
When depressing accelerator pedal
fully after warming up engine.0V
2P/BLine pressure
solenoid valve
(with dropping
resistor)When releasing accelerator pedal
after warming up engine.5 - 14V
When depressing accelerator pedal
fully after warming up engine.0V
Monitor item Condition Display value
LINE PRES
DTY (%)Line pressure low – Line pressure high 0% – 95%
SCIA3251E
Name Connec-
tor No. Terminal
No. (Wire
color) ConditionJudge-
ment stan-
dard
(Approx.)
Line pres-
sure sole-
noid valve F46 1 (R/W) -
GroundWhen releasing acceler-
ator pedal after warming
up engine.1.5 - 3.0V
When depressing accel-
erator pedal fully after
warming up engine.0V
Line pres-
sure sole-
noid valve
(with drop-
ping resis-
tor) F46 2 (P/B) -
GroundWhen releasing acceler-
ator pedal after warming
up engine.5 - 14V
When depressing accel-
erator pedal fully after
warming up engine.0V
SCIA3267E

DTC P0750 SHIFT SOLENOID VALVE A
AT-161
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

DTC P0750 SHIFT SOLENOID VALVE APFP:31940
DescriptionECS004RY
Shift solenoid valves A and B are turned ON or OFF by the TCM in
response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
CONSULT-II REFERENCE VALUE IN DATE MONITOR MODE
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CUA
Possible CauseECS00CUB
Check the following items.

Harness or connector
(The solenoid circuit is open or shorted.)

Shift solenoid valve A
DTC Confirmation ProcedureECS00CUC
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch OFF and
wait at least 5 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
SCIA0718E
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Monitor item Condition Display value
SHIFT S/V A (ON/OFF)When shift solenoid valve A operates.
(When driving in D
1 or D4 .)ON
When shift solenoid valve A does not operate.
(When driving in D
2 or D3 .)OFF
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: SHIFT SOLENOID/V A
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.

Harness or connectors
(The solenoid circuit is open or shorted.)

Shift solenoid valve A
: P0750

AT-164
[EURO-OBD]
DTC P0750 SHIFT SOLENOID VALVE A

TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004S0
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “SHIFT S/V A” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Termi-
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
11 L / WShift solenoid
valve AWhen shift solenoid valve A oper-
ates.
(When driving in “D
1 ” or “D4 ”.)Battery voltage
When shift solenoid valve A does not
operate.
(When driving in “D
2 ” or “D3 ”.)0V
Monitor item Condition Display value
SHIFT S/V AWhen shift solenoid valve A operates.
(When driving in D
1 or D4 .)ON
When shift solenoid valve A does not oper-
ate.
(When driving in D
2 or D3 .)OFF
SCIA3251E
Name Connec-
tor No. Terminal
No. (Wire
color) ConditionJudge-
mentstan-
dard(Appro
x.)
Shift sole-
noid valve A F46 11 (L/W) -
GroundWhen shift solenoid valve
A operates.
(When driving in D
1 or
D
4 .)Battery
voltage
When shift solenoid valve
A does not operate.
(When driving in D
2 or
D
3 .)0V
SCIA3248E

DTC P0755 SHIFT SOLENOID VALVE B
AT-167
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

DTC P0755 SHIFT SOLENOID VALVE BPFP:31940
DescriptionECS004S2
Shift solenoid valves A and B are turned ON or OFF by the TCM in
response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CUD
Possible CauseECS00CUE
Check the following items.

Harness or connector
(The solenoid circuit is open or shorted.)

Shift solenoid valve B
DTC Confirmation ProcedureECS00CUF
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch OFF and
wait at least 5 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
SCIA0718E
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Monitor item Condition Display value
SHIFT S/V B (ON/OFF)When shift solenoid valve B operates.
(When driving in D
1 or D2 .)ON
When shift solenoid valve B does not operate.
(When driving in D
3 or D4 .)OFF
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: SHIFT SOLENOID/V B
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.

Harness or connectors
(The solenoid circuit is open or shorted.)

Shift solenoid valve B
: P0755

AT-170
[EURO-OBD]
DTC P0755 SHIFT SOLENOID VALVE B

TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004S4
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “SHIFT S/V B” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Termi-
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
12 L/YShift solenoid
valve BWhen shift solenoid valve B oper-
ates.
(When driving in D
1 or D2 .)Battery voltage
When shift solenoid valve B does not
operate.
(When driving in D
3 or D4 .)0V
Monitor item Condition Display value
SHIFT S/V BWhen shift solenoid valve B operates.
(When driving in D
1 or D2 .)ON
When shift solenoid valve B does not oper-
ate.
(When driving in D
3 or D4 .)OFF
SCIA3251E
Name Connec-
tor No. Terminal
No. (Wire
color) ConditionJudge-
mentstan-
dard(Appro
x.)
Shift sole-
noid valve B F46 12 (L/Y) -
GroundWhen shift solenoid valve
B operates.
(When driving in D
1 or
D
2 .)Battery
voltage
When shift solenoid valve
B does not operate.
(When driving in D
3 or
D
4 .)0V
SCIA3253E

DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR
AT-177
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

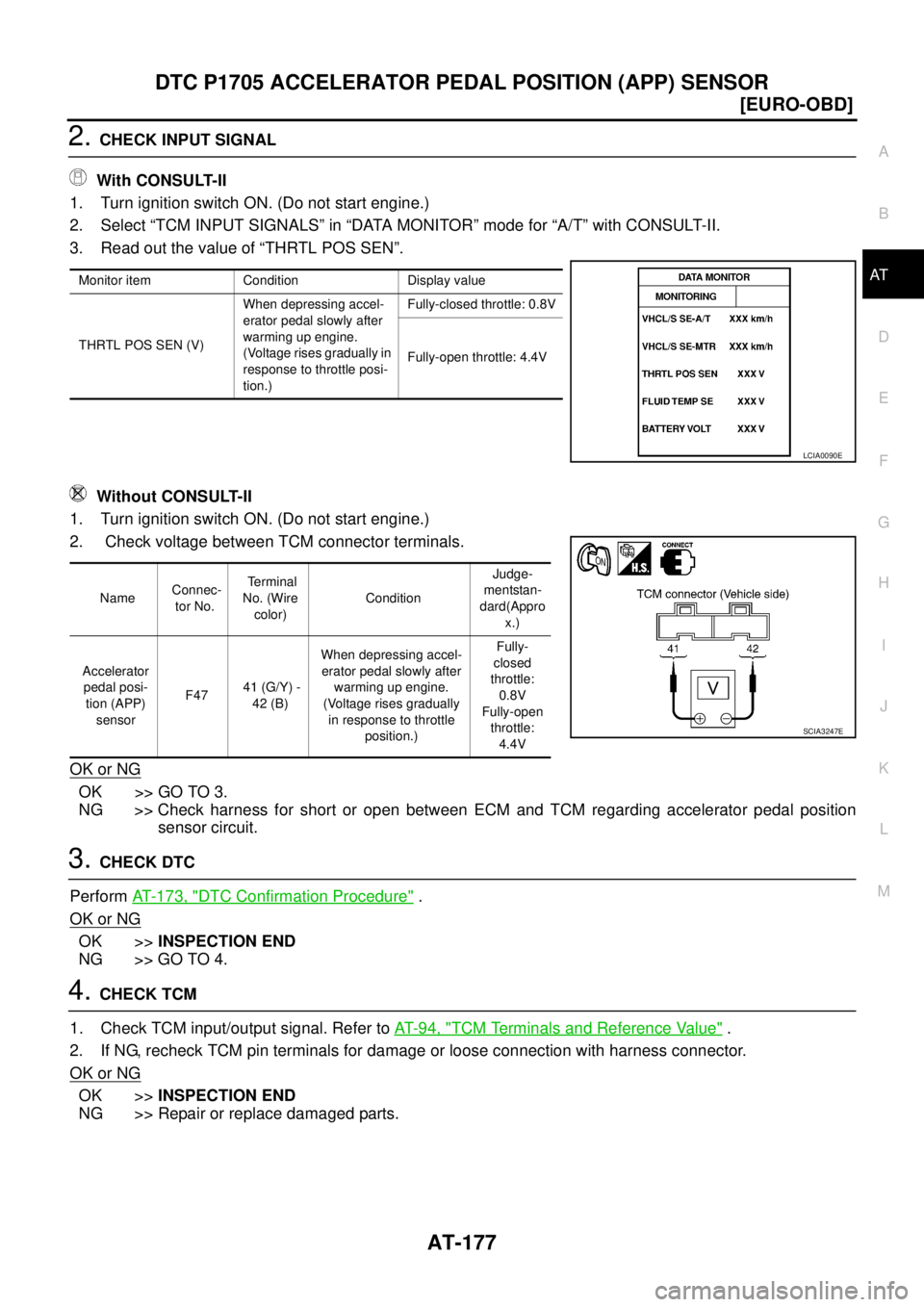

2. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “THRTL POS SEN”.
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector terminals.
OK or NG
OK >> GO TO 3.
NG >> Check harness for short or open between ECM and TCM regarding accelerator pedal position
sensor circuit.
3. CHECK DTC
Perform AT- 1 7 3 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
4. CHECK TCM
1. Check TCM input/output signal. Refer to AT- 9 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Monitor item Condition Display value
THRTL POS SEN (V)When depressing accel-
erator pedal slowly after
warming up engine.
(Voltage rises gradually in
response to throttle posi-
tion.)Fully-closed throttle: 0.8V
Fully-open throttle: 4.4V
LCIA0090E
Name Connec-
tor No. Terminal
No. (Wire
color) ConditionJudge-
mentstan-
dard(Appro
x.)
Accelerator
pedal posi-
tion (APP)
sensor F47 41 (G/Y) -
42 (B)When depressing accel-
erator pedal slowly after
warming up engine.
(Voltage rises gradually
in response to throttle
position.)Fully-
closed
throttle:
0.8V
Fully-open
throttle:
4.4V
SCIA3247E

DTC P1760 OVERRUN CLUTCH SOLENOID VALVE
AT-181
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004SB
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “OVERRUN/C S/V” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
20 L/BOverrun clutch
solenoid valveWhen overrun clutch solenoid valve
operates.Battery voltage
When overrun clutch solenoid valve
does not operate.0V
Monitor item Condition Display value
OVERRUN/C S/VWhen overrun clutch solenoid valve oper-
ates.ON
When overrun clutch solenoid valve does
not operate.OFF
SCIA3257E
Name Connec-
tor No. Terminal
No. (Wire
color) ConditionJudge-
mentstan-
dard(Appro
x.)
Overrun
clutch sole-
noid valve F46 20 (L/B) -
GroundWhen overrun clutch
solenoid valve operates.Battery
voltage
When overrun clutch
solenoid valve does not
operate.0V
SCIA3258E

AT-188
[EURO-OBD]
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)

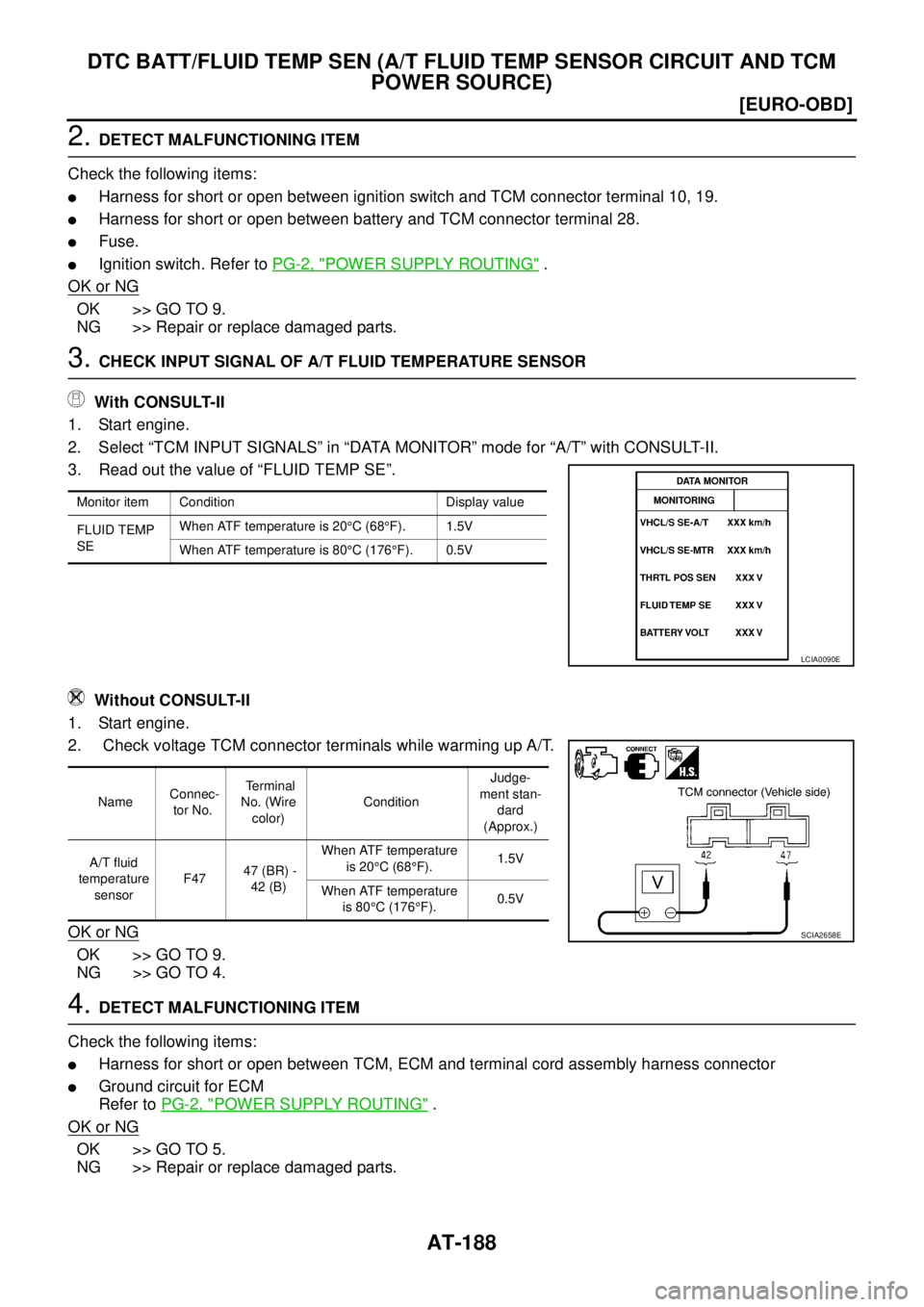

2. DETECT MALFUNCTIONING ITEM
Check the following items:

Harness for short or open between ignition switch and TCM connector terminal 10, 19.

Harness for short or open between battery and TCM connector terminal 28.

Fuse.

Ignition switch. Refer to PG-2, "POWER SUPPLY ROUTING" .
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.
3. CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “FLUID TEMP SE”.
Without CONSULT-II
1. Start engine.
2. Check voltage TCM connector terminals while warming up A/T.
OK or NG
OK >> GO TO 9.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING ITEM
Check the following items:

Harness for short or open between TCM, ECM and terminal cord assembly harness connector

Ground circuit for ECM
Refer to PG-2, "
POWER SUPPLY ROUTING" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
Monitor item Condition Display value
FLUID TEMP
SEWhen ATF temperature is 20°C (68°F). 1.5V
When ATF temperature is 80°C (176°F). 0.5V
LCIA0090E
Name Connec-
tor No. Terminal
No. (Wire
color) ConditionJudge-
ment stan-
dard
(Approx.)
A/T fluid
temperature
sensor F47 47 (BR) -
42 (B)When ATF temperature
is 20°C (68°F).1.5V
When ATF temperature
is 80°C (176°F).0.5V
SCIA2658E
