RADIATOR
CO-35
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
CO

RADIATORPFP:21400
Removal and InstallationEBS00BB0
WARNING:
Do not remove radiator cap when engine is hot. Serious burns could occur from high-pressure engine
coolant escaping from radiator.
REMOVAL
1. Drain engine coolant from radiator. Refer to CO-32, "DRAINING ENGINE COOLANT" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
2. Disconnect radiator hose (upper and lower).
3. Remove reservoir tank hose and radiator mounting bracket.
4. Remove radiator and cooling fan assembly.
CAUTION:
Do not damage or scratch radiator core when removing.
INSTALLATION
Installation is the reverse order of removal.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using the radiator cap tester adapter (special service tool:
EG17650301) and the radiator cap tester (commercial service tool). Refer to CO-32, "
CHECKING RADIA-
TOR SYSTEM FOR LEAKS" .
1. Radiator 2. Radiator mounting bracket 3. Mounting rubber (upper)
4. Radiator cap 5. Mounting rubber (lower) 6. O-ring
7. Drain plug 8. Radiator hose (lower) 9. Cooling fan assembly
10. Reservoir tank bracket 11. Reservoir tank 12. Reservoir tank hose
13. Radiator hose (upper)
PBIC3609E

COOLING FAN
CO-37
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
CO

COOLING FANPFP:21140
Removal and InstallationEBS011WO
REMOVAL
1. Drain engine coolant from radiator. Refer to CO-32, "Changing Engine Coolant" .
CAUTION:
Perform when engine is cold.
2. Remove air duct (inlet) and air duct assembly. Refer to EM-142, "
AIR CLEANER AND AIR DUCT" .
3. Disconnect radiator hose (upper) at radiator side. Refer to CO-12, "
RADIATOR" .
CAUTION:
Do not spill engine coolant on drive belt.
4. Disconnect harness connectors from fan motors, and move them to aside.
5. Remove radiator cooling fan assembly. Refer to CO-35, "
RADIATOR" .
CAUTION:
Be careful not to damage or scratch on radiator core.
INSTALLATION
Installation is the reverse order of removal.

Cooling fans are controlled by ECM. For details, refer to EC-1124, "DTC P0217 ENGINE OVER TEM-
PERATURE" (WITH EURO-OBD), EC-1480, "DTC P0217 ENGINE OVER TEMPERATURE" (WITHOUT
EURO-OBD).
DISASSEMBLY AND ASSEMBLY
Disassembly
1. Remove cooling fans.
2. Remove cooling fan motor (RH and LH) from cooling fan shroud.

Put marks to identify installation positions of cooling fan motor.

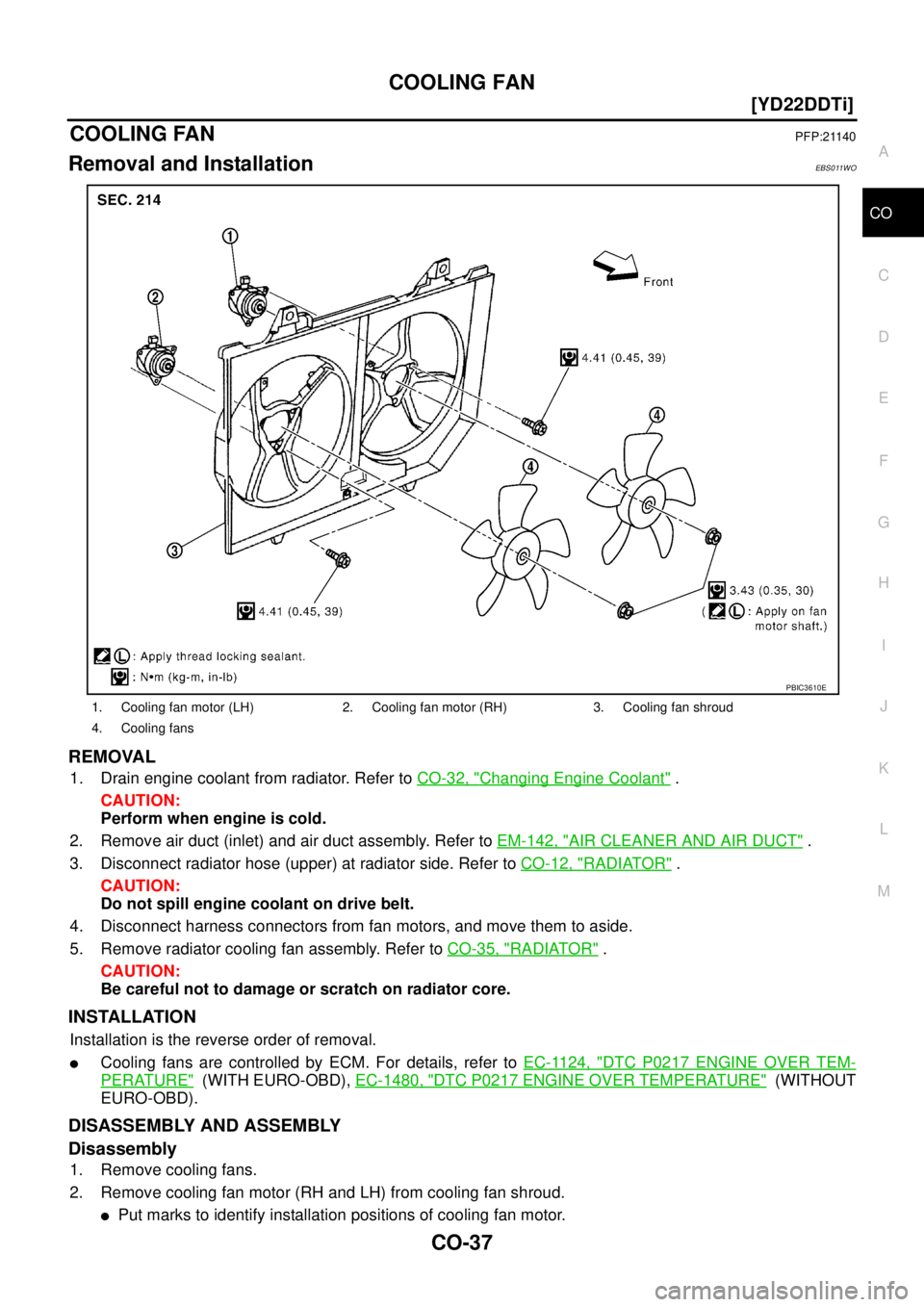

1. Cooling fan motor (LH) 2. Cooling fan motor (RH) 3. Cooling fan shroud
4. Cooling fans
PBIC3610E
