2005 NISSAN 350Z display

1. Press the DEST button.
2. Select the
Previous Dest. key on the [DEST.
SETTING] screen.
A total of 10destinations and locations previ-
ously set will be displayed.3. Select the item key of your destination (way-
points) on the [DEST. SETTING (Previous
Dest.)] screen.4. To set the destination (waypoints), refer to
“Making the system guide the route with
detailed options” on page 5-32.
INV2318
INV2384
INV2385
5-6
How do I program a destination?


04.7.6/Z33-N


5. To slightly alter the destination.
Select the
Map key to display the map
screen of the area around the specified des-
tination (waypoints).6. If necessary, operate the joystick to adjust the
location of the destination (waypoints). Press
the PUSH ENTER button. Select the
Destination key to confirm. The [DEST.
SETTING (Previous Dest.)] screen will be
displayed.
To set the destination (waypoints), refer to
“Making the system guide the route with
detailed options” on page 5-32.
SETTING WITH THE
Street Address
KEYSets the destination (waypoints) from the street
names and addresses that you enter.
There are two search methods; direct search by
the street names, and search by the street
names after the state/province and/or the city
are defined.
INV2386
INV1484
How do I program a destination?
5-7


04.7.6/Z33-N


1. First press the DEST button.
2. Select the
Street Address key.
Setting with the
List
key
The
List key is used when you know the names
of the destination and waypoints.
1. A keyboard will be displayed on the [DEST.
SETTING (Street Address)] screen. Enter the
street name you want to set.
INFO:
It is not possible to enter names if they are not
stored in the DVD-ROM.2. Enter the street name of your destination.
For example, enter
T , then
U.
3. Enter
U , then select the
List key.
The list screen of street names which begin
with
TU will appear.
INV2319
INV2320
INV2321
5-8
How do I program a destination?


04.7.6/Z33-N


If less than 5 suggested streets remain, they
will be displayed automatically without se-
lecting the
List key.

The city names and street names will be
displayed.

Use the joystick to scroll the display.

When theNext Search key is selected, it is
possible to narrow down cities. To use this
function, refer to “Setting with the
City key” on page 5-12.

When the PREVIOUS button is pressed,
the screen to input street names will be
displayed.4. Select one street of your destination.
5. Enter the house number.
Select the
OK key.
INFO:
It may not be possible to specify a location after
selecting the
OK key. In that case, a list of
locations which correspond to the entered
house number will be displayed.
NOTE:
If a house number is entered and it is not a
“direct hit” for house numbers already
stored in the database, then only a map to
the general vicinity will be displayed.
INV2322
INV2324
How do I program a destination?
5-9


04.7.6/Z33-N


6. To set the destination (waypoints), refer to
“Making the system guide the route with
detailed options” on page 5-32.7. To slightly alter the destination.
Select the
Map key to display the map
screen of the area around the specified des-
tination (waypoints).
INFO:

An approximate location corresponding to
the house number entered is displayed. If
necessary, correct the location using the
joystick.

The location displayed by the calculation
using the house number may differ from the
actual location. In that case, correct the
location using the joystick.8. If necessary, operate the joystick to adjust the
location of the destination (waypoint). Press
the PUSH ENTER button. Select the
Destination key to confirm. The [DEST.
SETTING (Street Address)] screen will be
displayed.
To set the destination (waypoint), refer to
“Making the system guide the route with
detailed options” on page 5-32.
INV2325
INV2323
INV1492
5-10
How do I program a destination?


04.7.6/Z33-N


Setting with the
State
key
The
State key is used when you select a
state/province to set the destination.
1. Select the
State key.2. The display shows the screen to select
states/provinces.
Input a state/province name.INFO:
When the
Last 5 States key is selected in step
2, the previous five settings will be listed.
INV2326
INV2327
INV2328
How do I program a destination?
5-11


04.7.6/Z33-N


3. The display shows the state/province list.
Select a state/province name.4. The screen returns to the [DEST. SETTING
(Street Address)] screen.
When the state/province is set, the display
shows the selected state/province next to the
State key.
Input the street name.
Please refer to “Setting with the
List key” on
page 5-8.
Setting with the
City
key
The
City key is used when you select a city to
set the destination.
1. Select the
City key.

The display shows the screen to select cities.
INV2329
INV2330
INV2331
5-12
How do I program a destination?


04.7.6/Z33-N

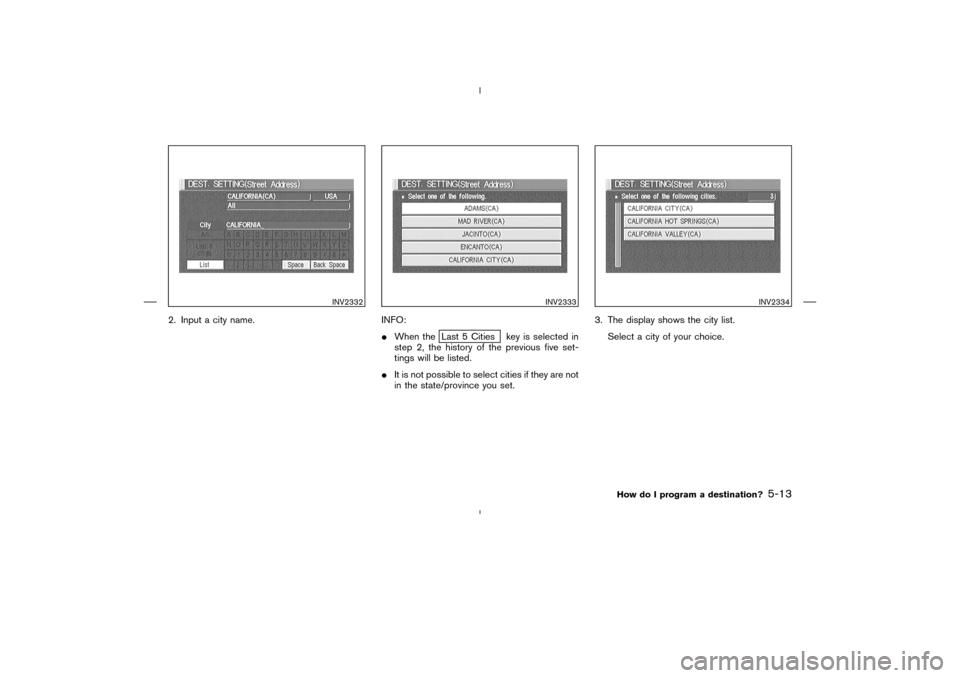

2. Input a city name. INFO:

When the
Last 5 Cities key is selected in
step 2, the history of the previous five set-
tings will be listed.

It is not possible to select cities if they are not
in the state/province you set.3. The display shows the city list.
Select a city of your choice.
INV2332
INV2333
INV2334
How do I program a destination?
5-13


04.7.6/Z33-N
