ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-6
ENGINE AND TRANSMISSIONM1801000401079
B-01 (2-GR) INJECTOR 1
B-02 (3-B) MANIFOLD ABSOLUTE PRESSURE
SENSOR
B-03 (2-GR) INJECTOR 3
B-04 (2-GR) INJECTOR 5
B-05 (2-B) EVAPORATIVE EMISSION PURGE
SOLENOID
B-06 (6-B) THROTTLE BODY ASSEMBLY
B-07 (2-GR) BRAKE FLUID LEVEL SWITCHB-08 (4-GR) RIGHT BANK HEATED OXYGEN
SENSOR (REAR)
B-09 (4-B) RIGHT BANK HEATED OXYGEN
SENSOR (FRONT)
B-10 (5) MASS AIRFLOW SENSOR
B-16X (4) A/T CONTROL RELAY
B-17X (4) MPI RELAY
B-18X (4) A/C COMPRESSOR CLUTCH RELAY

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-7
B-19 (34) A/T-ECU
B-20 (60) ENGINE-ECU
B-21 (94) ENGINE-ECU
B-22 (26) A/T-ECU
B-24 (4-GR) LEFT BANK HEATED OXYGEN
SENSOR (REAR)
B-25 (4-B) LEFT BANK HEATED OXYGEN
SENSOR (FRONT)
B-26 (2-GR) INJECTOR 6B-27 (2-GR) INJECTOR 4
B-28 (1-B) A/C COMPRESSOR ASSEMBLY
B-29 (1-B) ENGINE OIL PRESSURE SWITCH
B-30 (2-GR) INJECTOR 2
B-31 (1-B) POWER STEERING PRESSURE
SWITCH
B-32 (10-B) CONTROL WIRING HARNESS AND
INJECTOR WIRING HARNESS
COMBINATION

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-8
B-101 (3-GR) IGNITION COIL 1
B-102 (3-GR) IGNITION COIL 3
B-103 (3-GR) IGNITION COIL 5
B-104 (2-B) ENGINE COOLANT TEMPERATURE
SENSOR
B-106 (3-B) CAMSHAFT POSITION SENSORB-107 (3-GR) OUTPUT SHAFT SPEED SENSOR
B-108 (10-GR) A/T CONTROL SOLENOID VALVE
ASSEMBLY
B-109 (3-B) INPUT SHAFT SPEED SENSOR
B-110 (10-B) TRANSMISSION INHIBITOR
(RANGE) SWITCH

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-9
B-112 (1) STARTER
B-113 (1-B) STARTER
B-114 (3-GR) IGNITION COIL 6
B-115 (1) ALTERNATOR
B-116 (2) ALTERNATORB-117 (3-GR) IGNITION COIL 4
B-118 (3-GR) IGNITION COIL 2
B-119 (3-B) CRANKSHAFT POSITION SENSOR
B-120 (2-GR) KNOCK SENSOR

DASH PANEL
CONFIGURATION DIAGRAMS80-10
DASH PANELM1801000601147
C-02 (22) J/C (3)
C-04 (4) PHOTO SENSOR AND
SECURITY LED
C-05 (20-B) MULTI CENTRE DISPLAY UNIT
C-06 (4) CLOCK DISPLAY CENTRE DISPLAY>
C-07 (2) CLUTCH SWITCH (M/T)
C-08 (4) HAZARD WARNING LIGHT SWITCH
C-11 (2) INSTRUMENT PANEL WIRING
HARNESS AND FRONT WIRING
HARNESS COMBINATIONC-12 (22) INSTRUMENT PANEL WIRING
HARNESS AND FRONT DOOR
WIRING HARNESS (RH)
COMBINATION
C-13 (8) INSTRUMENT PANEL WIRING
HARNESS AND FLOOR WIRING
HARNESS COMBINATION
C-15 (20-B) A/C-ECU
C-16 (16-B) A/C-ECU
C-17 (2) ACCESSORY SOCKET (1)

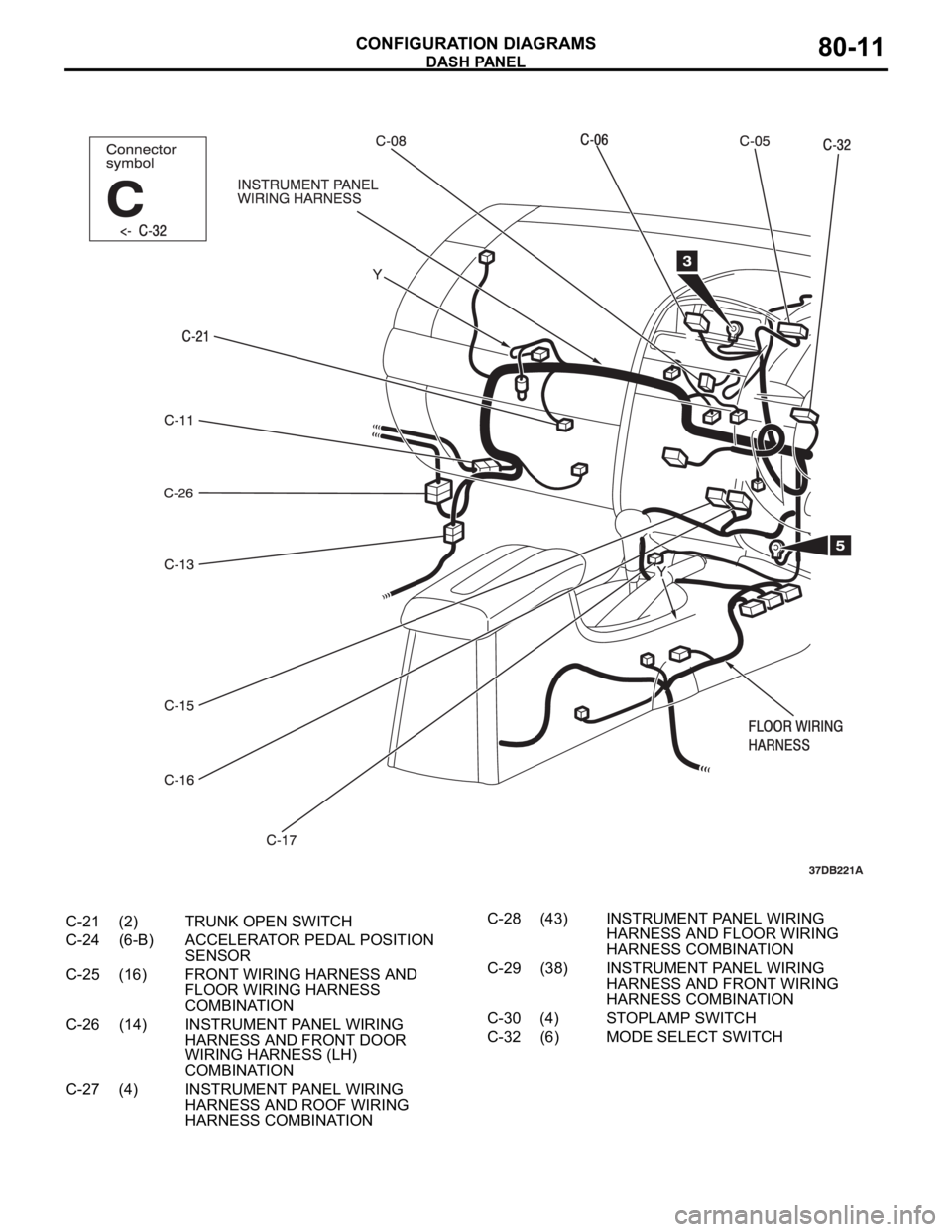

DASH PANEL
CONFIGURATION DIAGRAMS80-11
C-21 (2) TRUNK OPEN SWITCH
C-24 (6-B) ACCELERATOR PEDAL POSITION
SENSOR
C-25 (16) FRONT WIRING HARNESS AND
FLOOR WIRING HARNESS
COMBINATION
C-26 (14) INSTRUMENT PANEL WIRING
HARNESS AND FRONT DOOR
WIRING HARNESS (LH)
COMBINATION
C-27 (4) INSTRUMENT PANEL WIRING
HARNESS AND ROOF WIRING
HARNESS COMBINATIONC-28 (43) INSTRUMENT PANEL WIRING
HARNESS AND FLOOR WIRING
HARNESS COMBINATION
C-29 (38) INSTRUMENT PANEL WIRING
HARNESS AND FRONT WIRING
HARNESS COMBINATION
C-30 (4) STOPLAMP SWITCH
C-32 (6) MODE SELECT SWITCH

DASH PANEL
CONFIGURATION DIAGRAMS80-13
C-115 (2) BLOWER MOTOR
C-121 (28-Y) SRS-ECU (INSTRUMENT PANEL
HARNESS)
C-123 (2) INTERIOR TEMPERATURE SENSOR
C-125 (16-B) DATA LINK CONNECTORC-126 (2) AIR THERMO SENSOR
C-128 (6) FOG LAMP SWITCH
C-129 (2-B) TWEETER SPEAKER (LH)
C-131 (6-GR) TCL SWITCH

FLOOR, SEAT AND ROOF
CONFIGURATION DIAGRAMS80-17
FLOOR, SEAT AND ROOFM1801000900930
D-01 (2) VANITY MIRROR LIGHT (RH)
D-02 (4) MAP LIGHT ASSEMBLY SUNROOF>
D-03 (7) OVERHEAD CONSOLE ASSEMBLY

D-04 (10) SUNROOF ASSEMBLY
D-05 (2) VANITY MIRROR LIGHT (LH)
D-06 (3) REAR DOOR SWITCH (RH)
D-07 (3) REAR DOME LIGHT
D-09 (2) REAR SPEAKER (RH)
D-10 (2) TRUNK LAMP
D-11 (1) DEFOGGER (CHOKE COIL)
D-12 (2) REAR SPEAKER (LH)
D-13 (1-B) PARKING BRAKE SWITCHD-14 (6) A/T SHIFT SWITCH AND SELECT
POSITION ILLUMINATION LIGHT
D-15 (2) SUB WIRING HARNESS FOR
ACCESSORY SOCKET (2)
D-16 (3) REAR DOOR SWITCH (LH)
D-17 (2) FUEL LEVEL SENSOR (SUB)
D-18 (5-GR) FUEL PUMP MODULE
D-19 (10) FLOOR WIRING HARNESS AND
REAR DOOR WIRING HARNESS
(LH) COMBINATION
D-20 (2) SIDE IMPACT SENSOR (LH)
D-21 (2-B) SEAT BELT PRETENSIONER (LH)
D-22 (3) FRONT DOOR SWITCH (LH)
D-24 (2-R) SIDE AIR BAG MODULE (SQUIB)
(LH)
