LT-160
INTERIOR ROOM LAMP
Revision: 2005 July 2005 FX
When the room lamp and personal lamp turns ON, there is a gradual brightening over 1 second. When room
lamp and personal lamp turns OFF, there is a gradual dimming over 1 second.
The room lamp and personal lamp timer is controlled by the BCM (body control module).
Room lamp and personal lamp timer control settings can be changed with CONSULT-II.
Ignition keyhole illumination turns ON at time when driver door is opened (door switch ON) or removed keyfob
from key cylinder. Illumination turns OFF when driver door is closed (door switch OFF).
Step lamp turns ON at time when driver door or passenger door is opened (door switch ON). Lamp turns OFF
when the driver, passenger doors are closed (all door switches OFF).
POWER SUPPLY AND GROUND
Power is supplied at all times (without Intelligent Key system)

through 15A fuse [No. 22, located in fuse block (J/B)]

to key switch terminal 2, and

to BCM terminal 42,

through 50A fusible link (letter M, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8.
Power is supplied at all times (with Intelligent Key system)

through 10A fuse (No.38, located in fuse, fusible link and relay box)

to key switch and ignition knob switch terminal 1,

through 15A fuse [No.22, located in fuse block (J/B)]

to BCM terminal 42,

to key switch and ignition knob switch terminal 3,

through 50A fusible link (letter M, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8.
When key plate inserted to key switch, power is supplied (without Intelligent Key system)

through key switch terminal 1

to BCM terminal 37.
When inserted key plate to key switch, power is supplied (with Intelligent Key system)

through key switch and ignition knob switch terminal 4

to BCM terminal 37.
When moved ignition knob switch, power is supplied (with Intelligent Key system)

through ignition knob switch terminal 2

to intelligent key unit terminal 27.
With ignition switch in the ON or START position, power is supplied

through 15A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38.
Ground is supplied

to BCM terminals 49 and 52

through grounds terminals M35, M45 and M85.
When driver side door is opened, ground is supplied

through case ground of front door switch (driver side)

through front door switch (driver side) terminal 1

to BCM terminal 62.
When passenger side door is opened, ground is supplied

through case ground of front door switch (passenger side)

through front door switch (passenger side) terminal 1

to BCM terminal 12.

ILLUMINATION LT-189
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
ILLUMINATIONPFP:27545
System DescriptionAKS007EI
Control of illumination lamps operation is dependent upon position of lighting switch (combination switch).
When lighting switch is placed in the 1ST or 2ND position (or if auto light system is activated), BCM (body con-
trol module) receives input signal requesting illumination lamps to illuminate. This input signal is communi-
cated to IPDM E/R (intelligent power distribution module engine room) across the CAN communication lines.
The CPU (central processing unit) located in the IPDM E/R controls tail lamp relay coil. This relay, when ener-
gized, directs power to illumination lamps, which then illuminate.
Power is supplied at all times

through 10A fuse (No. 71, located in IPDM E/R)

to tail lamp relay, located in IPDM E/R, and

to CPU located in IPDM E/R.
Power is also supplied at all times

through 50A fusible link (letter M, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 15A fuse [No. 22 located in fuse block (J/B)]

to BCM terminal 42,

through 15A fuse (No. 78, located in IPDM E/R)

to CPU located in IPDM E/R,

through 10A fuse [No. 19 located in fuse block (J/B)]

to unified meter and A/C amp. terminal 21, and

to combination meter terminal 8.
With ignition switch in ON or START position, power is supplied

to ignition relay, located in IPDM E/R, from battery direct,

through 15A fuse [No. 1 located in fuse block (J/B)]

to BCM terminal 38,

through 10A fuse [No. 12, located in fuse block (J/B)]

to unified meter and A/C amp. terminal 22,

through 10A fuse [No. 14 located in fuse block (J/B)]

to combination meter terminal 7.
With ignition switch in ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminals 49 and 52

to unified meter and A/C amp. terminals 29 and 30, and

to combination meter terminals 5, 6, and 15

through grounds M35, M45, and M85,

to IPDM E/R terminals 38 and 60

through grounds E21, E50, and E51.
ILLUMINATION OPERATION BY LIGHTING SWITCH
With lighting switch in the 1ST or 2ND position (or if auto light system is activated), BCM receives input signal
requesting illumination lamps to illuminate. This input signal is communicated to IPDM E/R across the CAN
communication lines. The CPU located in the IPDM E/R controls tail lamp relay coil, which, when energized,
directs power

through IPDM E/R terminal 22

to glove box lamp terminal 1

to A/T device (illumination) terminal 11

to snow mode switch (illumination) terminal 5

to VDC off switch (illumination) terminal 3

PG-2Revision: 2005 July 2005 FX
TYPE) ...............................................................
... 74
HARNESS CONNECTOR (SLIDE-LOCKING
TYPE) ............................................................... ... 75
ELECTRICAL UNITS ............................................. ... 76
Terminal Arrangement ......................................... ... 76
SMJ (SUPER MULTIPLE JUNCTION) .................. ... 78
Terminal Arrangement ......................................... ... 78 STANDARDIZED RELAY .......................................
... 80
Description ........................................................... ... 80
NORMAL OPEN, NORMAL CLOSED AND
MIXED TYPE RELAYS ..................................... ... 80
TYPE OF STANDARDIZED RELAYS ............... ... 80
FUSE BLOCK - JUNCTION BOX (J/B) ................. ... 82
Terminal Arrangement .......................................... ... 82
FUSE, FUSIBLE LINK AND RELAY BOX ............. ... 83
Terminal Arrangement .......................................... ... 83

PG-18
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
Revision: 2005 July 2005 FX
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PFP:284B7
System DescriptionAKS005S9

IPDM E/R (Intelligent Power Distribution Module Engine Room) integrates the relay box and fuse block
which were originally placed in engine compartment. It controls integrated relay via IPDM E/R control cir-
cuit.

IPDM E/R-integrated control circuit performs ON-OFF operation of relay, CAN communication control, oil
pressure switch signal, and hood switch signal reception, etc.

It controls operation of each electrical part via ECM, BCM and CAN communication lines.
CAUTION:
None of the IPDM E/R-integrated relays can be removed.
SYSTEMS CONTROLLED BY IPDM E/R
1. Lamp control
Using CAN communication line, it receives signal from BCM and controls the following lamps:

Headlamps (Hi, Lo)

Parking, license plate and tail lamps

Tail lamps

Front fog lamps
2. Wiper control Using CAN communication line, it receives signals from BCM and controls the front wipers.
3. Rear window defogger relay control Using CAN communication line, it receives signals from BCM and controls the rear window defogger
relay.
4. A/C compressor control Using CAN communication line, it receives signals from ECM and controls the A/C compressor.
5. Cooling fan control Using CAN communication line, it receives signals from ECM and controls cooling fan .
6. Horn control Using CAN communication line, it receives signals from BCM and controls horn relay.
CAN COMMUNICATION LINE CONTROL
With CAN communication, by connecting each control unit using two communication lines (CAN L line, CAN H
line), it is possible to transmit maximum amount of information with minimum wiring. Each control unit can
transmit and receive data, and reads necessary information only.
1. Fail-safe control

When CAN communication with other control units is impossible, IPDM E/R performs fail-safe control.
After CAN communication recovers normally, it also returns to normal control.

Operation of control parts by IPDM E/R during fail-safe mode is as follows:
Controlled system Fail-safe mode
Headlamp

With the ignition switch ON, the headlamp (low) is ON.

With the ignition switch OFF, the headlamp (low) is OFF.
Parking, license plate and tail lamps

With the ignition switch ON, the parking, license plate and tail lamps is ON.

With the ignition switch OFF, the parking, license plate and tail lamps is OFF.
Cooling fan

With the ignition switch ON, the cooling fan HI operates.

With the ignition switch OFF, the cooling fan stops.
Front wiper Until the ignition switch is turned off, the front wiper LO and HI remains in the same status it
was in just before fail-safe control was initiated.
Rear window defogger Rear window defogger relay is OFF
A/C compressor A/C compressor is OFF
Front fog lamps Front fog lamp is OFF

PG-82
FUSE BLOCK - JUNCTION BOX (J/B)
Revision: 2005 July 2005 FX

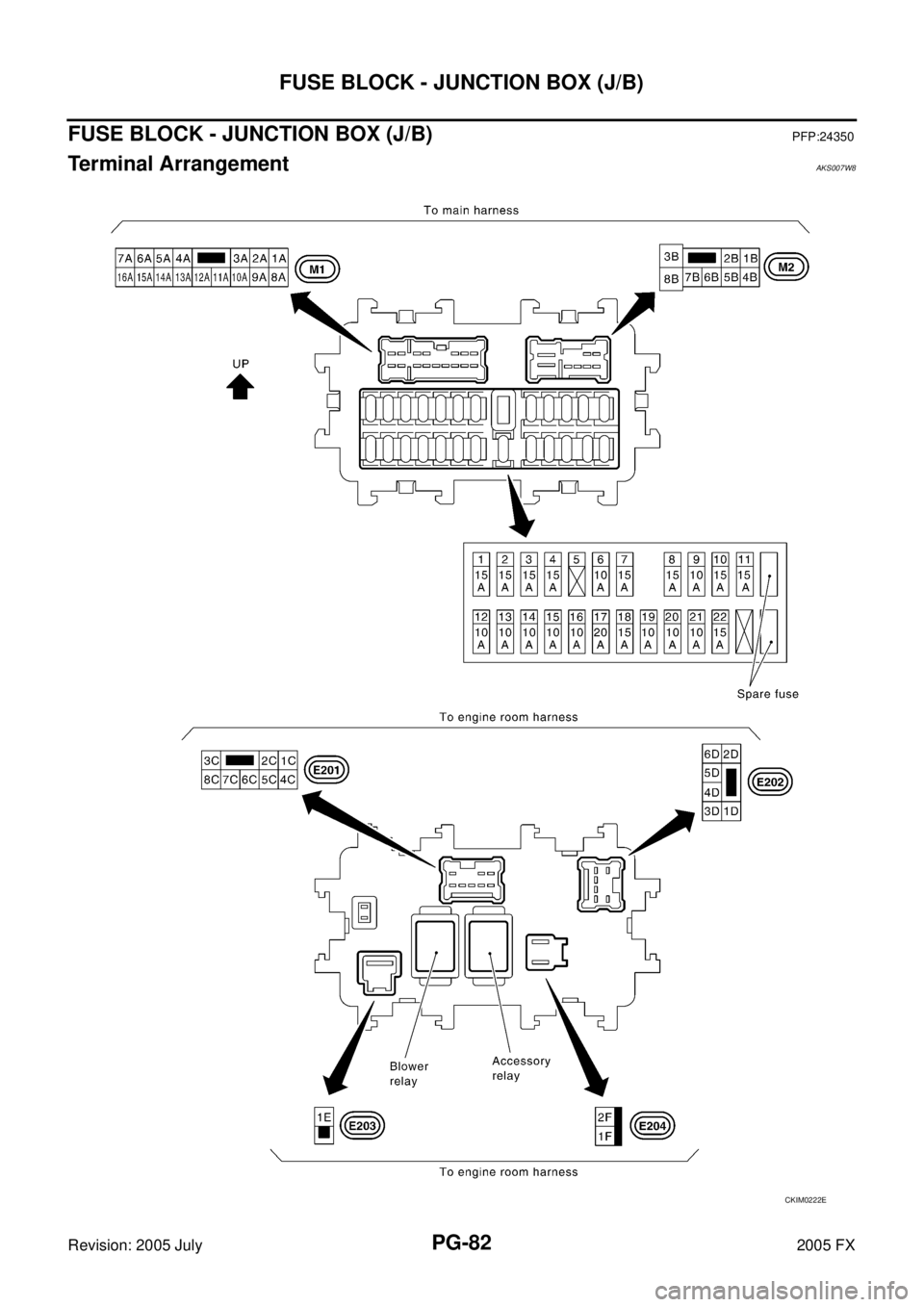

FUSE BLOCK - JUNCTION BOX (J/B)PFP:24350
Terminal ArrangementAKS007W8
CKIM0222E

FUSE, FUSIBLE LINK AND RELAY BOX PG-83
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX

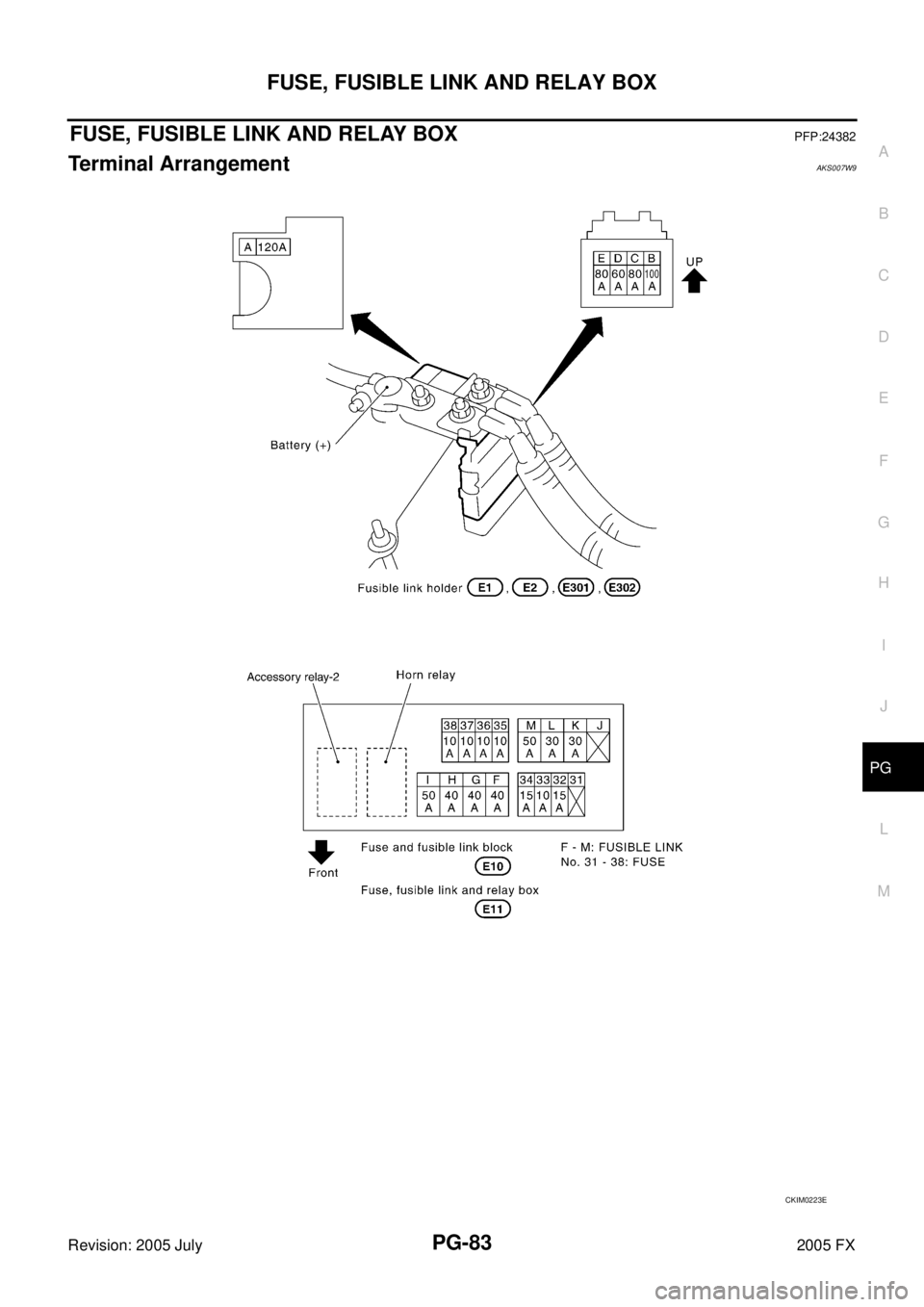

FUSE, FUSIBLE LINK AND RELAY BOXPFP:24382
Terminal ArrangementAKS007W9
CKIM0223E

PG-84
FUSE, FUSIBLE LINK AND RELAY BOX
Revision: 2005 July 2005 FX

SUNROOF RF-11
C
D E
F
G H
J
K L
M A
B
RF
Revision: 2005 July 2005 FX
System DescriptionAIS003AZ
Power supplied at all time

through 50A fusible link (letter M , located in the fuse and fusible link box)

to BCM terminal 55.

through 15A fuse [No.22, located in the fuse block (J/B)]

to BCM terminal 42.

through BCM terminal 54

to sunroof motor assembly terminal 7.
When ignition switch ON or START position,
Power is supplied

through 15A fuse [No.1, located in the fuse block (J/B)]

to BCM terminal 38.

through BCM terminal 53

to sunroof motor assembly terminal 9.
Ground is supplied

to BCM terminal 49 and 52

through body grounds M35, M45, M85 and R6.
TILT UP / SLIDE CLOSE OPERATION
When tilt up / slide close switch is pressed,
Ground is supplied

to sunroof motor assembly terminal 1

through sunroof switch terminal 3

through sunroof switch terminal 2

through body grounds M35, M45, M85 and R6.
Then, the sunroof tilt up / slide close.
TILT DOWN / SLIDE OPEN OPERATION
When tilt down / slide open switch is pressed,
Ground is supplied

to sunroof motor assembly terminal 5

through sunroof switch terminal 1

through sunroof switch terminal 2

through body grounds M35, M45, M85 and R6.
Then, the sunroof tilt down / slide open.
AUTO OPERATION
The power sunroof AUTO feature makes it possible to slide open and slide close or tilt up and tilt down the
sunroof without holding the sunroof switch in the down or up / tilt up or tilt down position.
RETAINED POWER OPERATION
When the ignition switch is turned to OFF position from ON position, power is supplied for 45 seconds.

through BCM terminal 53.

to sunroof motor assembly terminal 9.
When power is supplied, the sunroof can be operated.
The retained power operation is canceled when the driver or passenger side door is opened.
RAP signal period can be changed by CONSULT-II. Refer to RF-16, "
CONSULT-II Function (BCM)" .
