IDX-4
ALPHABETICAL INDEX
ECTS - Wiring diagram ...................... EC-210, EC-916
Electric sunroof .................................................. RF-10
Electric throttle control actuator ........ EC-424, EC-426,
EC-1148
, EC-1150
Electric throttle control actuator (VK45DE) ..... EM-178
Electric throttle control actuator (VQ35DE) ....... EM-19
Electrical load signal circuit .............. EC-679, EC-1369
Electrical unit ..................................................... PG-76
Electrical units location ...................................... PG-70
Electronic ignition (EI) system ............. EC-33, EC-724
Engine control module (ECM) .......... EC-402, EC-1134
Engine control system diagram ....................... EC-721
Engine control system diagram and chart ......... EC-30
Engine coolant temperature sensor (ECTS) ... EC-208,
EC-220
, EC-914, EC-927
Engine coolant(VK45DE) .................................. CO-37
Engine coolant(VQ35DE) ................................. CO-11
Engine oil filter replacement ............................. MA-26
Engine oil filter replacement(VQ35DE) ............. MA-19
Engine oil precautions .......................................... GI-8
Engine oil replacement(VQ35DE) ..................... MA-18
Engine oil(VK45DE) ........................................... LU-25
Engine oil(VQ35DE) ............................................ LU-7
Engine removal(VK45DE) ............................... EM-240
Engine removal(VQ35DE) .............................. EM-112
Engine room cover(VK45DE) ......................... EM-172
ETC1 - Wiring diagram .................... EC-427, EC-1151
ETC2 - Wiring diagram .................... EC-434, EC-1158
ETC3 - Wiring diagram .................... EC-438, EC-1162
EVAP canister ...................................... EC-42, EC-733
EVAP canister purge volume control solenoid valve ....
EC-336
, EC-1069, EC-1233
EVAP canister vent control valve ...... EC-343, EC-568,
EC-1076
, EC-1241
EVAP control system (small leak) diagnosis .. EC-327,
EC-367
, EC-1061, EC-1108
EVAP control system pressure sensor ........... EC-350,
EC-353
, EC-359, EC-1083, EC-1086, EC-1092
EVAP control system purge flow monitoring diagnosis
EC-322
, EC-1056
EVAP vapor lines inspection ................. MA-21, MA-28
Evaporative emission (EVAP) system . EC-39, EC-730
Evaporator ..................................................... ATC-156
Exhaust manifold(VK45DE) ............................ EM-182
Exhaust manifold(VQ35DE) .............................. EM-26
Exhaust system ................................................... EX-3
Exhaust system inspection ..................... EX-3, MA-29
Expansion valve ............................................. ATC-157
F
F/FOG - Wiring diagram ..................................... LT-81
F/PUMP - Wiring diagram ................ EC-669, EC-1359
Final drive pre-inspection .................. FFD-20, RFD-17
Final drive removal and installation .. FFD-12, FFD-14,
RFD-14
Floor trim ............................................................. EI-39
Flow charts ......................................................... GI-27
Fluid temperature sensor (A/T) ........................ AT-136
Fluorescent leak detector ............................. ATC-158
Fog lamp, front ................................................... LT-79
Front axle ............................................ FAX-4, FAX-10
Front brake solenoid valve ................. AT-154, AT-156
Front bumper ...................................................... EI-14
Front door ............................. BL-153, BL-157, GW-76
Front fog lamp .................................................... LT-79
Front passenger air bag .................................. SRS-39
Front seat belt ...................................................... SB-3
Front seat belt pre-tensioner ..... SB-2, SRS-3, SRS-44
Front suspension .............................................. FSU-6
Front washer ...................................................... WW-4
Front wiper ......................................................... WW-4
FTTS - Wiring diagram .... EC-269, EC-274, EC-1006,
EC-1011
Fuel cut control (at no load high engine speed) EC-34,
EC-725
Fuel filter replacement ......................................... FL-4
Fuel gauge ............................................................ DI-5
Fuel injection system (Bank 1) .......... EC-986, EC-995
Fuel injection system (Bank 2) .......... EC-986, EC-995
Fuel injector and fuel tube(VK45DE) .............. EM-192
Fuel injector and fuel tube(VQ35DE) ................ EM-45
Fuel level sensor EC-385, EC-387, EC-389, EC-1117,
EC-1119
, EC-1121
Fuel line inspection .................................. FL-3, MA-25
Fuel line inspection(VQ35DE) .......................... MA-17
Fuel precautions .......................................... GI-6, GI-7
Fuel pressure check ........................... EC-99, EC-789
Fuel pressure release ......................... EC-99, EC-789
Fuel pump ....................................... EC-668, EC-1358
Fuel pump and gauge .......................................... FL-4
Fuel system ......................................................... FL-3
Fuel tank ............................................................ FL-10
Fuel tank temperature sensor .......... EC-267, EC-273,
EC-1004
, EC-1010
Fuel tank vacuum relief valve ............. EC-42, EC-733
FUELB1 - Wiring diagram .. EC-250, EC-260, EC-988,
EC-997
FUELB2 - Wiring diagram .. EC-251, EC-261, EC-989,
EC-998
Fuse .................................................................. PG-17
Fuse and fusible link box .................................. PG-83
Fusible link ........................................................ PG-17
G
Gauges ................................................................. DI-5
Glass ...................................... GW-11, GW-76, GW-80
Glove box lamp ................................... LT-156, LT-202
Grille - See Exterior ............................................ EI-22
Ground distribution ........................................... PG-31
H
H/AIM - Wiring diagram ..................................... LT-75
H/LAMP - Wiring diagram .................................. LT-11
Harness connector ............................................ PG-74
Harness layout .................................................. PG-46

HEADLAMP - XENON TYPE - LT-7
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
HEADLAMP - XENON TYPE -PFP:26010

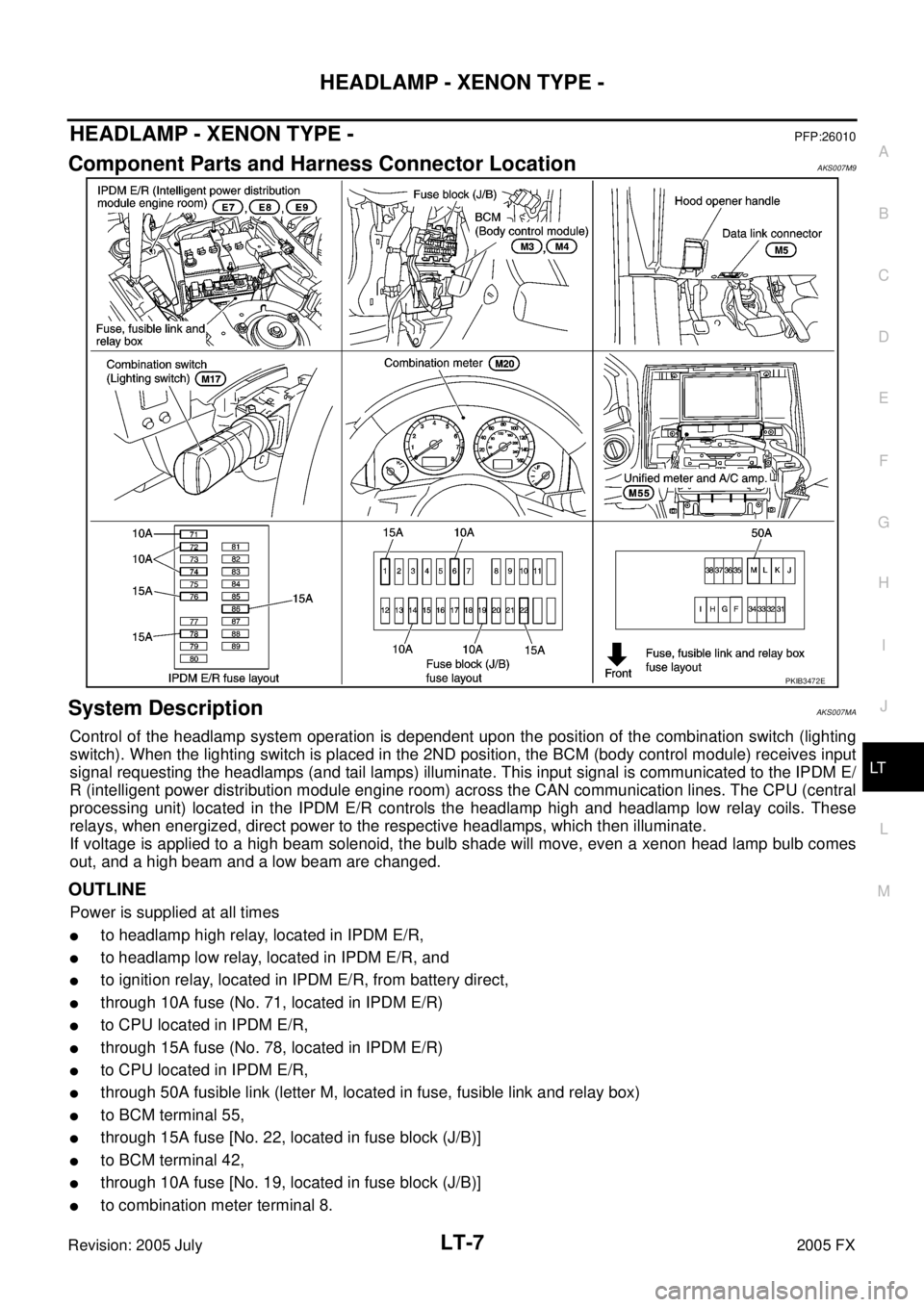

Component Parts and Harness Connector LocationAKS007M9
System DescriptionAKS007MA
Control of the headlamp system operation is dependent upon the position of the combination switch (lighting
switch). When the lighting switch is placed in the 2ND position, the BCM (body control module) receives input
signal requesting the headlamps (and tail lamps) illuminate. This input signal is communicated to the IPDM E/
R (intelligent power distribution module engine room) across the CAN communication lines. The CPU (central
processing unit) located in the IPDM E/R controls the headlamp high and headlamp low relay coils. These
relays, when energized, direct power to the respective headlamps, which then illuminate.
If voltage is applied to a high beam solenoid, the bulb shade will move, even a xenon head lamp bulb comes
out, and a high beam and a low beam are changed.
OUTLINE
Power is supplied at all times

to headlamp high relay, located in IPDM E/R,

to headlamp low relay, located in IPDM E/R, and

to ignition relay, located in IPDM E/R, from battery direct,

through 10A fuse (No. 71, located in IPDM E/R)

to CPU located in IPDM E/R,

through 15A fuse (No. 78, located in IPDM E/R)

to CPU located in IPDM E/R,

through 50A fusible link (letter M, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM terminal 42,

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8.
PKIB3472E

DAYTIME LIGHT SYSTEM LT-39
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
DAYTIME LIGHT SYSTEMPFP:284B2
Component Parts and Harness Connector LocationAKS007MZ
System DescriptionAKS007N0
Daytime light system turns ON daytime light lamps while driving. Daytime light lamps are not turned ON if
engine is activated with parking brake ON. Take off parking brake to turn ON daytime light lamps. The lamps
turn OFF when the lighting switch is in the 2ND position or AUTO position (headlamp is ON) and when the
lighting switch is in the PASSING position (daytime light lamps are not turned OFF only by parking brake
itself).
The parking brake signal and engine run/stop signal are sent to BCM (body control module) by CAN commu-
nication line, and control daytime light system.
OUTLINE
Power is supplied at all times

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8,

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM terminal 42,

through 50A fusible link (letter M, located in fuse, fusible link and relay box)
PKIB3473E

LT-40
DAYTIME LIGHT SYSTEM
Revision: 2005 July 2005 FX

to BCM terminal 55,

through 10A fuse (No. 36, located in fuse, fusible link and relay box)

to daytime light relay terminals 2 and 5.
When ignition switch is in ON or START position, power is supplied

through 10A fuse [No. 14, located in fuse block (J/B)]

to combination meter terminal 7,

through 15A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38.
Ground is supplied

to combination meter terminals 5, 6 and 15

through grounds M35, M45 and M85,

to BCM terminals 49 and 52

through grounds M35, M45 and M85.
DAYTIME LIGHT OPERATION
With the engine running, the lighting switch in the OFF or 1ST position and parking brake released, power is
supplied

through daytime light relay terminal 1

to combination meter terminal 10,

through daytime light relay terminal 3

to clearance lamp RH and LH terminal 1.
Ground is supplied

to combination meter terminals 5, 6 and 15

through grounds M35, M45 and M85,

to clearance lamp RH and LH terminal 3

through grounds E21, E50 and E51.
With power and grounds supplied, the daytime light lamps illuminate.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
AUTO LIGHT OPERATION
Refer to LT- 5 5 , "System Description" in “AUTO LIGHT SYSTEM”.
CAN Communication System DescriptionAKS007N1
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAKS0080T
Refer to LAN-30, "CAN Communication Unit" .

FRONT FOG LAMP LT-79
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
FRONT FOG LAMPPFP:26150
Component Parts and Harness Connector LocationAKS007O5
System DescriptionAKS007CI
Control of the front fog lamps is dependent upon the position of the combination switch (lighting switch). The
lighting switch must be in the 2ND position or AUTO position (headlamp is ON) for front fog lamp opera-
tion.When the lighting switch is placed in the fog lamp position the BCM (body control module) receives input
signal requesting the front fog lamps to illuminate. When the headlamps are illuminated, this input signal is
communicated to the IPDM E/R (intelligent power distribution module engine room) across the CAN communi-
cation lines. The CPU (central processing unit) located in the IPDM E/R controls the front fog lamp relay coil.
When activated, this relay directs power to the front fog lamps.
OUTLINE
Power is supplied at all times

through 15A fuse (No. 88, located in IPDM E/R)

to front fog lamp relay, located in IPDM E/R,

through 15A fuse (No. 78, located in IPDM E/R)

to CPU located in IPDM E/R, and

to ignition relay, located in IPDM E/R, from battery direct,

through 10A fuse (No. 71, located in IPDM E/R)

to CPU located in IPDM E/R.
Power is also supplied at all times

through 50A fusible link (letter M, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM terminal 42.
When ignition switch is in ON or START position, power is supplied

through 15A fuse [No. 1, located in fuse block (J/B)]
PKIB3475E

LT-92
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2005 July 2005 FX
Connected from BCM terminal 45 to front combination lamp LH terminal 4.
Turn signal lamp turns ON

through front combination lamp LH terminal 8

to grounds E21, E50 and E51.
Connected from BCM terminal 45 to rear combination lamp control unit terminal 4.
Rear turn signal (LED) turns ON

through rear combination lamp control unit terminal 11

to rear combination lamp LH terminal 3,

through rear combination lamp LH terminal 4

to rear combination lamp control unit terminal 10.
BCM sends signal to the unified meter and A/C amp. through CAN communication lines, and turns ON turn
signal indicator lamp with combination meter.
When rear turn signal lamp (LED) does not turn ON, rear combination lamp control unit sends signal to combi-
nation meter. And then unified meter and A/C amp. ends turn LED burnout status signal to BCM through CAN
communication lines for speeding up turn signal blinking.
RH Turn Signal Lamp
When the turn signal switch is moved to right position, BCM output turn signal from BCM terminal 46, interpret-
ing it as turn signal is ON.
Connected from BCM terminal 46 to front combination lamp RH terminal 4.
Turn signal lamp turns ON

through front combination lamp RH terminal 8

to grounds E21, E50 and E51.
Connected form BCM terminal 46 to rear combination lamp control unit terminal 5.
Rear turn signal (LED) turns ON

through rear combination lamp control unit terminal 9

to rear combination lamp RH terminal 3,

through rear combination lamp RH terminal 4

to rear combination lamp control unit terminal 8.
BCM sends signal to the unified meter and A/C amp. through CAN communication lines, and turns ON turn
signal indicator lamp with combination meter.
When rear turn signal lamp (LED) does not turn ON, rear combination lamp control unit sends signal to combi-
nation meter. And then unified meter and A/C amp. ends turn LED burnout status signal to BCM through CAN
communication lines for speeding up turn signal blinking.
HAZARD LAMP OPERATION
Power is supplied at all times

through 50A fusible link (letter M, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8,

through 10A fuse [No. 20, located in fuse block (J/B)]

to rear combination lamp control unit terminal 1.
Ground is supplied

through BCM terminals 49 and 52

to grounds M35, M45 and M85,

through rear combination lamp control unit terminal 7

to grounds E21, E50 and E51,

through combination meter terminals 5, 6 and 15

to grounds M35, M45 and M85.
When hazard switch is depressed, ground is supplied

to hazard switch terminal 2

through BCM terminal 29,

TURN SIGNAL AND HAZARD WARNING LAMPS LT-93
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX

to grounds M35, M45 and M85

through hazard switch terminal 1.
When the hazard switch is depressed, BCM output turn signal from BCM terminals 45 and 46, interpreting it as
turn signal is ON.
Connected from BCM terminal 45 and 46 to front combination lamp terminal 4.
Turn signal lamp turns ON

through front combination lamp terminal 8

to grounds E21, E50 and E51.
Connected form BCM terminals 45 and 46 to rear combination lamp control unit terminals 4 and 5.
Rear turn signal (LED) turns ON

through rear combination lamp control unit terminal 11

to rear combination lamp LH terminal 3,

through rear combination lamp LH terminal 4

to rear combination lamp control unit terminal 10,

through rear combination lamp control unit terminal 9

to rear combination lamp RH terminal 3,

through rear combination lamp RH terminal 4

to rear combination lamp control unit terminal 8.
BCM sends signal to the unified meter and A/C amp. through CAN communication lines, and turns ON turn
signal indicator lamp with combination meter.
When rear turn signal lamp (LED) does not turn ON, rear combination lamp control unit sends signal to combi-
nation meter. And then unified meter and A/C amp. ends turn LED burnout status signal to BCM through CAN
communication lines for speeding up turn signal blinking.
REMOTE CONTROL ENTRY SYSTEM OPERATION
Power is supplied at all times

through 50A fusible link (letter M, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8,

through 10A fuse [No. 20, located in fuse block (J/B)]

to rear combination lamp control unit terminal 1.
Ground is supplied

to BCM terminals 49 and 52

through grounds M35, M45 and M85,

to rear combination lamp control unit terminal 7

through grounds E21, E50 and E51,

to combination meter terminals 5, 6 and 15

through grounds M35, M45 and M85.
When the remote control entry system is triggered by input from key fob, BCM output turn signal from BCM
terminals 45 and 46, interpreting it as turn signal is ON.
Connected from BCM terminals 45 and 46 to front combination lamp terminal 4.
Turn signal lamp turns ON

through front combination lamp terminal 8

to grounds E21, E50 and E51.
Connected form BCM terminals 45 and 46 to rear combination lamp control unit terminals 4 and 5.
Rear turn signal (LED) turns ON

through rear combination lamp control unit terminal 11

to rear combination lamp LH terminal 3,

through rear combination lamp LH terminal 4

to rear combination lamp control unit terminal 10,

through rear combination lamp control unit terminal 9

LT-130
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2005 July 2005 FX

through 15A fuse (No. 78, located in IPDM E/R)

to CPU located in IPDM E/R.
Power is also supplied at all times

through 50A fusible link (letter M, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM terminal 42,

through 10A fuse [No. 20, located in fuse block (J/B)]

to rear combination lamp control unit terminal 1,

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8, and

to unified meter and A/C amp. terminal 21.
With ignition switch in ON or START position, power is supplied

through ignition relay, located in IPDM E/R, from battery direct,

through 15A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38,

through 10A fuse [No. 14, located in fuse block (J/B)]

to combination meter terminal 7,

through 10A fuse [No. 12, located in fuse block (J/B)]

to unified meter and A/C amp. terminal 22.
With ignition switch in ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminals 49 and 52

through grounds M35, M45 and M85,

to IPDM E/R terminals 38 and 60

through grounds E21, E50 and E51,

to rear combination lamp control unit terminal 7

through grounds E21, E50 and E51,

to combination meter terminals 5, 6 and 15

through grounds M35, M45 and M85,

to unified meter and A/C amp. terminals 29 and 30

through grounds M35, M45 and M85.
OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position (or if the auto light system is activated), the BCM receives
input signal requesting the parking, license plate, side marker and tail lamps to illuminate. This input signal is
communicated to the IPDM E/R across the CAN communication lines. The CPU located in the IPDM E/R con-
trols the tail lamp relay coil, which when energized, directs power.

through IPDM E/R terminal 22

to front side marker lamp LH terminal 1

to clearance lamp LH terminal 2

to license plate lamp LH terminal 1

to rear combination lamp LH terminal 1

to rear combination lamp control unit terminal 2

to front side marker lamp RH terminal 1

to clearance lamp RH terminal 2

to license plate lamp RH terminal 1, and

to rear combination lamp RH terminal 1.
