2005 INFINITI FX35 atc

EM-76
[VQ35DE]
TIMING CHAIN
Revision: 2005 July 2005 FX
a. Push plunger of timing chain tensioner (secondary) and keep it
pressed in with a stopper pin.
b. Install timing chains (secondary) and camshaft sprockets.

Align the mating marks on timing chain (secondary) (gold link)
with the ones on intake and exhaust camshaft sprockets
(punched), and install them.
NOTE:

Mating marks for intake camshaft sprocket are on the back
side of camshaft sprocket (secondary).

There are two types of mating marks, circle and oval types.
They should be used for the right and left banks, respec-
tively.

Align dowel pin and pin hole on camshafts with the groove
and dowel pin on sprockets, and install them.

On the intake side, align pin hole on the small diameter side of
the camshaft front end with dowel pin on the back side of
camshaft sprocket, and install them.

On the exhaust side, align dowel pin on camshaft front end
with pin groove on camshaft sprocket, and install them.

In case that positions of each mating mark and each dowel
pin are not fit on mating parts, make fine adjustment to the
position holding the hexagonal portion on camshaft with wrench or equivalent.

Mounting bolts for camshaft sprockets must be tightened in the next step. Tightening them by hand is
enough to prevent the dislocation of dowel pins.

It may be difficult to visually check the dislocation of mating
marks during and after installation. To make the matching
easier, make a mating mark on the top of sprocket teeth and
its extended line in advance with paint.
SEM430G
Right bank : Use circle type.
Left bank : Use oval type.
PBIC2981E
PBIC0891E

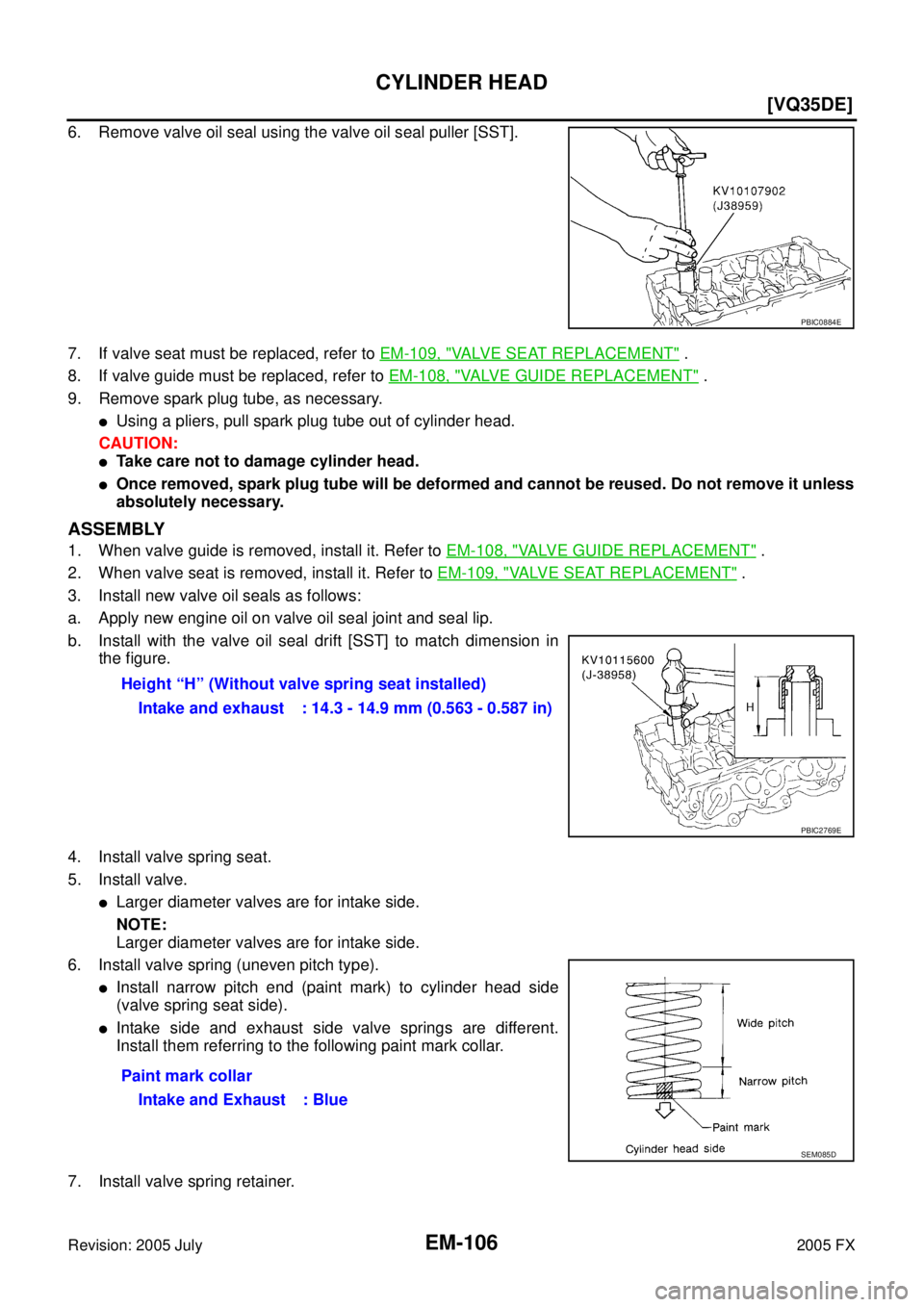

EM-106
[VQ35DE]
CYLINDER HEAD
Revision: 2005 July 2005 FX
6. Remove valve oil seal using the valve oil seal puller [SST].
7. If valve seat must be replaced, refer to EM-109, "
VALVE SEAT REPLACEMENT" .
8. If valve guide must be replaced, refer to EM-108, "
VALVE GUIDE REPLACEMENT" .
9. Remove spark plug tube, as necessary.

Using a pliers, pull spark plug tube out of cylinder head.
CAUTION:

Take care not to damage cylinder head.

Once removed, spark plug tube will be deformed and cannot be reused. Do not remove it unless
absolutely necessary.
ASSEMBLY
1. When valve guide is removed, install it. Refer to EM-108, "VALVE GUIDE REPLACEMENT" .
2. When valve seat is removed, install it. Refer to EM-109, "
VALVE SEAT REPLACEMENT" .
3. Install new valve oil seals as follows:
a. Apply new engine oil on valve oil seal joint and seal lip.
b. Install with the valve oil seal drift [SST] to match dimension in the figure.
4. Install valve spring seat.
5. Install valve.

Larger diameter valves are for intake side.
NOTE:
Larger diameter valves are for intake side.
6. Install valve spring (uneven pitch type).

Install narrow pitch end (paint mark) to cylinder head side
(valve spring seat side).

Intake side and exhaust side valve springs are different.
Install them referring to the following paint mark collar.
7. Install valve spring retainer.
PBIC0884E
Height “H” (Without valve spring seat installed) Intake and exhaust : 14.3 - 14.9 mm (0.563 - 0.587 in)
PBIC2769E
Paint mark collarIntake and Exhaust : Blue
SEM085D

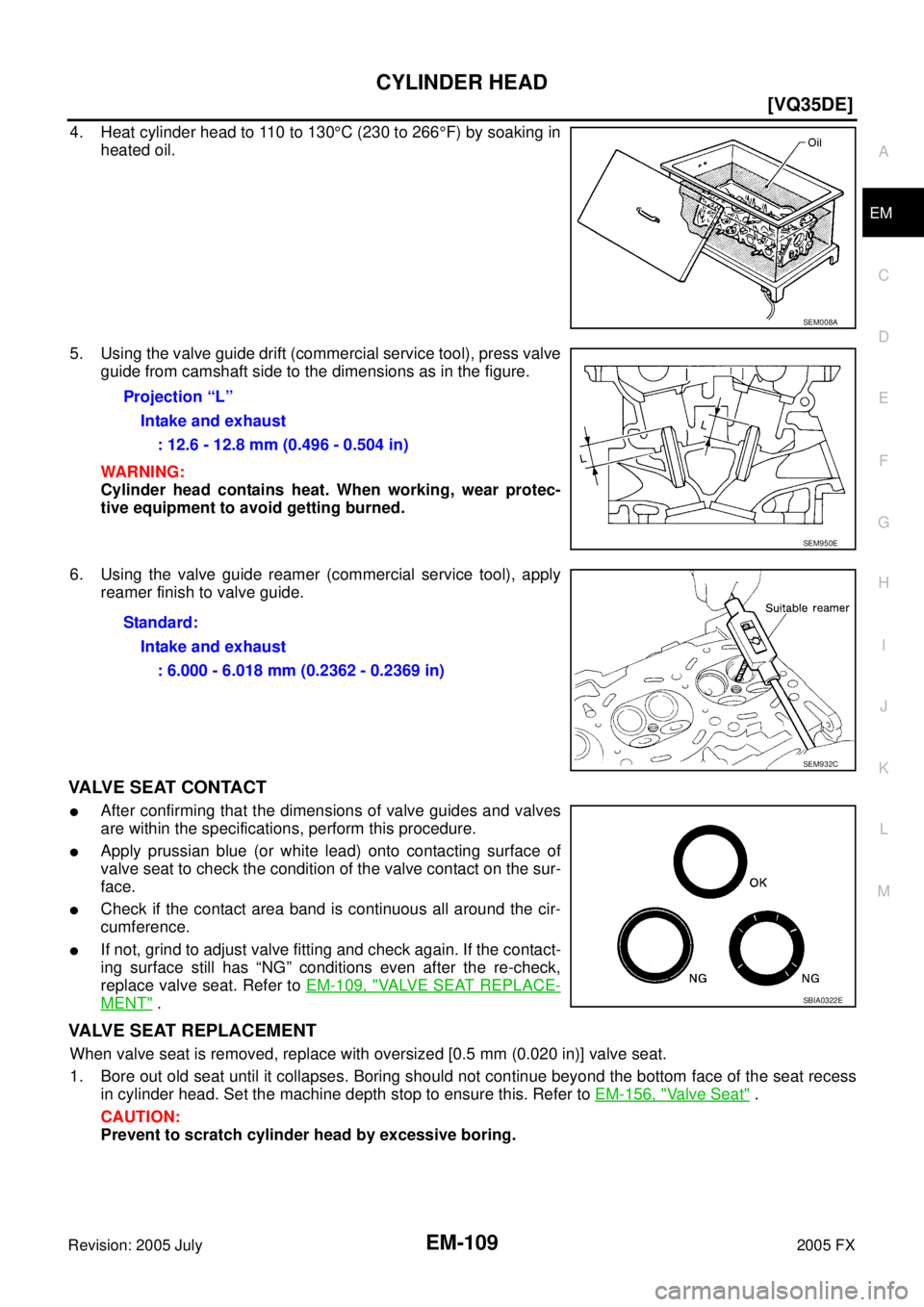

CYLINDER HEAD EM-109
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
4. Heat cylinder head to 110 to 130°C (230 to 266 °F) by soaking in
heated oil.
5. Using the valve guide drift (commercial service tool), press valve guide from camshaft side to the dimensions as in the figure.
WARNING:
Cylinder head contains heat. When working, wear protec-
tive equipment to avoid getting burned.
6. Using the valve guide reamer (commercial service tool), apply reamer finish to valve guide.
VALVE SEAT CONTACT

After confirming that the dimensions of valve guides and valves
are within the specifications, perform this procedure.

Apply prussian blue (or white lead) onto contacting surface of
valve seat to check the condition of the valve contact on the sur-
face.

Check if the contact area band is continuous all around the cir-
cumference.

If not, grind to adjust valve fitting and check again. If the contact-
ing surface still has “NG” conditions even after the re-check,
replace valve seat. Refer to EM-109, "
VALVE SEAT REPLACE-
MENT" .
VALVE SEAT REPLACEMENT
When valve seat is removed, replace with oversized [0.5 mm (0.020 in)] valve seat.
1. Bore out old seat until it collapses. Boring should not continue beyond the bottom face of the seat recess in cylinder head. Set the machine depth stop to ensure this. Refer to EM-156, "
Va l v e S e a t" .
CAUTION:
Prevent to scratch cylinder head by excessive boring.
SEM008A
Projection “L”
Intake and exhaust: 12.6 - 12.8 mm (0.496 - 0.504 in)
SEM950E
Standard: Intake and exhaust: 6.000 - 6.018 mm (0.2362 - 0.2369 in)
SEM932C
SBIA0322E

ENGINE ASSEMBLY EM-113
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
REMOVAL
Outline
At first, remove the engine and the transmission assembly with front suspension member downward. Then
separate the engine from transmission.
Preparation
1. Release fuel pressure. Refer to EC-99, "FUEL PRESSURE RELEASE" .
2. Drain engine coolant from radiator. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
3. Disconnect both battery terminals. Refer to SC-4, "
BATTERY" .
4. Remove the following parts:

Engine cover; Refer to EM-19, "INTAKE MANIFOLD COLLECTOR" .

Front road wheel and tires

Front and rear engine undercover

Front cross bar; Refer to FSU-17, "FRONT SUSPENSION MEMBER" .

Cowl top cover (right); Refer to EI-23, "COWL TOP" .

Air duct and air cleaner case assembly; EM-17, "AIR CLEANER AND AIR DUCT" .
5. Discharge refrigerant from A/C circuit. Refer to ATC-138, "
REFRIGERANT LINES" .
6. Remove radiator hoses (upper and lower). Refer to CO-14, "
RADIATOR" .
Engine Room
1. Disconnect heater hose from vehicle-side, and fit a plug onto hose end to prevent engine coolant leak.
2. Disconnect grounding cable (between vehicle to left bank cylinder head).
3. Disconnect battery positive cable harness at vehicle side and temporarily fasten it on engine.
4. Disconnect A/C piping from A/C compressor, and temporarily fasten it on vehicle with a rope. Refer to ATC-138, "
REFRIGERANT LINES" .
5. Disconnect engine room harness connectors shown in the fig- ure.
6. Disconnect two body ground cables.
7. Disconnect brake booster vacuum hose.
8. Disconnect fuel feed hose (with damper) and EVAP hose. Refer to EM-45, "
FUEL INJECTOR AND FUEL
TUBE"
CAUTION:
Fit plugs onto disconnected hoses to prevent fuel leak.
9. Remove reservoir tank of power steering oil pump and piping from vehicle, and temporarily secure them on engine. Refer to PS-31, "
POWER STEERING OIL PUMP" .
CAUTION:
When temporarily securing, keep the reservoir tank upright to avoid a fluid leak.
Passenger Room Side
Follow procedure below to disconnect engine room harness connectors at passenger room side, and tempo-
rarily secure them on engine.
SBIA0472E

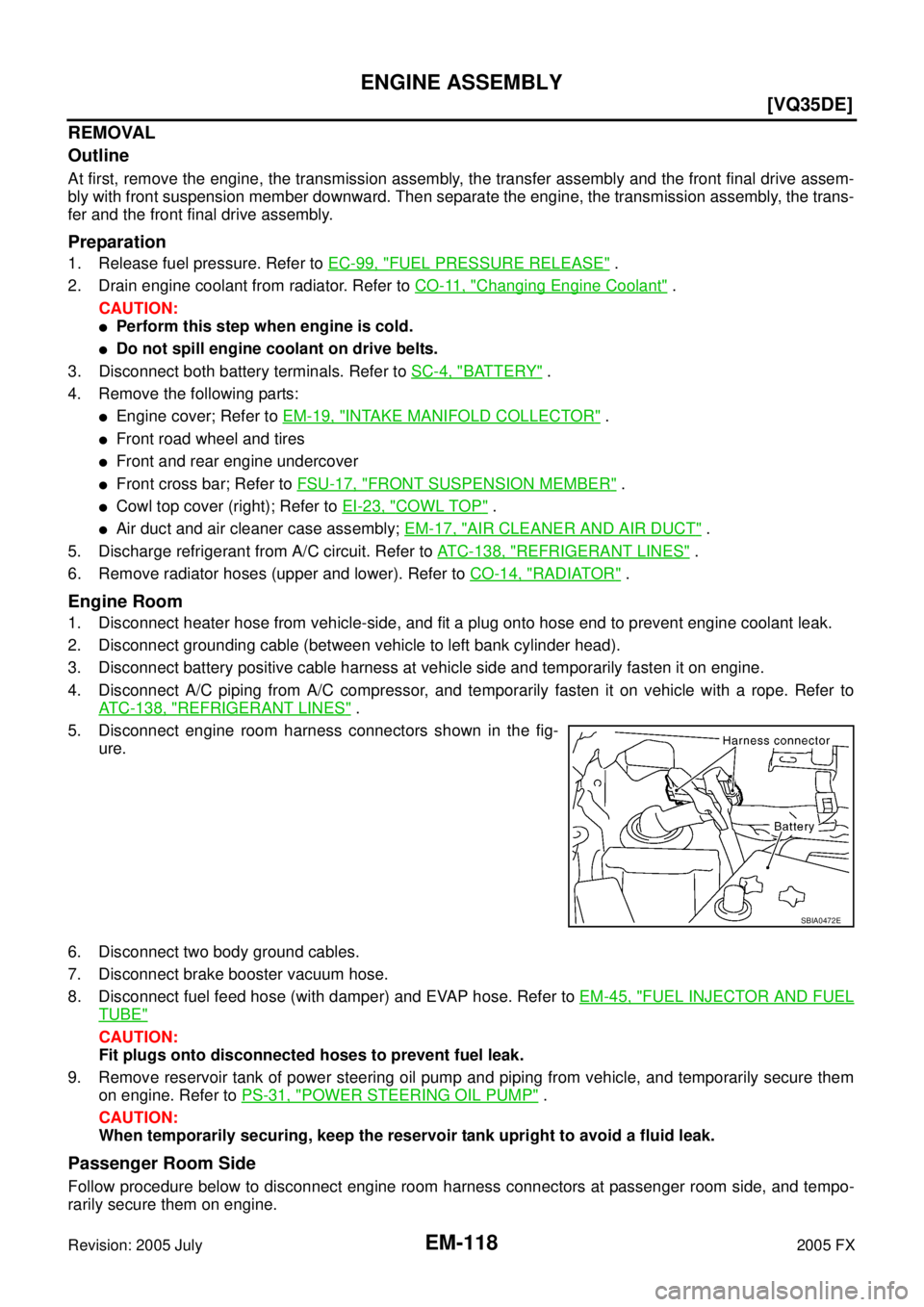

EM-118
[VQ35DE]
ENGINE ASSEMBLY
Revision: 2005 July 2005 FX
REMOVAL
Outline
At first, remove the engine, the transmission assembly, the transfer assembly and the front final drive assem-
bly with front suspension member downward. Then separate the engine, the transmission assembly, the trans-
fer and the front final drive assembly.
Preparation
1. Release fuel pressure. Refer to EC-99, "FUEL PRESSURE RELEASE" .
2. Drain engine coolant from radiator. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
3. Disconnect both battery terminals. Refer to SC-4, "
BATTERY" .
4. Remove the following parts:

Engine cover; Refer to EM-19, "INTAKE MANIFOLD COLLECTOR" .

Front road wheel and tires

Front and rear engine undercover

Front cross bar; Refer to FSU-17, "FRONT SUSPENSION MEMBER" .

Cowl top cover (right); Refer to EI-23, "COWL TOP" .

Air duct and air cleaner case assembly; EM-17, "AIR CLEANER AND AIR DUCT" .
5. Discharge refrigerant from A/C circuit. Refer to ATC-138, "
REFRIGERANT LINES" .
6. Remove radiator hoses (upper and lower). Refer to CO-14, "
RADIATOR" .
Engine Room
1. Disconnect heater hose from vehicle-side, and fit a plug onto hose end to prevent engine coolant leak.
2. Disconnect grounding cable (between vehicle to left bank cylinder head).
3. Disconnect battery positive cable harness at vehicle side and temporarily fasten it on engine.
4. Disconnect A/C piping from A/C compressor, and temporarily fasten it on vehicle with a rope. Refer to ATC-138, "
REFRIGERANT LINES" .
5. Disconnect engine room harness connectors shown in the fig- ure.
6. Disconnect two body ground cables.
7. Disconnect brake booster vacuum hose.
8. Disconnect fuel feed hose (with damper) and EVAP hose. Refer to EM-45, "
FUEL INJECTOR AND FUEL
TUBE"
CAUTION:
Fit plugs onto disconnected hoses to prevent fuel leak.
9. Remove reservoir tank of power steering oil pump and piping from vehicle, and temporarily secure them on engine. Refer to PS-31, "
POWER STEERING OIL PUMP" .
CAUTION:
When temporarily securing, keep the reservoir tank upright to avoid a fluid leak.
Passenger Room Side
Follow procedure below to disconnect engine room harness connectors at passenger room side, and tempo-
rarily secure them on engine.
SBIA0472E

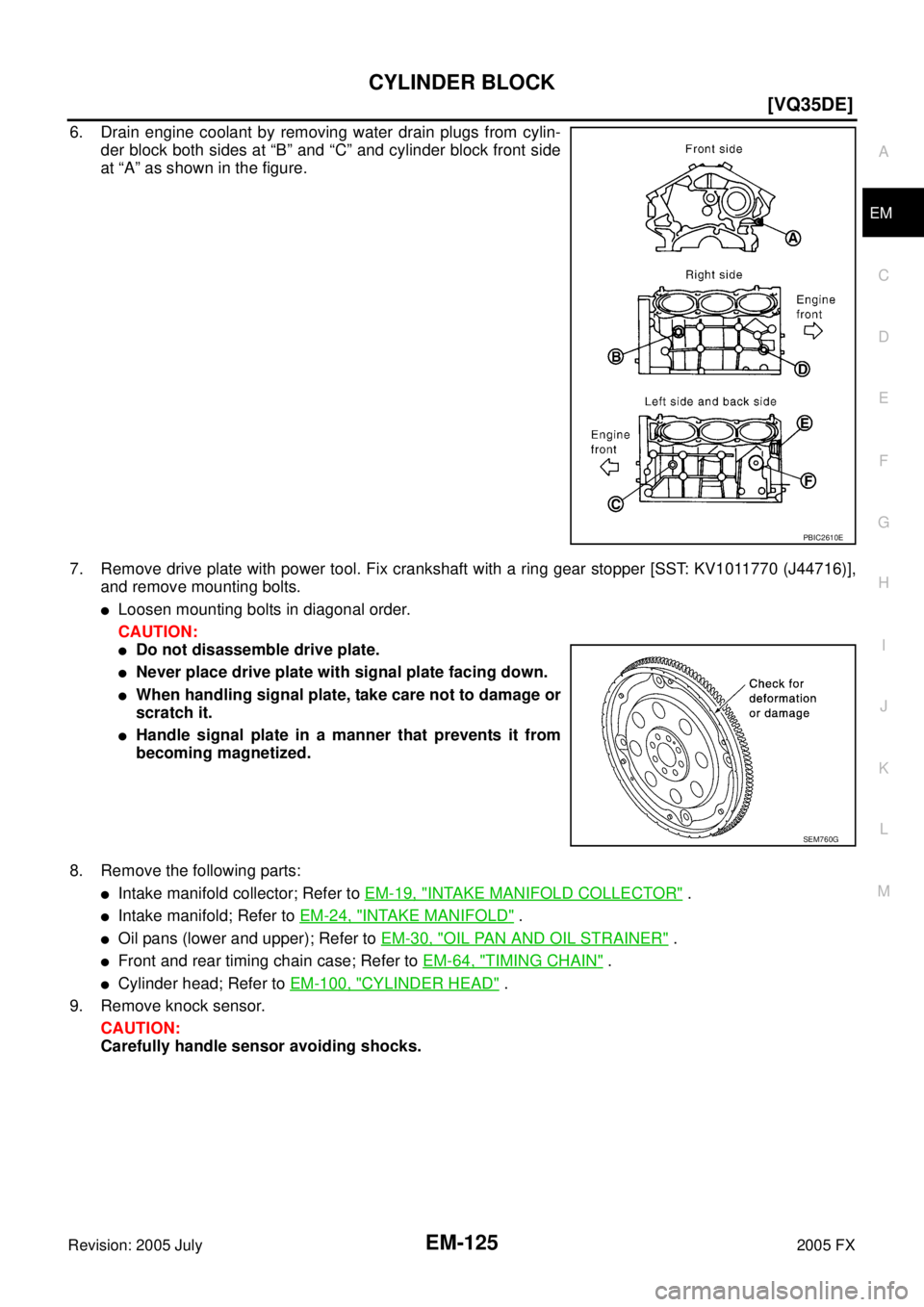

CYLINDER BLOCK EM-125
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
6. Drain engine coolant by removing water drain plugs from cylin-
der block both sides at “B” and “C” and cylinder block front side
at “A” as shown in the figure.
7. Remove drive plate with power tool. Fix crankshaft with a ring gear stopper [SST: KV1011770 (J44716)], and remove mounting bolts.

Loosen mounting bolts in diagonal order.
CAUTION:

Do not disassemble drive plate.

Never place drive plate with signal plate facing down.

When handling signal plate, take care not to damage or
scratch it.

Handle signal plate in a manner that prevents it from
becoming magnetized.
8. Remove the following parts:

Intake manifold collector; Refer to EM-19, "INTAKE MANIFOLD COLLECTOR" .

Intake manifold; Refer to EM-24, "INTAKE MANIFOLD" .

Oil pans (lower and upper); Refer to EM-30, "OIL PAN AND OIL STRAINER" .

Front and rear timing chain case; Refer to EM-64, "TIMING CHAIN" .

Cylinder head; Refer to EM-100, "CYLINDER HEAD" .
9. Remove knock sensor.
CAUTION:
Carefully handle sensor avoiding shocks.
PBIC2610E
SEM760G

EM-126
[VQ35DE]
CYLINDER BLOCK
Revision: 2005 July 2005 FX
10. Remove pilot converter using the pilot bushing puller [SST] as
necessary.
11. Remove rear oil seal retainer.

Remove by inserting a screwdriver between main bearing cap and rear oil seal retainer.
CAUTION:
If rear oil seal retainer is removed, replace it with new one.
NOTE:
Regard both rear oil seal and retainer as an assembly.
12. Remove baffle plate from main bearing beam (2WD models).
13. Remove piston and connecting rod assembly with the following procedure:

Before removing piston and connecting rod assembly, check the connecting rod side clearance. Refer
to EM-140, "
CONNECTING ROD SIDE CLEARANCE" .
CAUTION:
Be careful not to drop connecting rod bearing, and to scratch the surface.
a. Position crankshaft pin corresponding to connecting rod to be removed onto the bottom dead center.
b. Remove connecting rod bearing cap.
c. Using a hammer handle or similar tool, push piston and connect- ing rod assembly out to the cylinder head side.
CAUTION:
Be careful not to damage the cylinder wall and crankshaft
pin, resulting from an interference of the connecting rod big
end.
14. Remove connecting rod bearings from connecting rod and connecting rod bearing cap. CAUTION:

Be careful not to drop connecting rod bearing, and to scratch the surface.

Identify installation positions, and store them without mixing them up.
15. Remove piston rings form piston.

Before removing piston rings, check the piston ring side clearance. Refer to EM-141, "PISTON RING
SIDE CLEARANCE" .

Use a piston ring expander (commercial service tool).
CAUTION:

When removing piston rings, be careful not to damage
piston.

Be careful not to damage piston rings by expanding them
excessively.
SEM005G
EMQ0191D
PBIC0087E

EM-128
[VQ35DE]
CYLINDER BLOCK
Revision: 2005 July 2005 FX
18. Remove main bearing beam.
19. Remove main bearing caps.
CAUTION:
Be careful not to drop main bearing, and to scratch the sur-
face.

Using main bearing cap bolts, remove main bearing cap while
shaking it back-and-forth.
20. Remove crankshaft.
21. Remove main bearings and thrust bearings from cylinder block and main bearing caps. CAUTION:

Be careful not to drop main bearing, and to scratch the surface.

Identify installation positions, and store them without mixing them up.
22. Remove oil jet.
ASSEMBLY
1. Fully air-blow engine coolant and engine oil passages in cylinder block, cylinder bore and crankcase to remove any foreign material.
CAUTION:
Use a goggles to protect your eye.
2. Install each plug to cylinder block as shown in the figure.

Apply sealant to the thread of water drain plugs “A”, “B” and
“C”.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .

Apply sealant to the thread of plugs “D” and “E”.
Use Genuine High Strength Thread Locking Sealant or
equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .

Apply sealant to the thread of plug “F”.
Use Anaerobic Liquid Gasket or equivalent. Refer to GI-
48, "RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS" .
NOTE:
For Canada, “F” in the figure is not plug but block heater.
Refer to EM-122, "
Components" .

Replace washers with new one.
PBIC0881E
EMQ0195D
PBIC2610E
