INSPECTION AFTER REMOVAL
Clean oil strainer if any object attached.
INSTALLATION
1. Install oil strainer.
2. Install axle pipe to oil pan, if removed.

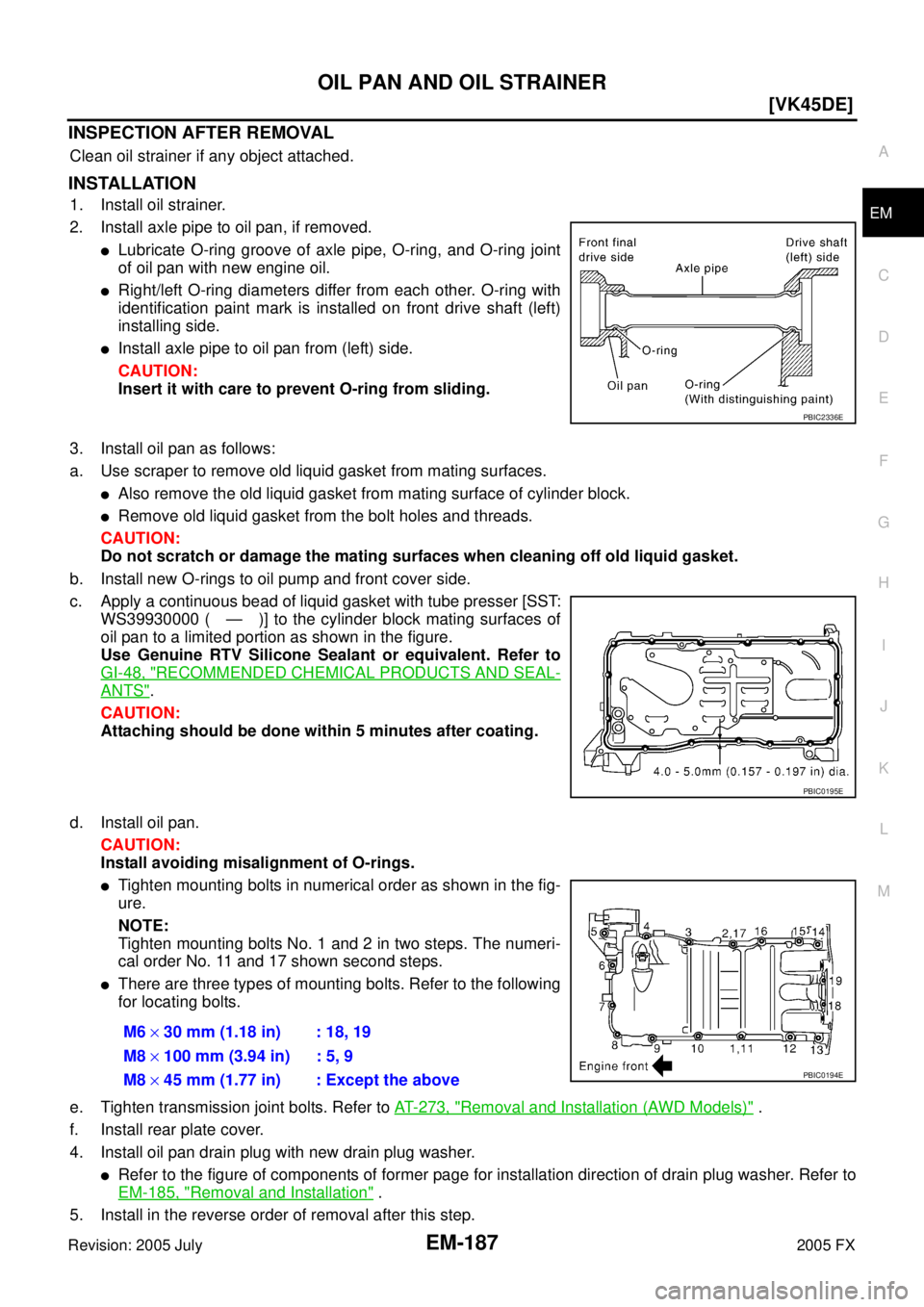

Lubricate O-ring groove of axle pipe, O-ring, and O-ring joint
of oil pan with new engine oil.

Right/left O-ring diameters differ from each other. O-ring with
identification paint mark is installed on front drive shaft (left)
installing side.

Install axle pipe to oil pan from (left) side.
CAUTION:
Insert it with care to prevent O-ring from sliding.
3. Install oil pan as follows:
a. Use scraper to remove old liquid gasket from mating surfaces.

Also remove the old liquid gasket from mating surface of cylinder block.

Remove old liquid gasket from the bolt holes and threads.
CAUTION:
Do not scratch or damage the mating surfaces when cleaning off old liquid gasket.
b. Install new O-rings to oil pump and front cover side.
c. Apply a continuous bead of liquid gasket with tube presser [SST: WS39930000 ( — )] to the cylinder block mating surfaces of
oil pan to a limited portion as shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS".
CAUTION:
Attaching should be done within 5 minutes after coating.
d. Install oil pan. CAUTION:
Install avoiding misalignment of O-rings.

Tighten mounting bolts in numerical order as shown in the fig-
ure.
NOTE:
Tighten mounting bolts No. 1 and 2 in two steps. The numeri-
cal order No. 11 and 17 shown second steps.

There are three types of mounting bolts. Refer to the following
for locating bolts.
e. Tighten transmission joint bolts. Refer to AT- 2 7 3 , "
Removal and Installation (AWD Models)" .
f. Install rear plate cover.
4. Install oil pan drain plug with new drain plug washer.

Refer to the figure of components of former page for installation direction of drain plug washer. Refer to
EM-185, "
Removal and Installation" .
5. Install in the reverse order of removal after this step.
PBIC2336E
PBIC0195E
M6 × 30 mm (1.18 in) : 18, 19
M8 × 100 mm (3.94 in) : 5, 9
M8 × 45 mm (1.77 in) : Except the above
PBIC0194E

FUEL INJECTOR AND FUEL TUBE EM-195
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX

When handling new O-rings, be careful of the following caution:
CAUTION:

Handle O-ring with bare hands. Do not wear gloves.

Lubricate O-ring with new engine oil.

Do not clean O-ring with solvent.

Make sure that O-ring and its mating part are free of foreign material.

When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not
to twist or stretch O-ring. If O-ring was stretched while it was being attached, do not insert it
quickly into fuel tube.

Insert new O-ring straight into fuel tube. Do not decenter or twist it.

Insert fuel damper (RH) and fuel feed damper straight into fuel tube (RH).

Tighten mounting bolts evenly in turn.

After tightening mounting bolts, make sure that there is no gap between flange and fuel tube (RH).
2. Install new O-rings to fuel injector paying attention to the following caution. CAUTION:

Upper and lower O-ring are different. Be careful not to confuse them.

Handle O-ring with bare hands. Never wear gloves.

Lubricate O-ring with new engine oil.

Do not clean O-ring with solvent.

Make sure that O-ring and its mating part are free of foreign material.

When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not to
twist or stretch O-ring. If O-ring was stretched while it was being attached, do not insert it
quickly into fuel tube.

Insert O-ring straight into fuel injector. Do not decenter or twist it.
3. Install fuel injector to fuel tube as follows:
a. Insert clip into clip mounting groove on fuel injector.

Insert clip so that protrusion “A” of fuel injector matches cutout
“A” of clip.
CAUTION:

Do not reuse clip. Replace it with a new one.

Be careful to keep clip from interfering with O-ring. If
interference occurs, replace O-ring.
b. Insert fuel injector into fuel tube with clip attached.

Insert it while matching it to the axial center.

Insert fuel injector so that protrusion “B” of fuel tube matches
cutout “B” of clip.

Make sure that fuel tube flange is securely fixed in flange fix-
ing groove on clip.
c. Make sure that installation is complete by checking that fuel injector does not rotate or come off.

Make sure that protrusions of fuel injectors are aligned with
cutouts of clips after installation.
4. Install spacers on intake manifold (lower).
5. Install fuel tube and fuel injector assembly to intake manifold. CAUTION:
Be careful not to let tip of injector nozzle come in contact with other parts. Fuel tube side : Black
Nozzle side : Green
PBIC2545E

ROCKER COVER EM-197
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
ROCKER COVERPFP:13264
ComponentsABS00DFU
Removal and InstallationABS006II
REMOVAL
1. Remove engine cover with power tool. Refer to EM-172, "ENGINE ROOM COVER" .
2. Release the fuel pressure. Refer to EC-789, "
FUEL PRESSURE RELEASE" .
3. Refer to the following for incidental works related to left bank.
a. Remove air duct (inlet), air cleaner case and mass air flow sensor assembly, air duct and resonator assembly. Refer to EM-176, "
AIR CLEANER AND AIR DUCT" .
b. Move harness on upper rocker cover and its peripheral aside.
c. Remove harness brackets from camshaft bracket (No. 6). Refer to EM-212, "
CAMSHAFT" .
d. Remove electric throttle control actuator. Refer to EM-178, "
INTAKE MANIFOLD" .
e. Remove ignition coil. Refer to EM-189, "
IGNITION COIL" .
f. Remove PCV hose from PCV valve.
4. Refer to the following for incidental works related to right bank.
a. Move harness on upper rocker cover and its peripheral aside.
b. Remove ignition coil EM-189, "
IGNITION COIL" .
c. Remove PCV hose from PCV valve.
5. Remove PCV valves and O-rings from rocker covers (right and left bank), if necessary.
6. Remove oil filler cap and oil catcher from rocker cover (right bank), if necessary.

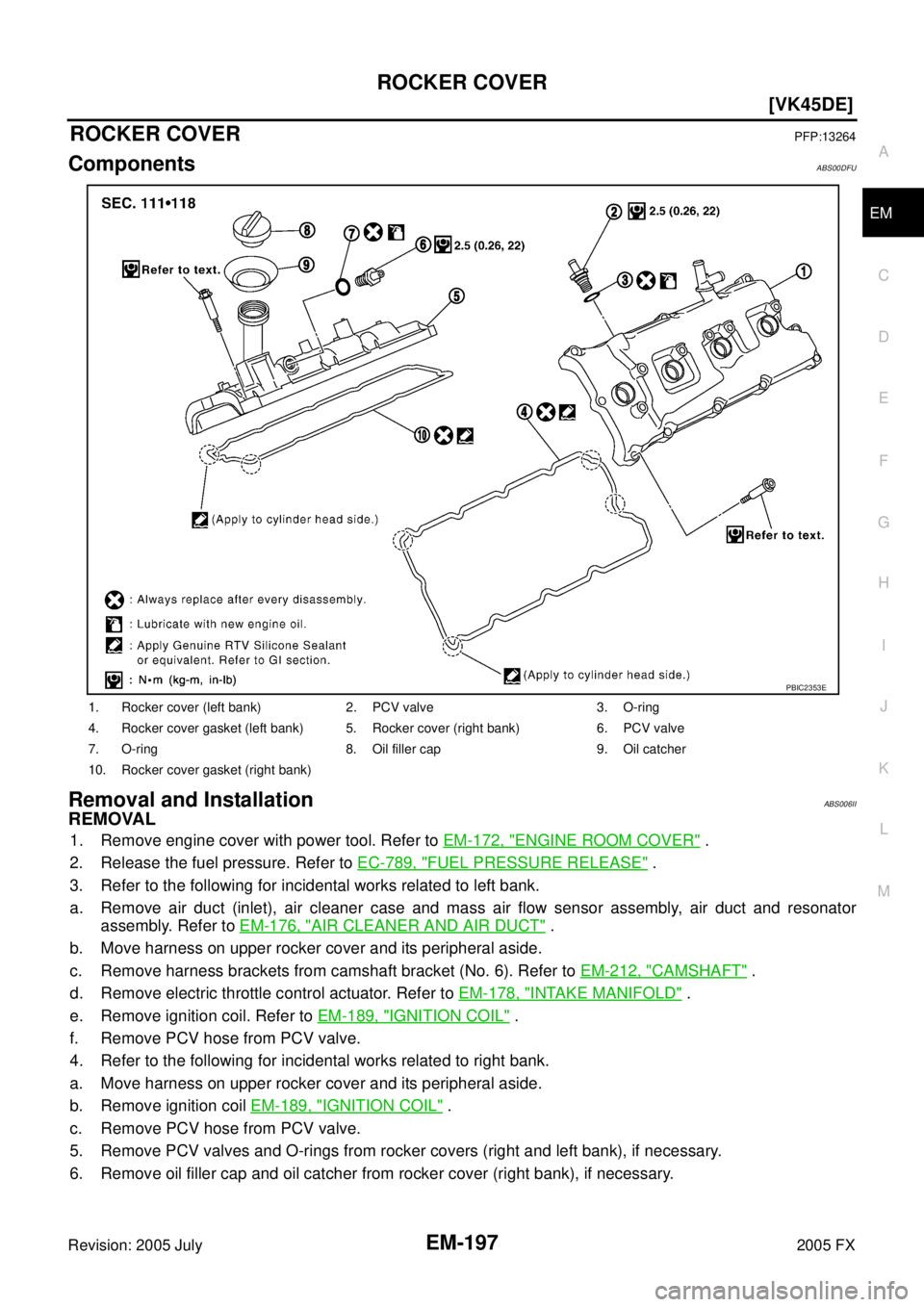

1. Rocker cover (left bank) 2. PCV valve 3. O-ring
4. Rocker cover gasket (left bank) 5. Rocker cover (right bank) 6. PCV valve
7. O-ring 8. Oil filler cap 9. Oil catcher
10. Rocker cover gasket (right bank)
PBIC2353E

EM-198
[VK45DE]
ROCKER COVER
Revision: 2005 July 2005 FX

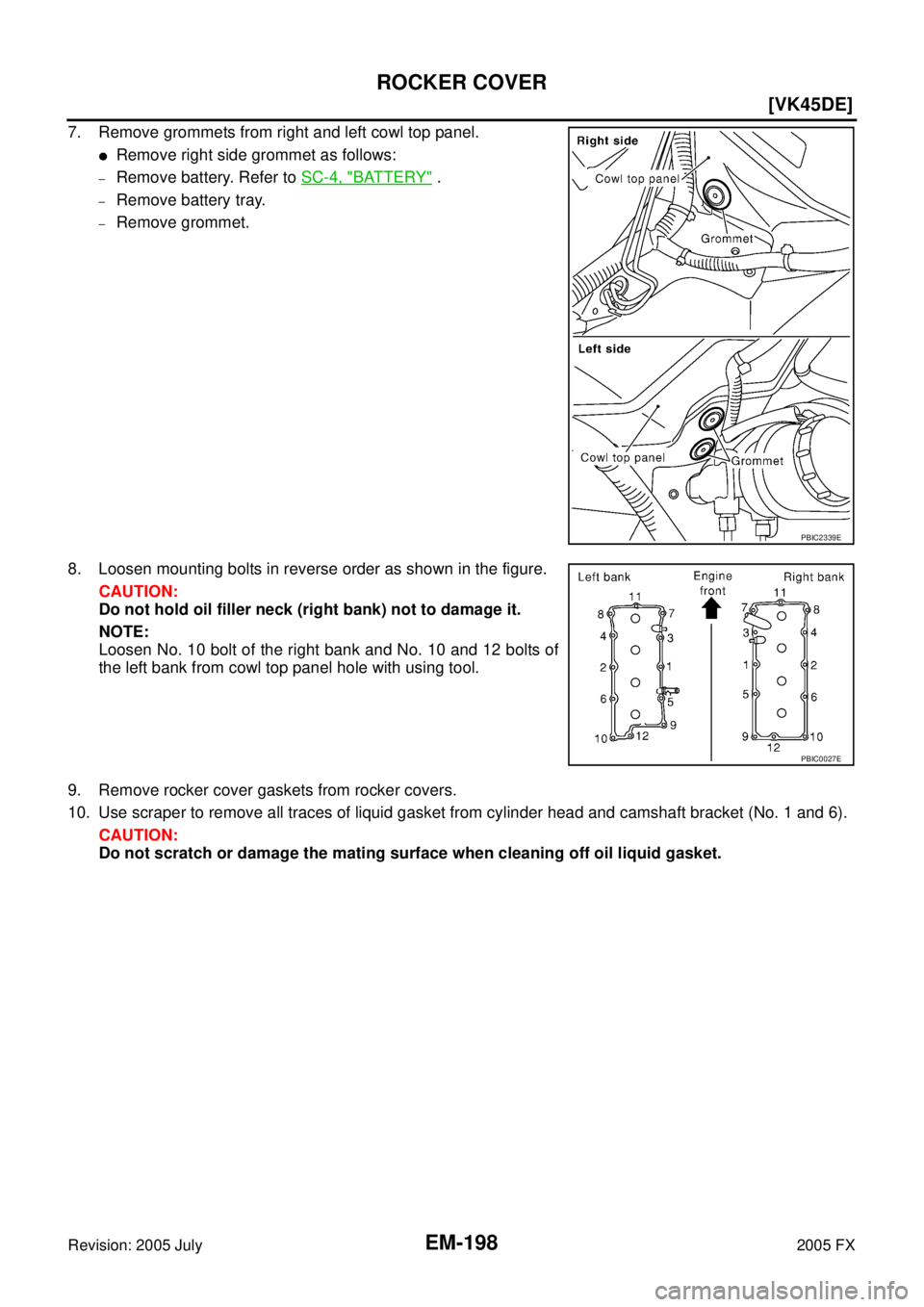

7. Remove grommets from right and left cowl top panel.

Remove right side grommet as follows:
–Remove battery. Refer to SC-4, "BATTERY" .
–Remove battery tray.
–Remove grommet.
8. Loosen mounting bolts in reverse order as shown in the figure. CAUTION:
Do not hold oil filler neck (right bank) not to damage it.
NOTE:
Loosen No. 10 bolt of the right bank and No. 10 and 12 bolts of
the left bank from cowl top panel hole with using tool.
9. Remove rocker cover gaskets from rocker covers.
10. Use scraper to remove all traces of liquid gasket from cylinder head and camshaft bracket (No. 1 and 6). CAUTION:
Do not scratch or damage the mating surface when cleaning off oil liquid gasket.
PBIC2339E
PBIC0027E

ROCKER COVER EM-199
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
INSTALLATION
1. Apply liquid gasket with tube presser [SST: WS39930000 ( —
)] to joint among rocker cover, cylinder head and camshaft
bracket (No. 1 and 6) as follows:
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
NOTE:
The figure shows an example of left bank side [zoomed in
shows camshaft bracket (No. 1)]. Apply only to camshaft bracket
(No. 1) for right bank side.

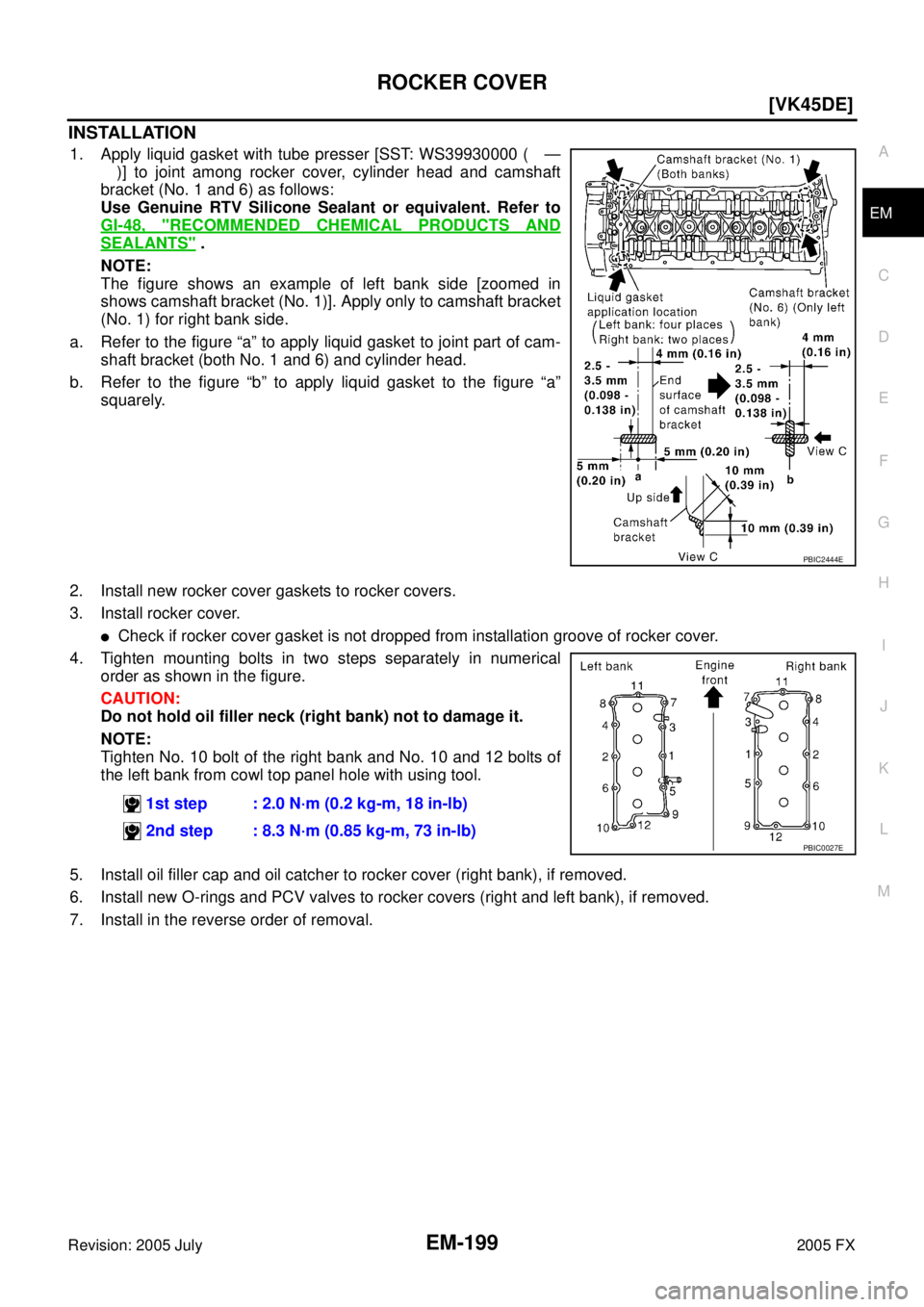

a. Refer to the figure “a” to apply liquid gasket to joint part of cam- shaft bracket (both No. 1 and 6) and cylinder head.
b. Refer to the figure “b” to apply liquid gasket to the figure “a” squarely.
2. Install new rocker cover gaskets to rocker covers.
3. Install rocker cover.

Check if rocker cover gasket is not dropped from installation groove of rocker cover.
4. Tighten mounting bolts in two steps separately in numerical order as shown in the figure.
CAUTION:
Do not hold oil filler neck (right bank) not to damage it.
NOTE:
Tighten No. 10 bolt of the right bank and No. 10 and 12 bolts of
the left bank from cowl top panel hole with using tool.
5. Install oil filler cap and oil catcher to rocker cover (right bank), if removed.
6. Install new O-rings and PCV valves to rocker covers (right and left bank), if removed.
7. Install in the reverse order of removal.
PBIC2444E
1st step : 2.0 N·m (0.2 kg-m, 18 in-lb)
2nd step : 8.3 N·m (0.85 kg-m, 73 in-lb)
PBIC0027E

EM-208
[VK45DE]
TIMING CHAIN
Revision: 2005 July 2005 FX
7. Install oil pump drive spacer as follows:
a. Insert oil pump drive spacer according to the directions of crank- shaft key and the two flat surfaces of oil pump inner rotor.

If the positional relationship does not allow the insertion,
rotate oil pump inner rotor with a finger to allow spacer.
b. After confirming that the position of each part is in correct condi- tion to allow for spacer, force fit spacer by lightly tapping with
plastic hammer until it contacts and does not go further.
8. Install front oil seal on front cover.

Apply new engine oil to both oil seal lip and dust seal lip.

Install it so that each seal lip is oriented as shown in the fig-
ure.
CAUTION:
Be careful not to scratch or make burrs on circumference
of oil seal.

Using front oil seal drift (commercial service tool), press fit
until the height of front oil seal is level with the mounting sur-
face.

Make sure the garter spring is in position and seal lips not
inverted.
9. Install chain tensioner cover to front cover.

Apply a continuous bead of liquid gasket with tube presser
[SST: WS39930000 ( — )] to front cover as shown in the
figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
10. Install front cover as follows:
PBIC0058E
SEM715A
Front oil seal drift Outer diameter : 56 mm (2.20 in)
Inner diameter : 49 mm (1.93 in)
PBIC0059E
SBIA0372E

OIL SEAL EM-225
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
OIL SEALPFP:00100
Removal and Installation of Valve Oil SealABS006IM
REMOVAL
1. Remove engine assembly from vehicle. Refer to EM-240, "ENGINE ASSEMBLY" .
2. Remove camshaft relating to valve oil seal to be removed. Refer to EM-212, "
CAMSHAFT" .
3. Remove adjusting shims and valve lifters. Refer to EM-212, "
CAMSHAFT" .

Identify installation positions, and store them without mixing them up.
4. Turn crankshaft until the cylinder requiring new oil seals is at TDC. This will prevent valve from dropping into cylinder.
5. Remove valve collet.

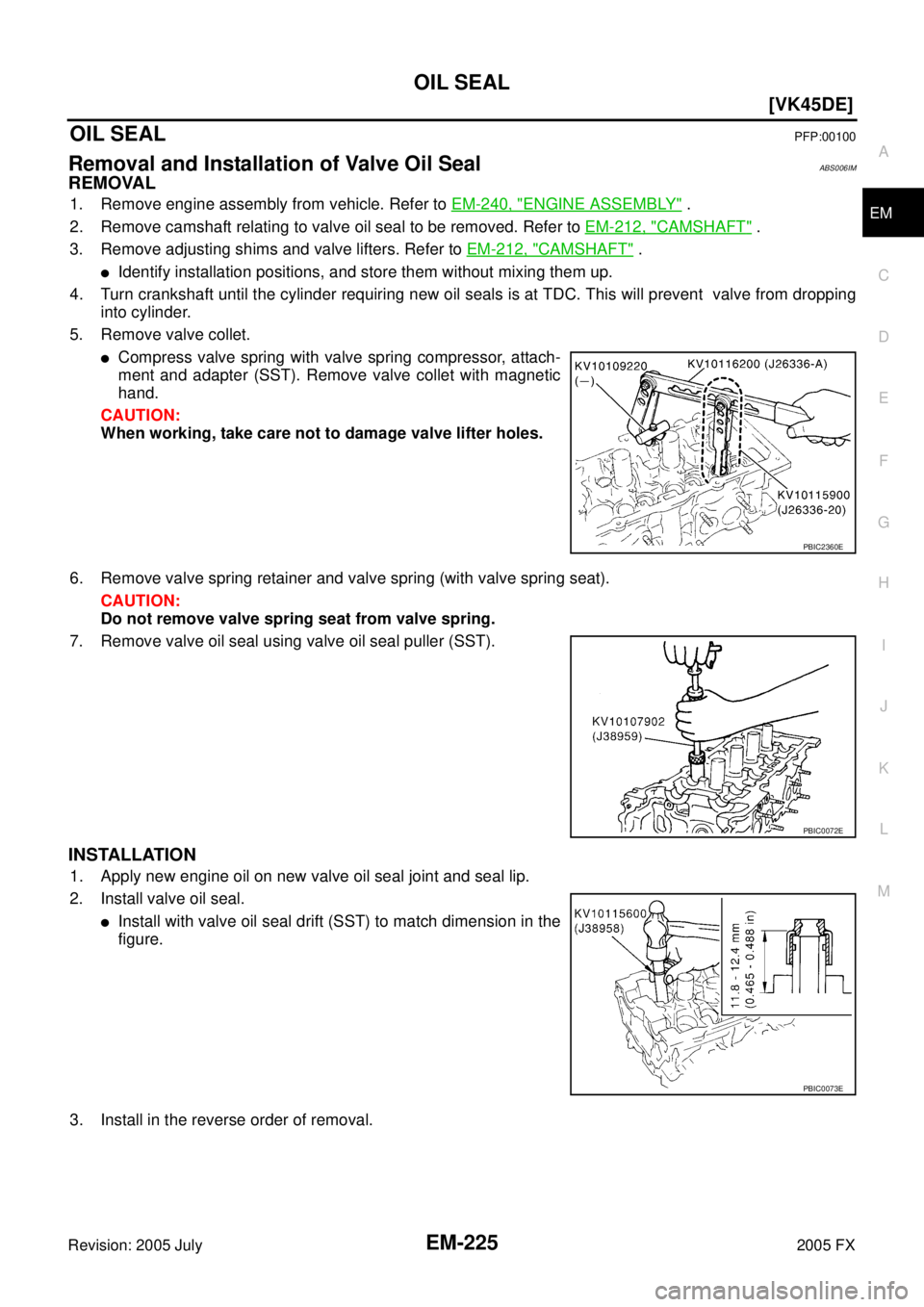

Compress valve spring with valve spring compressor, attach-
ment and adapter (SST). Remove valve collet with magnetic
hand.
CAUTION:
When working, take care not to damage valve lifter holes.
6. Remove valve spring retainer and valve spring (with valve spring seat). CAUTION:
Do not remove valve spring seat from valve spring.
7. Remove valve oil seal using valve oil seal puller (SST).
INSTALLATION
1. Apply new engine oil on new valve oil seal joint and seal lip.
2. Install valve oil seal.

Install with valve oil seal drift (SST) to match dimension in the
figure.
3. Install in the reverse order of removal.
PBIC2360E
PBIC0072E
PBIC0073E

EM-234
[VK45DE]
CYLINDER HEAD
Revision: 2005 July 2005 FX

Identify installation positions, and store them without mixing them up.
6. Remove valve oil seal with valve oil seal puller (SST).
7. If valve seat must be replaced, refer to EM-238, "
VALVE SEAT REPLACEMENT" .
8. If valve guide must be replaced, refer to EM-236, "
VALVE GUIDE REPLACEMENT" .
9. Remove spark plug tube, as necessary.

Using pair of pliers, pull spark plug tube out of cylinder head.
CAUTION:

Take care not to damage cylinder head.

Once removed, spark plug tube will be deformed and cannot be reused. Do not remove it unless
absolutely necessary.
ASSEMBLY
1. When valve guide is removed, install it. Refer to EM-236, "VALVE GUIDE REPLACEMENT" .
2. When valve seat is removed, install it. Refer to EM-238, "
VALVE SEAT REPLACEMENT" .
3. Install new valve oil seal as follows:
a. Apply new engine oil on valve oil seal joint and seal lip.
b. Install with valve oil seal drift (SST) to match dimension in the figure.
4. Install valve.

Install in the original position.
NOTE:
Larger diameter valves are for intake side.
5. Install valve spring (with valve spring seat).

Install smaller pitch (valve spring seat side) to cylinder head
side.
6. Install valve spring retainer.
PBIC0072E
PBIC0073E
PBIC0074E
