2005 INFINITI FX35 key

CYLINDER HEAD EM-103
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
1. Using a scraper, wipe off oil, scale, gasket, sealant and carbon deposits from surface of cylinder head.
CAUTION:
Do not allow gasket fragments to enter engine oil or engine coolant passages.
2. At each of several locations on bottom surface of cylinder head, measure the distortion in six directions.

If it exceeds the limit, replace cylinder head.
INSTALLATION
1. Install new cylinder head gaskets.
2. Turn crankshaft until No. 1 piston is set at TDC.

Crankshaft key should line up with the right bank cylinder cen-
ter line as shown in the figure.
3. Install cylinder head follow the steps below to tighten cylinder head bolts in numerical order as shown in the figure with cylin-
der head bolts wrench (commercial service tool).
CAUTION:
If cylinder head bolts re-used, check their outer diameters
before installation. Refer to EM-102, "
Cylinder Head Bolts
Outer Diameter" .
a. Apply new engine oil to threads and seat surfaces of cylinder head bolts.
b. Tighten all cylinder head bolts.
c. Completely loosen all cylinder head bolts. CAUTION:
In step “c”, loosen bolts in reverse order of that indicated in
the figure.
d. Tighten all cylinder head bolts. Limit : 0.1 mm (0.004 in)
SEM861E
SEM532G
: 98.1 N·m (10 kg-m, 72 ft-lb)
: 0 N·m (0 kg-m, 0 ft-lb)
: 39.2 N·m (4.0 kg-m, 29 ft-lb)
PBIC2057E

CYLINDER BLOCK EM-123
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
Disassembly and AssemblyABS004XH
DISASSEMBLY
1. Remove the engine assembly from the vehicle, and separate transmission assembly, transfer assembly
(AWD models), front final drive assembly (AWD models) and front suspension member from the engine.
Refer to EM-112, "
ENGINE ASSEMBLY" .
2. Remove exhaust manifold. Refer to EM-26, "
EXHAUST MANIFOLD AND THREE WAY CATALYST" .
3. Install engine sub-attachment with engine stand shaft [SST] to right side of cylinder block.

Use a spacer to the engine rear side.
1. Cylinder block 2. Reinforcement plate 3. Drive plate
4. Rear oil seal retainer 5. Cover 6. Gasket
7. Knock sensor 8. Oil jet 9. Thrust bearing
10. Pilot converter 11. Main bearing 12. Crankshaft
13. Crankshaft key 14. Main bearing cap 15. Main bearing cap bolt
16. Main bearing beam 17. Baffle plate (2WD model) 18. Top ring
19. Second ring 20. Oil ring 21. Piston
22. Piston pin 23. Snap ring 24. Connecting rod
25. Connecting rod bearing 26. Connecting rod bearing cap 27. Connecting rod bolt

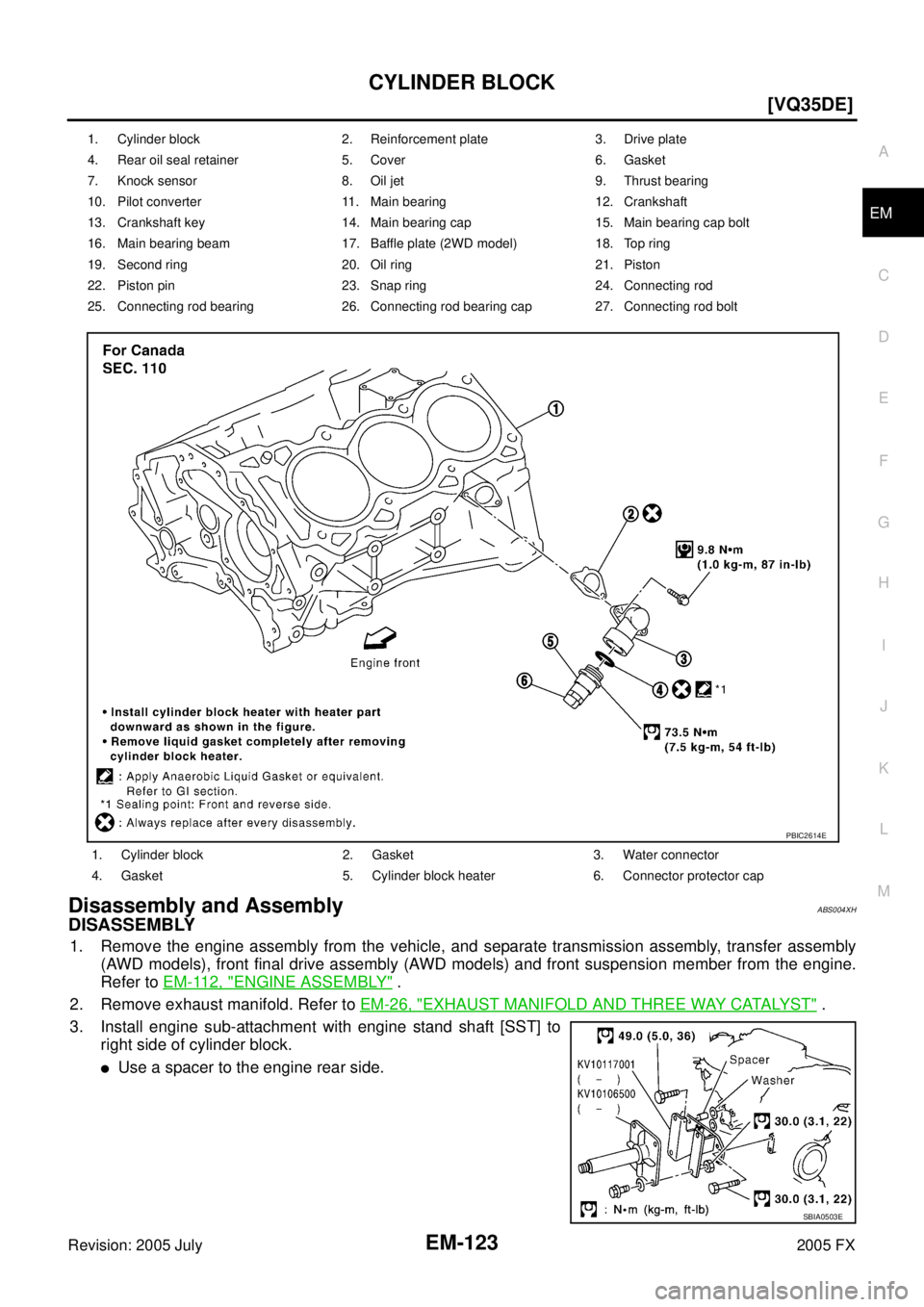

1. Cylinder block 2. Gasket 3. Water connector
4. Gasket 5. Cylinder block heater 6. Connector protector cap
PBIC2614E
SBIA0503E

PRECAUTIONS EM-163
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
[VK45DE]PRECAUTIONSPFP:00001
Precautions Necessary for Steering Wheel Rotation After Battery DisconnectABS00DB1
NOTE:

This Procedure is applied only to models with Intelligent Key system and NVIS/IVIS (NISSAN/INFINITI
VEHICLE IMMOBILIZER SYSTEM - NATS).

Remove and install all control units after disconnecting both battery cables with the ignition knob in the
″ LOCK ″ position.

Always use CONSULT-II to perform self-diagnosis as a part of each function inspection after finishing
work. If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NVIS/IVIS, an electrically controlled steering lock
mechanism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC ″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK ″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-II.
Precautions for Drain Engine Coolant and Engine OilABS006HV
Drain engine coolant and engne oil when engine is cooled.
Precautions for Disconnecting Fuel PipingABS006HW

Before starting work, make sure no fire or spark producing items are in the work area.

Release fuel pressure before disconnecting and disassembly.

After disconnecting pipes, plug openings to stop fuel leakage.
Precautions for Removal and DisassemblyABS006HX

When instructed to use SST, use specified tools. Always be careful to work safely, avoid forceful or unin-
structed operations.

Exercise maximum care to avoid damage to mating or sliding surfaces.

Cover openings of engine system with tape or the equivalent, if necessary, to seal out foreign materials.

Mark and arrange disassembly parts in an organized way for easy troubleshooting and assembly.

When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specified, do exactly as specified. Power tools may be
used where noted in the step.
Precautions for Inspection, Repair and ReplacementABS006HY
Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
Precautions for Assembly and InstallationABS006HZ

Use torque wrench to tighten bolts or nuts to specification.

EM-206
[VK45DE]
TIMING CHAIN
Revision: 2005 July 2005 FX
1. Make sure that crankshaft key and dowel pin of each camshaft
are located as shown in the figure. (No. 1 cylinder at compres-
sion TDC)
NOTE:
Though camshaft does not stop at the position as shown in the
figure, for the placement of cam nose, it is generally accepted
camshaft is placed for the same direction of the figure.
2. Install camshaft sprockets.

Install onto correct side by checking with identification mark
on surface.

Install camshaft sprocket (EXH) by selectively using the
groove of dowel pin according to the bank. (Common part
used for both banks.)

Lock the hexagonal part of camshaft in the same procedure
as for removal, and tighten mounting bolts.
3. Install crankshaft sprockets for both banks.

Install each crankshaft sprocket so that its flange side (the
larger diameter side without teeth) faces in the direction
shown in the figure.
NOTE:
The same parts are used but facing directions are different. Camshaft dowel pin
: At cylinder head upper face side in each bank
Crankshaft key : At cylinder head side of left bank
SBIA0356E
PBIC2345E
PBIC0057E

EM-208
[VK45DE]
TIMING CHAIN
Revision: 2005 July 2005 FX
7. Install oil pump drive spacer as follows:
a. Insert oil pump drive spacer according to the directions of crank- shaft key and the two flat surfaces of oil pump inner rotor.

If the positional relationship does not allow the insertion,
rotate oil pump inner rotor with a finger to allow spacer.
b. After confirming that the position of each part is in correct condi- tion to allow for spacer, force fit spacer by lightly tapping with
plastic hammer until it contacts and does not go further.
8. Install front oil seal on front cover.

Apply new engine oil to both oil seal lip and dust seal lip.

Install it so that each seal lip is oriented as shown in the fig-
ure.
CAUTION:
Be careful not to scratch or make burrs on circumference
of oil seal.

Using front oil seal drift (commercial service tool), press fit
until the height of front oil seal is level with the mounting sur-
face.

Make sure the garter spring is in position and seal lips not
inverted.
9. Install chain tensioner cover to front cover.

Apply a continuous bead of liquid gasket with tube presser
[SST: WS39930000 ( — )] to front cover as shown in the
figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
10. Install front cover as follows:
PBIC0058E
SEM715A
Front oil seal drift Outer diameter : 56 mm (2.20 in)
Inner diameter : 49 mm (1.93 in)
PBIC0059E
SBIA0372E

EM-232
[VK45DE]
CYLINDER HEAD
Revision: 2005 July 2005 FX

Crankshaft key should line up with the left bank cylinder cen-
ter line as shown in the figure.
3. Install cylinder head follow the steps below to tighten cylinder head bolts in numerical order as shown in the figure with cylin-
der head bolt wrench (commercial service tool).
CAUTION:
If cylinder head bolts are re-used, check their outer diame-
ters before installation. Refer to EM-231, "
Cylinder Head
Bolts Outer Diameter" .
a. Apply new engine oil to threads and seating surface of cylinder head bolts.
b. Tighten all cylinder head bolts. 98.1 N·m (10 kg-m, 72 ft-lb).
c. Completely loosen all cylinder head bolts. CAUTION:
In step “c”, loosen cylinder head bolts in reverse order of that indicated in the figure.
d. Tighten all cylinder head bolts to 44.1 N·m (4.5 kg-m, 33 ft-lb).
e. Turn all cylinder head bolts 60 degrees clockwise. (Angle tight- ening)
CAUTION:
Check the tightening angle by using angle wrench (SST).
Avoid judgment by visual inspection without SST.

Check tightening angle indicated on angle wrench indicator
plate.
f. Turn all cylinder head bolts 60 degrees clockwise again. (Angle tightening)
4. Install in the reverse order of removal.
PBIC2389E
: 98.1 N·m (10 kg-m, 72 ft-lb)
: 0 N·m (0 kg-m, 0 ft-lb)
: 44 N·m (4.5 kg-m, 33 ft-lb)
PBIC0068E
PBIC0069E

CYLINDER BLOCK EM-245
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
CYLINDER BLOCKPFP:11010
ComponentsABS00DG0
1. Knock sensor sub harness 2. Knock sensor 3. Cylinder block
4. Cover 5. Main bearing 6. Top ring
7. Second ring 8. Oil ring 9. Crankshaft key
10. Piston 11. Connecting rod 12. Snap ring
PBIC2366E

GI-1
GENERAL INFORMATION
A GENERAL INFORMATION
CONTENTS
C
D E
F
G H
I
J
K L
M B
GI
SECTION GI
Revision: 2005 July
2005 FX
GENERAL INFORMATION
PRECAUTIONS .......................................................... 3
Description .......................................................... ..... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions for NVIS/IVIS (NISSAN/INFINITI
VEHICLE IMMOBILIZER SYSTEM - NATS) (If
Equipped) ............................................................ ..... 3
Precautions Necessary for Steering Wheel Rotation
After Battery Disconnect ..................................... ..... 4
OPERATION PROCEDURE ............................ ..... 4
Precautions for Procedures without Cowl Top Cover ..... 4
General Precautions ........................................... ..... 4
Precautions for Three Way Catalyst .................... ..... 6
Precautions for Fuel (Unleaded Premium Gasoline
Recommended) ................................................... ..... 6
Precautions for Fuel (Unleaded Premium Gasoline
Required) ............................................................ ..... 7
Precautions for Multiport Fuel Injection System or
Engine Control System ....................................... ..... 7
Precautions for Hoses ......................................... ..... 7
HOSE REMOVAL AND INSTALLATION .......... ..... 7
HOSE CLAMPING ........................................... ..... 8
Precautions for Engine Oils ................................. ..... 8
HEALTH PROTECTION PRECAUTIONS ........ ..... 8
ENVIRONMENTAL PROTECTION PRECAU-
TIONS .............................................................. ..... 8
Precautions for Air Conditioning .......................... ..... 8
HOW TO USE THIS MANUAL .............................. ..... 9
Description .......................................................... ..... 9
Terms .................................................................. ..... 9
Units .................................................................... ..... 9
Contents .............................................................. ..... 9
Components ........................................................ ... 10
SYMBOLS ........................................................ ... 10
How to Follow Trouble Diagnoses ....................... .... 11
DESCRIPTION ................................................. .... 11
HOW TO FOLLOW TEST GROUPS IN TROU-
BLE DIAGNOSES ............................................ .... 11
HARNESS WIRE COLOR AND CONNECTOR NUMBER INDICATION ....................................
... 12
KEY TO SYMBOLS SIGNIFYING MEASURE-
MENTS OR PROCEDURES ............................ ... 13
How to Read Wiring Diagrams ............................ ... 15
CONNECTOR SYMBOLS ................................ ... 15
SAMPLE/WIRING DIAGRAM - EXAMPL - ....... ... 16
DESCRIPTION ................................................. ... 17
Abbreviations ....................................................... ... 23
SERVICE INFORMATION FOR ELECTRICAL INCI-
DENT ...................................................................... ... 24
How to Check Terminal ........................................ ... 24
CONNECTOR AND TERMINAL PIN KIT ......... ... 24
HOW TO PROBE CONNECTORS ................... ... 24
How to Perform Efficient Diagnosis for an Electrical
Incident ................................................................ ... 27
WORK FLOW ................................................... ... 27
INCIDENT SIMULATION TESTS ..................... ... 27
CIRCUIT INSPECTION .................................... ... 30
Control Units and Electrical Parts ........................ ... 35
PRECAUTIONS ............................................... ... 35
CONSULT-II CHECKING SYSTEM ....................... ... 37
Description ........................................................... ... 37
Function and System Application ........................ ... 37
Nickel Metal Hydride Battery Replacement ......... ... 38
Checking Equipment ........................................... ... 38
CONSULT-II Start Procedure ............................... ... 38
CONSULT-II Data Link Connector (DLC) Circuit . ... 39
INSPECTION PROCEDURE ........................... ... 39
CIRCUIT DIAGRAM ......................................... ... 40
LIFTING POINT ...................................................... ... 41
Special Service Tools .......................................... ... 41
Garage Jack and Safety Stand ............................ ... 41
2-Pole Lift ............................................................ ... 42
Board-On Lift ....................................................... ... 43
TOW TRUCK TOWING .......................................... ... 44
Tow Truck Towing ................................................ ... 44
2WD MODELS ................................................. ... 44
AWD MODELS ................................................. ... 45
Vehicle Recovery (Freeing a Stuck Vehicle) ........ ... 45
AUTOMATIC TRANSMISSION ........................ ... 46
