IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) PG-29
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX
Inspection With CONSULT-II (Self-Diagnosis)AKS005SG
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. CHECK SELF DIAGNOSTIC RESULT
1. Connect CONSULT-II and select “IPDM E/R” on the “SELECT SYSTEM” screen.
2. Select “SELF-DIAG RESULTS” on the “SELECT DIAG MODE” screen.
3. Check display content in self diagnostic results.
NOTE:
The details for display of the period are as follows:
CRNT: Error currently detected with IPDM E/R.
PAST: Error detected in the past and memorized with IPDM E/R.
Contents displayed
NO DTC IS DETECTED.FURTHER TESTING MAY BE REQUIRED.>>INSPECTION END
CAN COMM CIRC>> LAN-5, "
Precautions When Using CONSULT-II".
CONSULT-II display CONSULT-II
display code TIME
Details of diagnosis result
CRNT PAST
NO DTC IS DETECTED.
FURTHER TESTING MAY BE REQUIRED. - - - No malfunction
CAN COMM CIRC U1000 ×× Any of or several items below have errors.
TRANSMIT DIAG
ECM
BCM/SEC
Page 4207 of 4731
PG-30
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
Revision: 2005 July 2005 FX
Removal and Installation of IPDM E/RAKS005SM
REMOVAL
1. Remove battery. Refer to SC-9, "Removal and Installation" in “Starting and Charging System (SC)” sec-
tion.
2. Remove IPDM E/R cover A. While pressing pawl on backside of IPDM E/R cover B toward vehicle front to unlock, lift up IPDM E/
R.
3. While pressing pawls on right and left side of IPDM E/R, remove IPDM E/R cover B from IPDM E/R.
4. Remove harness connector from IPDM E/R.
INSTALLATION
Installation is the reverse order of removal.
SKIA4968E
SKIA1902E
SKIA4969E
Page 4211 of 4731
PG-34
GROUND
Revision: 2005 July 2005 FX
ENGINE ROOM HARNESS
CKIM0200E
Page 4214 of 4731
GROUND PG-37
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX
ENGINE HARNESS/VK ENGINE MODELS
CKIM0203E
Page 4215 of 4731
PG-38
GROUND
Revision: 2005 July 2005 FX
ENGINE HARNESS/VQ ENGINE MODELS
CKIM0204E
Page 4216 of 4731
GROUND PG-39
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX

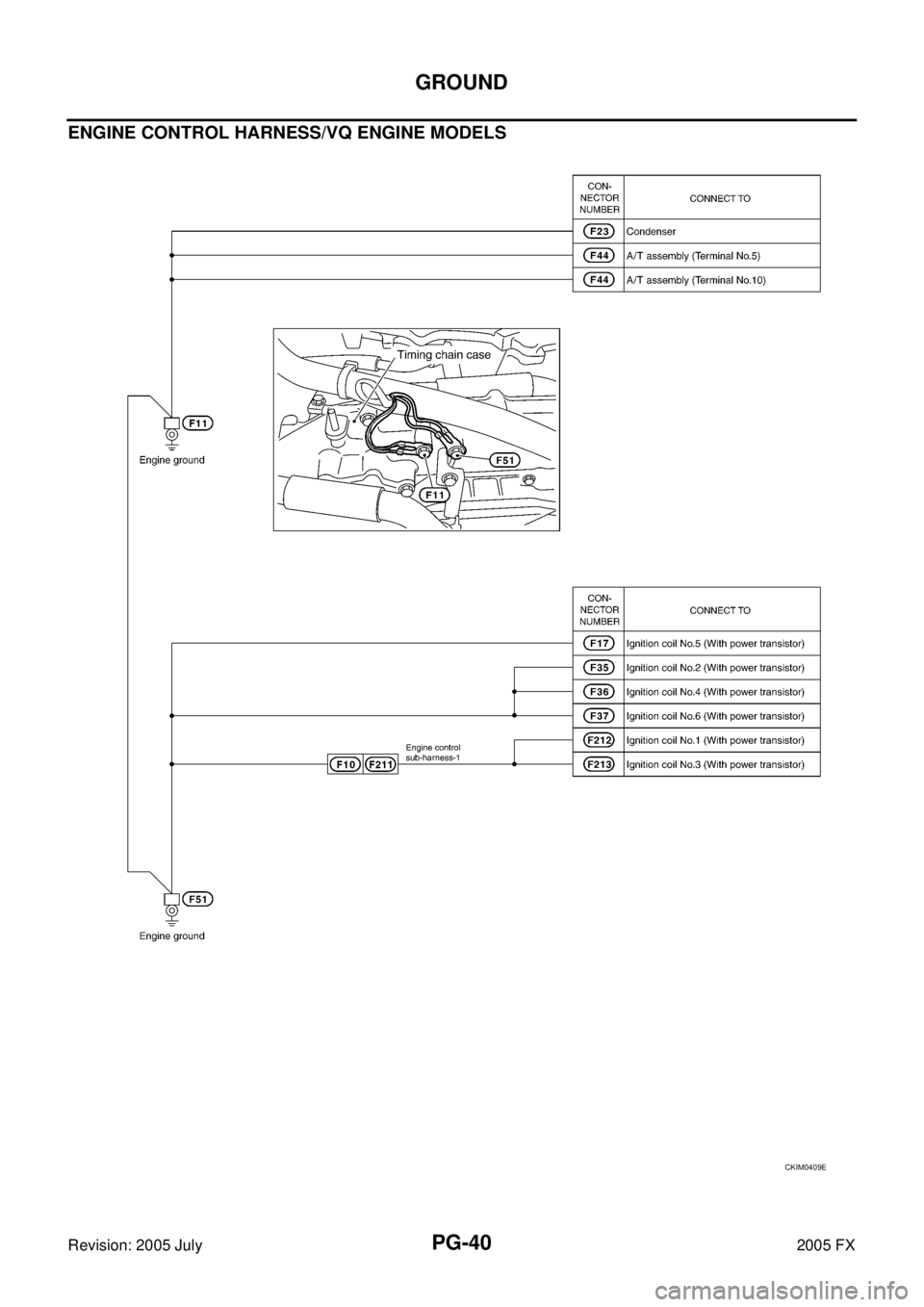

ENGINE CONTROL HARNESS/VK ENGINE MODELS
