2005 Hyundai Terracan Owner's Manual

YOUR VEHICLE AT A GLANCE

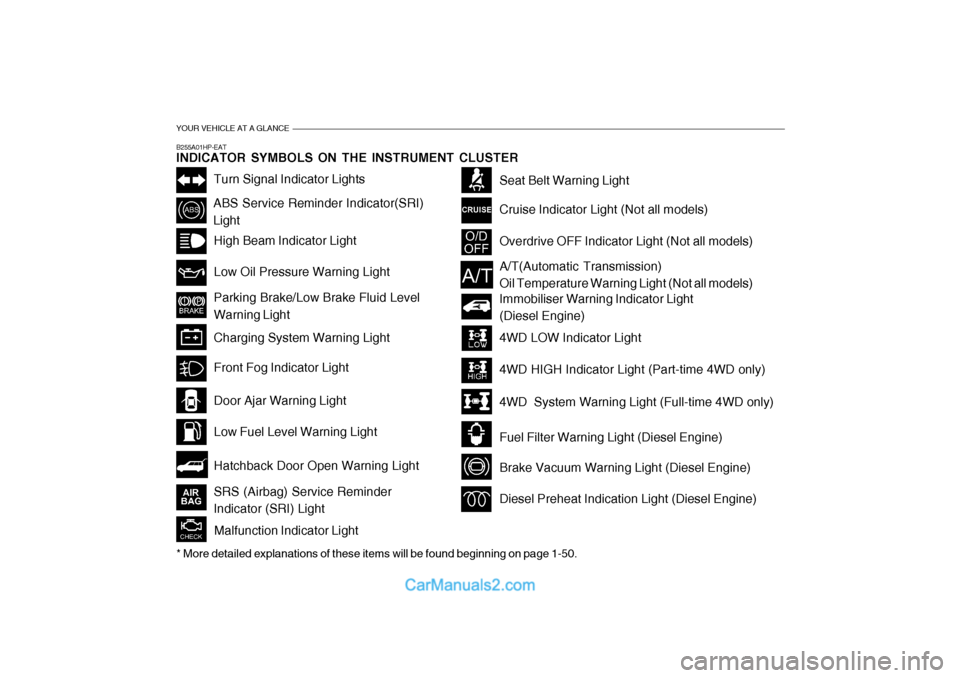

B255A01HP-EAT INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER
Turn Signal Indicator Lights
ABS Service Reminder Indicator(SRI) LightHigh Beam Indicator Light Low Oil Pressure Warning Light Parking Brake/Low Brake Fluid Level Warning Light Charging System Warning Light
Hatchback Door Open Warning Light
Door Ajar Warning Light Low Fuel Level Warning Light
Front Fog Indicator Light
Overdrive OFF Indicator Light (Not all models)
Immobiliser Warning Indicator Light (Diesel Engine)
Seat Belt Warning Light Cruise Indicator Light (Not all models)
Malfunction Indicator Light
A/T(Automatic Transmission) Oil Temperature Warning Light (Not all models)
4WD LOW Indicator Light 4WD HIGH Indicator Light (Part-time 4WD only)
4WD System Warning Light (Full-time 4WD only)
Fuel Filter Warning Light (Diesel Engine)
Brake Vacuum Warning Light (Diesel Engine)
Diesel Preheat Indication Light (Diesel Engine)
* More detailed explanations of these items will be found beginning on page 1-50.SRS (Airbag) Service Reminder Indicator (SRI) Light

Fuel Recommendations ............................................... 1-2
Running In Your Hyundai .............................................. 1-4
Immobiliser System ...................................................... 1-5
Door Locks ................................................................... 1-9Theft-Alarm System ..................................................... 1-11
Power Windows ........................................................... 1-14
Seats ........................................................................... 1-16
Seat Belts .................................................................... 1-25
Child Restraint System ................................................ 1-31
Supplemental Restraint (AIRBAG) System .................1-40
Instrument Cluster and Indicator Lights .......................1-46
Warning and Indicator Lights....................................... 1-50
Multi-Function Switch .................................................. 1-60
Windscreen Wiper/Washer Switch ..............................1-63
Sunroof ........................................................................ 1-70
Mirror ........................................................................... 1-75
Bonnet Release ........................................................... 1-83
Cruise Co ntrol.............................................................. 1-86
Heating and Cooling Control .......... ..............................1-89
Stereo Sound System ............................................... 1-105
Antenna ..................................................................... 1-107
CONTROLS AND EQUIPMENT
1
1

1CONTROLS AND EQUIPMENT
2
CAUTION:
The vehicle warranty will not extend to damage arising from the use of incorrect fuels. DIESEL ENGINES Diesel fuel of 52 to 54 cetane is the correct rating to use in your Hyundai Terracan. If two types of diesel fuel areavailable, use summer or winter fuel properly according to the following tem- perature conditions.
o Above 23°F (-5°C) ... Summer type diesel fuel.
o Below 23°F (-5°C) ... Winter type diesel fuel.
The use of leaded fuel in this vehicle willresult in irreversible pollution of thecatalyst element. Such pollution will prevent correct operation of the cata- lyst and give rise to increased operatingtemperatures leading to the catalyst element melting and restricting the ex- haust flow along with an increase inexhaust emission levels.
Watch the fuel level in the tank verycarefully : If the engine stops due to fuelfailure, the circuits must be completely purged to permit restarting.
CAUTION:
Do not let any petrol or water enterthe tank. If this happens, the tank should be completely drained andthe fuel lines should all be cleaned out. This will stop the fuel pump from becoming contaminated. ZB010C1-E "Alternative fuels" Fuels which contain methanol or etha- nol must not be used.FUEL RECOMMENDATIONS
B010A01HP-EAT PETROL ENGINES THIS VEHICLE MUST ONLY BE OP- ERATED WITH UNLEADED FUEL. SERIOUS DAMAGE WILL RESULTFROM THE USE OF LEADED FUEL. Unleaded fuel with a Research Octane Number (RON) of 91 or higher must be used in this vehicle.To prevent accidental filling of the fuel tank with leaded fuel, a small diameter filler neck along with a restrictor flapare fitted to ensure that only unleaded fuel pump nozzles may enter the filler neck. However, care must be exer-cised when refuelling the vehicle tank from jerry cans or by means of a funnel that the fuel being used is unleaded.
B010A01HP
!
!
UNLEADED FUEL ONLY

1
CONTROLS AND EQUIPMENT
3
ZB010D1-E Operation in Foreign Countries Drivers of vehicles which are to be operated in foreign countries mustsatisfy themselves that:
o The vehicle meets all local regula- tions with respect to insurance, speci- fications etc..
o The correct types and grades of fuel are available for satisfactory opera-tion of the vehicle.
ZB010F2-A FUELS FOR CLEANER AIR To help contribute to cleaner air, Hyundai recommends that you use fuels treated with detergent additives,which help to prevent deposit forma- tion in the engine. These fuels will help the engines run cleaner and the Emis-sion Control System performance.BEFORE ENTERING THE VE- HICLE
YB020A1-E
o Ensure that all windows, mirrors
and lamps are clean.
o Check condition of all tyres.
o Ensure that no fluid leaks are evi-
dent.
o Ensure that the area around the
vehicle is clear before driving off.AFTER ENTERING THE VE- HICLE
YB020B1-E
o Ensure that all occupants fasten
and correctly adjust seat belts.
o Ensure that seat and headrestraint
positions are adjusted for optimum safety, control and comfort.
o Adjust interior and exterior rear view
mirrors.
o Verify correct operation of lamps, horn and other electrical equipment.
o Ensure that warning lamps illumi- nate when ignition is turned on.
NOTE: Fluid levels such as engine oil, en- gine coolant, brake and windscreenwasher fluid should be checked daily or at each refuelling, whichever occurs sooner.

1CONTROLS AND EQUIPMENT
4 RUNNING IN YOUR NEW HYUNDAI
B020A01FC-EAT PETROL ENGINE The longevity and performance of the vehicle are greatly affected by the careexercised during the first 1000 miles of motoring. Because of modern manu- facturing techniques, rigid guidelinesregarding maximum road speeds have become unnecessary. However, cer- tain precautions should be observed inorder to obtain the best possible per- formance and useful life from the ve- hicle.
1) Do not race the engine without a
load (i.e revving the engine in neu- tral).
2) During the first 500 miles the maxi-
mum engine speed should be re-stricted to 3000 rpm and gradually increased thereafter.
3) Avoid prolonged constant speed operation. The internal componentsof the engine will become more quickly run in if the operation speedis varied during the running in pe- riod. 4) Never allow the engine to labour. Use
the gearbox freely and avoid large throttle openings when the engine speed is below 1500 rpm.
5) Avoid rapid acceleration and maxi- mum throttle openings.
6) Avoid harsh braking during the first
100 miles of urban motoring or 1000 miles of motorway driving to allow the friction facings of the brake pads and shoes to bed against the discsand drums properly.
7) No trailer towing should be under-
taken during the running-in period. 1) Do not race the engine without a
load (i.e revving the engine in neu-tral).
2) During the first 600 miles the maxi-
mum engine speed should be re-stricted to 3000 rpm and gradually increased thereafter. And while driv- ing, keep under three quarters ofmaximum vehicle speed.
3) Avoid prolonged constant speed
operation. The internal componentsof the engine will become more quickly run in if the operation speed is varied during the running in pe-riod.
4) Never allow the engine to labour.
Use the gearbox freely and avoidlarge throttle openings when the engine speed is below 1500 rpm.
5) Avoid rapid acceleration and maxi-
mum throttle openings.
6) Avoid harsh braking during the first
100 miles of urban motoring or 1000 miles of motorway driving to allow the friction facings of the brake pads and shoes to bed against the discsand drums properly.
7) No trailer towing should be under-
taken during the running-in period.
B020B01FC-EAT DIESEL ENGINE The longevity and performance of the vehicle are greatly affected by the care exercised during the first 1000 miles of motoring. Because of modern manu-facturing techniques, rigid guidelines regarding maximum road speeds have become unnecessary. However, cer-tain precautions should be observed in order to obtain the best possible per- formance and useful life from the ve-hicle.

1
CONTROLS AND EQUIPMENT
5

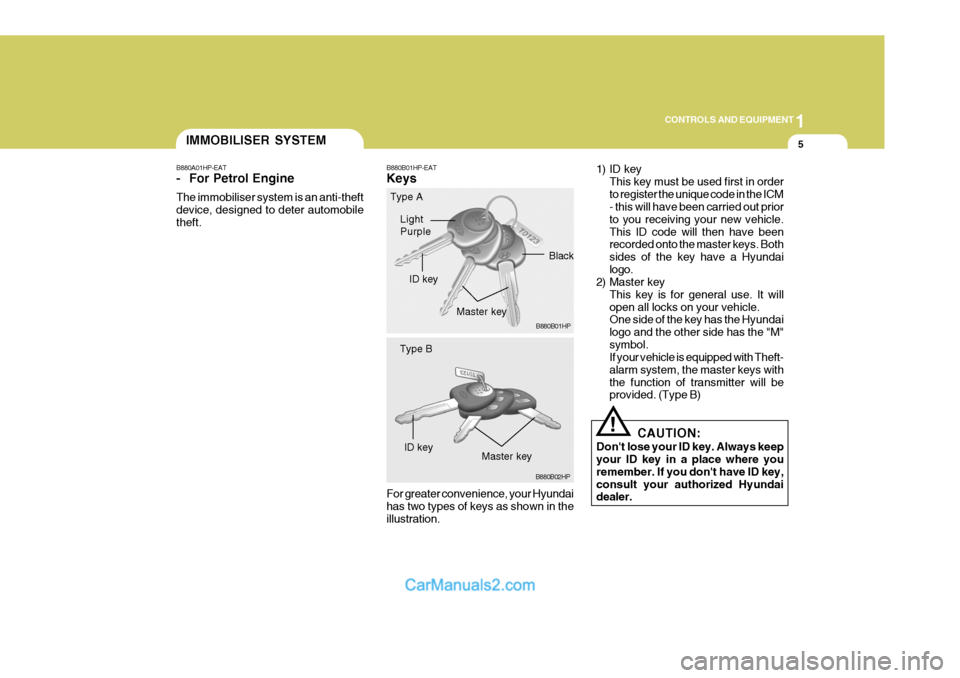

B880B01HP-EAT Keys For greater convenience, your Hyundai has two types of keys as shown in the illustration. 1) ID key
This key must be used first in order to register the unique code in the ICM - this will have been carried out prior to you receiving your new vehicle.This ID code will then have been recorded onto the master keys. Both sides of the key have a Hyundailogo.
2) Master key
This key is for general use. It willopen all locks on your vehicle. One side of the key has the Hyundai logo and the other side has the "M"symbol. If your vehicle is equipped with Theft- alarm system, the master keys withthe function of transmitter will be provided. (Type B)
CAUTION:
Don't lose your ID key. Always keepyour ID key in a place where you remember. If you don't have ID key,consult your authorized Hyundai dealer.IMMOBILISER SYSTEM
B880B01HP
Light Purple
ID key Master key Black
Type A
B880B02HP
ID key
Master key
Type B
!
B880A01HP-EAT
- For Petrol Engine The immobiliser system is an anti-theft device, designed to deter automobiletheft.

1CONTROLS AND EQUIPMENT
6

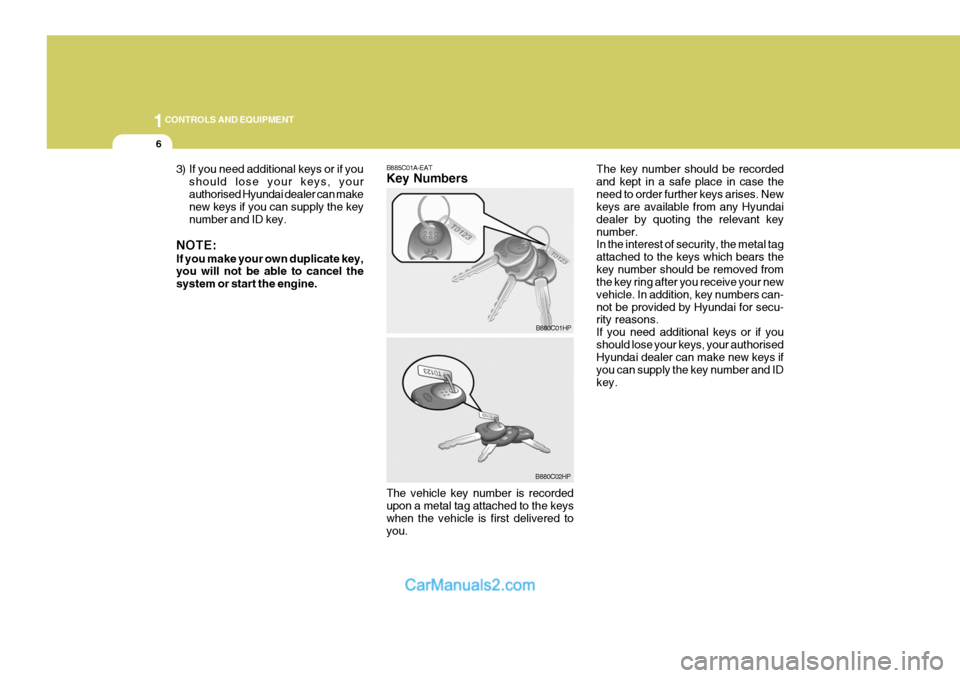

B885C01A-EAT Key Numbers The vehicle key number is recorded upon a metal tag attached to the keys when the vehicle is first delivered toyou.The key number should be recordedand kept in a safe place in case theneed to order further keys arises. New keys are available from any Hyundai dealer by quoting the relevant keynumber. In the interest of security, the metal tag attached to the keys which bears thekey number should be removed from the key ring after you receive your new vehicle. In addition, key numbers can-not be provided by Hyundai for secu- rity reasons. If you need additional keys or if youshould lose your keys, your authorised Hyundai dealer can make new keys if you can supply the key number and IDkey.
B880C01HP
B880C02HP
3) If you need additional keys or if you
should lose your keys, your authorised Hyundai dealer can make new keys if you can supply the key number and ID key.
NOTE: If you make your own duplicate key, you will not be able to cancel the system or start the engine.

1
CONTROLS AND EQUIPMENT
7

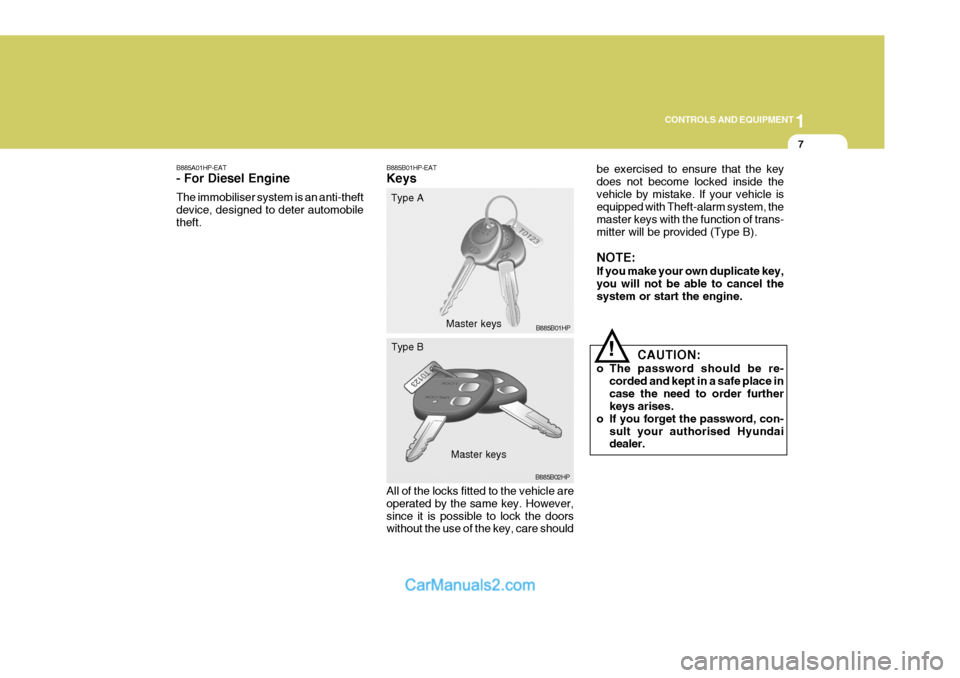

B885A01HP-EAT - For Diesel Engine The immobiliser system is an anti-theft device, designed to deter automobiletheft. B885B01HP-EAT Keys All of the locks fitted to the vehicle are operated by the same key. However,since it is possible to lock the doors without the use of the key, care shouldbe exercised to ensure that the key does not become locked inside thevehicle by mistake. If your vehicle is equipped with Theft-alarm system, the master keys with the function of trans-mitter will be provided (Type B). NOTE: If you make your own duplicate key, you will not be able to cancel thesystem or start the engine.
CAUTION:
o The password should be re- corded and kept in a safe place incase the need to order further keys arises.
o If you forget the password, con- sult your authorised Hyundaidealer.
B885B01HP
Type A
Master keys
Master keys B885B02HP
Type B
!
