2005 Hyundai Sonata Owner's Manual

Page 89 of 271

Hyundai Sonata 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI76
!

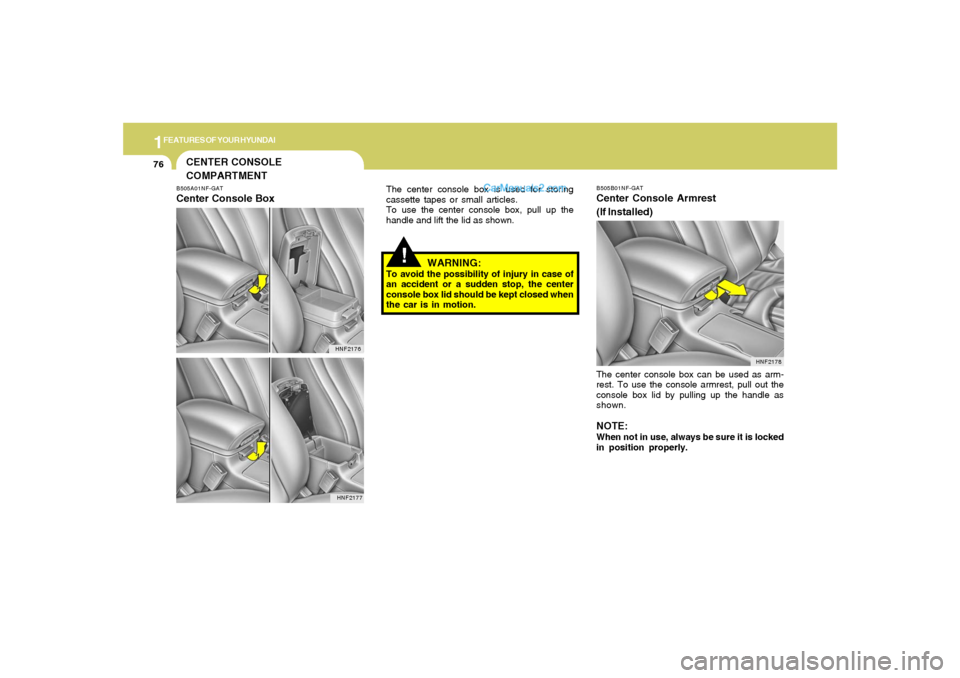

WARNING:
To avoid the possibility of injury in case of
an accident or a sudden stop, the center
console box lid should be kept closed when
the car is in motion.
HNF2178
T

Page 90 of 271

Hyundai Sonata 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
77
!
OUTSIDE REARVIEW MIRROR
!
WARNING:
Do not place cups or cans in the drink
holder when the console box lid is used as
an armrest. It may result in spilling the
beverage.

Page 91 of 271

Hyundai Sonata 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI78
The outside rearview mirror heater is actuated in
connection with the rear window defroster. To heat
the outside rearview mirror glass, push in the switch
for the rear wind

Page 92 of 271

Hyundai Sonata 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
79
HOMELINK MIRRORB520C01NF-AATAutomatic-Dimming Mirror
with Z-Nav™ Electronic Compass Dis-
play and HomeLink
® (If Installed)
Your vehicle comes with a Gentex Automatic-

Page 93 of 271

Hyundai Sonata 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI80
Automatic-Dimming Night Vision
Safety™ (NVS
®) Mirror
The NVS
® Mirror in your vehicle is the most
advanced way to eliminate dangerous and an-
noying glare in the rearv

Page 94 of 271

Hyundai Sonata 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
81
To adjust the Zone setting:
1. Determine the desired Zone Number based
upon your current location on the Zone Map.
2. Press and hold the         button for more than
3 bu

Page 95 of 271

Hyundai Sonata 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI82
!

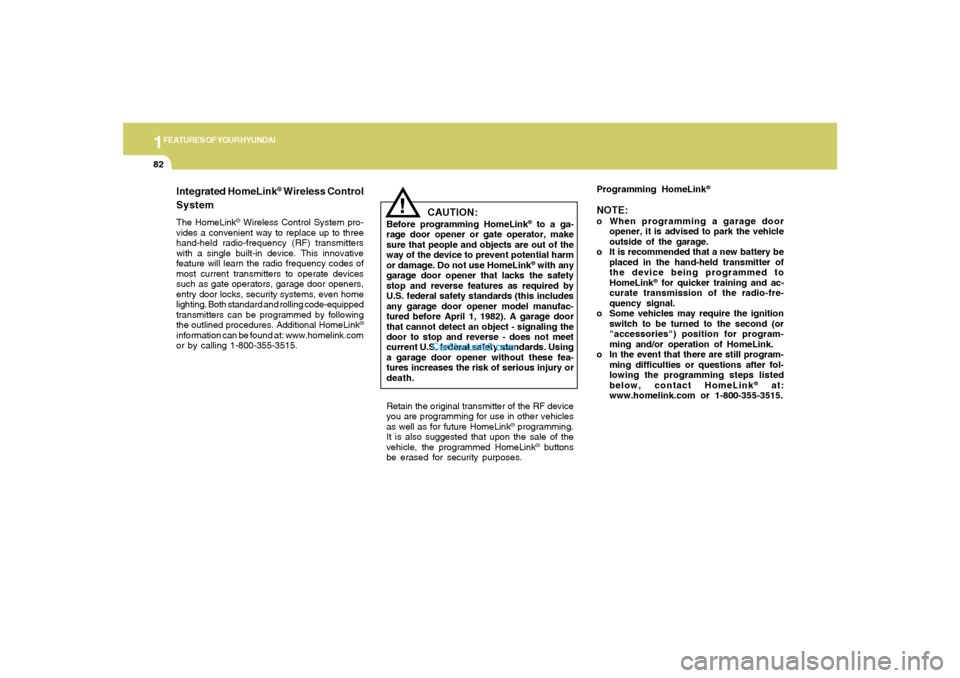

Integrated HomeLink
® Wireless Control
System
The HomeLink
® Wireless Control System pro-
vides a convenient way to replace up to three
hand-held radio-frequency (RF) t

Page 96 of 271

Hyundai Sonata 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
83

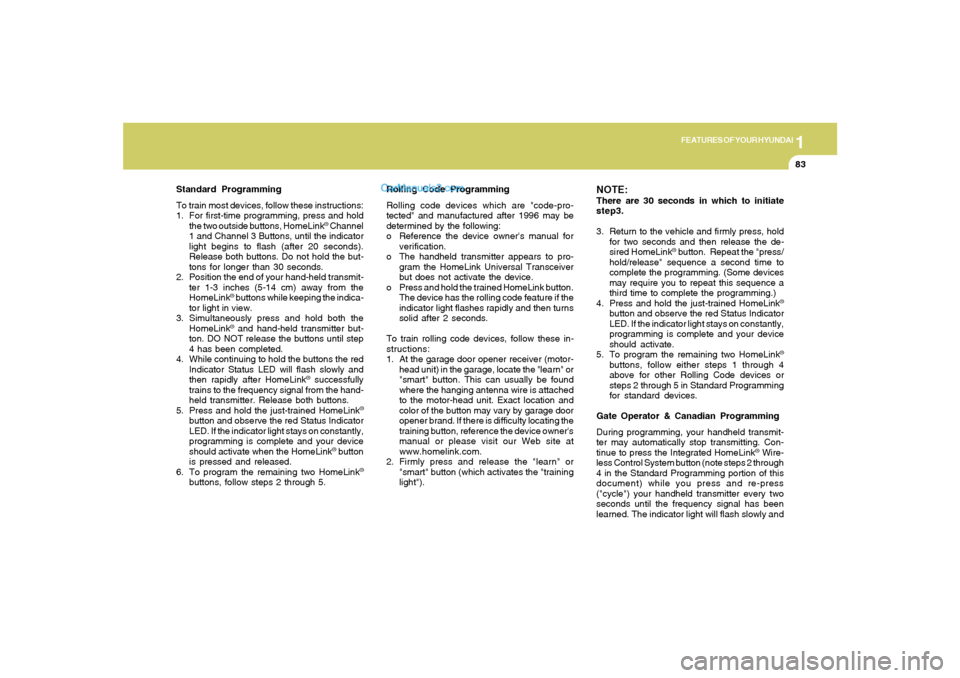

Standard Programming
To train most devices, follow these instructions:
1. For first-time programming, press and hold
the two outside buttons, HomeLink
® Channel
1 and Ch
