2005 Hyundai Sonata Owner's Manual

Page 81 of 271

Hyundai Sonata 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI68

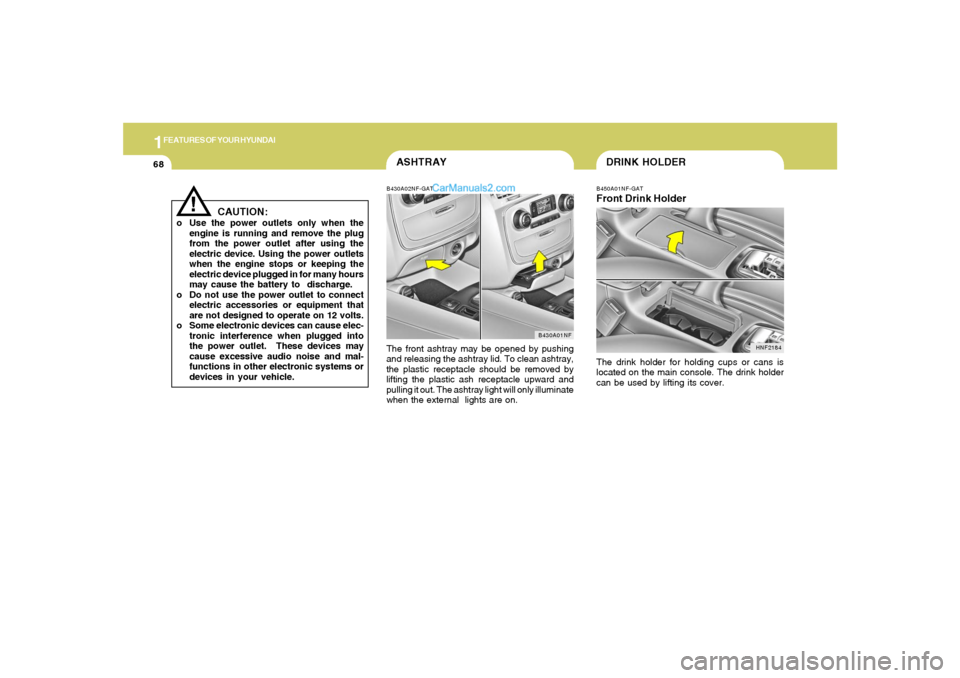

ASHTRAYB430A02NF-GATThe front ashtray may be opened by pushing
and releasing the ashtray lid. To clean ashtray,
the plastic receptacle should be removed by
lifting the plas

Page 82 of 271

Hyundai Sonata 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
69
!
CAUTION:

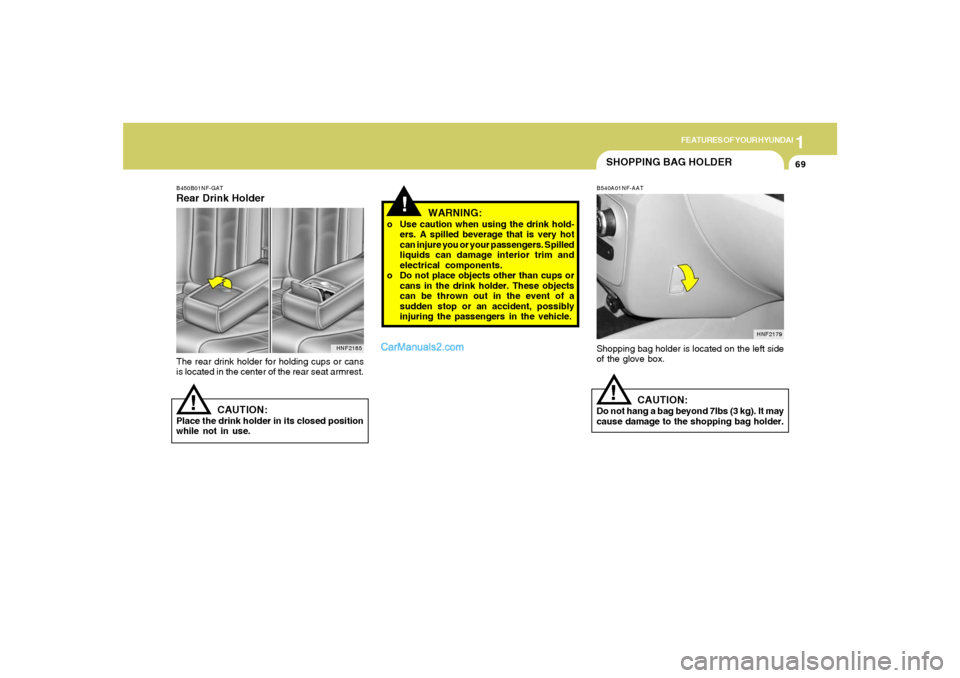

Place the drink holder in its closed position
while not in use.
HNF2185
B450B01NF-GATRear Drink HolderThe rear drink holder for holding cups or cans
is located

Page 83 of 271

Hyundai Sonata 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI70

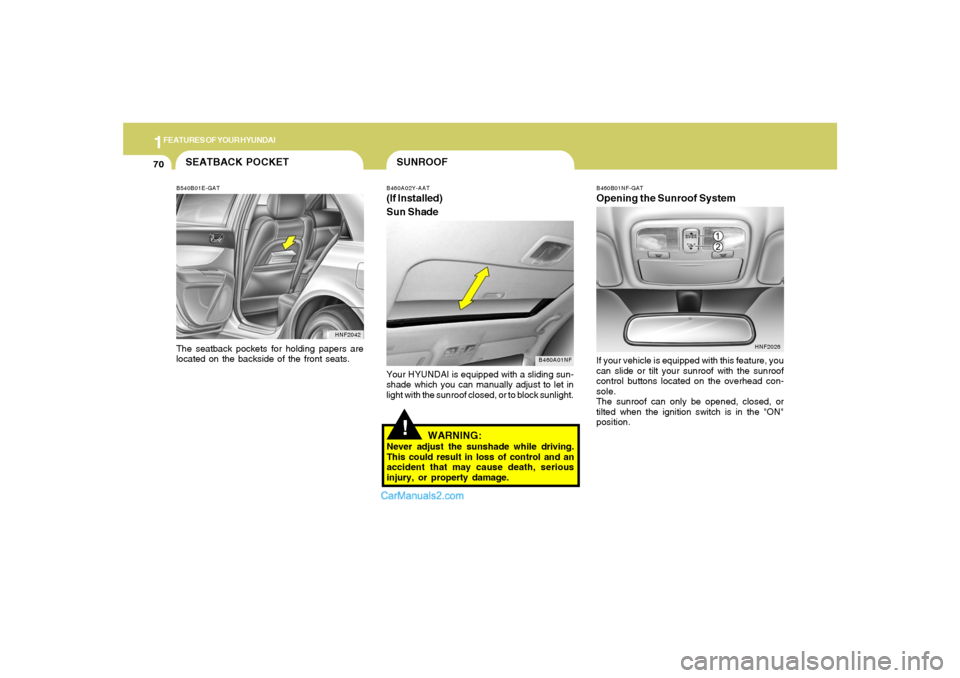

!SUNROOFB460A02Y-AAT(If Installed)
Sun Shade
B460A01NF
Your HYUNDAI is equipped with a sliding sun-
shade which you can manually adjust to let in
light with the sunroof clo

Page 84 of 271

Hyundai Sonata 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
71

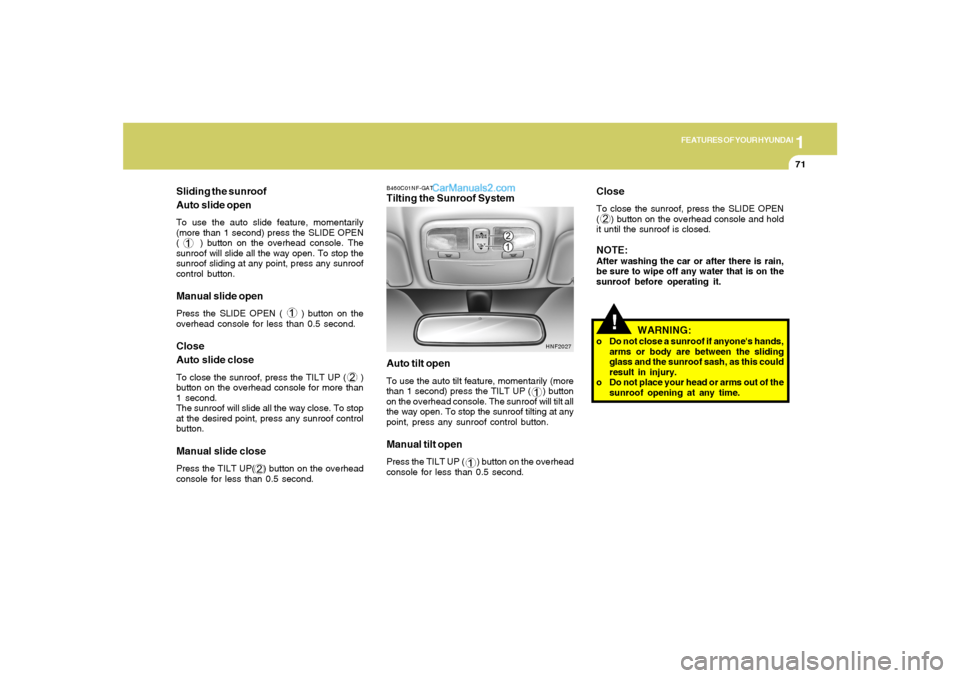

Sliding the sunroof
Auto slide openTo use the auto slide feature, momentarily
(more than 1 second) press the SLIDE OPEN
(     ) button on the overhead console. The
sunroo

Page 85 of 271

Hyundai Sonata 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI72
B460D01NF-GATManual Operation of SunroofIf the sunroof does not operate electrically:
1. Open the spectacle case.
2. Remove the two mounting screws of the
front overhead co

Page 86 of 271

Hyundai Sonata 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
73
!
CAUTION:
If the sunroof is not reset, it may not operate
properly.B460E01NF-AATResetting the sunroofWhenever the vehicle battery is disconnected
or discharged, or you u

Page 87 of 271

Hyundai Sonata 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI74

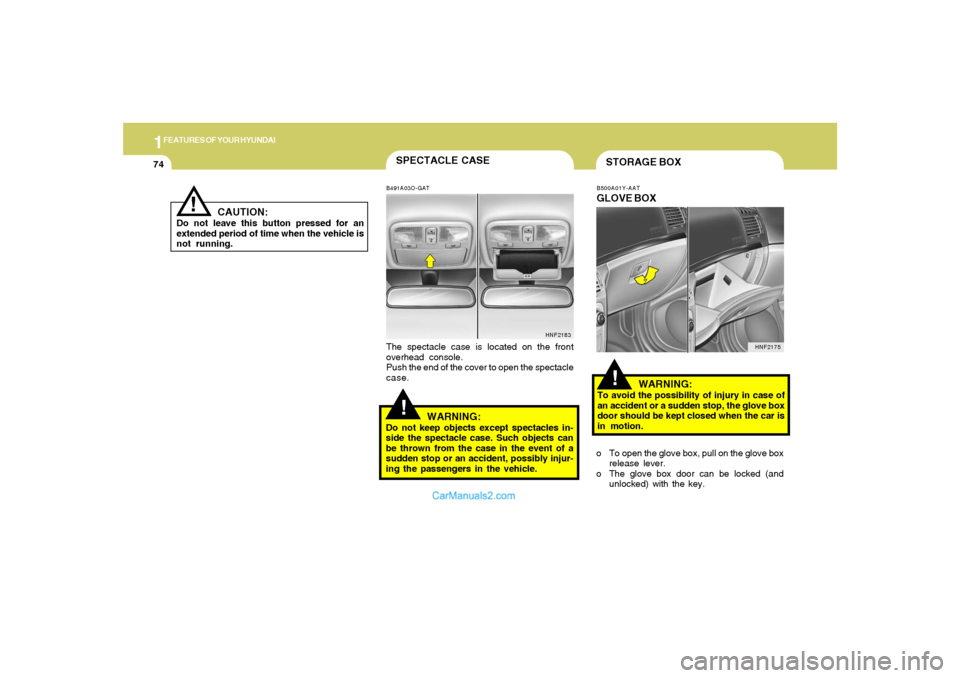

CAUTION:
Do not leave this button pressed for an
extended period of time when the vehicle is
not running.
!
SPECTACLE CASE!
B491A03O-GATThe spectacle case is located on the

Page 88 of 271

Hyundai Sonata 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
75

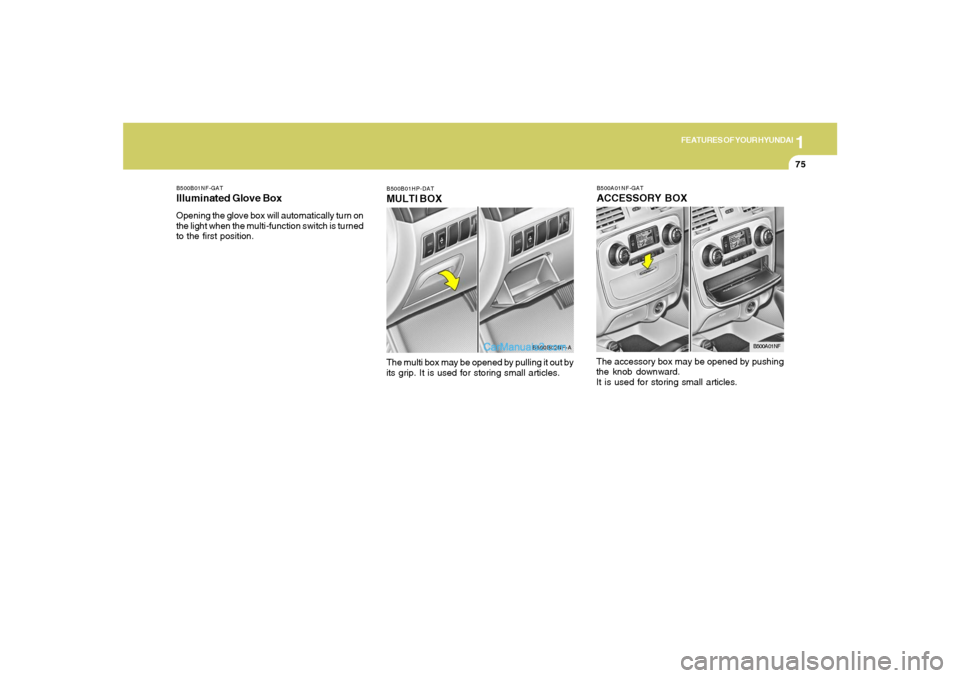

B500A01NF-GATACCESSORY BOXThe accessory box may be opened by pushing
the knob downward.
It is used for storing small articles.
B500A01NF
B500B01HP-DATMULTI BOXThe multi b
