2005 Hyundai Sonata Owner's Manual

Page 25 of 271

Hyundai Sonata 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI12
B060A01NF-GATPOWER WINDOWSThe power windows operate when the ignition
key is in the "ON" position. The main switches
are located on the drivers armrest and control
the fro

Page 26 of 271

Hyundai Sonata 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
13
!
!
HNF2018
Close
Open
WARNING:
o Be careful that someones head, hands
and body are not trapped by a closing
window.
o Never try to operate the main switch on
the driver

Page 27 of 271

Hyundai Sonata 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI14
!
B080B02A-AATAdjusting Seat Forward and RearwardTo move the seat toward the front or rear, pull
the lock release lever upward. This will release
the seat on its track so y

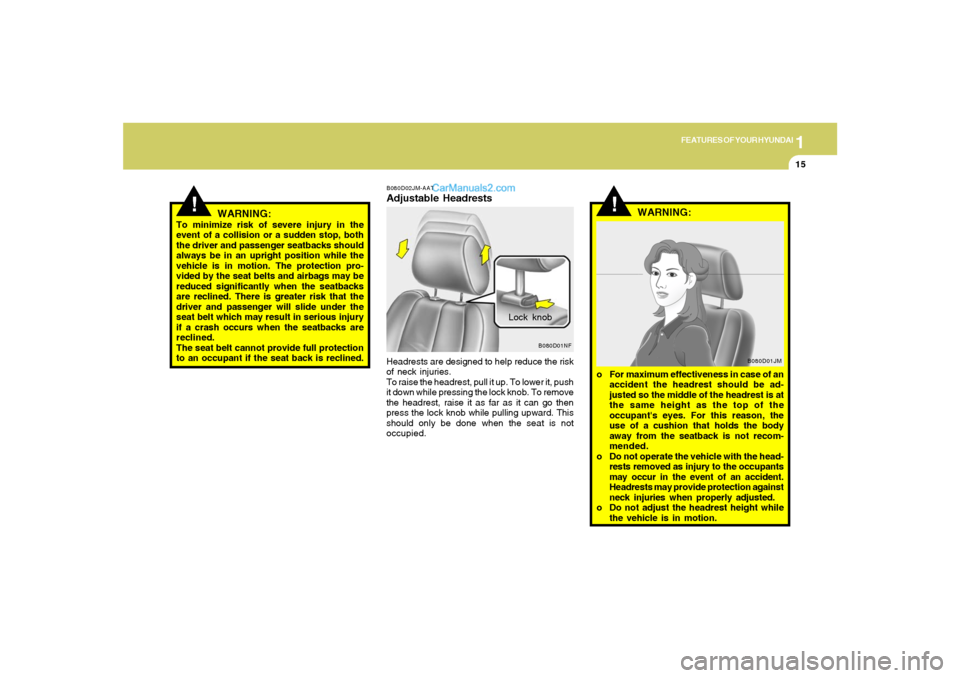

Page 28 of 271

Hyundai Sonata 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
15
!
WARNING:
To minimize risk of severe injury in the
event of a collision or a sudden stop, both
the driver and passenger seatbacks should
always be in an upright position

Page 29 of 271

Hyundai Sonata 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI16
B083D01NF-AATActive Headrests (If Installed)The active headrest is designed to move for-
ward and upward during a rear impact. This
helps to prevent the drivers and front

Page 30 of 271

Hyundai Sonata 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
17
!
B090A01Y-AATPOWER DRIVERS SEAT (If Installed)The drivers seat can be adjusted by using the
control knobs on the left side of the seat. Before
driving, adjust the seat

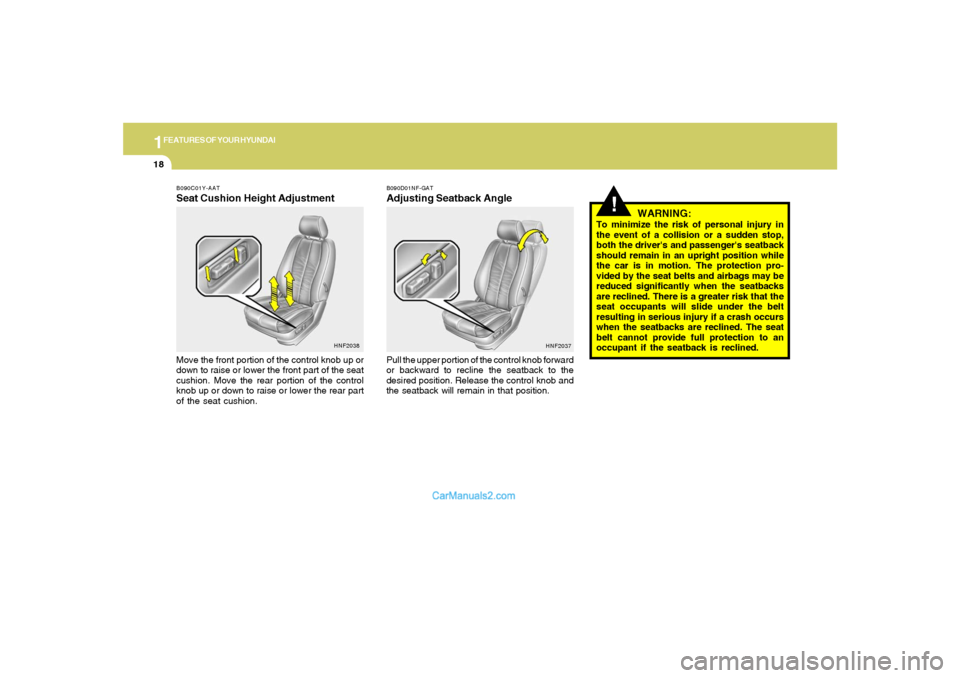

Page 31 of 271

Hyundai Sonata 2005  Owners Manual 1FEATURES OF YOUR HYUNDAI18
!
WARNING:
To minimize the risk of personal injury in
the event of a collision or a sudden stop,
both the drivers and passengers seatback
should remain in an upright posi

Page 32 of 271

Hyundai Sonata 2005  Owners Manual 1
FEATURES OF YOUR HYUNDAI
19
!
B100A01NF-AATSEAT WARMER (If Installed)The seat warmer is provided to warm the front
seats during cold weather. With the ignition key
in the "ON" position, push either
