44IN CASE OF EMERGENCY
36
HSRFL285

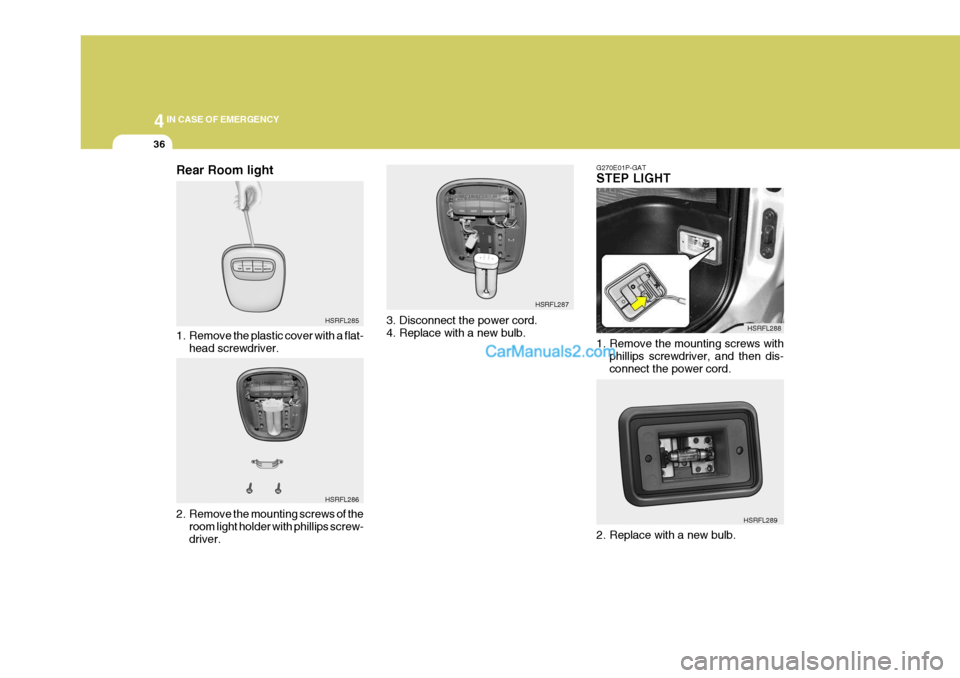

Rear Room light
1. Remove the plastic cover with a flat-
head screwdriver.
HSRFL286
2. Remove the mounting screws of the room light holder with phillips screw- driver. HSRFL287
G270E01P-GAT STEP LIGHT
1. Remove the mounting screws with
phillips screwdriver, and then dis- connect the power cord. HSRFL288
2. Replace with a new bulb. HSRFL289
3. Disconnect the power cord.
4. Replace with a new bulb.

4
CORROSION PREVENTION AND APPEARANCE CARE
37
4
IN CASE OF EMERGENCY
37
E130F01P-GAT LICENCE-PLATE LIGHT
HSRFL299
Remove the lens mounting screws, remove the lens, then remove the bulbby turning it counterclockwise while pressing it inward. Minbus/Van

44IN CASE OF EMERGENCY
38
7
96
BULB WATTAGE
G280A02P-GAT MINIBUS/VAN
G280A01P
123
45810
Socket typeBA15s
W-2/BA15s
W2.1 x 9.5D
BAY15dBA15s
W2.1 x 9.5D S8.5/8.5
Socket type
P43t
BA15s
W2.1d x 9.5d PK22s
S8.5/8.5 S8.5/8.5S8.5/8.5
W2.1d x 9.5DW2.1d x 4.6D Part Name
Rear fog lightHigh mounted stop lightLicense plate light Rear com bination light Step light Stop/tail light Turn signal light Back up light
Part Name
Headlight Front fog lightInteriorSide repeater Door edge warning light High/LowTurn signal lightPosition light Map light Room light
Wattage
21
16/21 5
21/5(O/S LAMP) 5(I/S LAMP) 21 165
NO.
678 9
10NO. 1 234 5 Wattage
60/55 215
55 8
1010 55
Front Rear (Glow type/Fluorescent type)

4
CORROSION PREVENTION AND APPEARANCE CARE
39
4
IN CASE OF EMERGENCY
39
Part Name
Side repeater Rear combination light License plate light Stop/tail light Turn signal lightBack up light
G280B02P-GAT TRUCK
G280B01P
Socket Type PK22s
PT3t/ P14.5S
BA 15s
W2.1d x 9.5d S8.5/8.5 S8.5/8.5
1 23
4 65
NO.
4 5 6 Wattage
5
21/5 21 21
5NO.
1 2 3 Part Name
Front fog light Headlight Interior Wattage
55
60/55 (H4)/55 (H1) 21
5 8
10
High/Low Turn signal light Position lightMap light Room light
Socket Type
W2.1 x 9.5D BAY15d
BA15s BA15s
W2.1 x 9.5D

44IN CASE OF EMERGENCY

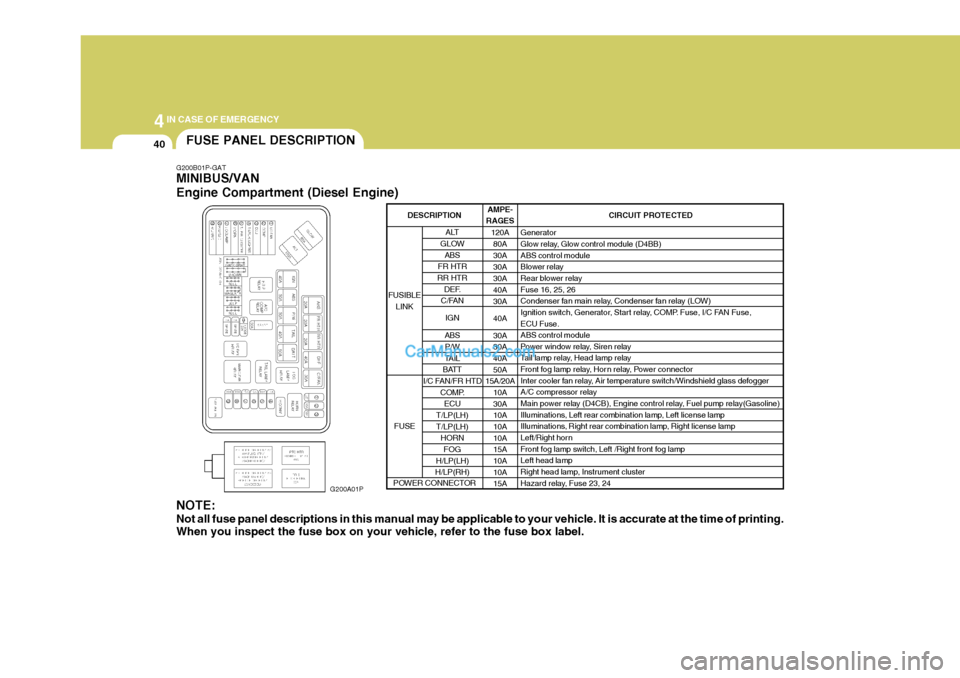

40FUSE PANEL DESCRIPTION
G200B01P-GAT MINIBUS/VAN Engine Compartment (Diesel Engine)
G200A01P
NOTE: Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label. AMPE-
RAGES
120A80A 30A30A30A40A30A 40A30A 30A 40A 50A
15A/20A
10A30A10A 10A 10A15A 10A 10A15A CIRCUIT PROTECTED
Generator
Glow relay, Glow control module (D4BB) ABS control module
Blower relay
Rear blower relay Fuse 16, 25, 26
Condenser fan main relay, Condenser fan relay (LOW)
Ignition switch, Generator, Start relay, COMP. Fuse, I/C FAN Fuse, ECU Fuse. ABS control module
Power window relay, Siren relay
Tail lamp relay, Head lamp relay
Front fog lamp relay, Hor n relay, Power connector
Inter cooler fan relay, Air temperature switch/Windshield glass defogger
A/C compressor relay
Main power relay (D4CB), Engine control relay, Fuel pump relay(Gasoline)
Illuminations, Left rear combination lamp, Left license lamp
Illuminations, Right rear combination lamp, Right license lamp
Left/Right horn
Front fog lamp switch, Left /Right front fog lampLeft head lamp
Right head lamp, Instrument cluster
Hazard relay, Fuse 23, 24
ALT
GLOW ABS
FR HTR
RR HTR DEF.
C/FAN
IGN
ABS P/W
TAIL
BATT
I/C FAN/FR HTD COMP.
ECU
T/LP(LH) T/LP(LH) HORN
FOG
H/LP(LH)
H/LP(RH)
FUSIBLE
LINK
FUSE
DESCRIPTION
POWER CONNECTOR

4
CORROSION PREVENTION AND APPEARANCE CARE
41
4
IN CASE OF EMERGENCY
41

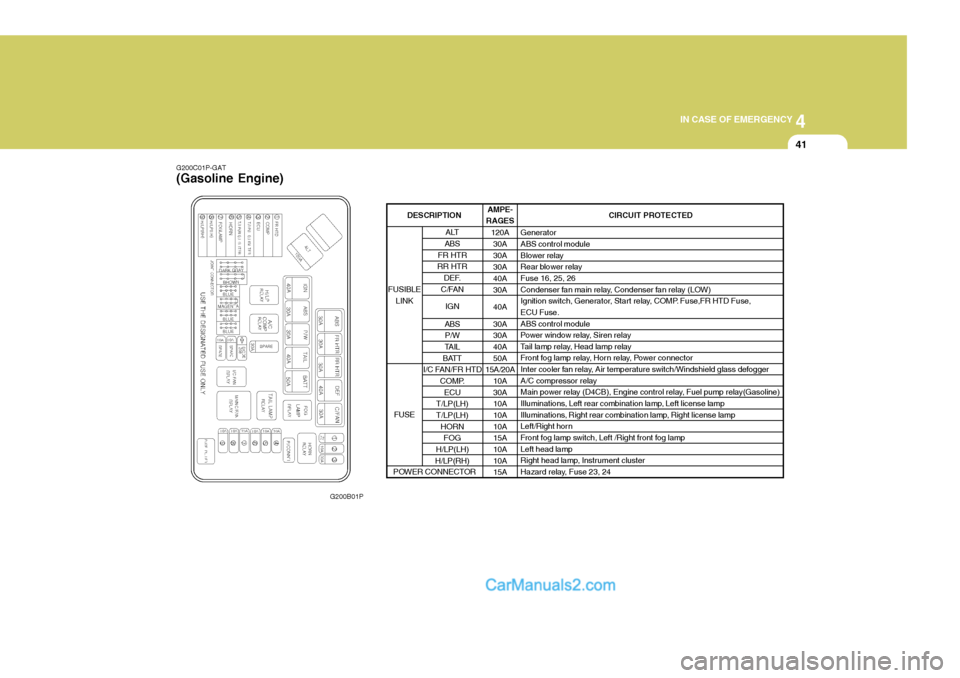

G200C01P-GAT (Gasoline Engine)
G200B01P AMPE-
RAGES
120A30A 30A30A40A30A 40A30A 30A 40A 50A
15A/20A
10A30A10A 10A 10A15A 10A 10A15A CIRCUIT PROTECTED
GeneratorABS control module
Blower relay
Rear blower relayFuse 16, 25, 26
Condenser fan main relay, Condenser fan relay (LOW)
Ignition switch, Generator, Start relay, COMP. Fuse,FR HTD Fuse,ECU Fuse. ABS control module
Power window relay, Siren relay
Tail lamp relay, Head lamp relay
Front fog lamp relay, Horn relay, Power connector
Inter cooler fan relay, Air temperature switch/Windshield glass defogger
A/C compressor relay
Main power relay (D4CB), Engine control relay, Fuel pump relay(Gasoline)
Illuminations, Left rear combination lamp, Left license lamp
Illuminations, Right rear combination lamp, Right license lamp
Left/Right horn
Front fog lamp switch, Left /Right front fog lamp Left head lamp
Right head lamp, Instrument cluster
Hazard relay, Fuse 23, 24
ALT
ABS
FR HTR
RR HTR
DEF.
C/FAN
IGN
ABS P/W
TAIL
BATT
I/C FAN/FR HTD
COMP.ECU
T/LP(LH) T/LP(LH) HORNFOG
H/LP(LH)
H/LP(RH)
FUSIBLE
LINK
FUSE
DESCRIPTION
POWER CONNECTOR

44IN CASE OF EMERGENCY
42
G200D01P-GAT Inner Panel
G200D01PFUSE
1 23 4 56 7 8 9
10 11 12 13 14 15161718 19 20 CIRCUIT PROTECTED
Power outside mirror switch
Audio, Digital clock, Cigarette lighter, Multi-meter, A/T shift & key lock control module
Power outlet
Heater control module, Mode actuator
Front wiper & Washer
Rear wiper & Washer
Left front/rear sunroof relay, PTC heater relay, Fuel filter heater relay, Thermo sensor,
Hear lamp relay, Condenser fan main relay, HLLD switch, Inter cooler fan relay
ETACM, Power & hold switch, Front wiper relay, Seat belt tension reducer, Blower relay,
Overhead blower relay, Outside mirror defogger relay, Rear window defogger relay,
Rear blower relay, Rear blower main switch, Rear blower sub switch
Rear fog lamp relay
Seat warmer switchInstrument clusterSRS control module
ABS control module, Neutral switch, Back-up lamp switch, Vehicle speed sensor, Fuel
water sensor, Fuel filter switch, Fuel filter heater, Transaxle range switch, Instrument
cluster, TCM, Stop lamp switch, A/T shift & Key lock control module, G-Sensor, Overdrive
switch, A/T shift lever
Hazard switch
ETACM, ECM (D4BH), ECM (D4CB), Immobilizer control module, Idle-up control module
Rear window defogger relay
Left front sunroof relay
Left rear sunroof relay
Data link connector, Heater control module, Outside mirror defogger relay
Stop lamp switchAMPERAGES 10A 15A15A10A20A15A 10A 10A 10A 10A10A10A 10A10A 10A25A20A20A10A15A

4
CORROSION PREVENTION AND APPEARANCE CARE
43
4
IN CASE OF EMERGENCY
43
FUSE 21 22 23 24 2526 27 28- CIRCUIT PROTECTED
Digital clock, Hazard switch, A/T key solenoid, A/T shift lever TCCM
Hazard relay, Multipurpose check connector, Front door lamp, ETACM, Step lamp,
Instrument cluster, Room lamp switch, TCM, Room lamp, Ignition key ILL & Door warning
switch
Back warning buzzer, Immobilizer control module, Audio, Power antenna
Door lock relay, Door unlock relay
Overhead blower relay
Condenser fan relay (D4CB), Inter cooler fan relay (D4CB), Glow relay (D4CB),
Stop lamp switch, Throttle flap solenoid, EGR solenoid valve
ECM (D4CB), Immobilizer control module (D4CB)
SPARE
AMPERAGES 10A 20A 10A15A 20A10A 15A10A
20A/15A/10A
