DO-IT-YOURSELF MAINTENANCE
27
G290B01TG-GAT

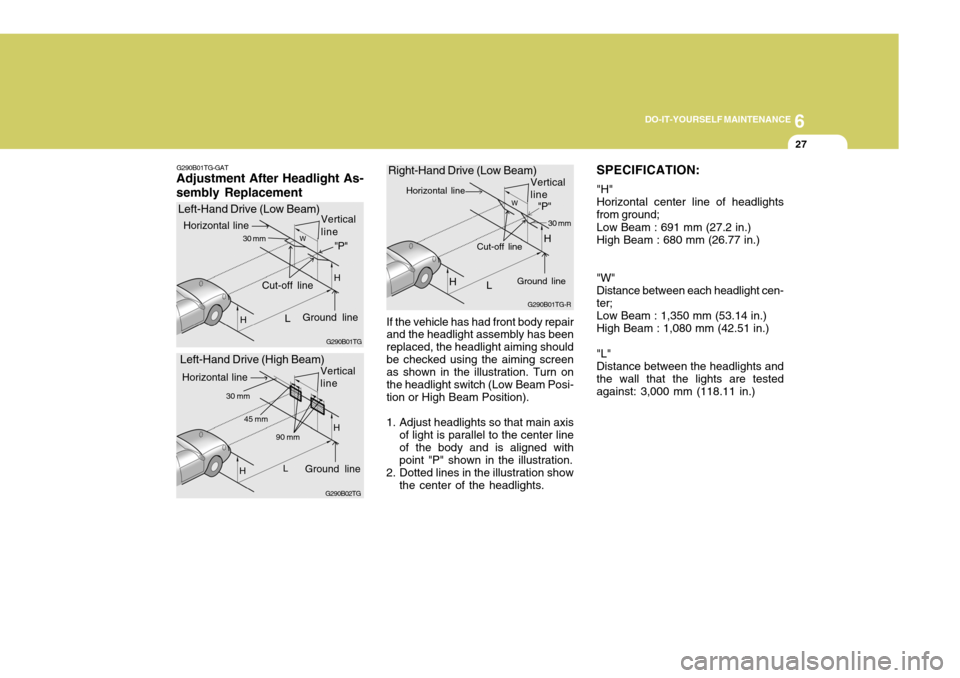

Adjustment After Headlight As- sembly Replacement
G290B01TG
Left-Hand Drive (Low Beam)
G290B01TG-R
Right-Hand Drive (Low Beam)
If the vehicle has had front body repair and the headlight assembly has been replaced, the headlight aiming shouldbe checked using the aiming screen as shown in the illustration. Turn on the headlight switch (Low Beam Posi-tion or High Beam Position).
1. Adjust headlights so that main axis of light is parallel to the center lineof the body and is aligned withpoint "P" shown in the illustration.
2. Dotted lines in the illustration show the center of the headlights. SPECIFICATION: "H" Horizontal center line of headlightsfrom ground; Low Beam : 691 mm (27.2 in.) High Beam : 680 mm (26.77 in.) "W" Distance between each headlight cen-ter;Low Beam : 1,350 mm (53.14 in.) High Beam : 1,080 mm (42.51 in.) "L" Distance between the headlights andthe wall that the lights are testedagainst: 3,000 mm (118.11 in.)
G290B02TG
Left-Hand Drive (High Beam)
LW
H
H Cut-off line
Ground line"P"
Horizontal line
30 mm
L
H 90 mm
Ground line
Horizontal line Vertical line
H45 mm
LW
H Cut-off line
"P"
Horizontal line
Ground line 30 mm
30 mm
Vertical line
Vertical line
H

6 DO-IT-YOURSELF MAINTENANCE
28
Replacement instructions:
1. Allow the bulb to cool. Wear eye protection.
2. Open the engine hood and discon- nect the negative (-) post of the battery.
3. Always grasp the bulb by its plastic base, avoid touching the glass.
G270A01TG-GAT
HEADLIGHT AND FRONT FOG LIGHT
Headlight (High beam) Headlight(Low beam)
G270A01TG
Front Fog Light
REPLACEMENT OF LIGHT BULBS
G260A01TG-GAT Before attempting to replace a light
bulb, be sure the ignition switch is turned to the "OFF" position.
The next paragraph shows how to
reach the light bulbs so they may bechanged. Be sure to replace theburned-out bulb with one of the same number and wattage rating.
See page 6-36 for the wattage descrip-
tions.
! CAUTION:
o Keep the lights out of contact with petroleum products, such as oil, gasoline, etc.
o Be sure to replace the LED type
equipped bulbs with an assem- bly.
o If you don't have necessary tools, the correct bulbs and the exper-tise, consult your authorized Hyundai dealer. CAUTION:
o The headlight aiming should be checked by an authorized Hyundaidealer after replacing the head-light bulbs.
o If your vehicle is equipped with
HID (High Intensity Discharge) type headlight, you must not replace or inspect the headlight. It has a danger of an electric shock. If the headlight is not work- ing, have your vehicle inspectedby your Hyundai Dealer.
! Headlight
