If you decide to tow your vehicle
with all f our wheels on the ground,
make sure you use a properly-
designed and attached tow bar.
Prepare the vehicle for towing as
described above, and leave the
ignition switch in Accessory (I) so
the steering wheel does not lock.
Make sure the radio and any items
plugged into the accessory power
socket are turned of f so they do not
rundownthebattery.
Emergency T owing
T aking Care of t he Unexpect ed
187
The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in ACCESSORY (I), and
make sure the steering wheel turns
f reely bef ore you begin towing.
——
y


y
()y
y

188
——
y

y
()y

y

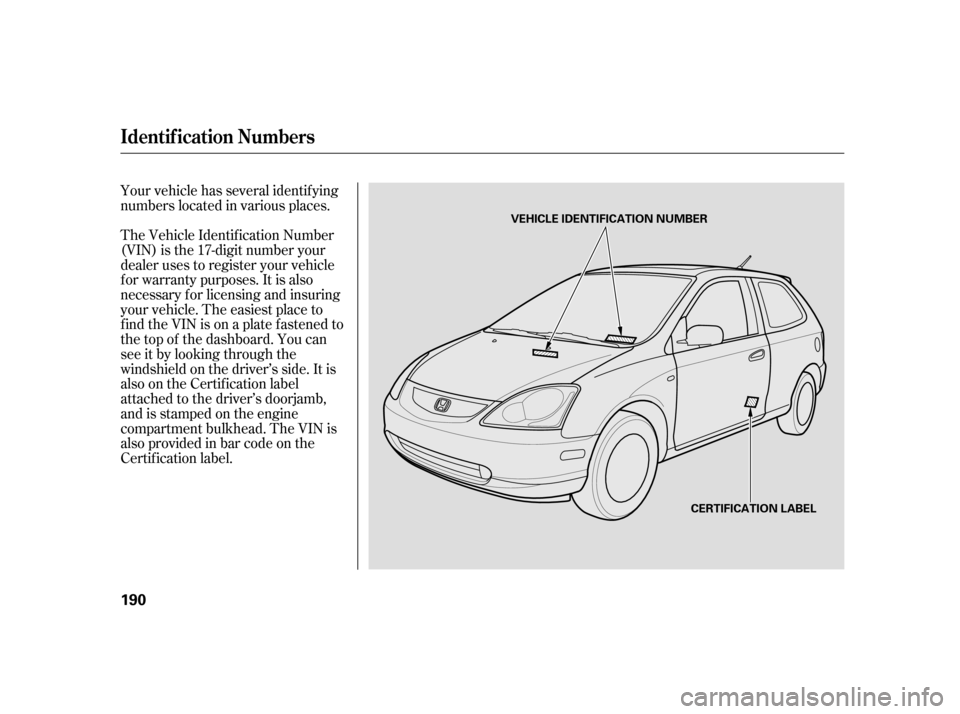

Your vehicle has several identif ying
numbers located in various places.
The Vehicle Identif ication Number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the Certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
Certif ication label.
Identif ication Numbers
190VEHICLE IDENTIFICATION NUMBER
CERTIFICATION LABEL
——
y
y
()y
y

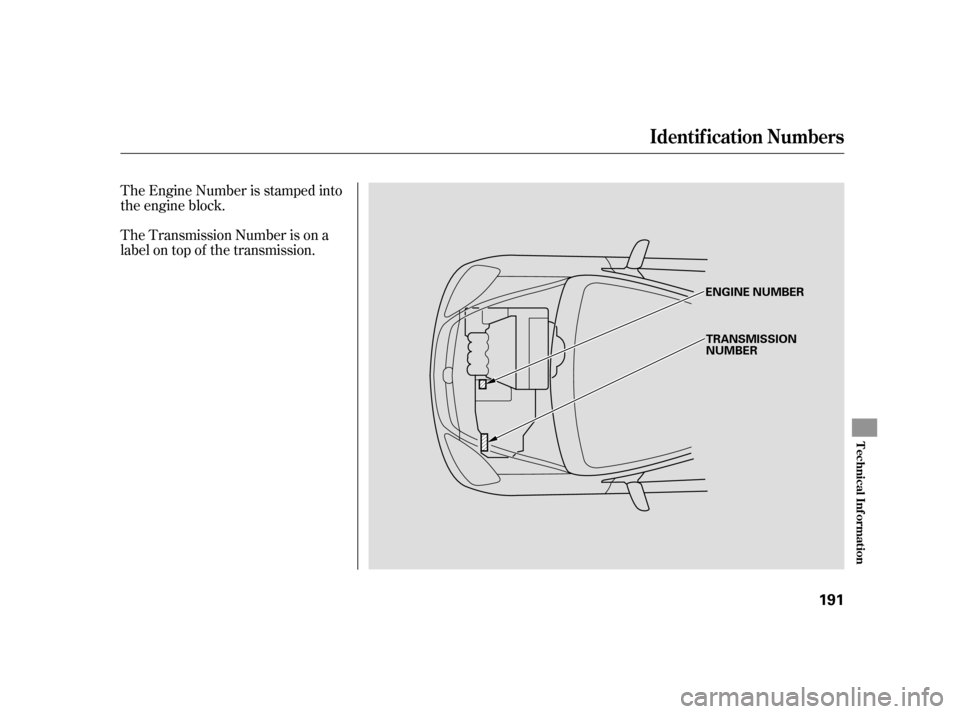

The Engine Number is stamped into
the engine block.
The Transmission Number is on a
label on top of the transmission.
Identif ication Numbers
T echnical Inf ormation
191
ENGINE NUMBER
TRANSMISSION
NUMBER
——
y
y
()y
y

ÎÎ Î
Î Î Î
Specif ications
192 Dimensions
Weights
Engine
Capacities
66.7 in (1,695 mm)
56.3 in (1,430 mm)
101.2 in (2,570 mm)
57.9 in (1,470 mm)
58.0 in (1,472 mm)
3.39 x 3.39 in (86.0 x 86.0 mm) 121.9 cu-in (1,998 cm
)
9.8 : 1 13.2 US gal (50
)
1.32 US gal (5.0
)
1.77 US gal (6.7
)
4.4 US qt (4.2
)
4.2 US qt (4.0)
5.6 US qt (5.3)
1.6 US qt (1.5)
1.8 US qt (1.7)
2.6 US qt (2.5
)
0.13 US gal (0.5
)
5.3 US qt (5.0
)
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb.
Water cooled 4-stroke DOHC
i-VTEC 4-cylinder gasoline engine
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
SKJ20DR-M11
IZFR6K-11 Fuel tank
Engine
coolant
Engine oil Manual
transmission
fluid
Windshield
washer reservoir
Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
162.8 in (4,135 mm)
FrontRear Approx.
Change Manual
Total Manual
Change
Without filter
Total
ChangeTotal
NGK:
DENSO: 1: 2: 3:
U.S. models
Canadian models 1
23
Including filter
——
y
y
()y
y

µµµ
µ
µ µµµµµµµµµµµµµµ µ µ
Specif ications
T echnical Inf ormation
193
Air Conditioning
Lights Battery
Tires
Alignment
Fuses
HFC-134a (R-134a)
16.9 18.6 oz (500 550 g) SP-10
12 V 60 W
Refrigerant type
Charge quantity
Lubricant type Headlights
Front turn signal
Front parking light
Side turn signal light
Front side marker
Rear turn signal lights
Stop/Taillights
Rear side marker lights
Back-up lights
High-mount brake light
License plate lights
Front ceiling light/Spotlights
Center ceiling light
Cargo area light 12 V 5 W
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
8W
5W
5W
5W
18 W
2CP(3.8W)
21/5 W
21 W
2CP(3.8W)
5W
3CP(5W)
21 W
12 V 51 W
Capacity Size
Pressure
Toe-in
CamberCaster
60 psi (420 kPa , 4.2 kgf/cm
)
30 psi (210 kPa , 2.1 kgf/cm)
30 psi (210 kPa , 2.1 kgf/cm)
T135/70D15 99M P205/55R16 89V 1°36’
0°51’
0°09’
0.08 in (2.0 mm)
0.00 in (0.0 mm)
36 AH/5 HR
12 V Interior
Under-hood
45 AH/20 HR
12 V See page 185 or the fuse label
attached to the inside of the fuse
box door under the dashboard.
See page 184 or the fuse box
cover.
FrontRear
FrontRear
Front
Front/Rear
Spare
FrontRear
Spare
HILO
(HB3)(HB4)
——
y

y
()y
y

µ
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
Quality grades can be f ound where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
All passenger vehicle tires must
conf orm to Federal Saf ety
Requirements in addition to these
grades. The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices, and dif f erences in
road characteristics and climate.
The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
DOT T ire Quality Grading (U.S. Vehicles)
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A Treadwear Traction AA, A, B, C
194
——
y
y
()y
y

µµ µ µ µ µ µ µ
µ µ µ µ
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance, which all passenger
vehicle tires must meet under the
Federal Motor Vehicle Saf ety
Standard No. 109. Grades B and A
represent higher levels of
perf ormance on the laboratory test
wheel than the minimum required by
law.
Warning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not over-
loaded. Excessive speed, underinf la-
tion, or excessive loading, either separately or in combination, can
cause heat buildup and possible tire
f ailure.
Date of manufacture.
Tire type code.
Manuf acturer’s
identification mark.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
Tire Identif ication Number (TIN) is
a group of numbers and letters that
look like the f ollowing example TIN.
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Load index (a numerical code
associated with the maximum
load the tire can carry).
Rim diameter in inches.
Tire construction code (R
indicates radial).
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means. Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire width in millimeters.
Vehicletype(Pindicates
passenger vehicle).
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below. P 55 R 16 V DOT B97R
FW6X 2202
205 89
Temperature A,B,C
Tire Labeling
DOT T ire Quality Grading (U.S. Vehicles), T ire L abeling
T ire Ident if icat ion Number
Tire Size
T echnical Inf ormation
195
DOT B97R FW6X 2202
P205/55R16 89V
——
y
y
()y
y
